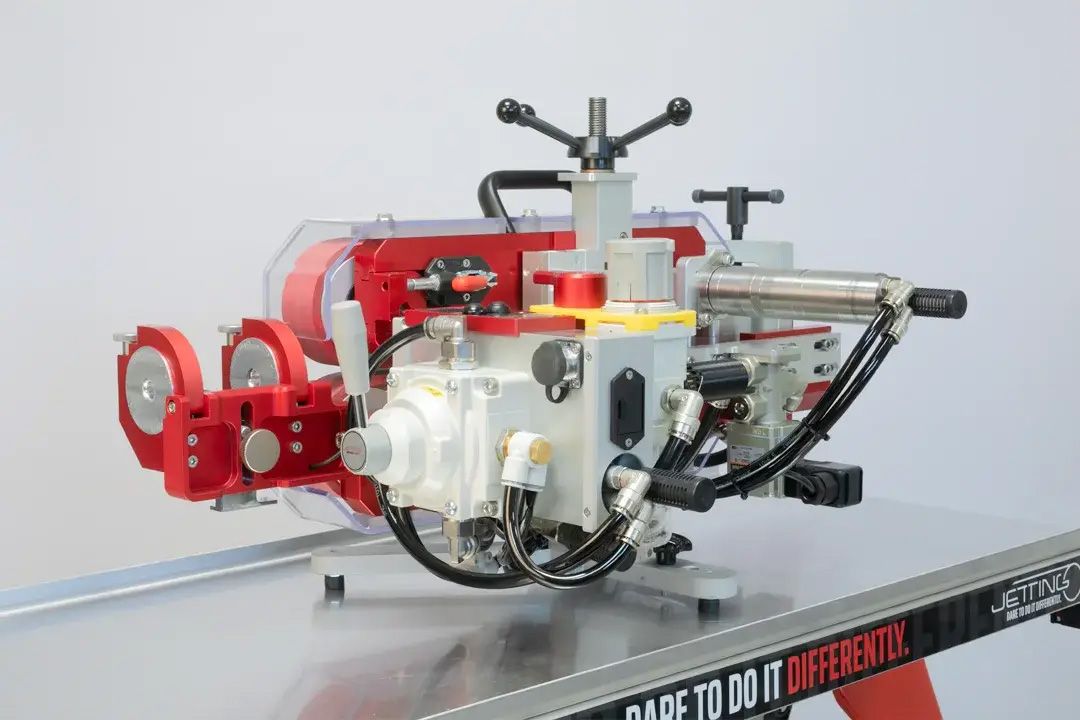

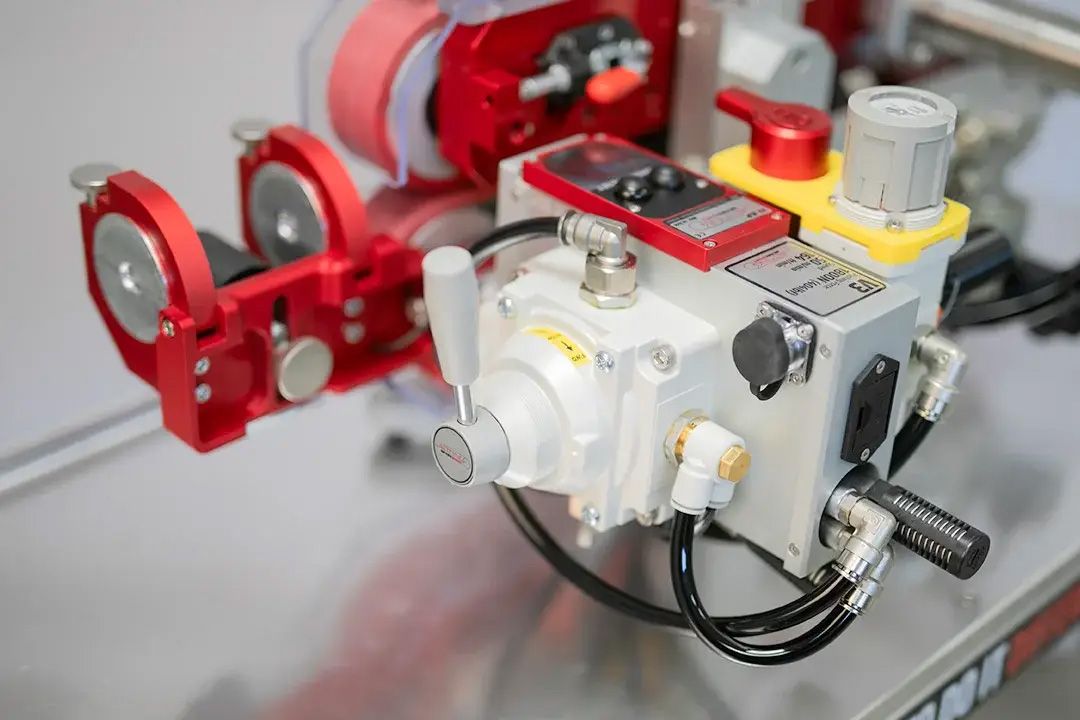

V3 Fiber Blowing Machine, 4-40mm Cable, 10-63mm Duct, 1000N, 110m/min.
- Pneumatic operation, double motors.
- Gentle operation with long contact surface on the cable.
- Display for speed, distance, and pressure in duct.
- Max. speed 110 m/min, max pushing force on cable 1000 N.
- Adjustable clamping force.
- Works with JetLogger.
- Joystick controller with forward and reverse function.
- Compatible with Jetting Cart
- Max pressure: 15 Bar
- Minimum Airflow: 10 m³/min
- Pushing force: Up to 1000 N
- Maximal Speed: 110 m/min.
- Cable diameter: 4-40 mm
- Duct diameter: 10-63 mm
- Weight: approx 25 kg
- Air connection: 1" Claw connector
- WxHxD: 700 x 550 x 400 mm
Typical usage
Robust and powerful, pneumatic-operated fiber blowing machine designed for single cables. Configuration can be made for cables between 4 and 40 mm, making it ideal for both microfiber cable installations and backbone installations, with duct dimensions between 10 and 63 mm. The unique joystick controller and agile motors ensure optimal control of the installation. With an anodized aluminum construction, the machine is lightweight yet exceptionally strong.
- Pneumatic operation, double motors.
- Gentle operation with long contact surface on the cable.
- Display for speed, distance, and pressure in duct.
- Max. speed 110 m/min, max pushing force on cable 1000 N.
- Adjustable clamping force.
- Works with JetLogger.
- Joystick controller with forward and reverse function.
- Compatible with Jetting Cart
