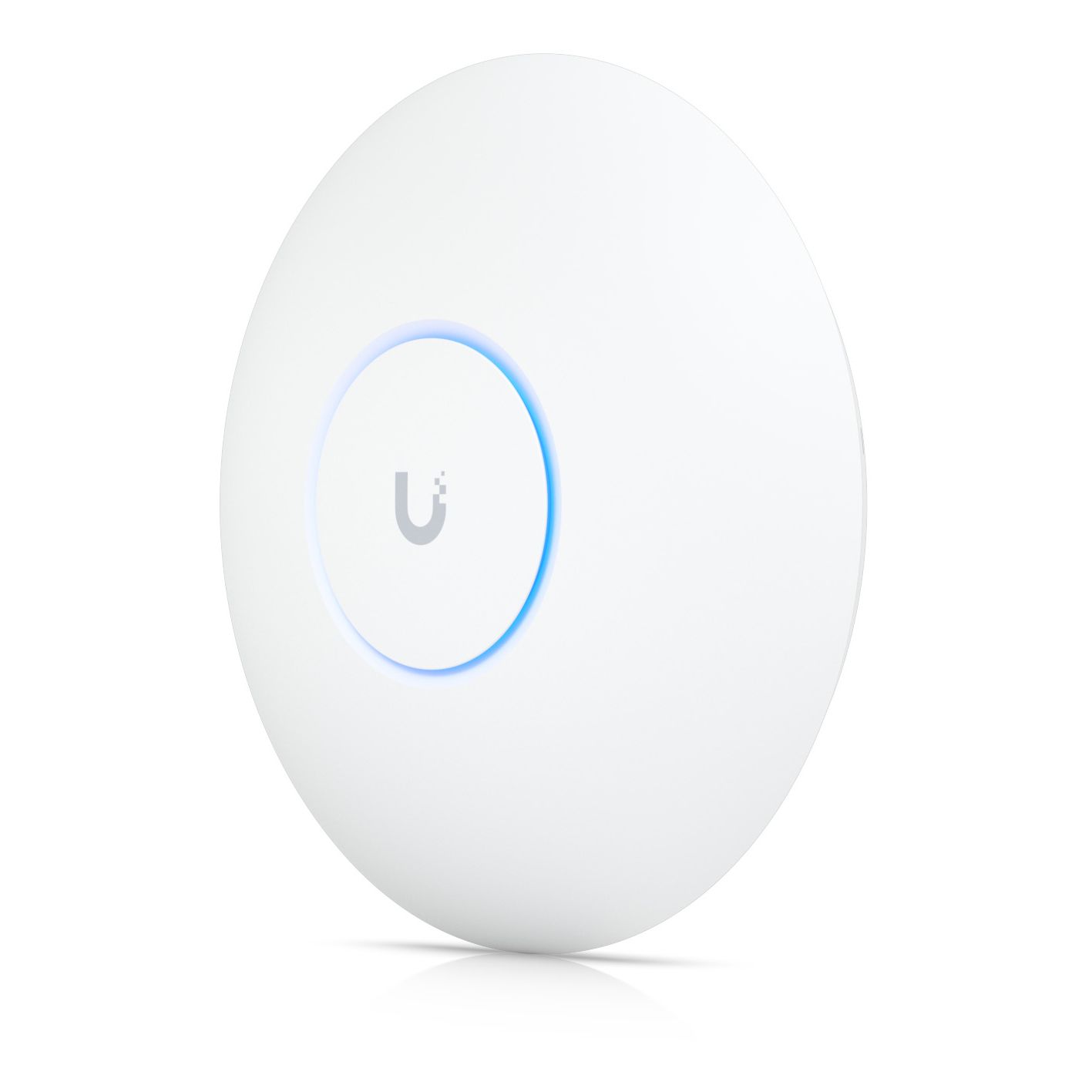

UniFi WiFi 7 Pro-Max Indoor Access Point, 500+ Clients, 5.7 Gbps
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Available stock:
Article number:
U7-PRO-MAX
Manufacturer number:
U7-PRO-MAX
Manufacturer page:
UBIQUITI
EAN:
0810084695555
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+ (PoE Adapter not included)
- 2.5 GbE uplink
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Technical properties
Antenna Gain dBi:
2.4 GHz: 4 dBi, 5 GHz: 6 dBi, 6 GHz: 5.9 dBi
Case material:
Aluminium Alloy, Polycarbonate
Certificate:
CE, FCC, IC
Dimensions:
Ø 206 x 46 mm
Field of application:
Indoor
Frequency:
2.4 GHz & 5 GHz & 6 GHz
MIMO 2.4 GHz:
2x2
MIMO 5 GHz:
4x4
MIMO 6GHz:
2x2
Management:
Ethernet
Max. TX Power:
2.4 GHz: 23 dBm / 5 GHz: 29 dBm / 6 GHz: 23 dBm
Mounting:
Ceiling / Wall Mounting
Operating Conditions:
-30°C - +60°C
Operating Humidity:
5 - 95%, non-condensing
PoE Standard:
IEEE 802.3 at
Power Consumption max.:
22 W
Power Supply:
PoE+
QoS:
Per-user rate limiting
SSID per Antenna / Total:
8
Security:
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Transfer Rate 2.4 GHz:
688 Mbps
Transfer Rate 5 GHz:
8648 Mbps
Transfer Rate 6GHz:
5765 Mbps
VLAN:
802.1Q
WLAN Standard:
IEEE 802.11 a/b/g/n/ac/ax/be
Wireless Clients:
500+
