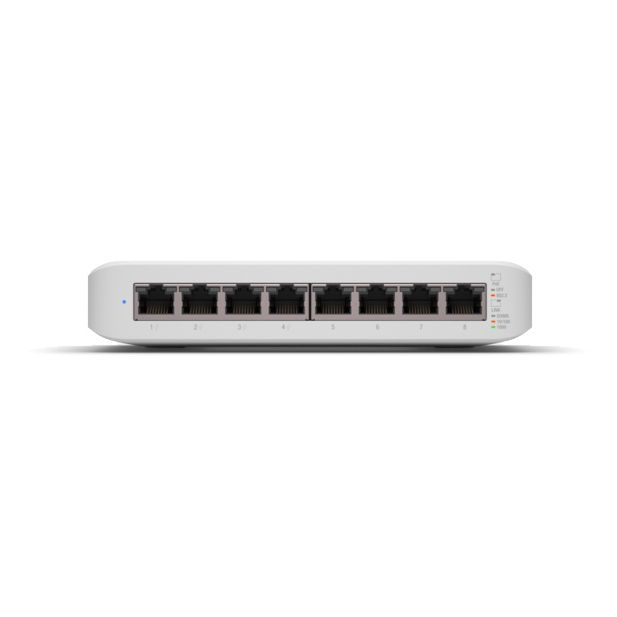

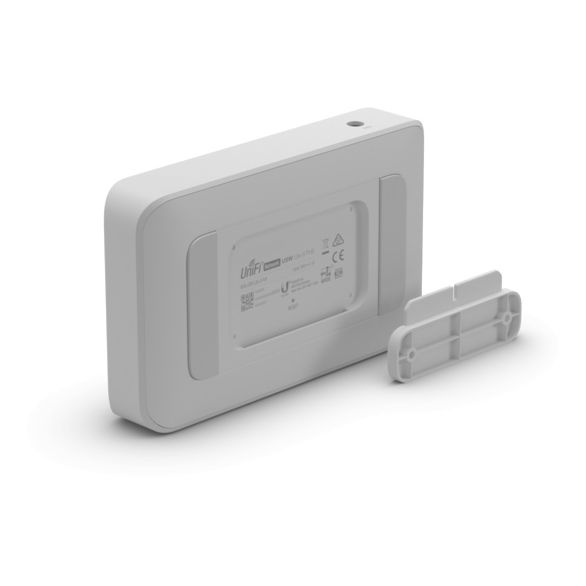

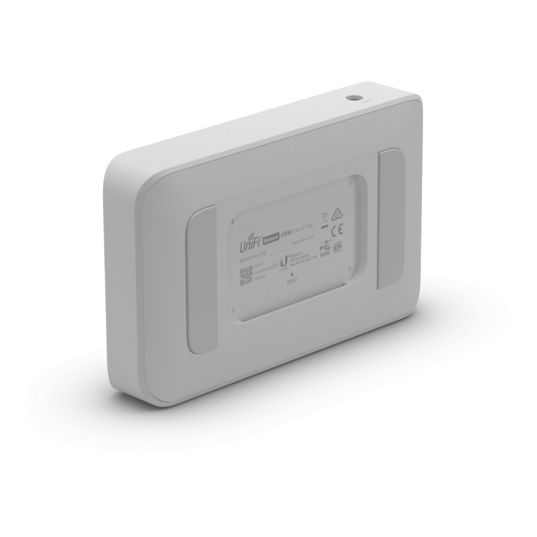

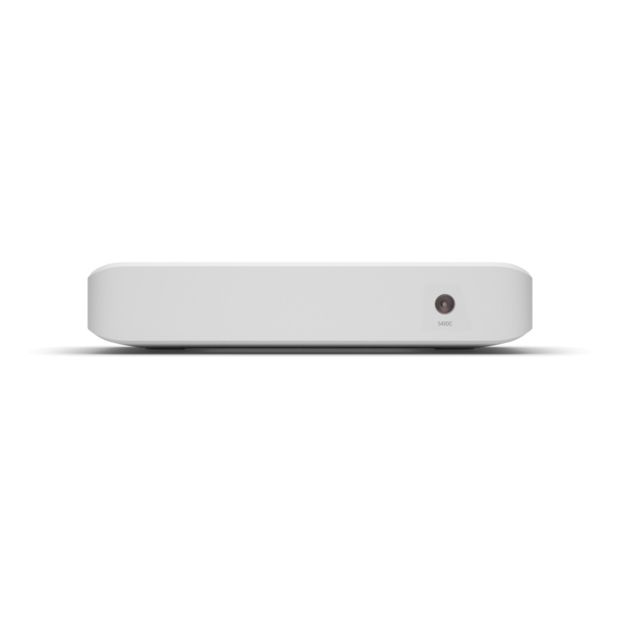

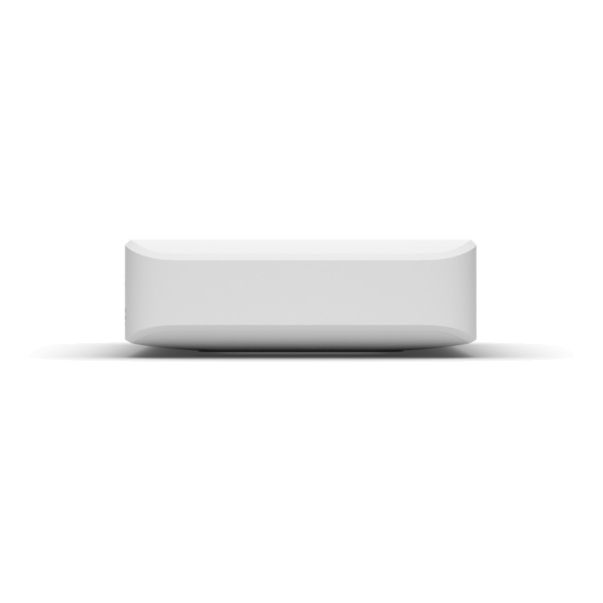

UniFi USW Lite PoE 802.3af/at 8-Port Gigabit Switch w/ Layer2 Features
- 4x Gigabit RJ45 ports with 802.3af/at
- 4x Gigabit RJ45 ports
- Desktop Design
- Auto-Sensing IEEE 802.3af/at PoE
The USW-Lite-8-PoE is a fully managed Layer2 switch with eight Gigabit Ethernetports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile appsupport, the USW-Lite-8PoE offers Layer2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from any where.
Available stock:
Article number:
USW-LITE-8-POE
Manufacturer number:
USW-LITE-8-POE
Manufacturer page:
UBIQUITI
EAN:
0810010071156
- 4x Gigabit RJ45 ports with 802.3af/at
- 4x Gigabit RJ45 ports
- Desktop Design
- Auto-Sensing IEEE 802.3af/at PoE
The USW-Lite-8-PoE is a fully managed Layer2 switch with eight Gigabit Ethernetports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile appsupport, the USW-Lite-8PoE offers Layer2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from any where.
Technical properties
1 GBit Ports:
4
1 GBit Ports, PoE:
4
19-inch Rackmount:
-
Certificate:
CE, FCC, IC
Design:
Desktop
Dimensions:
99.6 x 163.7 x 31.7 mm
Ext. Temperature Range:
No
Fan:
-
Fanless:
Yes
Layer3 Features:
-
Main Speed:
1 Gbit Copper
Managed:
Managed
Modes / Function:
SMB Layer 2 PoE Gigabit Ethernet Switch
Network Ports:
8-Port
Number of Ports:
8 - 15
Operating Conditions:
-15°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Budget:
≤199 Watts
PoE Ports:
4
PoE Power Budget:
52
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption max.:
60 W
Power Supply:
100 - 240 VAC
Power Supply:
external, 54V / 60 W
Redundant PSU:
No
SFP+ Ports:
-
SFP Ports:
-
Stackable:
No
Switch Capacity:
16 Gbps
Total Non-Blocking Throughput:
8 Gbps
USP-RPS Support:
-
UniFi AR Support:
-
Uplink Speed:
100 Mbit/1 Gbit Copper
max. Power consumption per Port, PoE+:
30 W
