UniFi G3 Reader, white
Compact third-generation access reader with Apple Touch Pass support.
*10 free 1-year Apple Touch Passes included.
Note. We support Touch Pass in all countries except Mexico, Brazil, China, Taiwan, Vietnam and Nepal
Available stock:
- 1x UniFi Access Door Hub
- 1x Access Reader G2
- 1x UniFi Access Cards
Compact third-generation access reader with Apple Touch Pass support.
*10 free 1-year Apple Touch Passes included.
Note. We support Touch Pass in all countries except Mexico, Brazil, China, Taiwan, Vietnam and Nepal
Technical properties
100 MBit Ports, PoE:
1
Application Field:
Outdoor
Authentication:
NFC, Touch Pass, Entsperren per Smartphone
Bluetooth:
Bluetooth 4.1
Case material:
Polycarbonate, Glass
Certificate:
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Colour:
Weiss
Communication:
IP
Dimensions:
93 x 40 x 36.5 mm
ESD/EMP Protection:
Air ± 15 kV; Contact ± 8 kV
Field of application:
Outdoor

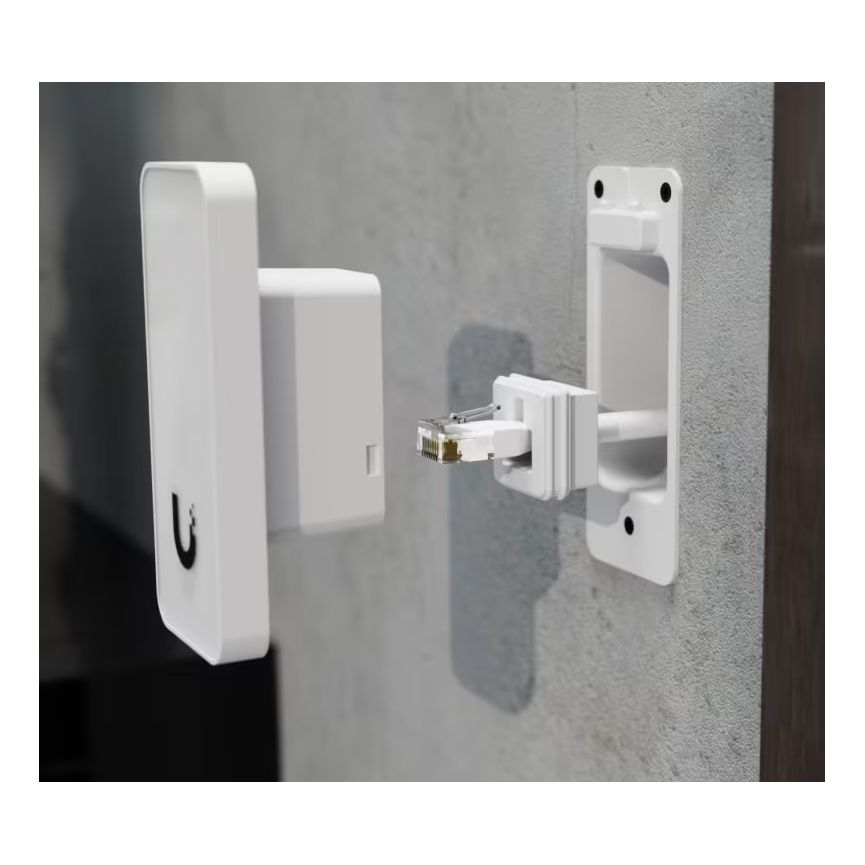

Mounting:
In-wall, Gang Box
NFC:
13.56 MHz
NFC Read Range:
< 30 mm
NFC Technology:
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa ...
Operating Conditions:
-30°C - +45°C
Operating Humidity:
5 - 95%, non-condensing
Power Consumption max.:
5.0 W
Power Supply:
PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Safety Class:
IP55
Sensor:
Proximity sensor
Speaker:
8 Ohms. 0.7 W
Supported Input Voltage:
48V DC
