UniFi Dream Machine Beast, 2x 25G SFP28, 2x 10 SFP+, 8x 10 Gbit, 2x 1 Gbit
The Ubiquiti UniFi Dream Machine Beast is a high-performance 1U cloud gateway for large-scale UniFi environments. It combines routing, security gateway functionality, UniFi control, VPN/SD-WAN capabilities and the full UniFi Application Suite in a rack-mountable appliance. According to Ubiquiti, the gateway supports more than 7,500 concurrent users, over 750 managed UniFi devices, up to 200 access hubs and UniFi Protect deployments with up to 100 HD, 60 2K or 40 4K cameras.

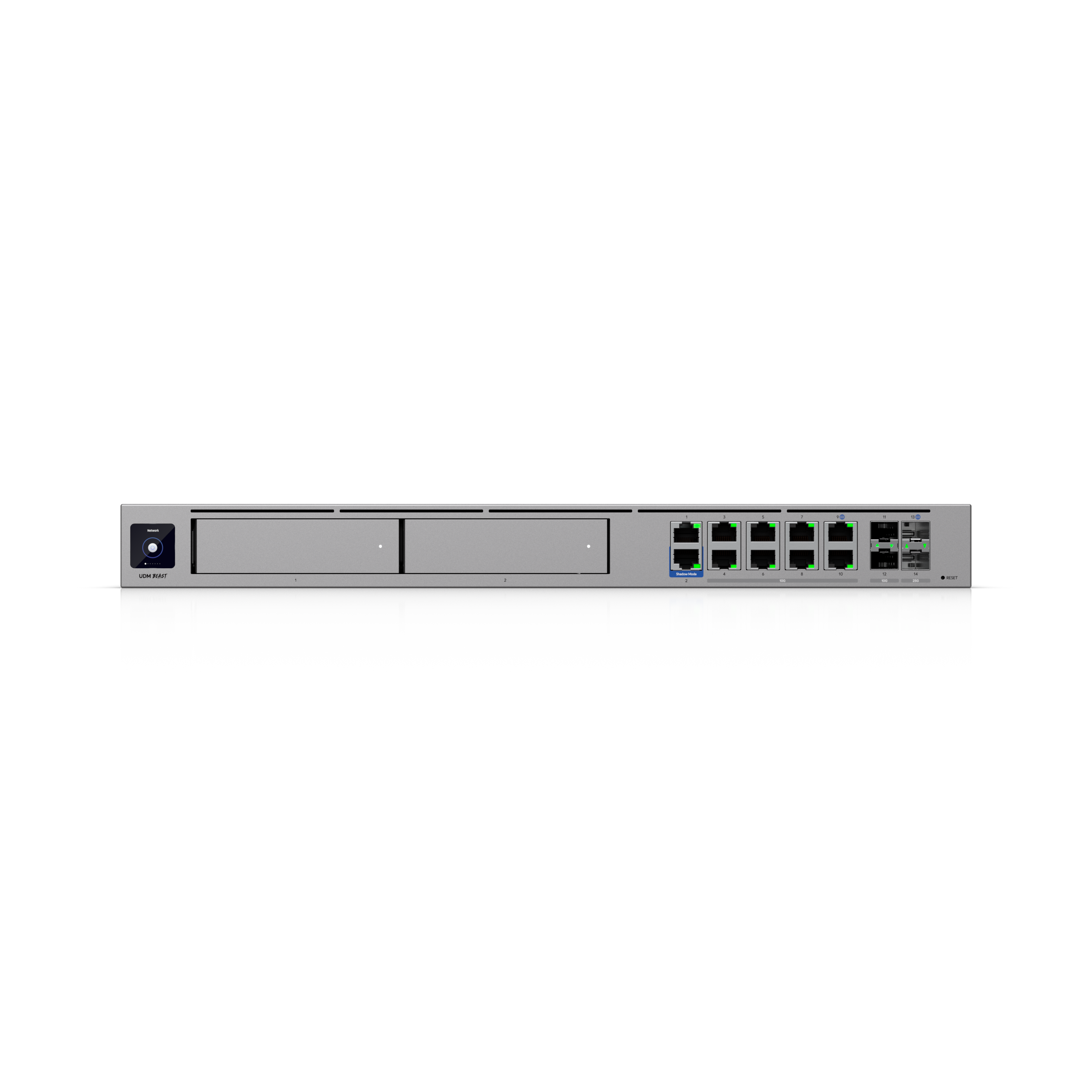

The port configuration includes 2× 1 GbE RJ45, 8× 10 GbE RJ45, 2× 10G SFP+ and 2× 25G SFP28. The default WAN ports are one 25G SFP28 port and one 10 GbE RJ45 port, while up to eight WAN ports are supported. With 25 Gbps IDS/IPS throughput, stateful firewall, Layer 7 application-aware firewall, DPI, traffic identification, content filtering, ad blocking and IPS/IDS, the Dream Machine Beast provides a powerful security platform for data-intensive enterprise networks.
For high availability and professional network architectures, the appliance supports Shadow Mode with VRRP gateway failover, DC power backup, multi-WAN load balancing, LACP port aggregation, OSPF, BGP, advanced QoS, policy-based WAN and VPN routing, and site-to-site VPN via Site Magic, IPsec and OpenVPN. VPN server options include WireGuard, OpenVPN, L2TP, Teleport and Identity Endpoint One-Click VPN. The hardware platform is based on an octa-core ARM v9 processor at 2.1 GHz, 16 GB system memory, integrated 128 GB SSD and two 3.5" NVR HDD bays. The enclosure is made from CNC aluminium and SGCC steel and includes a 1.3" touchscreen display.
- 25 Gbps IDS/IPS throughput
- Designed for 7,500+ concurrent clients
- Manages 750+ UniFi devices
- 8× 10 GbE RJ45 ports
- 2× 25G SFP28 ports
- 2× 10G SFP+ ports
- UniFi Network, Protect, Access, Talk and Connect
- Two 3.5" NVR HDD bays
- Integrated 128 GB SSD
- 1U rack-mount enclosure
The Ubiquiti UniFi Dream Machine Beast is designed for very large UniFi networks, campus deployments, enterprise sites, education, hospitality environments, data centre uplinks and demanding multi-site infrastructures. With 25 Gbps IDS/IPS throughput, support for more than 7,500 concurrent clients and management of over 750 UniFi devices, the gateway is suitable for networks with high user density, extensive VLAN segmentation, advanced security inspection and high-performance WAN or backbone connectivity. The integrated UniFi Application Suite allows Network, Protect, Access, Talk and Connect to be operated centrally on one system.
With 25G SFP28, 10G SFP+ and multiple 10 GbE RJ45 ports, the Dream Machine Beast is well suited for high-speed fibre uplinks, core and distribution connections, server rooms and modern enterprise networks. Its two 3.5" NVR HDD bays and supported camera capacity also make it suitable for larger UniFi Protect deployments with HD, 2K or 4K cameras.
The Ubiquiti UniFi Dream Machine Beast is a high-performance 1U cloud gateway for large-scale UniFi environments. It combines routing, security gateway functionality, UniFi control, VPN/SD-WAN capabilities and the full UniFi Application Suite in a rack-mountable appliance. According to Ubiquiti, the gateway supports more than 7,500 concurrent users, over 750 managed UniFi devices, up to 200 access hubs and UniFi Protect deployments with up to 100 HD, 60 2K or 40 4K cameras.
The port configuration includes 2× 1 GbE RJ45, 8× 10 GbE RJ45, 2× 10G SFP+ and 2× 25G SFP28. The default WAN ports are one 25G SFP28 port and one 10 GbE RJ45 port, while up to eight WAN ports are supported. With 25 Gbps IDS/IPS throughput, stateful firewall, Layer 7 application-aware firewall, DPI, traffic identification, content filtering, ad blocking and IPS/IDS, the Dream Machine Beast provides a powerful security platform for data-intensive enterprise networks.
For high availability and professional network architectures, the appliance supports Shadow Mode with VRRP gateway failover, DC power backup, multi-WAN load balancing, LACP port aggregation, OSPF, BGP, advanced QoS, policy-based WAN and VPN routing, and site-to-site VPN via Site Magic, IPsec and OpenVPN. VPN server options include WireGuard, OpenVPN, L2TP, Teleport and Identity Endpoint One-Click VPN. The hardware platform is based on an octa-core ARM v9 processor at 2.1 GHz, 16 GB system memory, integrated 128 GB SSD and two 3.5" NVR HDD bays. The enclosure is made from CNC aluminium and SGCC steel and includes a 1.3" touchscreen display.
