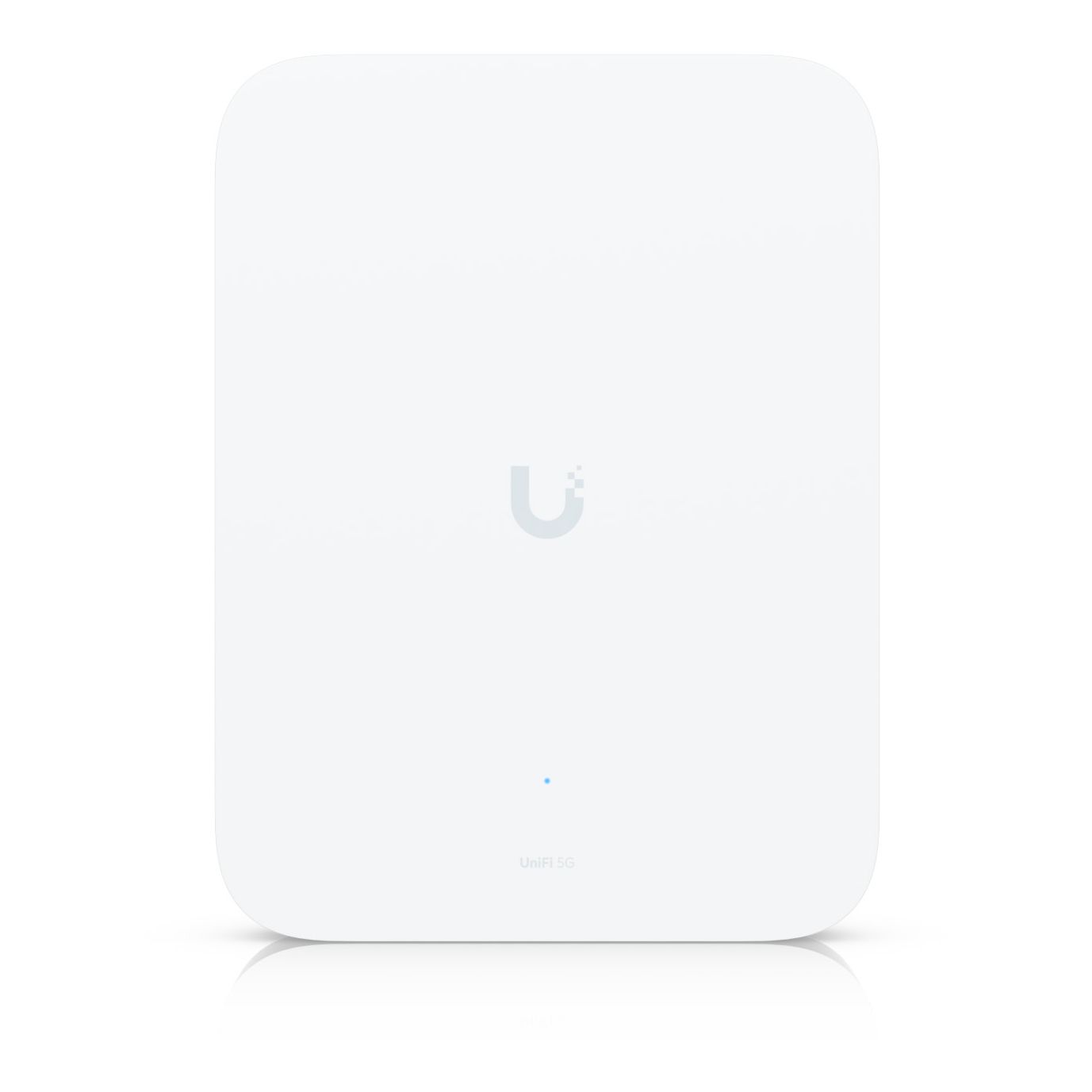

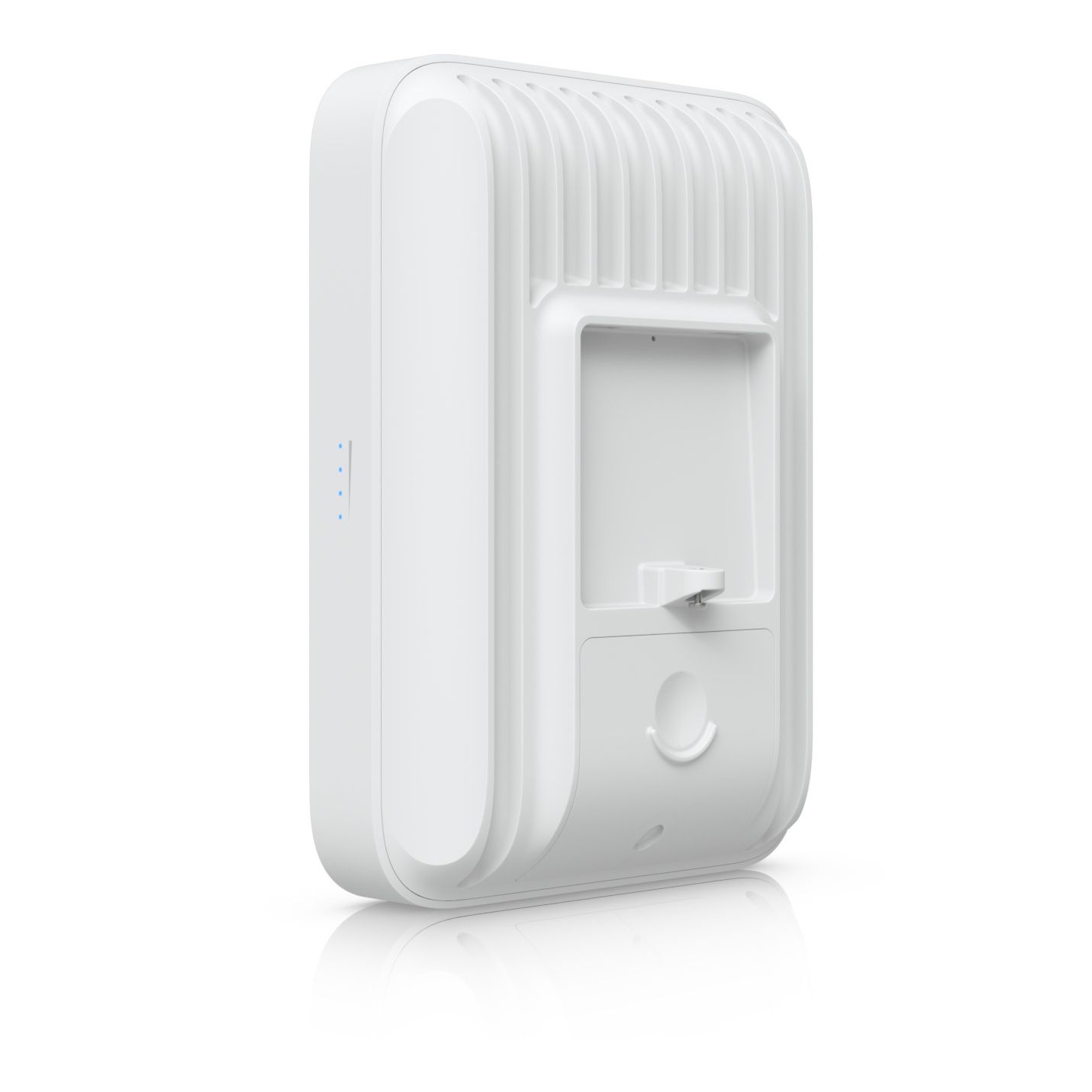

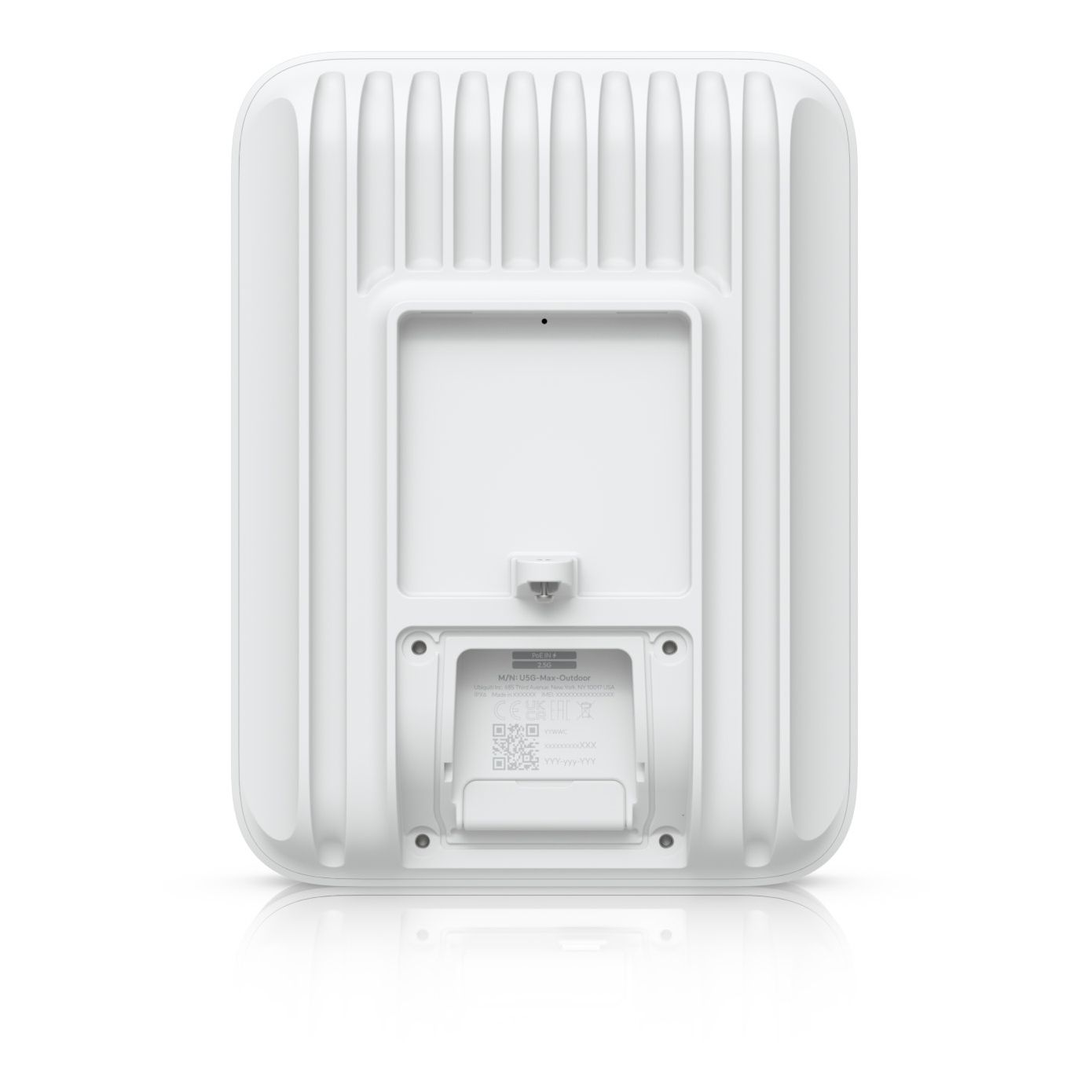

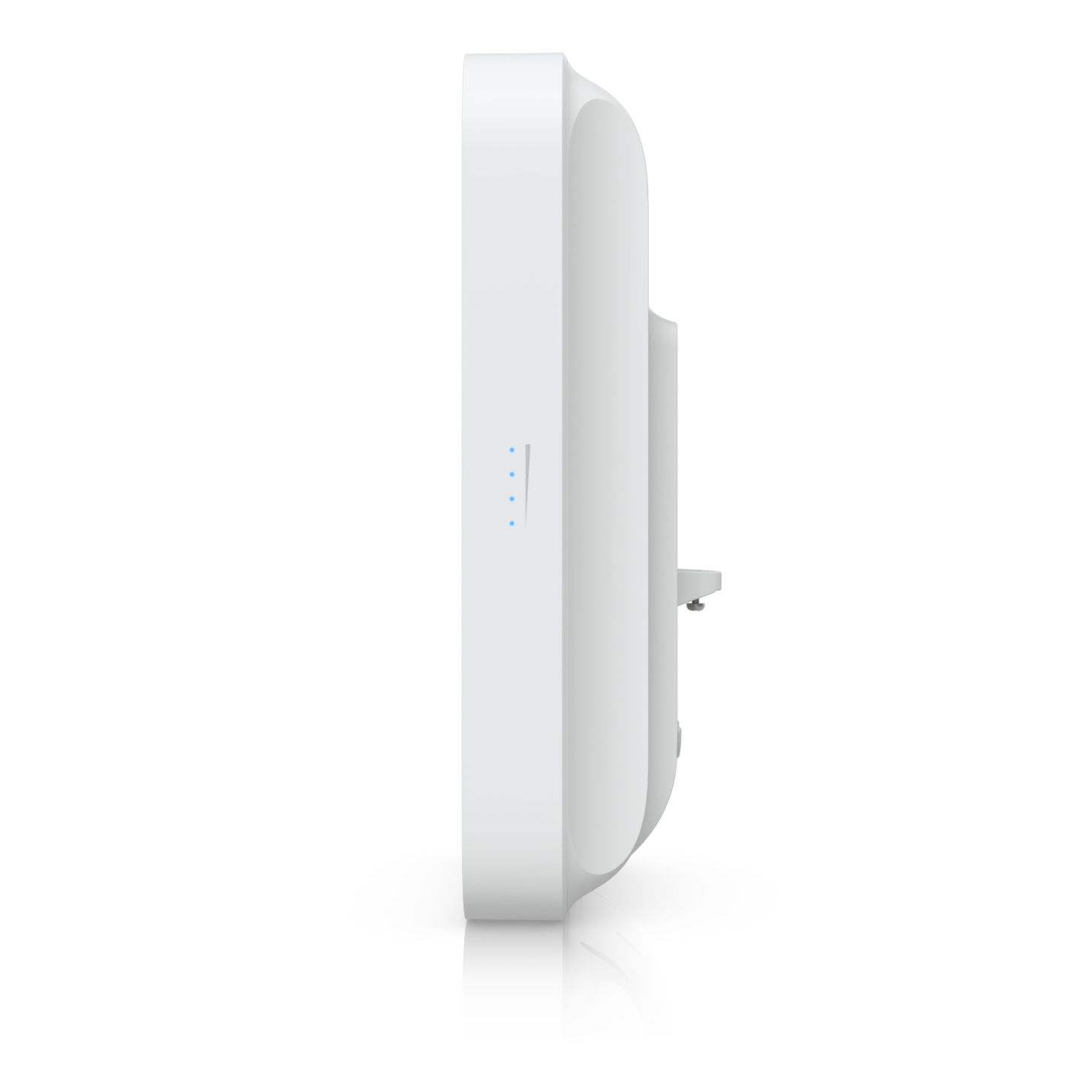

UniFi 5G Max Outdoor, High-Performance 5G Modem

A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover.

*Remote SIM coming in a future update.

Stk

Available stock:

Article number: U5G-MAX-OUTDOOR

Manufacturer number: U5G-MAX-OUTDOOR

Manufacturer page: UBIQUITI

EAN: 0810177162803

Features & Usage Description & Data Highlight Equipment

5G NR modem (SA & NSA) with LTE fallback for maximum network coverage and reliability
Up to 3.4 Gbps downlink (network dependent) for high-performance WAN connections
Dual SIM + integrated eSIM with automatic failover
Outdoor-ready, weatherproof housing for pole and wall mounting
External high-gain antennas for optimized cellular reception in exposed locations
PoE (Power over Ethernet) supply for easy installation without separate power line
Seamless integration into the Ubiquiti UniFi ecosystem
Centrally manageable via UniFi Network (primary WAN connection or backup WAN)
Ideal for locations without fiber optic/DSL or as a redundant Internet connection

A full-performance 5G (3.4 Gbps) modem for UniFi consoles and Cloud Gateways, designed for outdoor use with directional antennas, remote SIM*, and dual SIM for seamless failover.

*Remote SIM coming in a future update.

Technical properties

2.5 Gbit Ports:

3G Bands:

B1, B2, B4, B5, B8, B19

Antenna (build in):

Antenna Gain dBi:

2x High-Gain für Download: Peak 9 dBi

Beamwidth:

85° x 85°

Case material:

Aluminum, UV-stabilized Polycarbonate

Certificate:

CE, PTCRB, GCF

Dimensions:

220 x 165 x 66.9 mm

Dimensions with mount:

220 x 165 x 122 mm

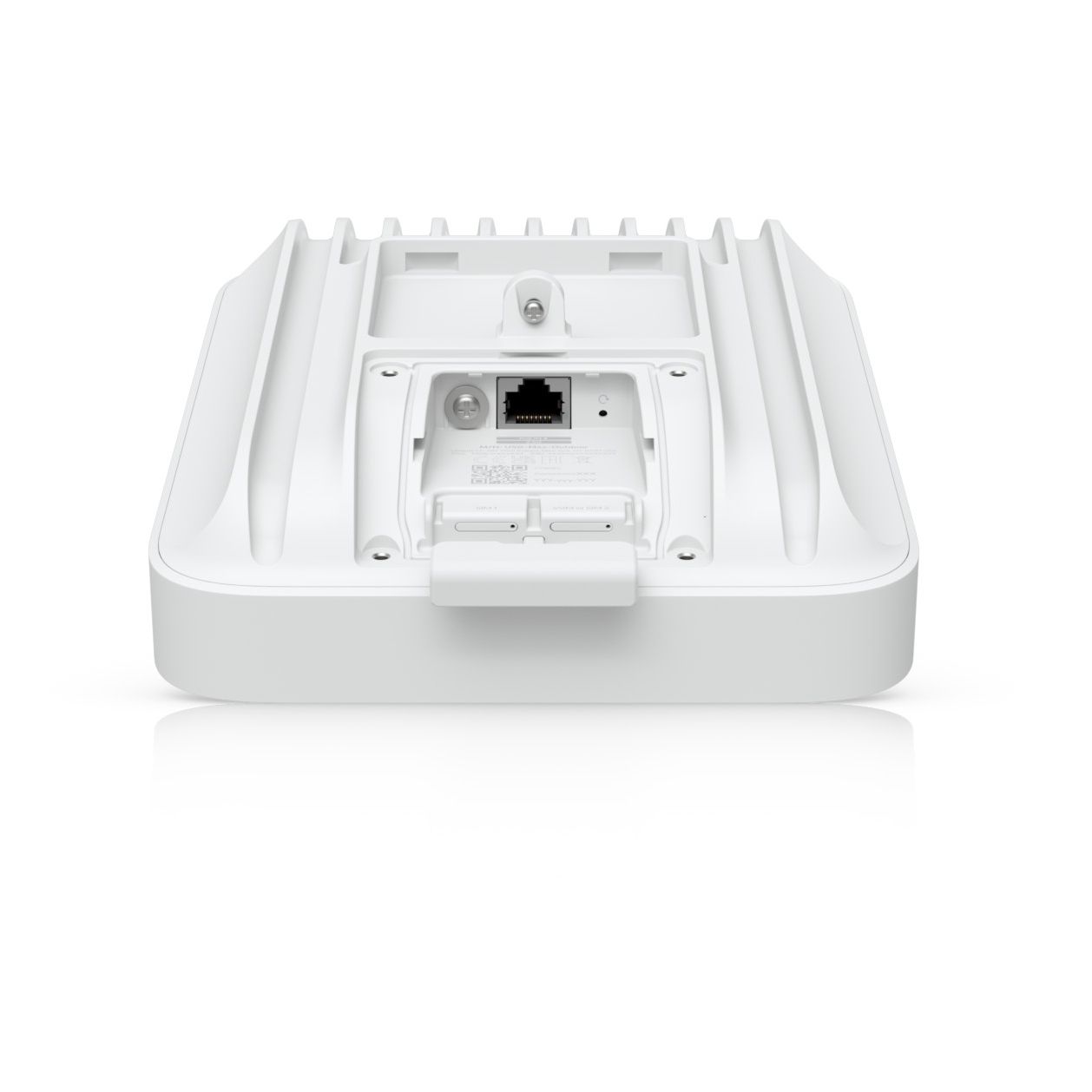

Interfaces:

RJ45

LTE Bands:

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34 ...

Management:

Ethernet

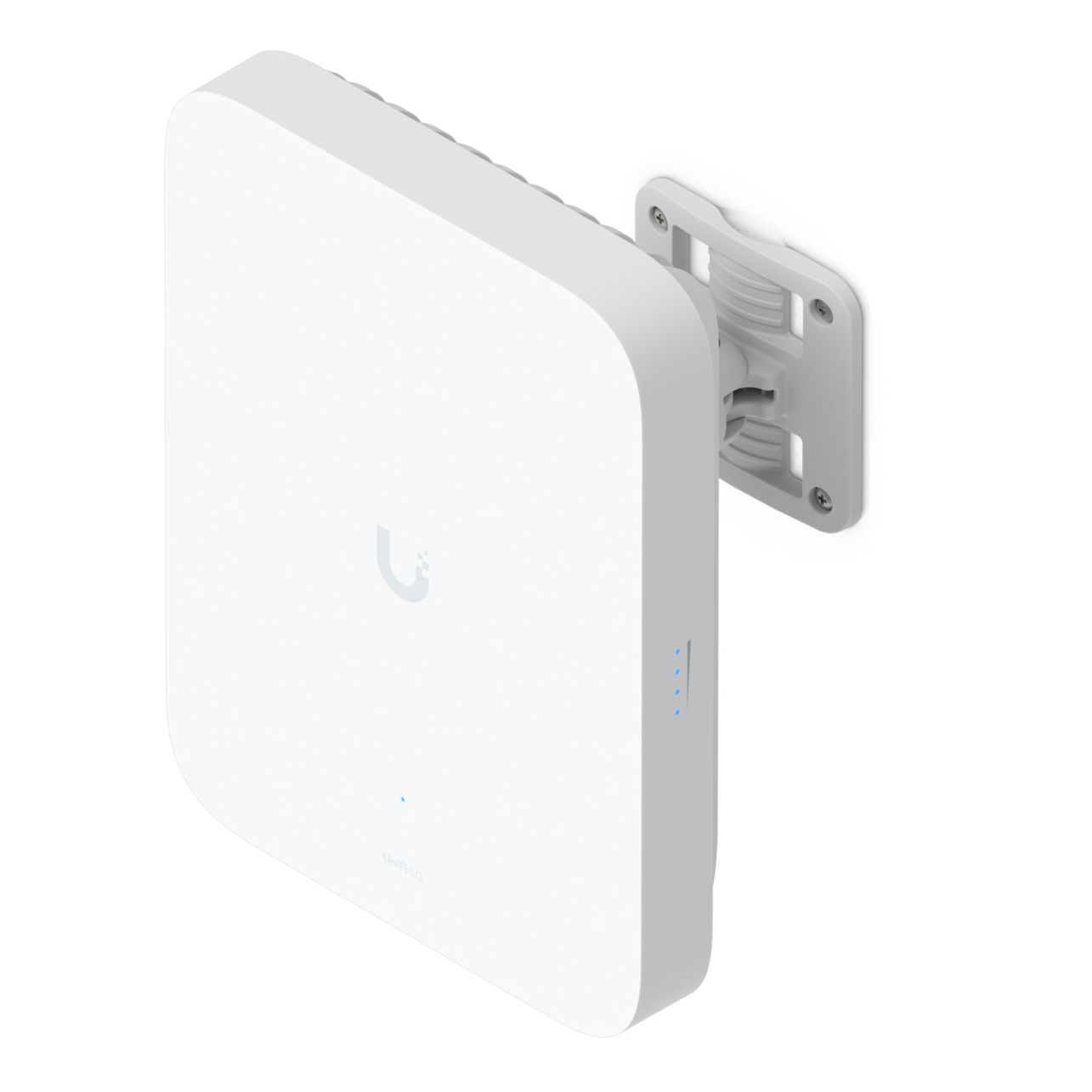

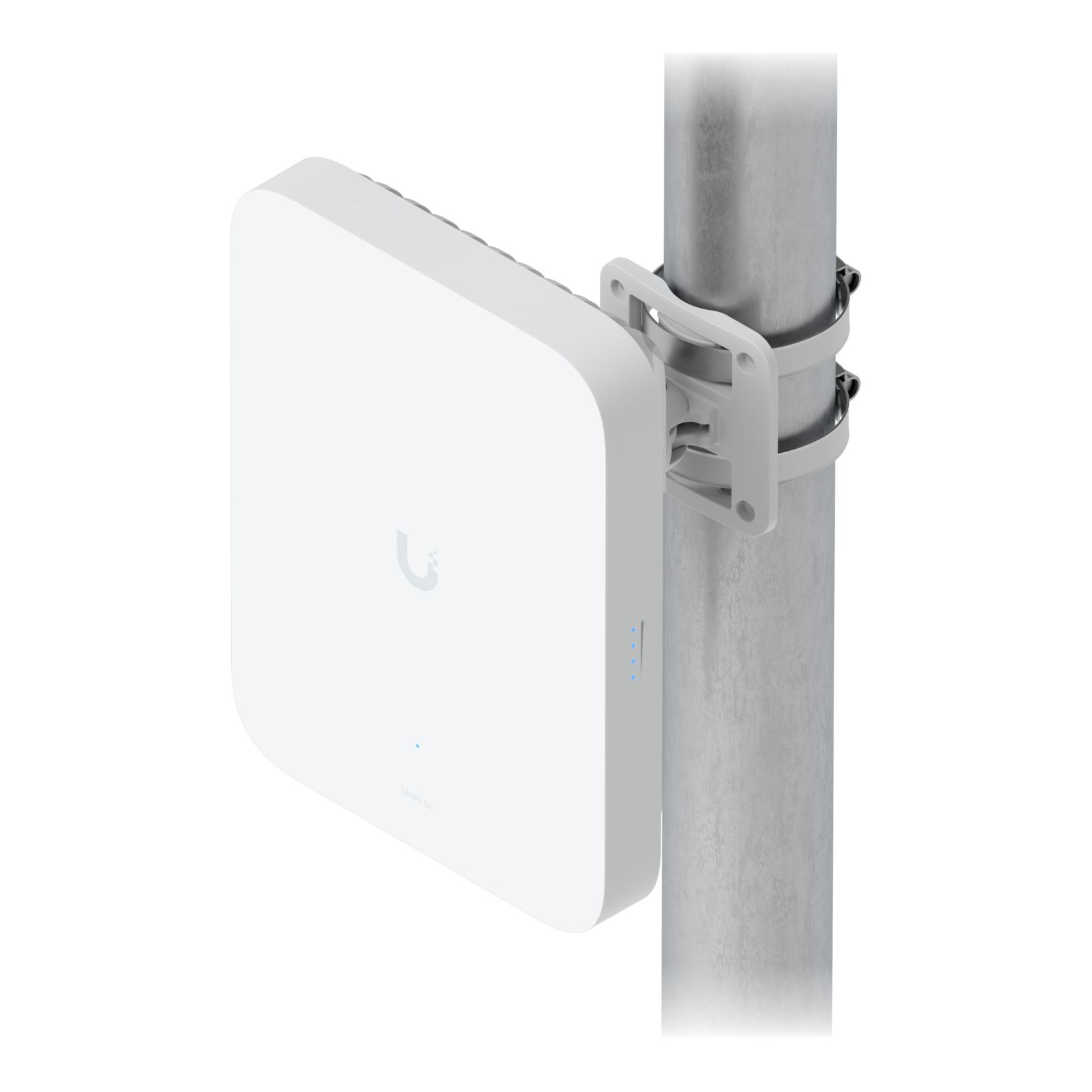

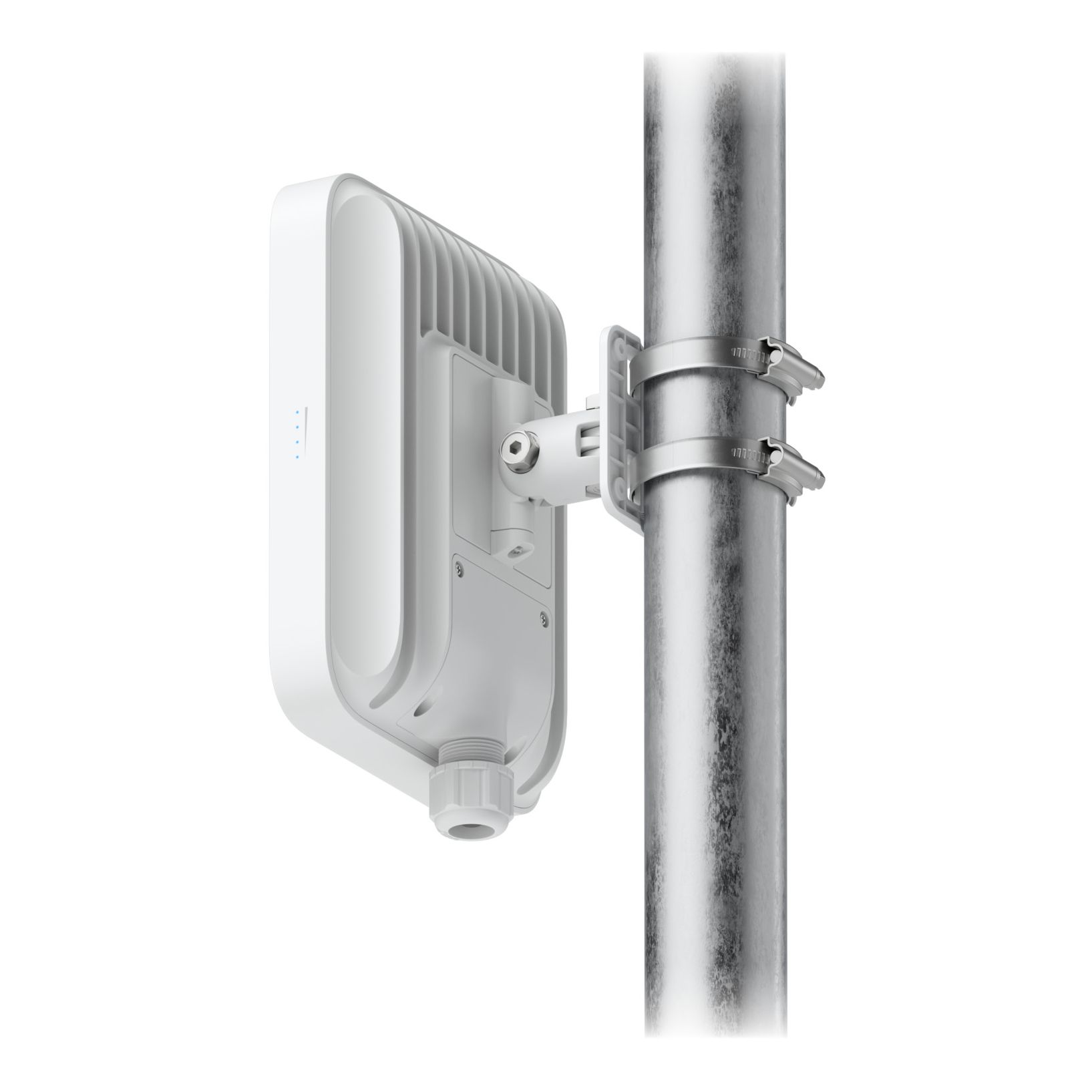

Mounting:

Pole Mount, Ø 25 - 63.5 mm, Ceiling Mount

Operating Conditions:

-40°C - +65°C

Operating Humidity:

5 - 95%, non-condensing

PoE in:

Yes

Power Consumption max.:

14.5 W

Power Supply:

PoE

SIM Slots:

2x nano-SIM

Safety Class:

IPX6, IP67

Transfer Rate:

5G NSA: Downlink 3.4 Gbps / Uplink 560 Mbps, 5G SA: Downlink 1.8 Gbps / Uplink 650 Mbps, 4G LTE: ...

WLAN:

Wind load resistance:

91 N @ 200 km/h

eSIM:

Yes
