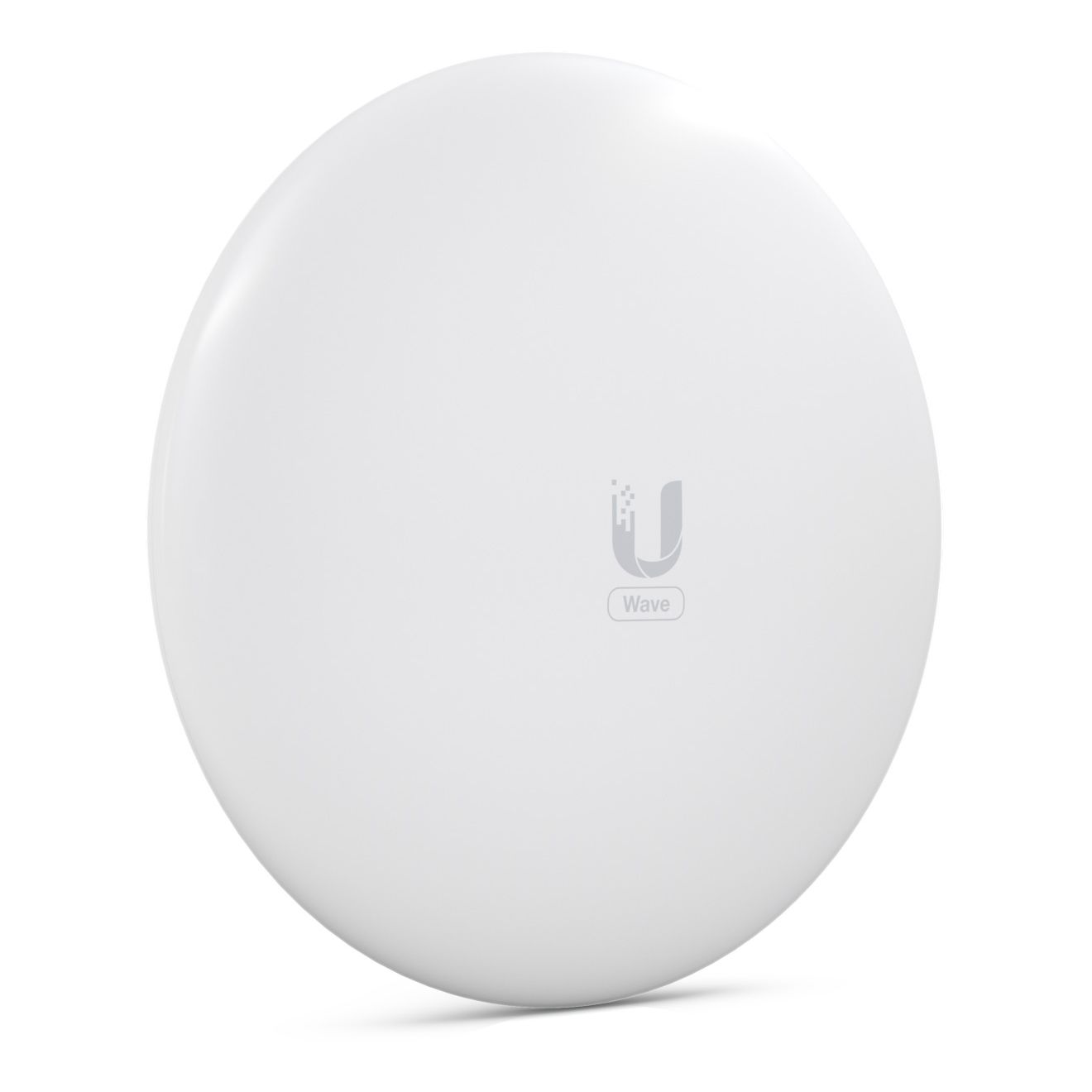

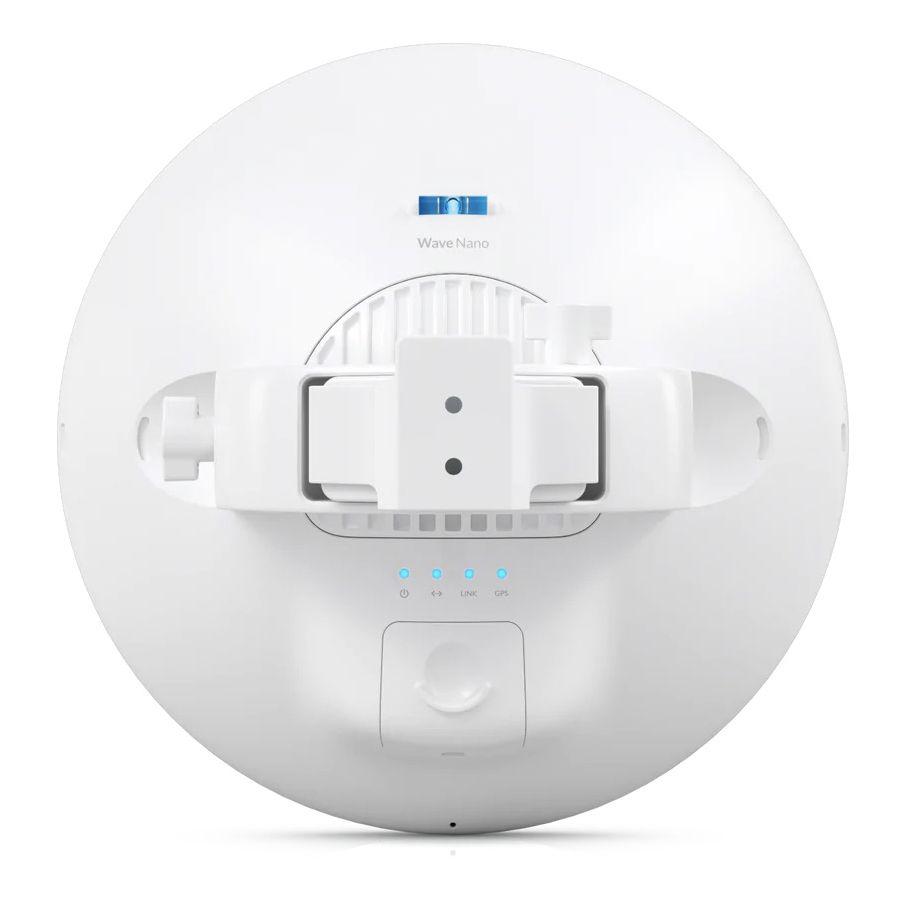

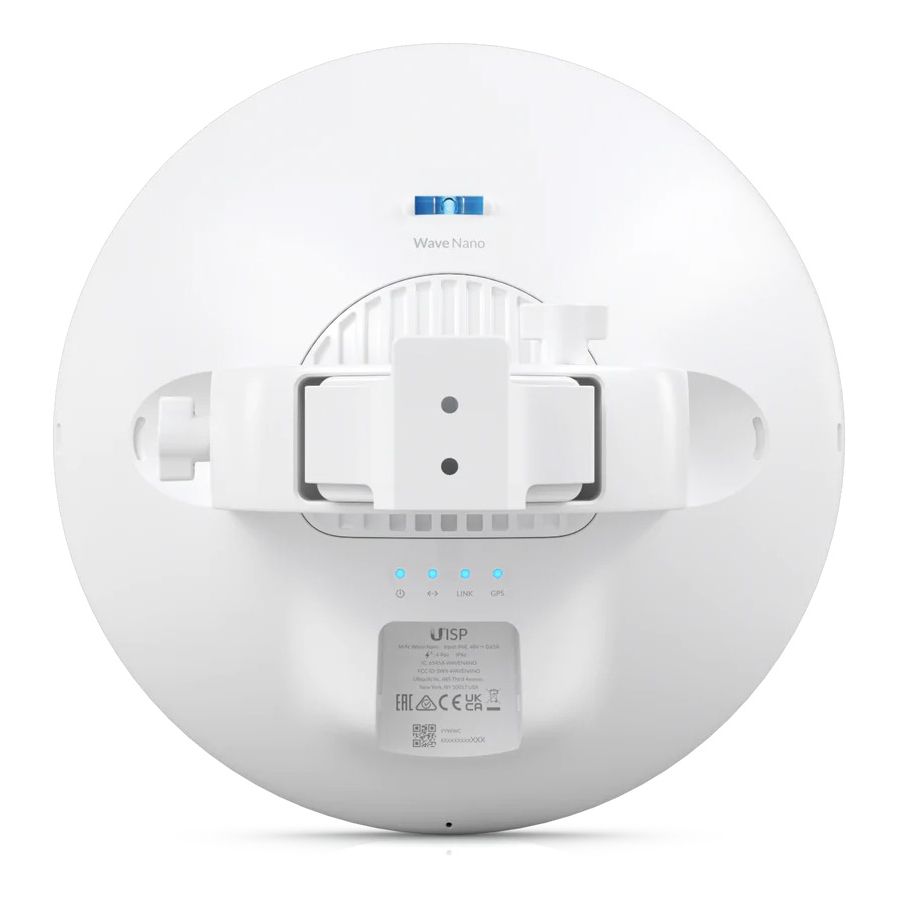

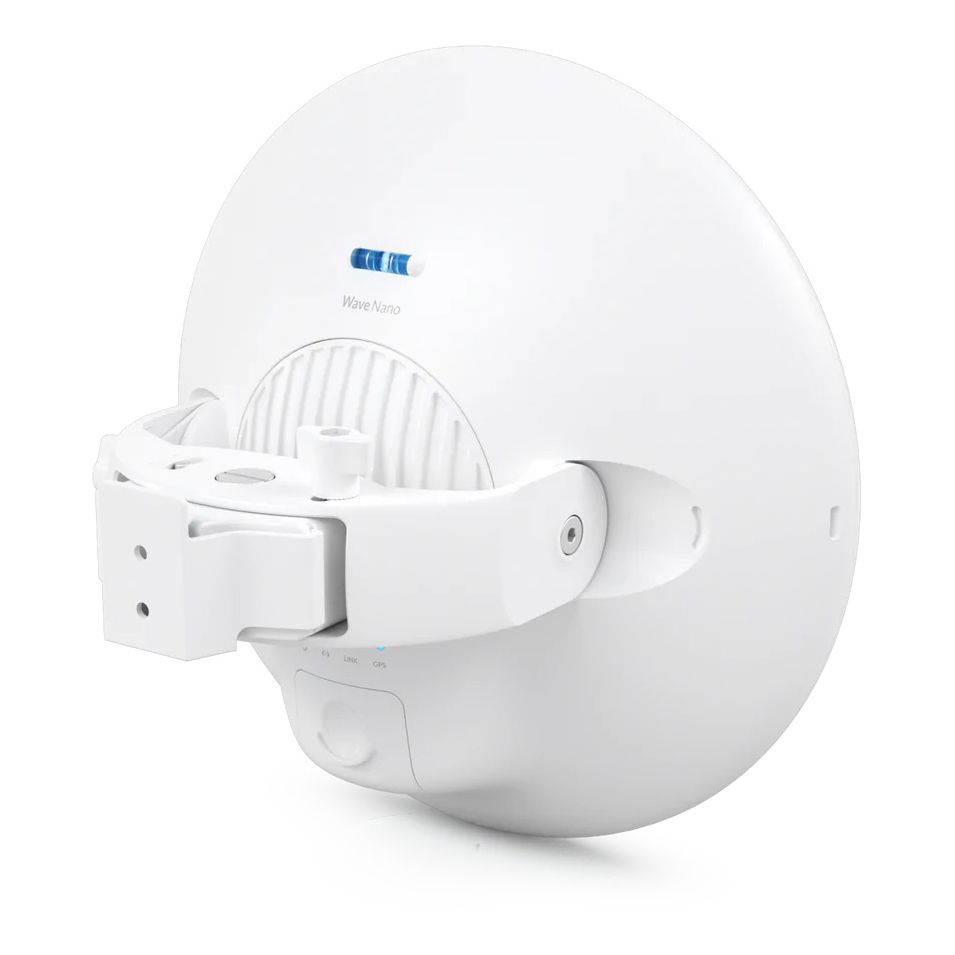

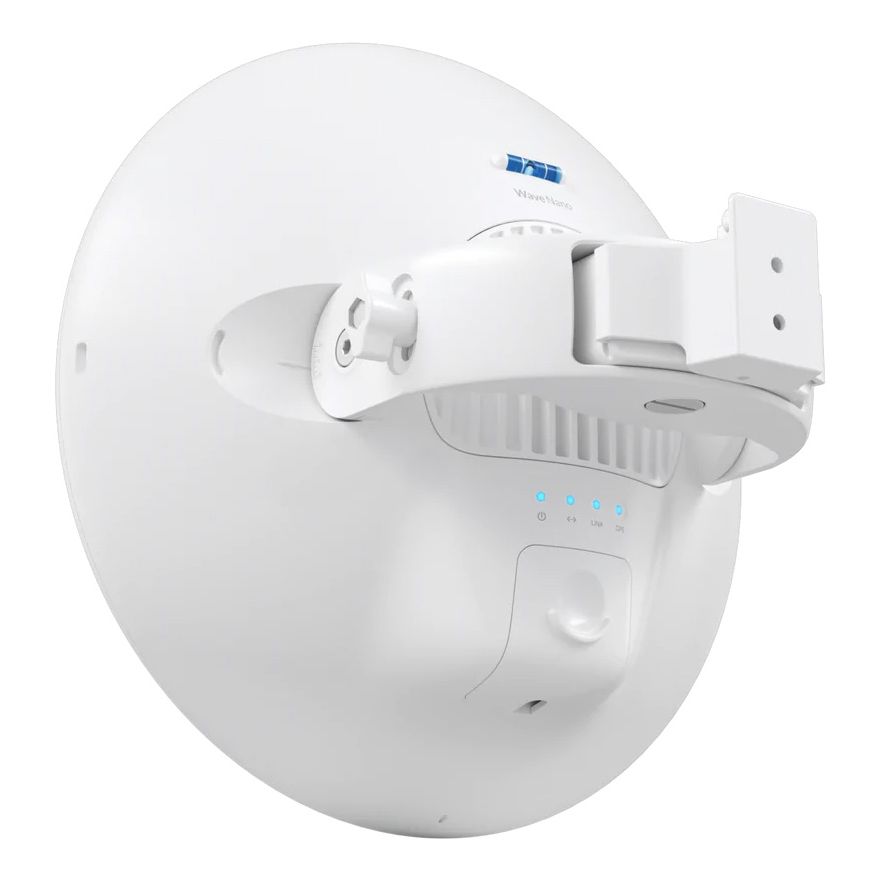

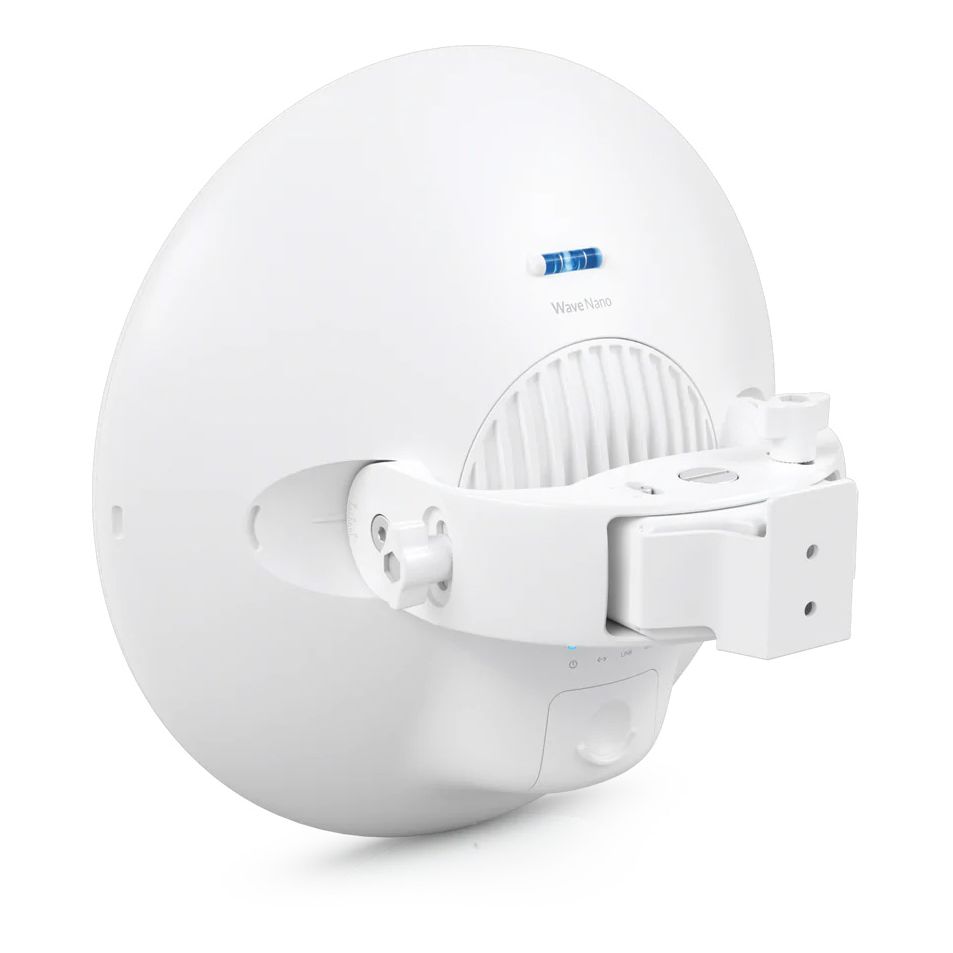

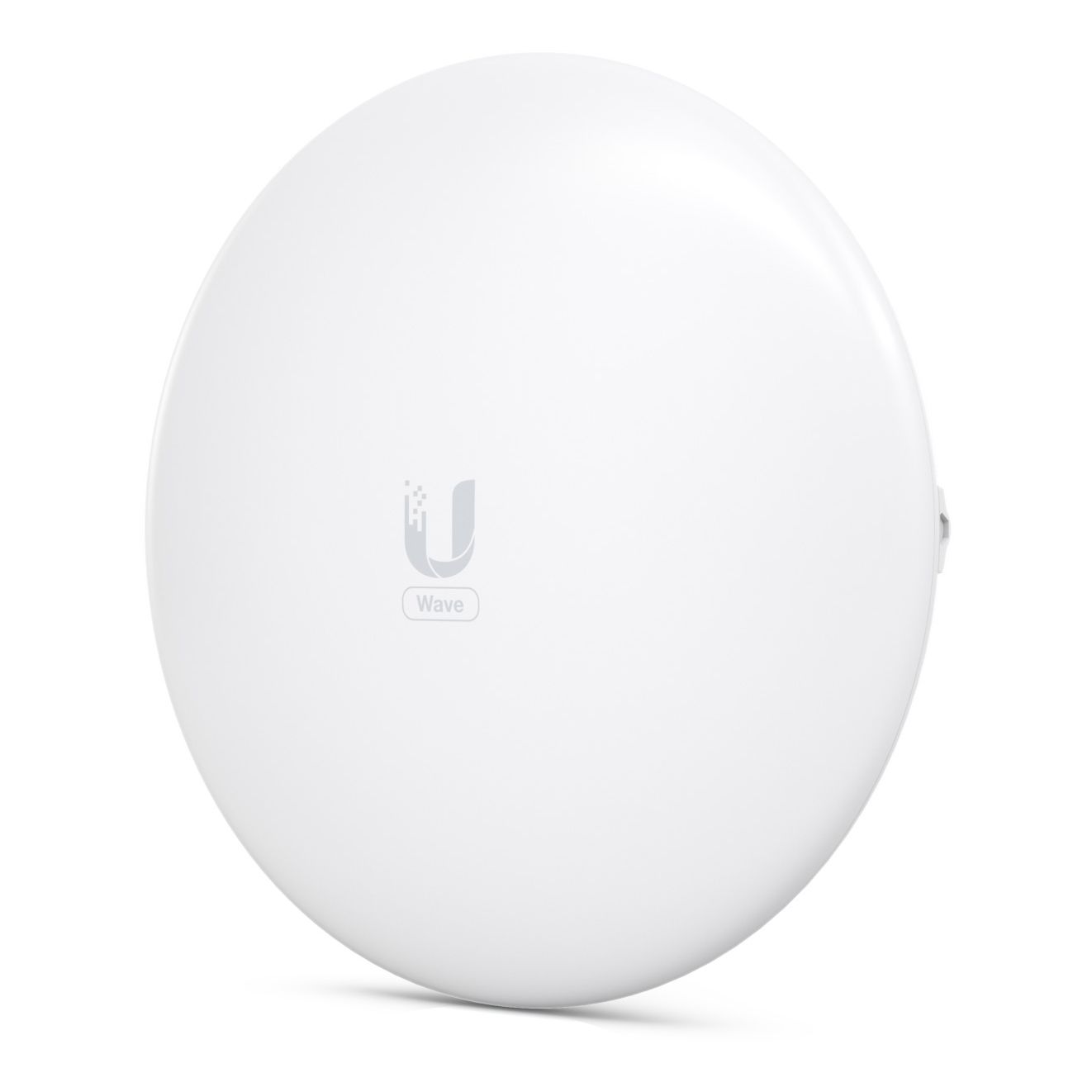

UISP Wave Nano 60 GHz PtMP Station powered by Wave Technology
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Available stock:
Article number:
WAVE-NANO
Manufacturer number:
WAVE-NANO
Manufacturer page:
UBIQUITI
EAN:
0810010078988
- 5 GHz backup radio
Link range: up to 5 km
Router mode support
Integrated GPS antenna
Link planning support via ISP Design Center
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Technical properties
1 GBit Ports:
1
Antenna Gain dBi:
41 dBi
Band:
57 - 71 GHz
CPU:
Dual ARM® Cortex®-A53 Cores at 1GHz
Certificate:
FCC, IC, CE
Dimensions:
Ø 256.5 x 113.5 mm
Elevation Beamwidth:
3 dB: 1° / 6 dB: 1.4°
Encryption:
WPA2-PSK (AES)
Field of application:
Outdoor
Frequency:
5 GHz / 60 GHz
GPS:
Yes
Material:
Aluminium Alloy, UV stabilized plastic
Modes / Function:
PtMP Station

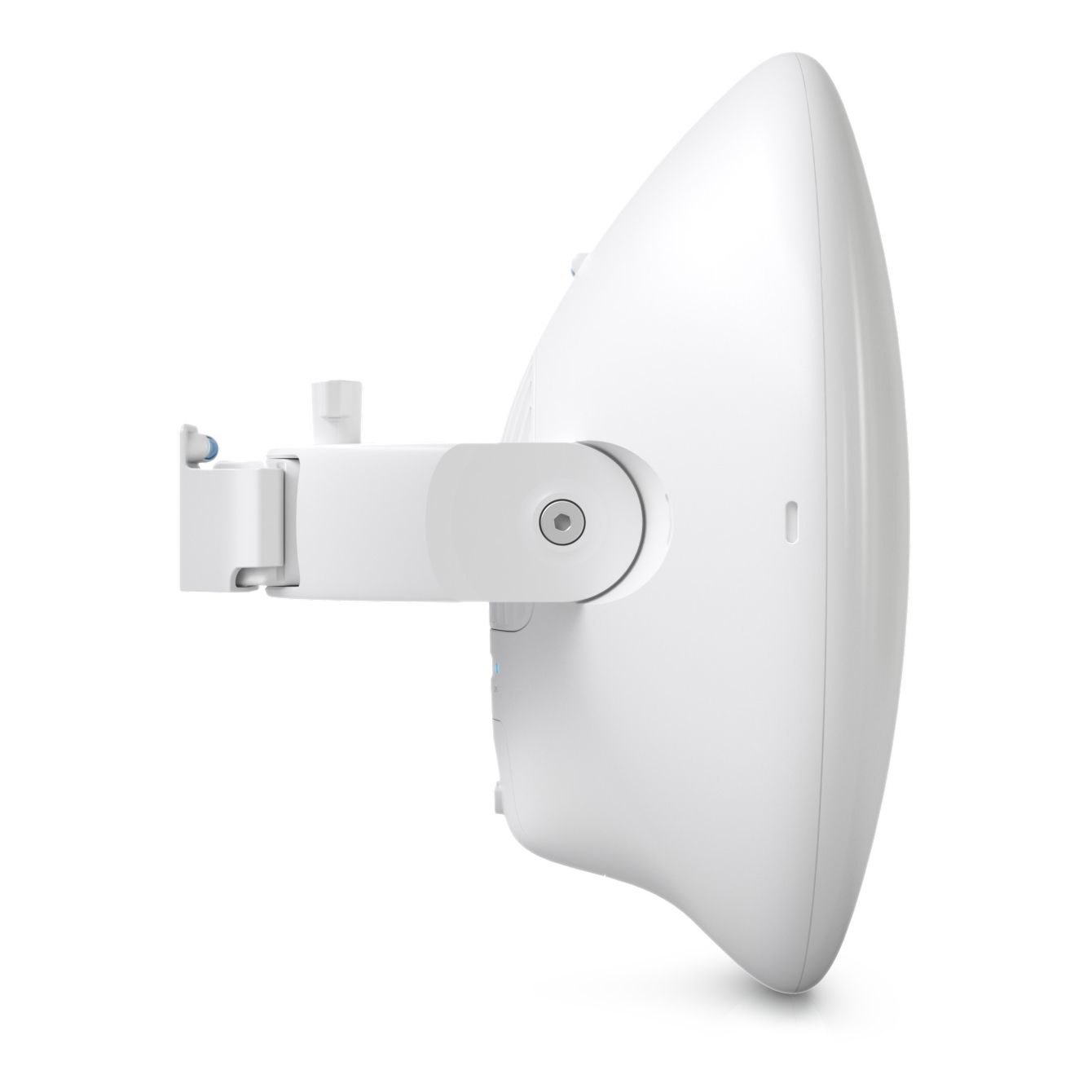

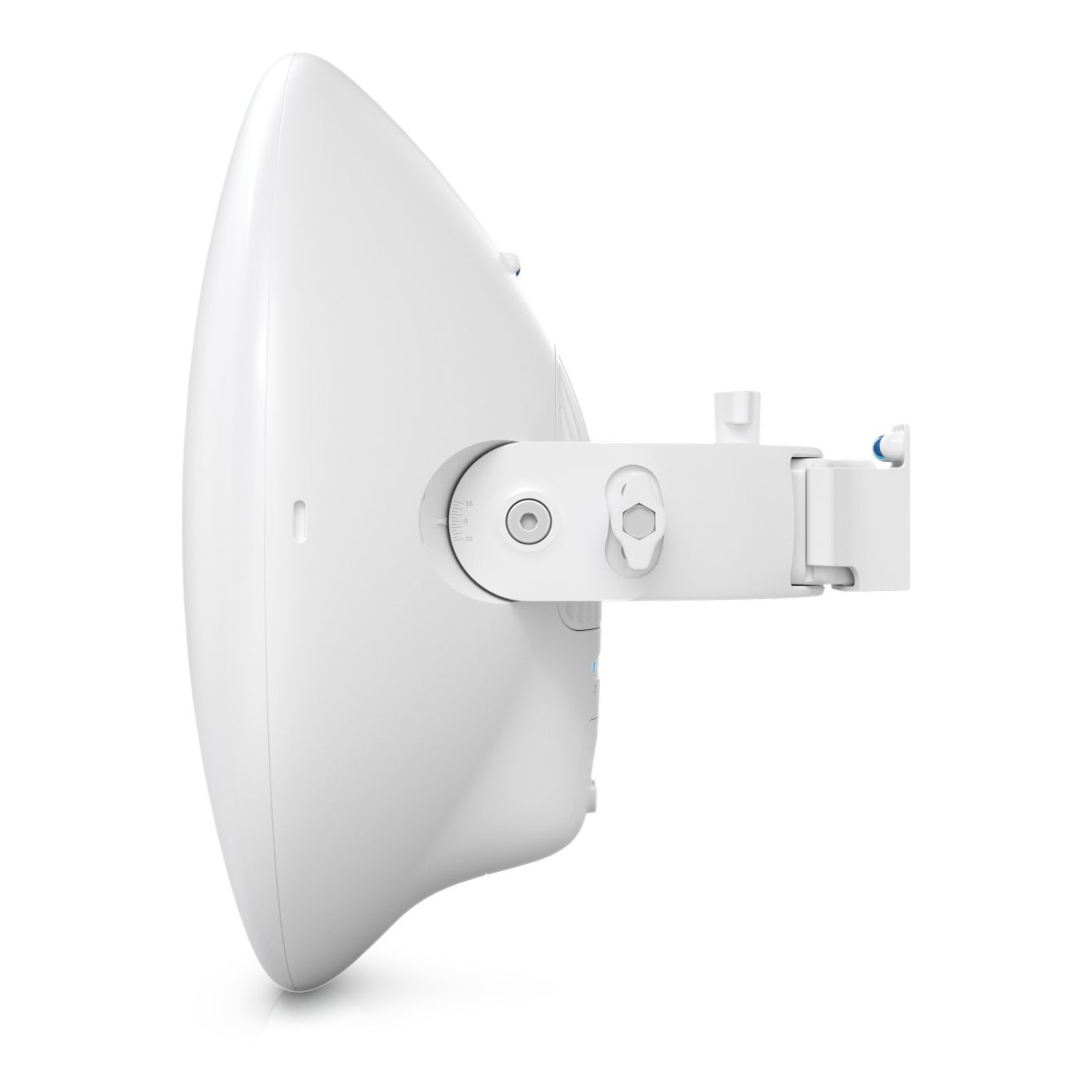

Mounting:
Pole Mount, 25-63.5 mm
Operating Conditions:
-40°C - +60°C
Operating Humidity:
5 - 95%, non-condensing
Operating System:
airOS®
PoE Power Supply Type:
48V DC, 0.65 A (included)
Power Consumption max.:
18 W
Power Supply:
UISP Router / Switch, Passive-PoE
Safety Class:
IPX6
Size of RAM:
512 MB DDR3L
Transfer Rate:
2 Gbps (1 Gbps duplex)
WLAN Standard:
802.11 ad/ay
Wind load resistance:
127 N @ 200 km/h
Wireless Clients:
1
