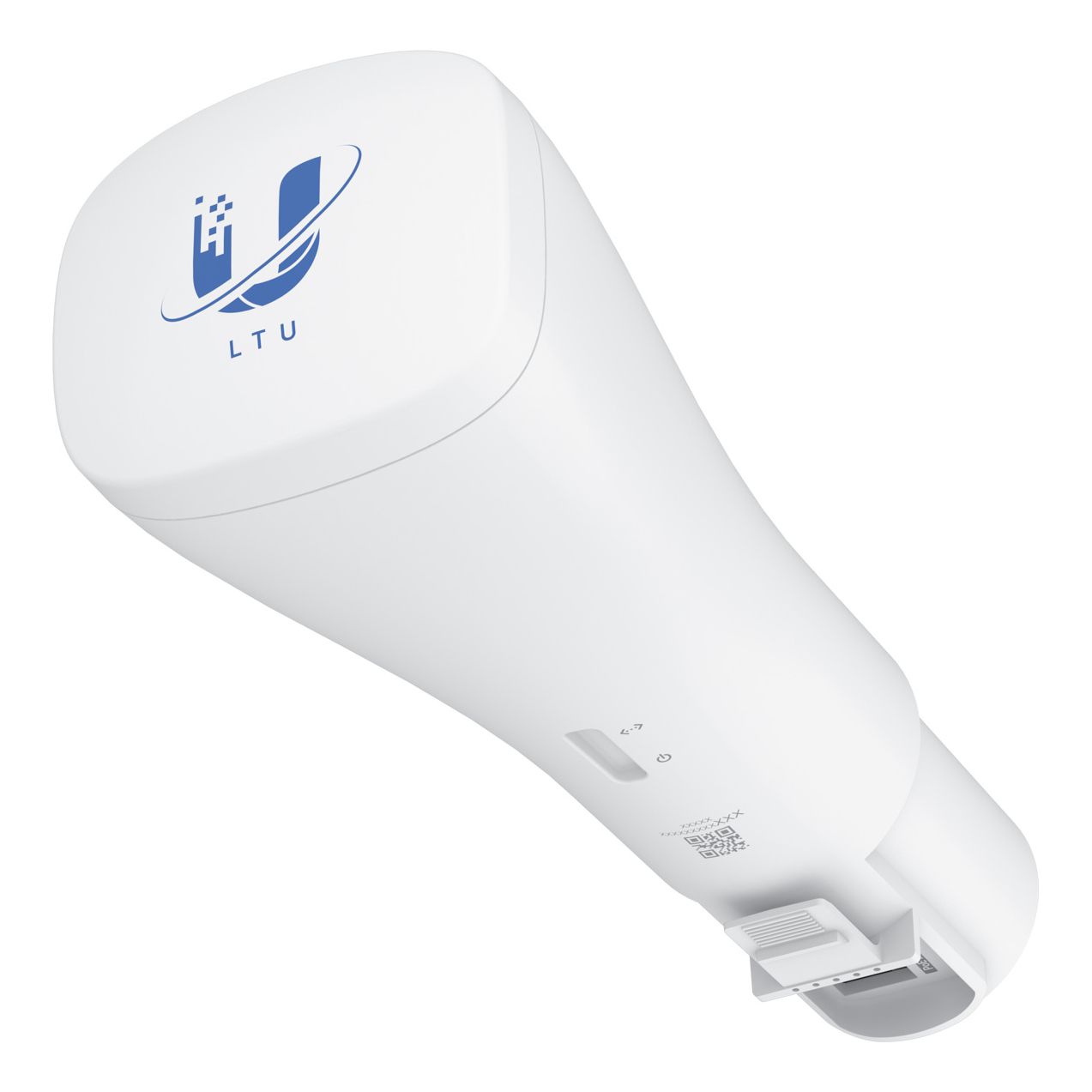

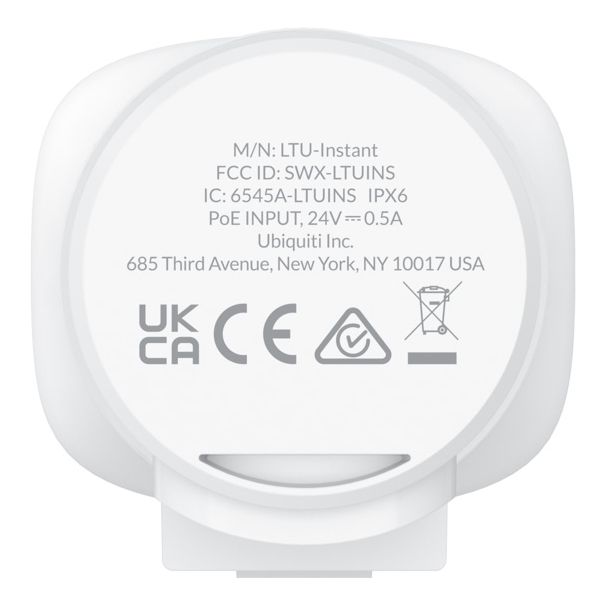

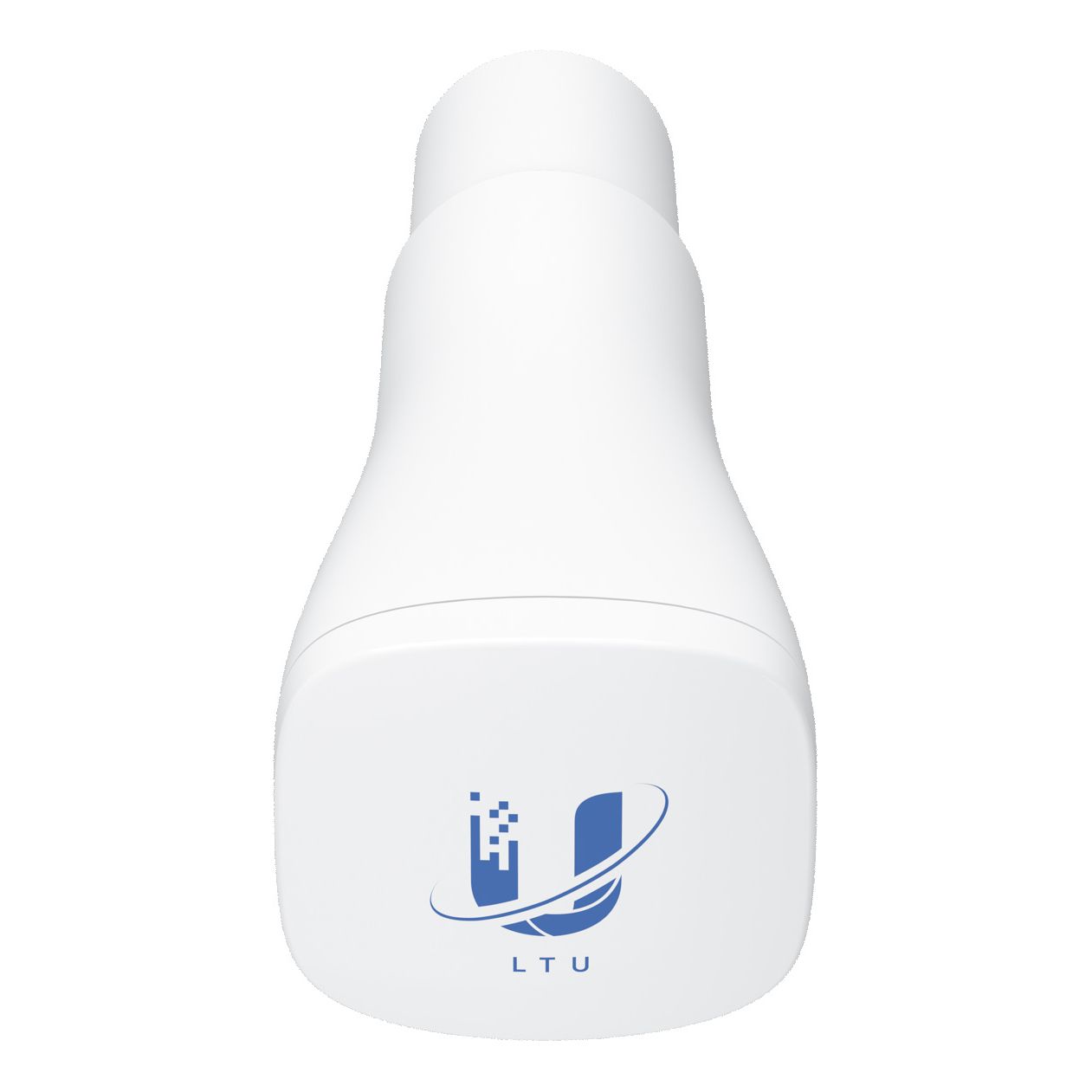

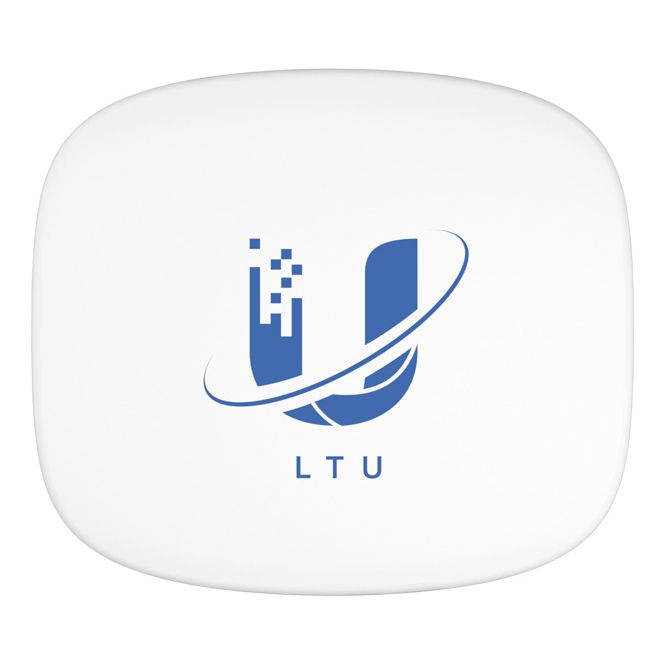

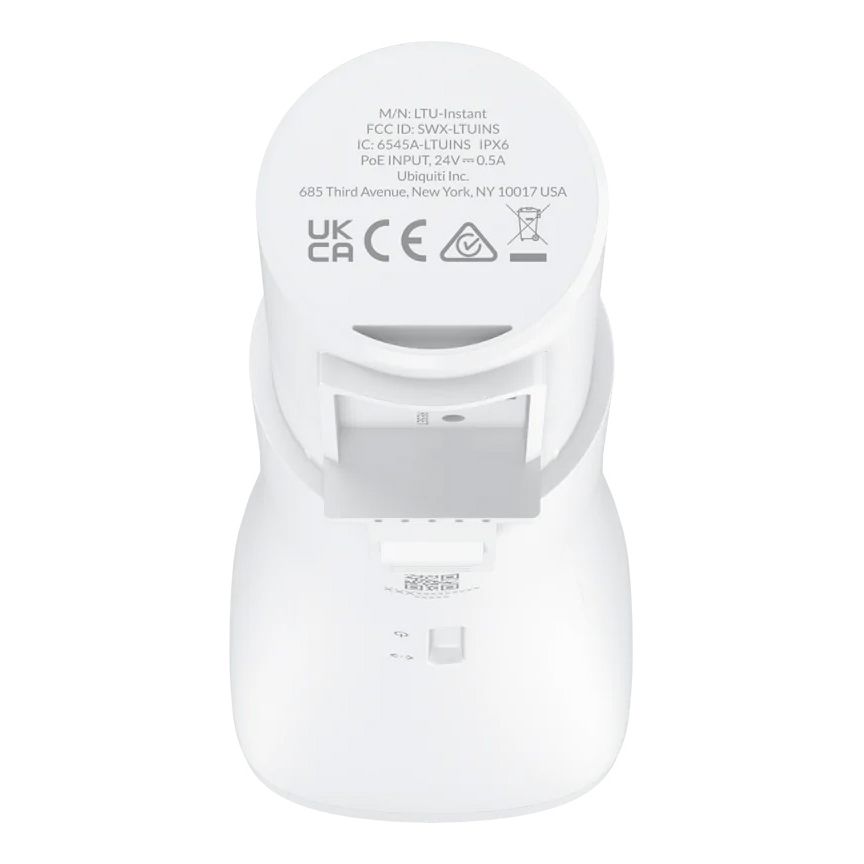

UISP LTU Instant, 5-Pack

5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.

The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Stk
Available stock:
Article number: LTU-INSTANT-5
Manufacturer number: LTU-INSTANT-5
Manufacturer page: UBIQUITI
EAN: 0810010077448
  • 5GHz 23dBi

5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.

The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.

Technical properties
1 GBit Ports:
1
Antenna Gain dBi:
22 dBi
Band:
5.15 - 5.95 GHz
Case material:
UV-Stabilized Polycarbonate
Certificate:
FCC, IC, CE
Channel Bandwidth:
10/20/30/40/50 MHz
Dimensions:
201.46 x 64.15 x 56.15 mm / 358 x 271.95 x 288.5 mm
Encryption:
WPA2-PSK (AES)
Field of application:
Outdoor
Frequency:
5 GHz
Management:
UISP Application
Max. TX Power:
22 dBm
Operating Conditions:
-40°C - +60°C
Operating Humidity:
5 - 95%, non-condensing
Operating System:
airOS®
Power Consumption max.:
8.5 W
Power Supply:
Passive-PoE
Power Supply:
24V DC, 0.5A PoE Adapter
Safety Class:
IPX6
Throughput max.:
550 Mbps
WLAN Standard:
LTU
Wind load resistance:
275 N @ 200 km/h
Wireless Clients:
50+
