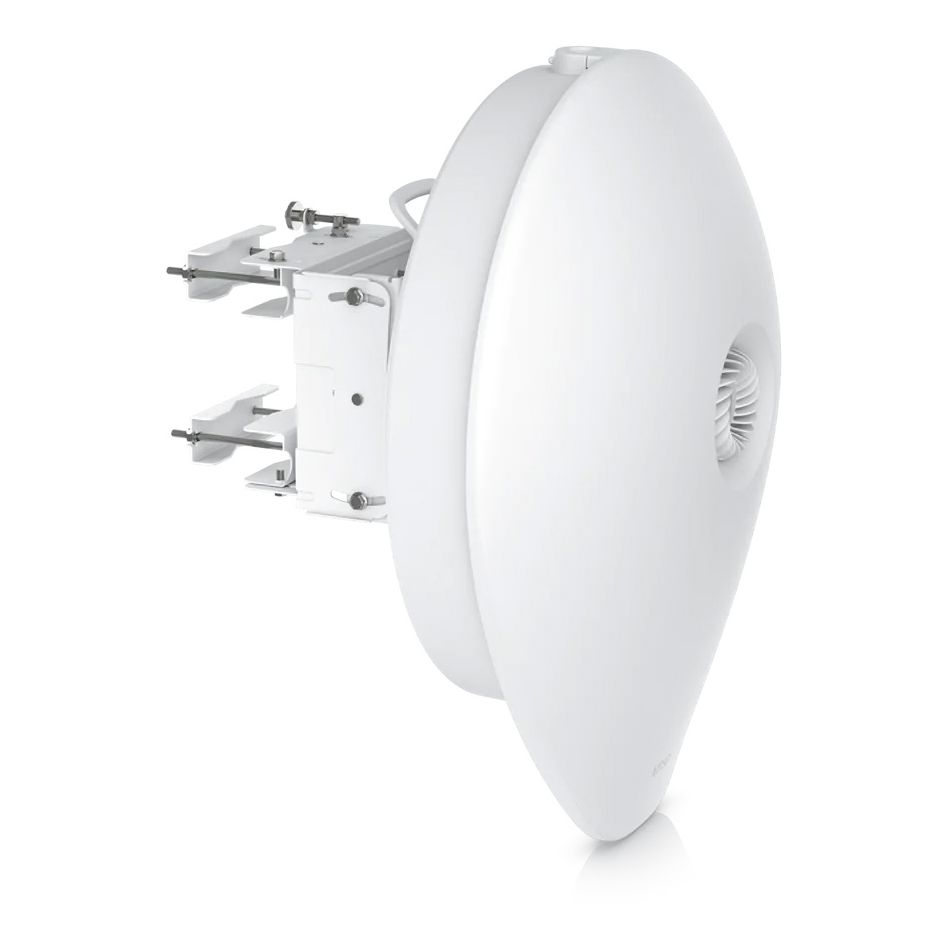

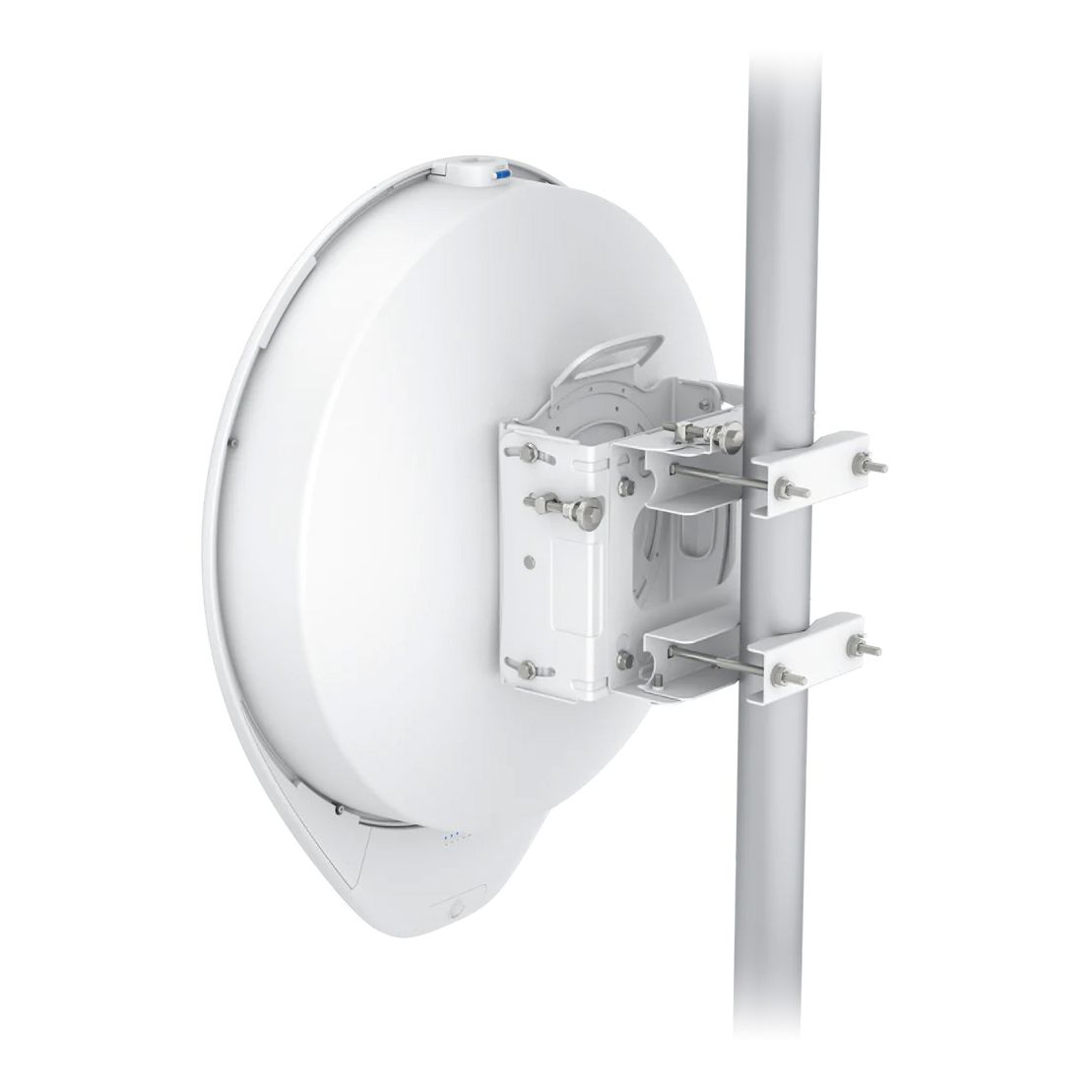

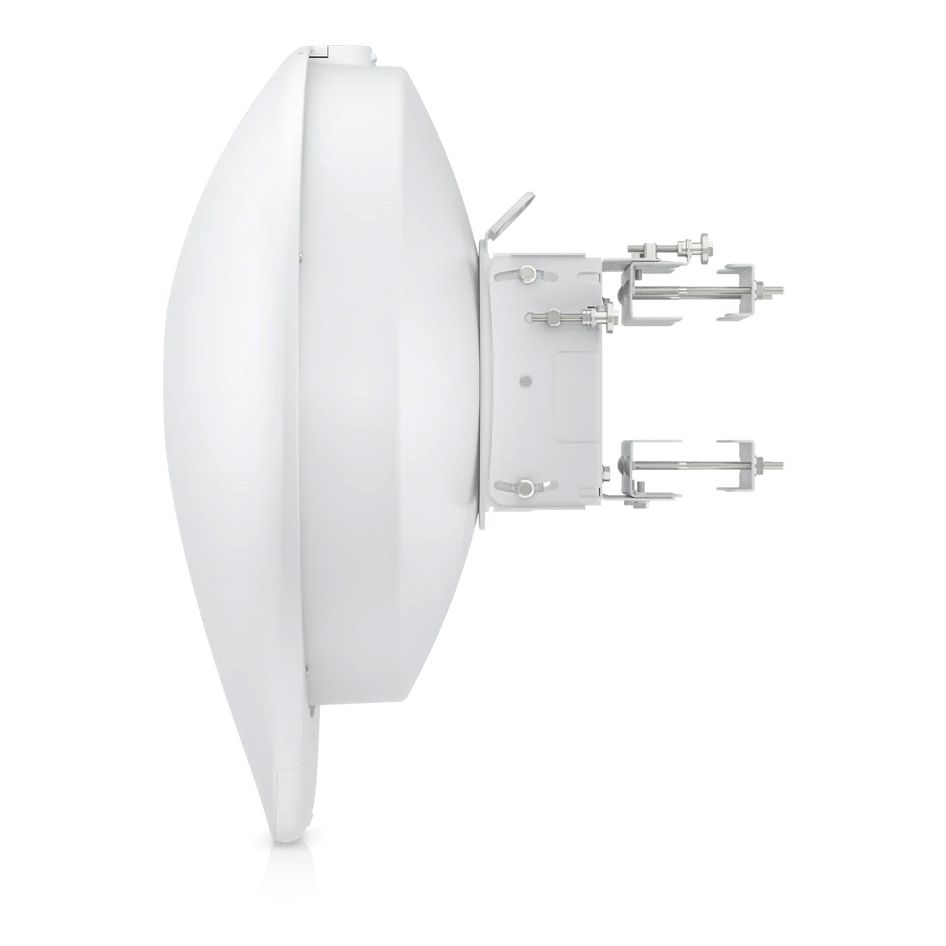

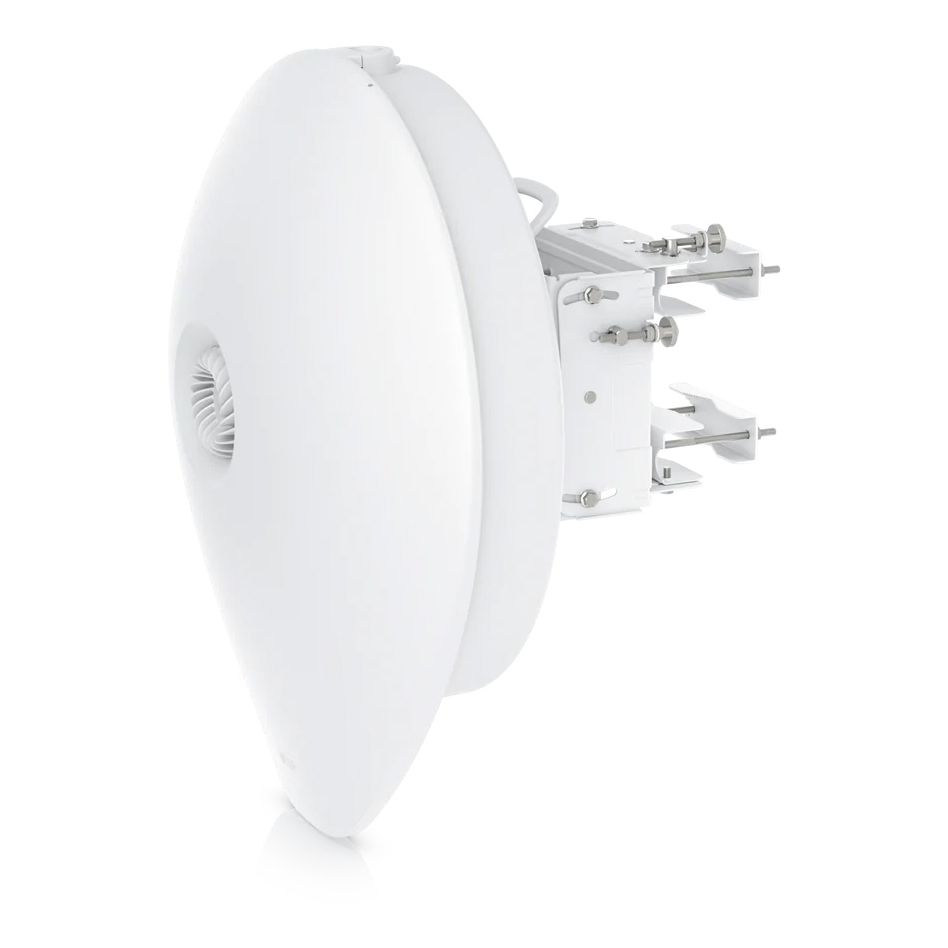

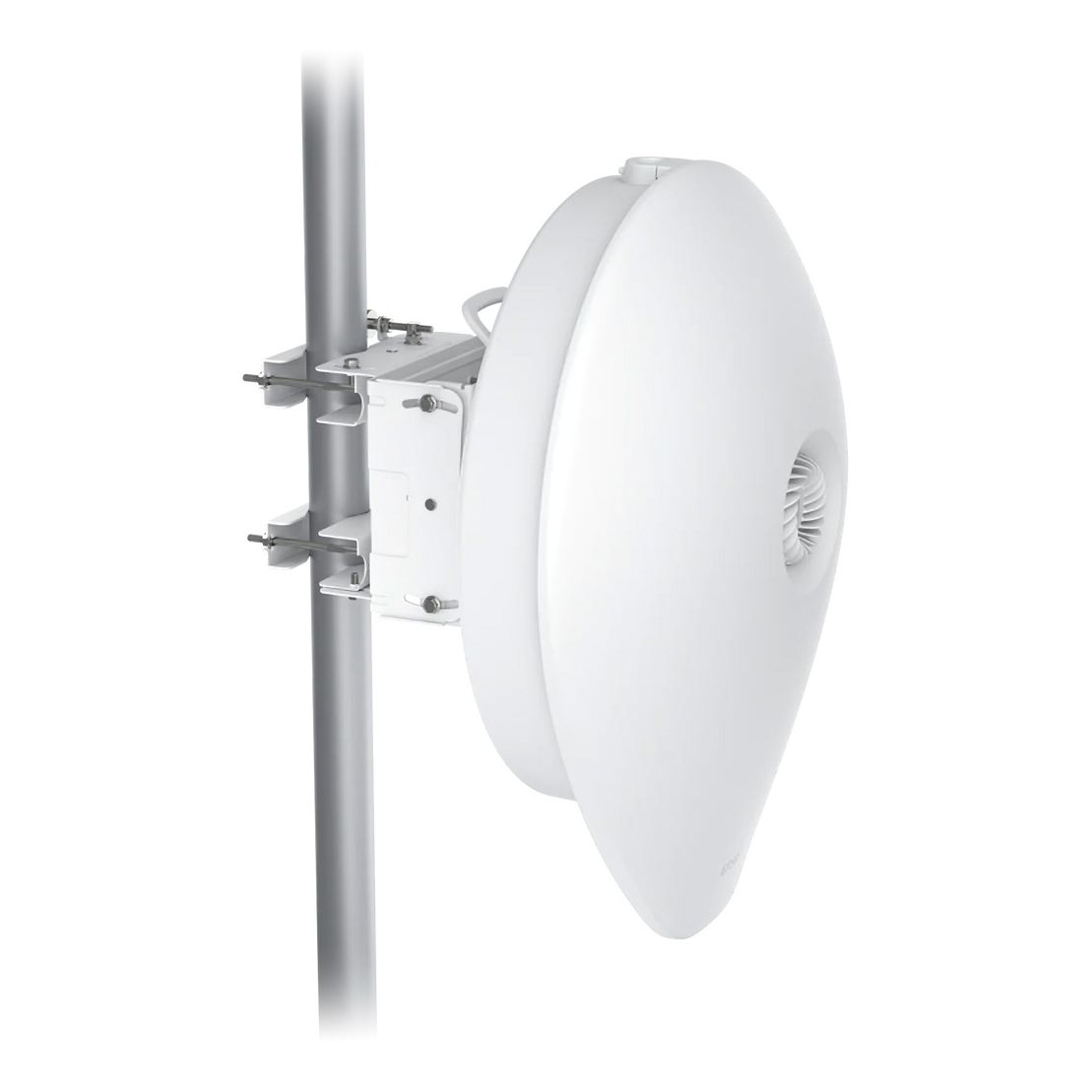

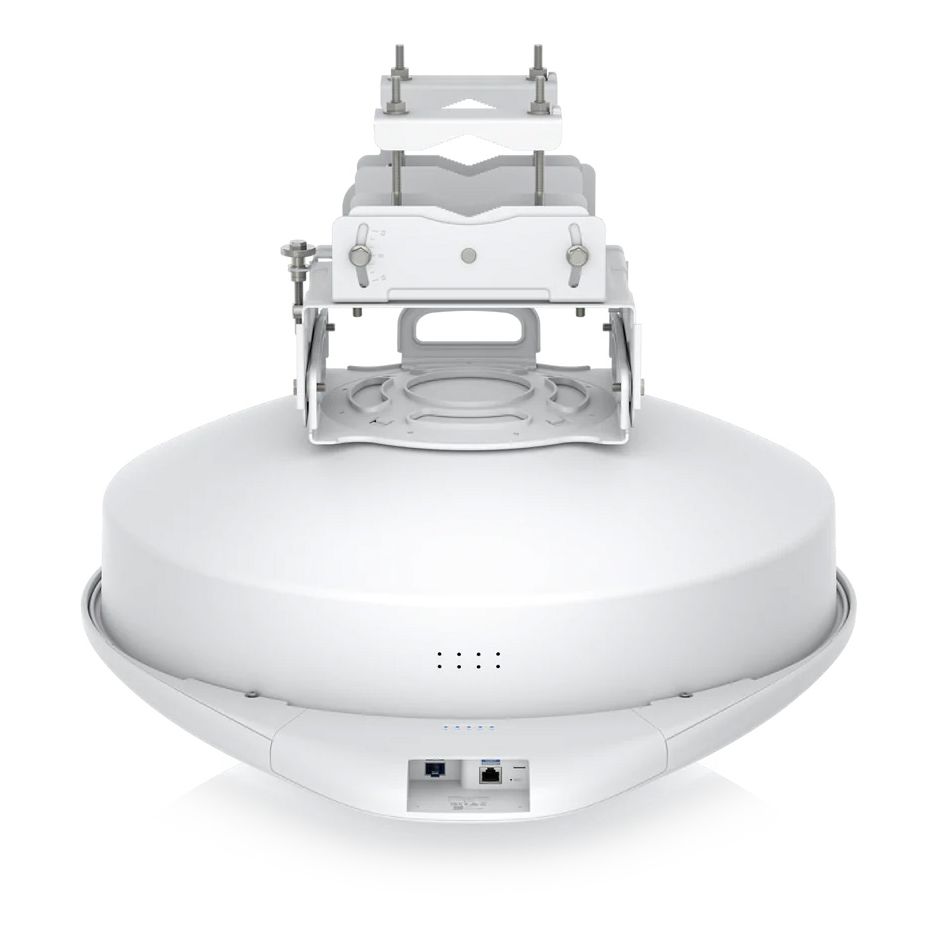

UISP airFiber 60, 4+ km, Multi-Gigabit, 60 GHz Bridge with SFP+ Support
The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Available stock:
- Low-interference, 60 GHz spectrum
- High-gain dish antenna
- 5 GHz backup radio
- 4+ km link range
- Supports channel bonding to achieve up to a 6 Gbps throughput rate
- Terragraph-certified
- 10G SFP+ port
- Integrated GPS
- Link planning support via ispdesign.ui.com
- Simple, Bluetooth-powered setup with the UISP® Mobile app
The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Technical properties
1 GBit Ports:
1
Band:
57 - 66 GHz
CPU:
Quad-Core ARM® Cortex® A72 at 1.6 GHz
Case material:
UV-stabilized Polycarbonate, Steel
Certificate:
FCC, IC, CE, Terragraph
Dimensions:
779 x 664 x 383 mm
Encryption:
WPA2-PSK (AES)
Field of application:
Outdoor
Frequency:
60 Ghz
GPS:
Yes
Maximum Distance:
4 km
Modes / Function:
PtP only
Mounting:
Pole Mount, Ø 40-80 mm
Operating Conditions:
-40°C - +55°C
Operating Humidity:
5 - 95%, non-condensing
Operating System:
airFiber®
Power Consumption max.:
31.2 W
Power Supply:
Passive-PoE
Power Supply:
48V DC, 0.65A PoE GigE Adapter (included)
SFP+ Ports:
1
Size of RAM:
2 GB DDR4
Transfer Rate:
up to 3.8 Gbps / 6 Gbps
Transfer Rate 5 GHz:
up to 866Mbps
WLAN Standard:
IEEE 802.11ad
Wind load resistance:
422 N @ 200 km/h
Wireless Clients:
1
