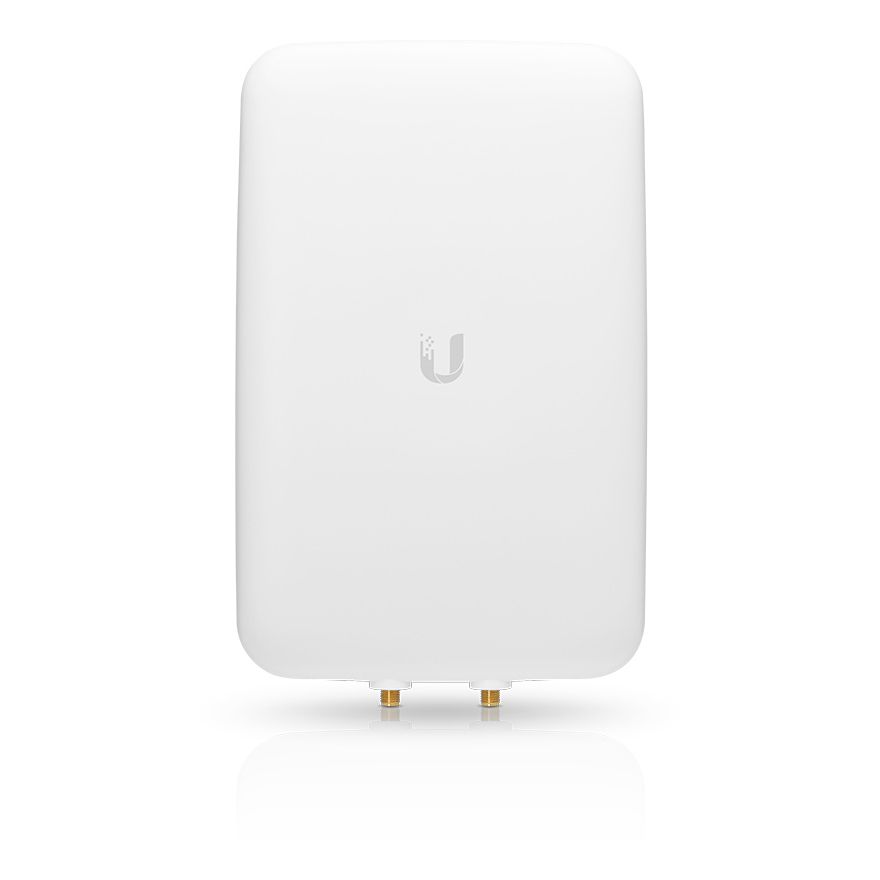

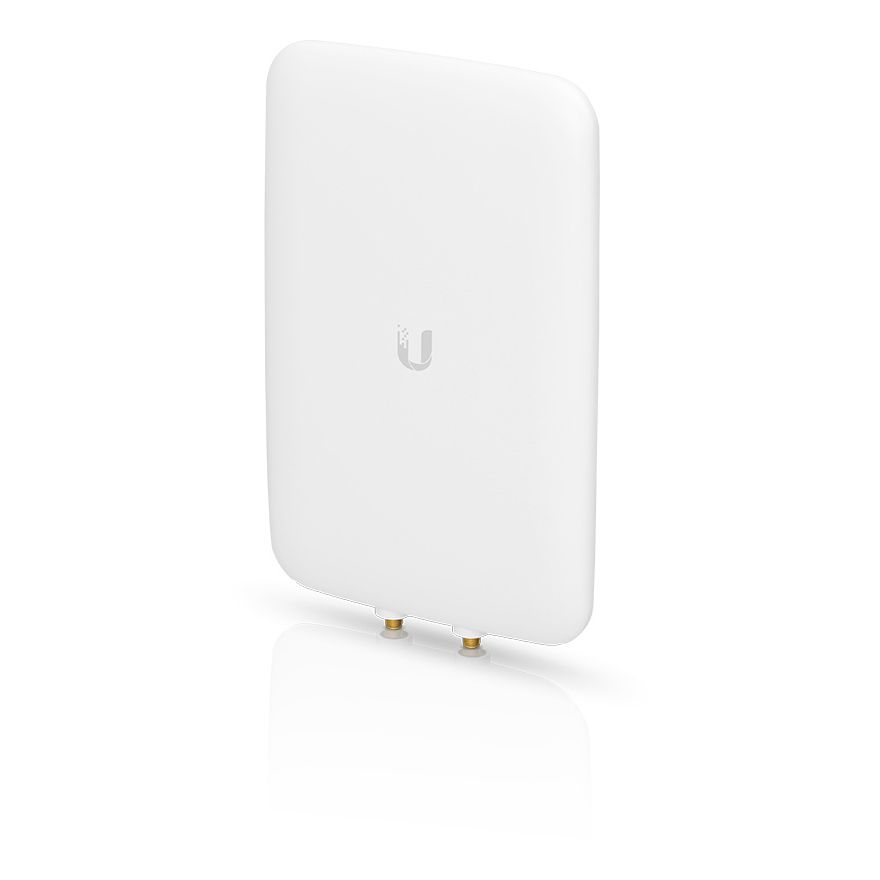

Ubiquiti High Efficiency Dual-Band Directional Mesh Antenna, 2.4GHz / 5GHz
- For UAP-AC-M
- Dual-Band, Dual-Polarisation für IEEE 802.11ac
- 90° Beamwidth 2,4 GHz
- 45° Beamwidth 5 GHz
- Three-Axis Ball Joint Mount for precise Aiming
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features:
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

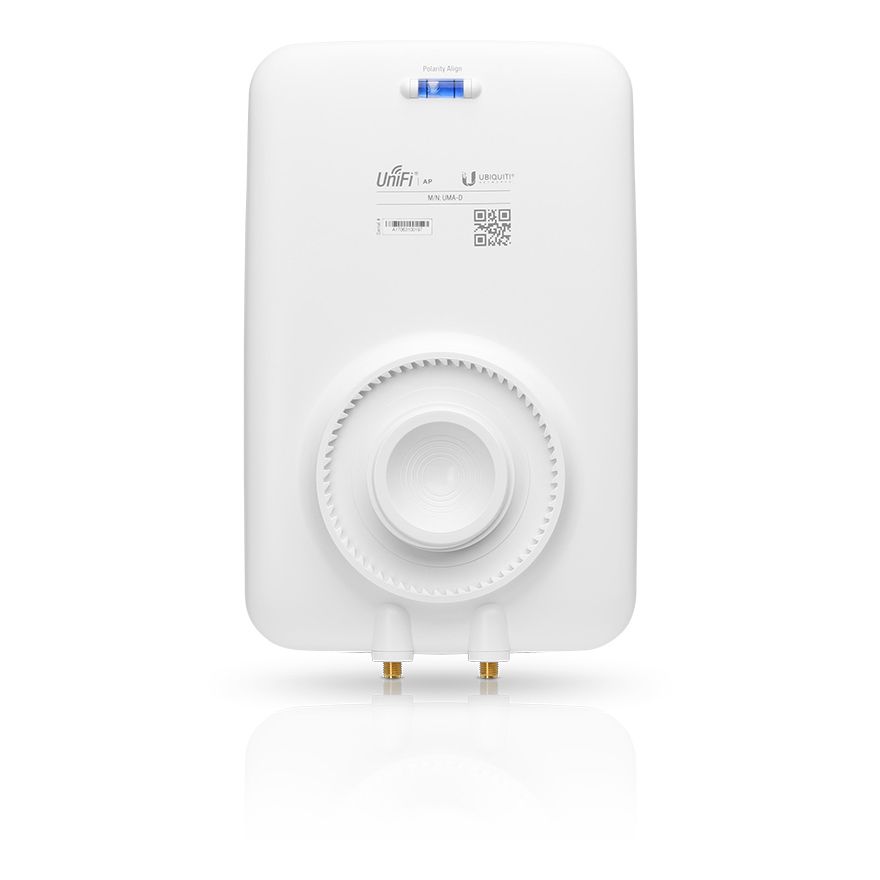

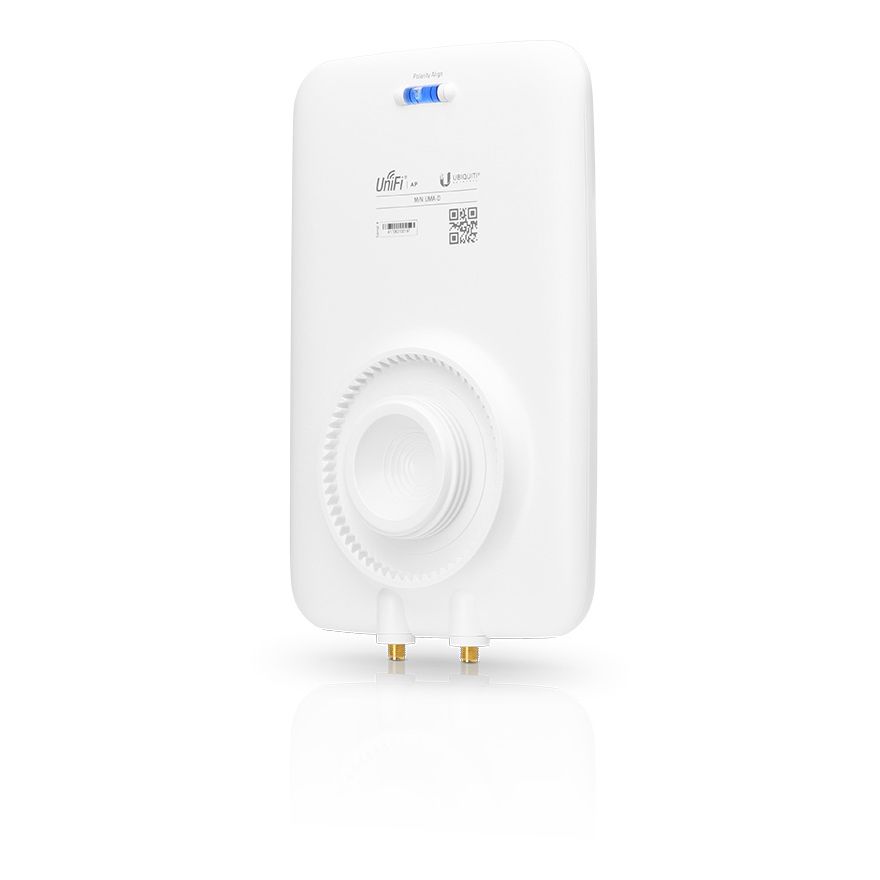

Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors. Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility:
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Available stock:
- For UAP-AC-M
- Dual-Band, Dual-Polarisation für IEEE 802.11ac
- 90° Beamwidth 2,4 GHz
- 45° Beamwidth 5 GHz
- Three-Axis Ball Joint Mount for precise Aiming
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features:
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors. Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility:
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Technical properties
Antenna Connector:
2x RP-SMA
Antenna Gain dBi:
10 dBi @ 2.4GHz, 15 dBi @ 5GHz
Band:
2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Case material:
Outdoor UV Stabilized Plastic
Cross-Pol. Isolation:
25dB @ 2.4GHz, 30dB @ 5GHz
Dimensions:
201.3 x 128 x 32.5mm
Elevation Beamwidth:
90° @ 2.4GHz, 45° @ 5GHz
Frequency:
2.4 GHz & 5 GHz
Max. VSWR:
2:1
Mounting:
Wall- / Pole-Mount
Polarization:
Dual-Linear
Product Family:
Sektor Antenne
