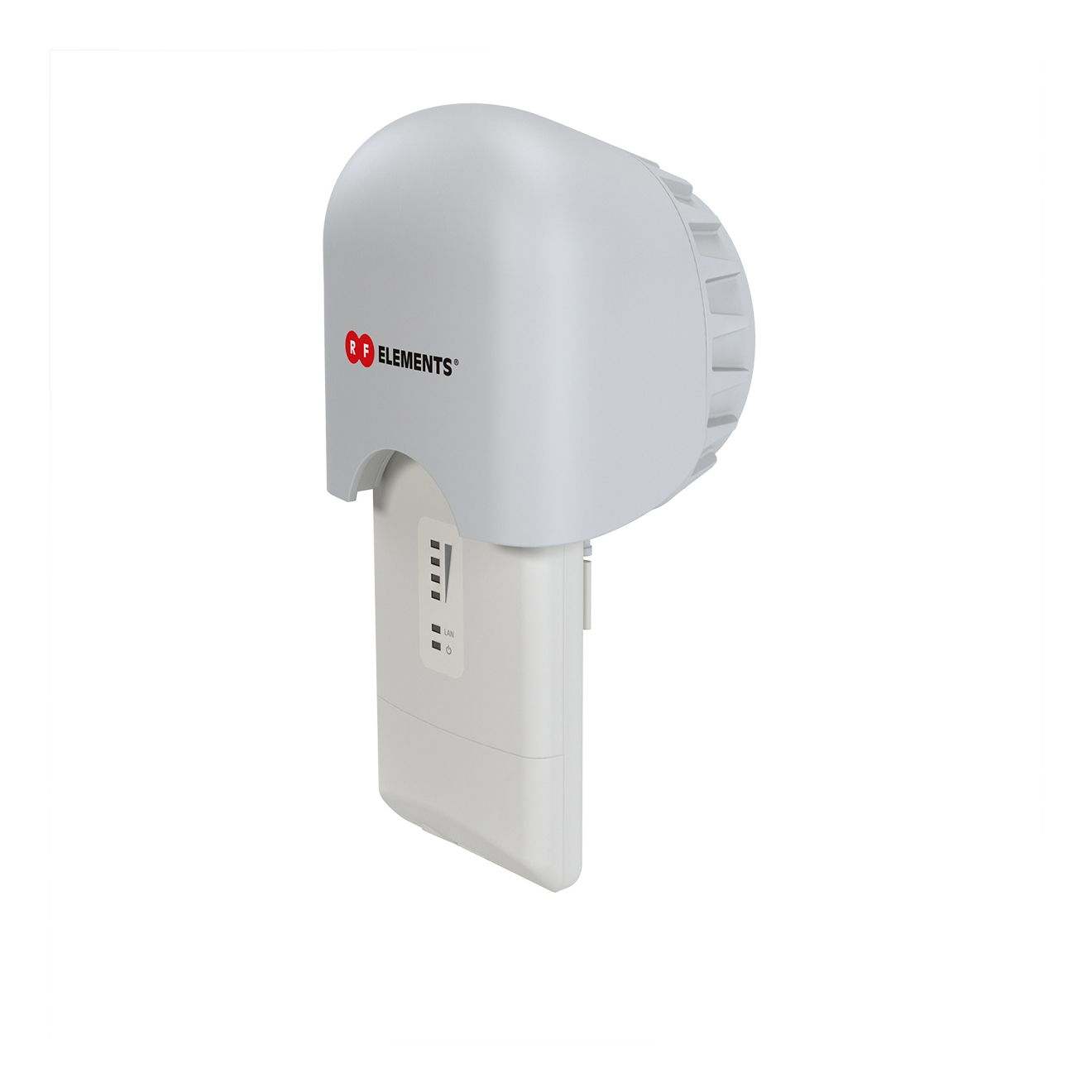

TwistPort™ Adaptor for Rocket 5ac Prism
- Antenna Connection: TwistPort - Quick Locking Waveguide Port
- Frequenzy Range: 5180 - 6400 MHz
- Radio Connection: 2x Slide-On RP-SMA and 2x RP-SMA for GPS
- Materials: Insert - Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic
- Flame Rating: UL 94 HB
- Temperature: -40°C to +60°C (-40°F to +140°F)
- Wind Survival: 160 km/h
- Weight: 0.4 Kg
- Compatible Wireless Platforms:
- RF elements® any Symmetrical Horn TP Antenna, any UltraDish TP Antenna
- Ubiquiti Networks® Rocket® 5AC Prism, Rocket® 5AC Prism Gen2
Available stock:
Article number:
TP-ADAP-R5AC-PRISM
Manufacturer number:
TP-ADAP-R5AC-PRISM
- Antenna Connection: TwistPort - Quick Locking Waveguide Port
- Frequenzy Range: 5180 - 6400 MHz
- Radio Connection: 2x Slide-On RP-SMA and 2x RP-SMA for GPS
- Materials: Insert - Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic
- Flame Rating: UL 94 HB
- Temperature: -40°C to +60°C (-40°F to +140°F)
- Wind Survival: 160 km/h
- Weight: 0.4 Kg
- Compatible Wireless Platforms:
- RF elements® any Symmetrical Horn TP Antenna, any UltraDish TP Antenna
- Ubiquiti Networks® Rocket® 5AC Prism, Rocket® 5AC Prism Gen2
Technical properties
Antenna Connector:
2x Slide-On RP-SMA and 2x RP-SMA for GPS
Band:
5100 - 6400 MHz
Compatibility:
Ubiquiti
Flame Rating:
UL 94 HB
Frequency:
5 GHz
Impedance:
50 Ohms
Material:
Insert - Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic
Operating Conditions:
-40°C - +60°C
Polarization:
Dual-Linear H + V
Wind load resistance:
160 km/h
