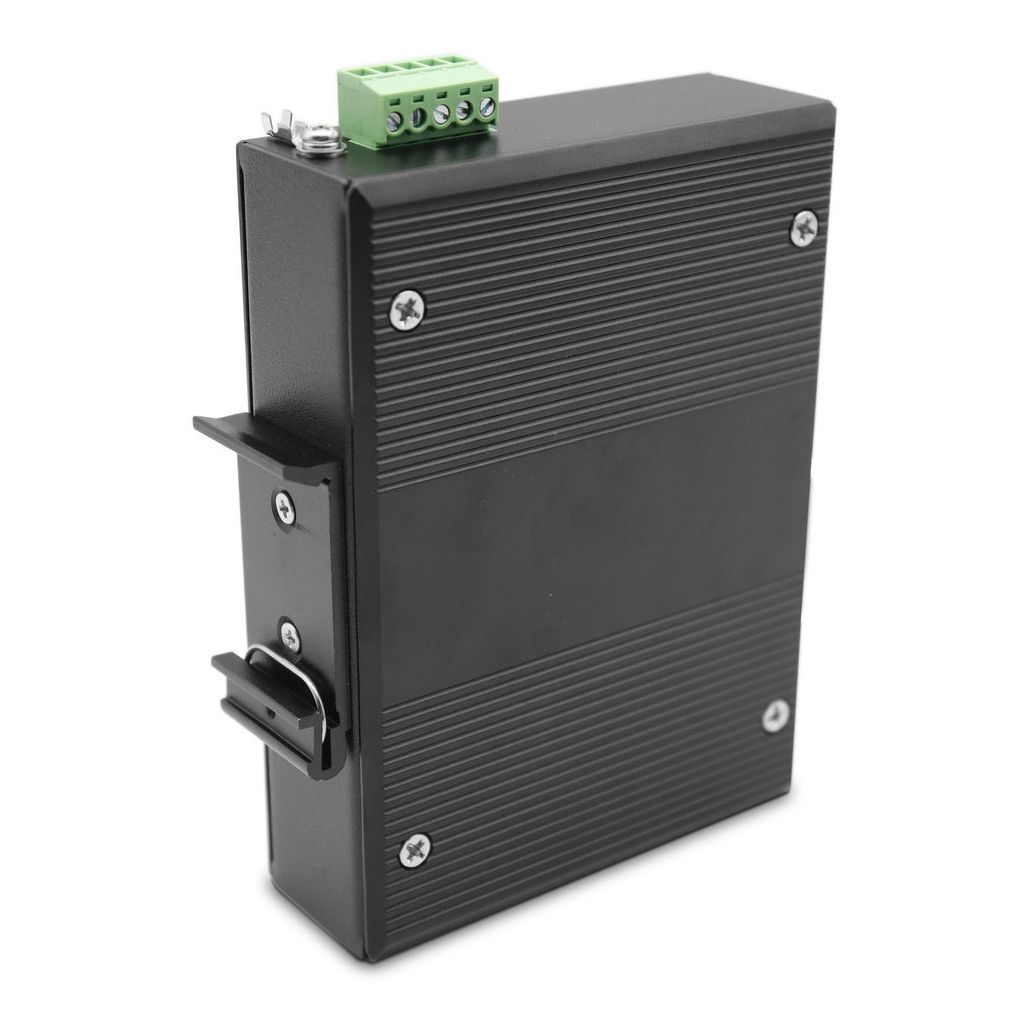

SICO Industrial Switch, 2×GB SFP-Ports + 4×GB RJ45-Ports
This industrial Gigabit switch combines four copper Ethernet ports with two SFP fiber uplink ports, providing maximum flexibility for modern industrial networks. The RJ45 ports support automatic speed negotiation and Auto-MDI/MDIX for simple plug-and-play installation.
The two SFP slots enable long-distance fiber optic connectivity and seamless integration of remote network segments. A VLAN isolation function can be activated via DIP switch to improve network security and reduce broadcast traffic.
Featuring a 12 Gbps switching capacity, IP40-rated aluminum enclosure, fanless cooling design, and an operating temperature range from -40°C to +85°C, this switch is perfectly suited for industrial automation, transportation, and smart infrastructure applications. Redundant 9–48 V DC power inputs provide additional reliability.
Recommended DIN-Rail power supply: PWR-75-48 (MEAN WELL -- XDR-75E-48)
- Industrial Gigabit Switch with 2 SFP and 4 RJ45 Ports
- 2× Gigabit Fiber + 4× Gigabit Copper
- VLAN Isolation via DIP Switch
- Redundant Power Input (9–48 V DC)Extended
- Operating Temperature from -40 °C to +85 °C
- Rugged IP40 Aluminum Housing
- High EMC Immunity (Industrial Class 4)
- Fanless Design for Industrial Applications
- Vibration- and Shock-Resistant DIN-Rail Mounting
- 12 Gbps Switching Capacity
- 500,000 Hours MTBF
- 5-Year Warranty
This industrial Gigabit switch combines four copper Ethernet ports with two SFP fiber uplink ports, providing maximum flexibility for modern industrial networks. The RJ45 ports support automatic speed negotiation and Auto-MDI/MDIX for simple plug-and-play installation.
The two SFP slots enable long-distance fiber optic connectivity and seamless integration of remote network segments. A VLAN isolation function can be activated via DIP switch to improve network security and reduce broadcast traffic.
Featuring a 12 Gbps switching capacity, IP40-rated aluminum enclosure, fanless cooling design, and an operating temperature range from -40°C to +85°C, this switch is perfectly suited for industrial automation, transportation, and smart infrastructure applications. Redundant 9–48 V DC power inputs provide additional reliability.
Recommended DIN-Rail power supply: PWR-75-48 (MEAN WELL -- XDR-75E-48)
