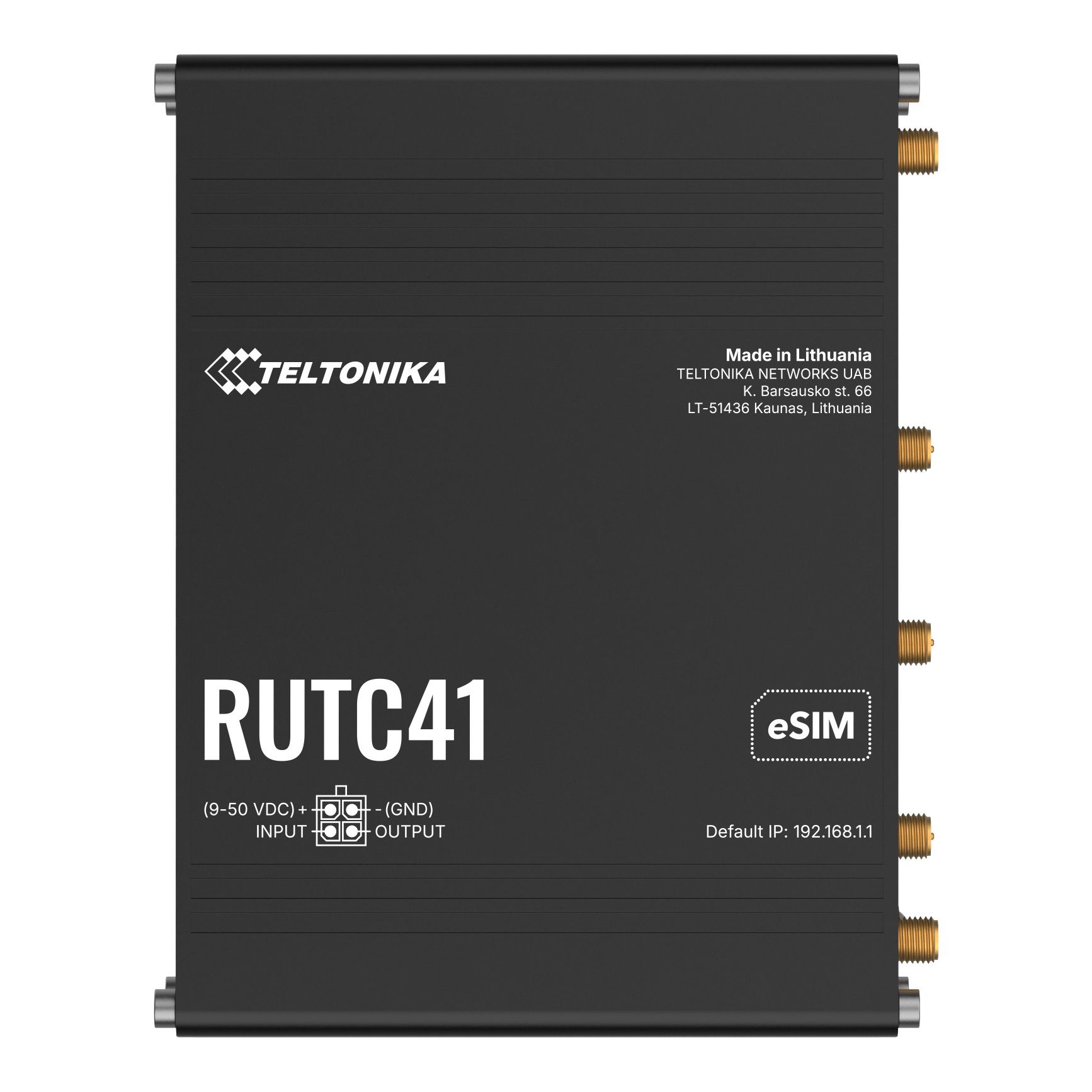

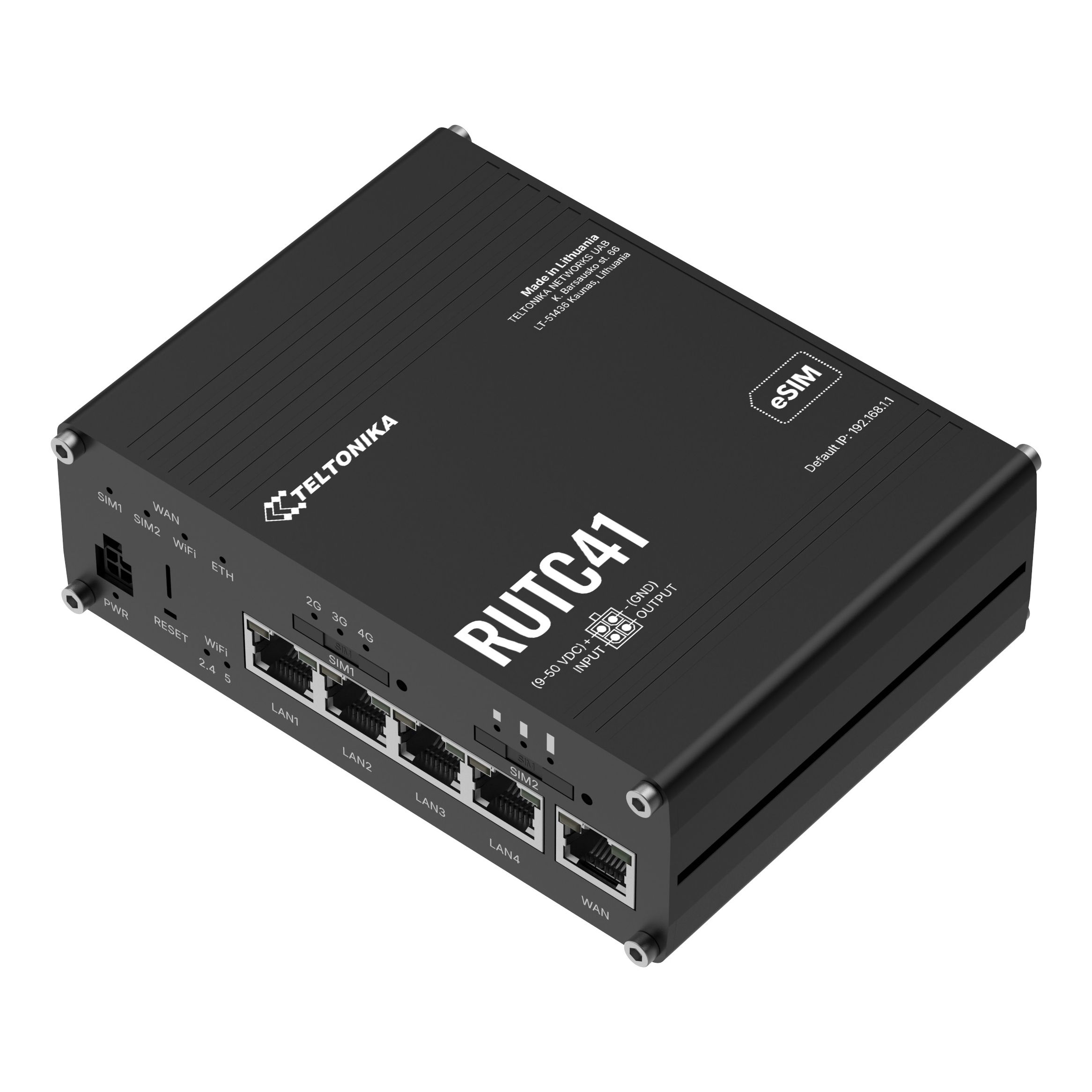

RUTC41 - Industrial 4G CAT 4 Edge Router

Bring powerful on-site computing to your industrial deployments with the RUTC41 edge router. This high-performance yet compact and versatile device combines 4G Cat 4 connectivity with advanced processing power and dual-band Wi-Fi 6. Built-in Docker support allows you to run containerized applications directly on the router. Equipped with 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC41 delivers secure networking, cloud integration, and real-time data logger in one rugged device.

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Stk
Available stock:
Article number: RUTC41000000
Manufacturer number: RUTC41000000
Manufacturer page: TELTONIKA
EAN: 4779051846368
  • 4G LTE Cat 4 router – up to 150 Mbps down / 50 Mbps up
  • Dual SIM + eSIM for failover & multi-provider operation
  • Dual-band Wi-Fi 6 (802.11ax) with MU-MIMO

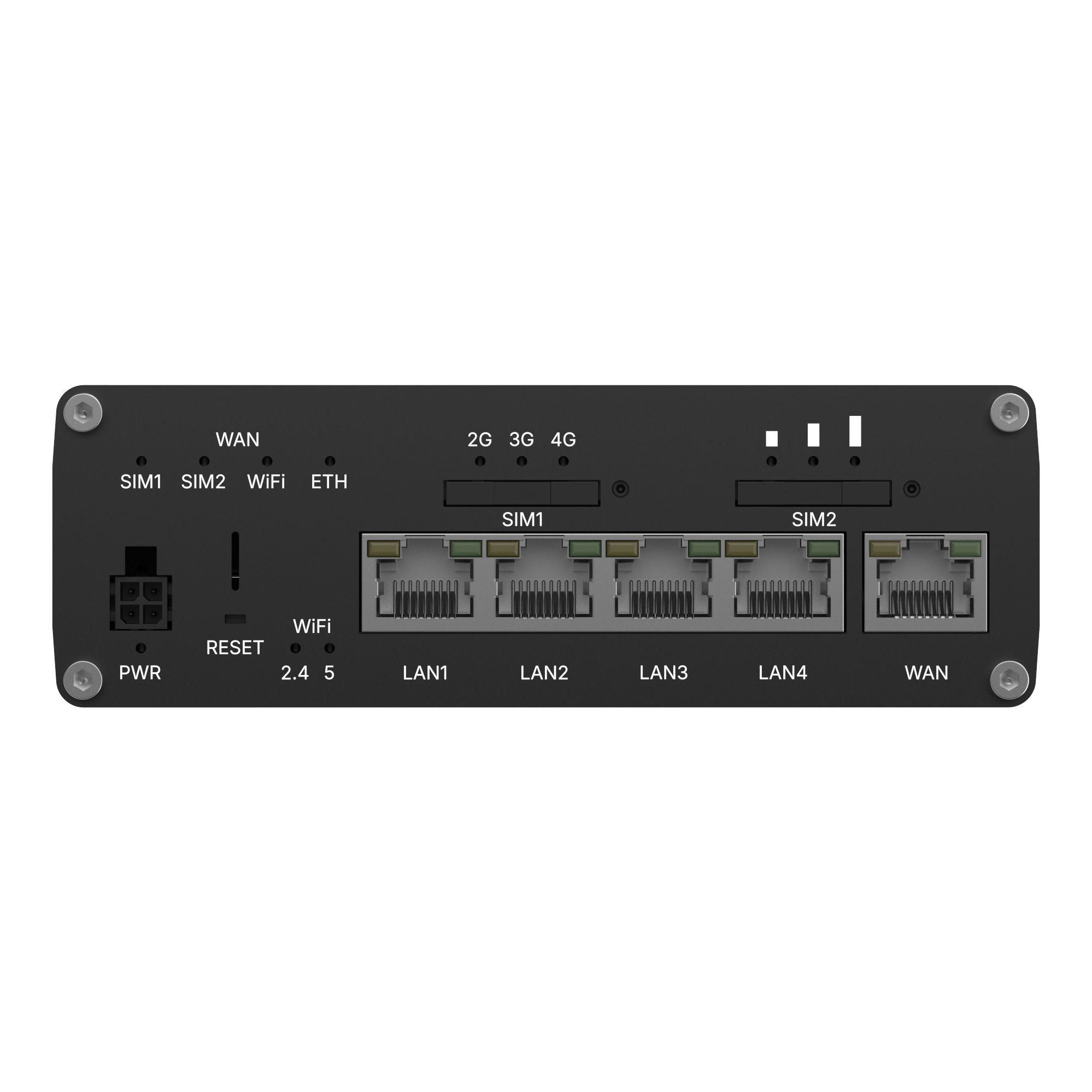

  • 5x Gigabit Ethernet ports (4× LAN, 1× WAN/LAN)
  • Powerful dual-core 1.3 GHz processor, 1 GB RAM
  • Docker support for container applications at the edge
  • Extensive VPN support (IPsec, OpenVPN, WireGuard)
  • RutOS (OpenWrt-based) with advanced routing & security features
  • RMS-enabled for centralized remote management
  • Robust industrial housing, -40 °C to +75 °C operating temperature

Bring powerful on-site computing to your industrial deployments with the RUTC41 edge router. This high-performance yet compact and versatile device combines 4G Cat 4 connectivity with advanced processing power and dual-band Wi-Fi 6. Built-in Docker support allows you to run containerized applications directly on the router. Equipped with 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC41 delivers secure networking, cloud integration, and real-time data logger in one rugged device.

Technical properties
1 GBit Ports:
5

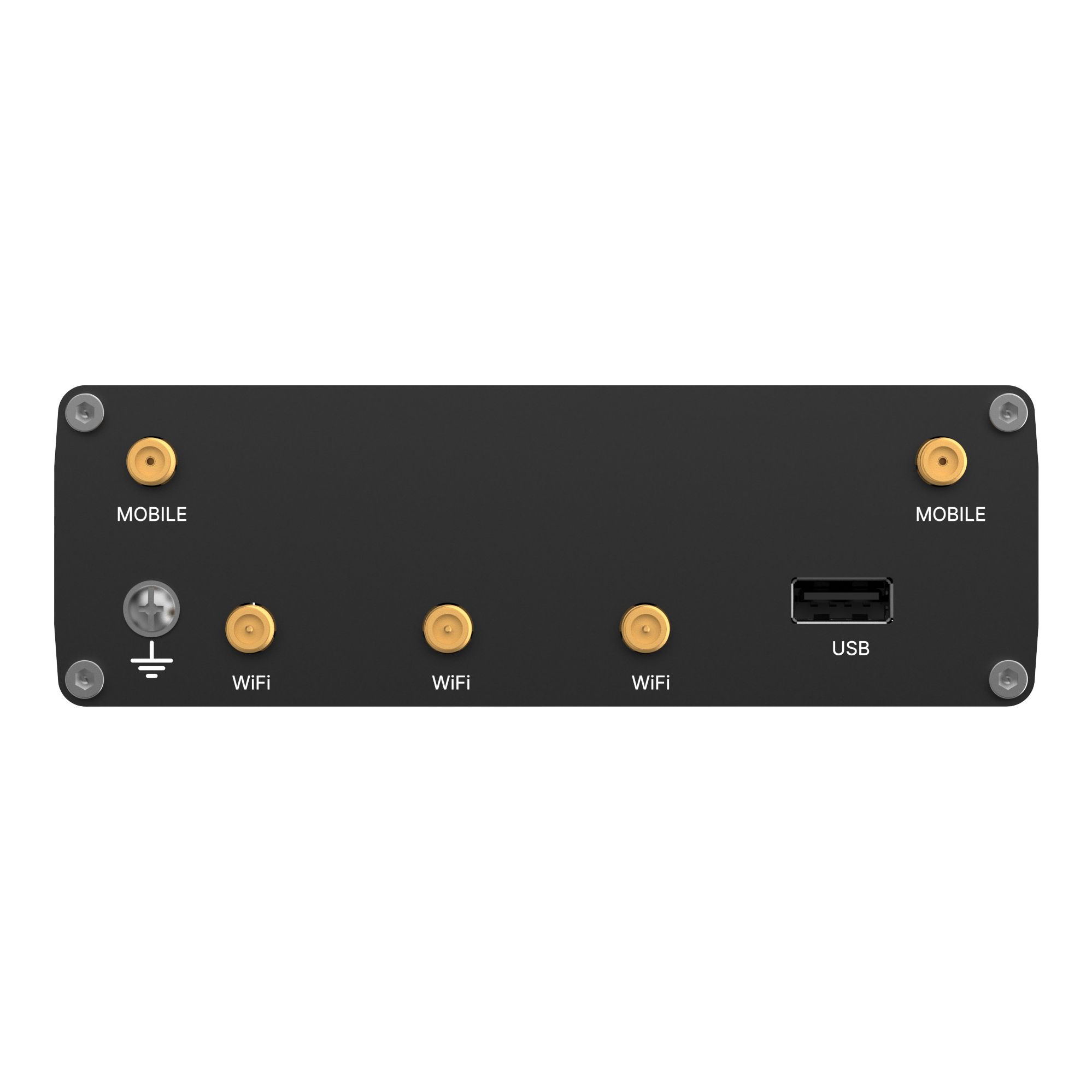

Antenna Connector:
2x Mobile SMA, 3x WiFi RP-SMA
CPU:
Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
Case material:
Aluminum Alloy
Certificate:
REACH, RoHS, CE, UKCA, CB, WEEE
Design:
DIN Rail
Dimensions:
130.4 x 42.6 x 104 mm
Flash Memory:
16 MB serial NOR flash, 8 GB eMMC Flash
Frequency:
2.4 GHz & 5 GHz
GPS:
No
Input digital:
1
LTE Category:
Cat 4
Mobile Standard:
2G/3G/4G
Mounting:
DIN-Rail
Network Ports:
5-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Operating System:
RutOS
Output digital:
1
PoE in:
Passive PoE
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
5.5W / <13.5W
Power Jack:
4-Pin Terminal Block
Power Supply:
9 - 50V DC, Passive-PoE
SFP Ports:
-
SIM Slots:
Dual-SIM
Safety Class:
IP30
Security:
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto ...
Serial Interface Type:
-
Size of RAM:
1 GB DDR4
USB Ports:
1
USB Standard:
USB 2.0
VPN Tunnels:
OpenVPN, IPSec, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale, Netbird, EoI ...
WAN Connection Type:
LTE / 4G
WLAN:
Yes
WLAN 5 GHz Generation:
WiFi 6
WLAN Standard:
IEEE 802.11 b/g/n/ac/ax
Wireless Clients:
up to 512
eSIM:
Yes
