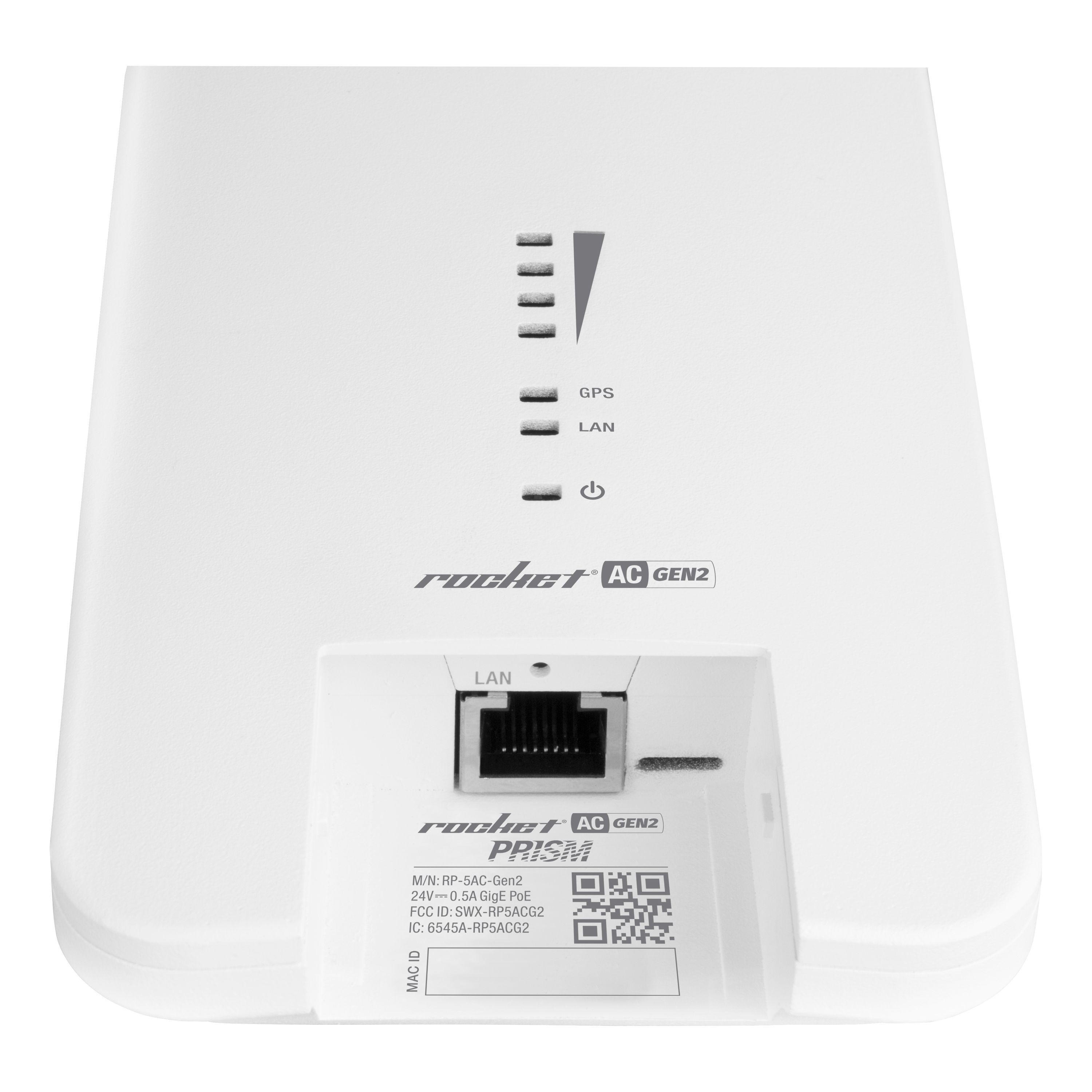

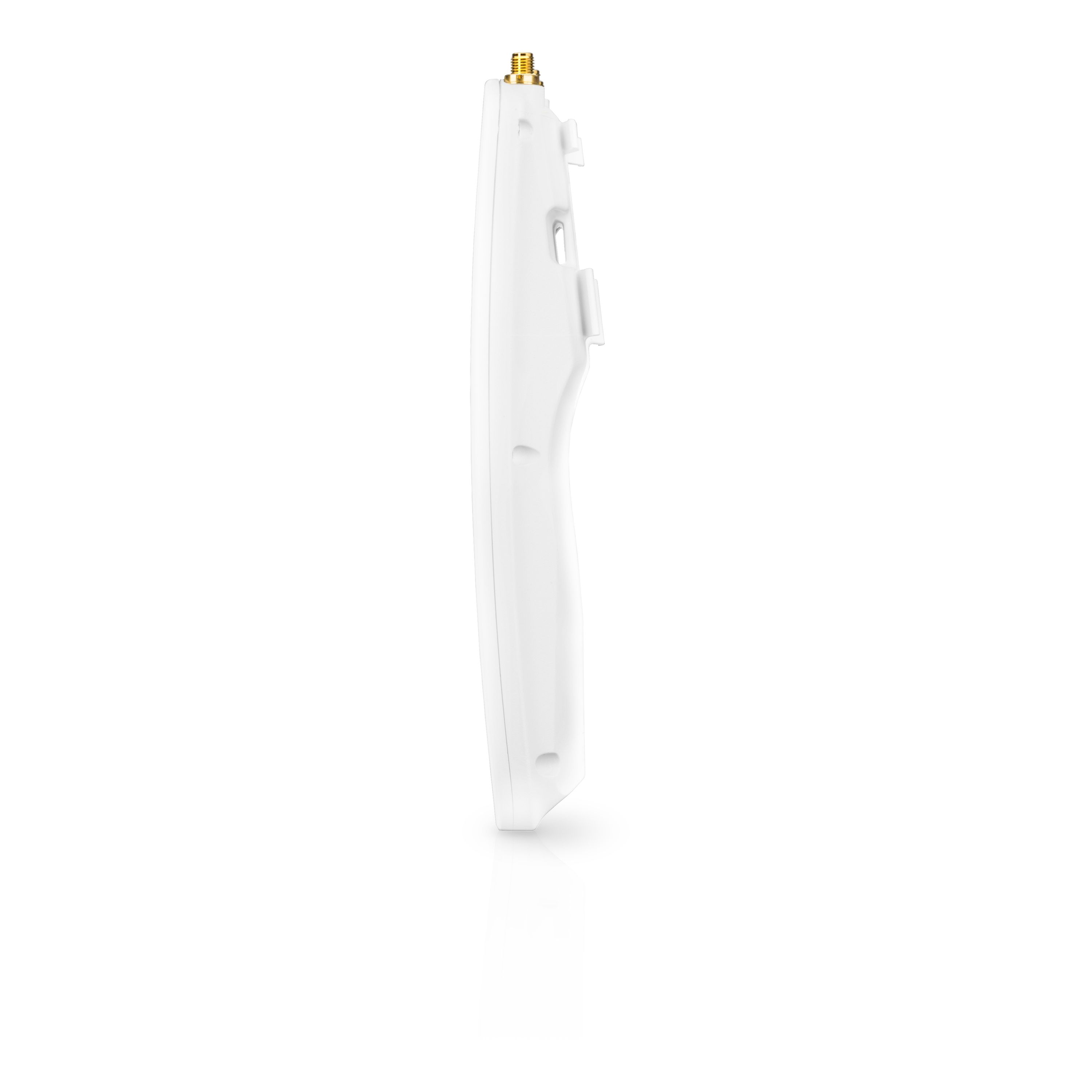

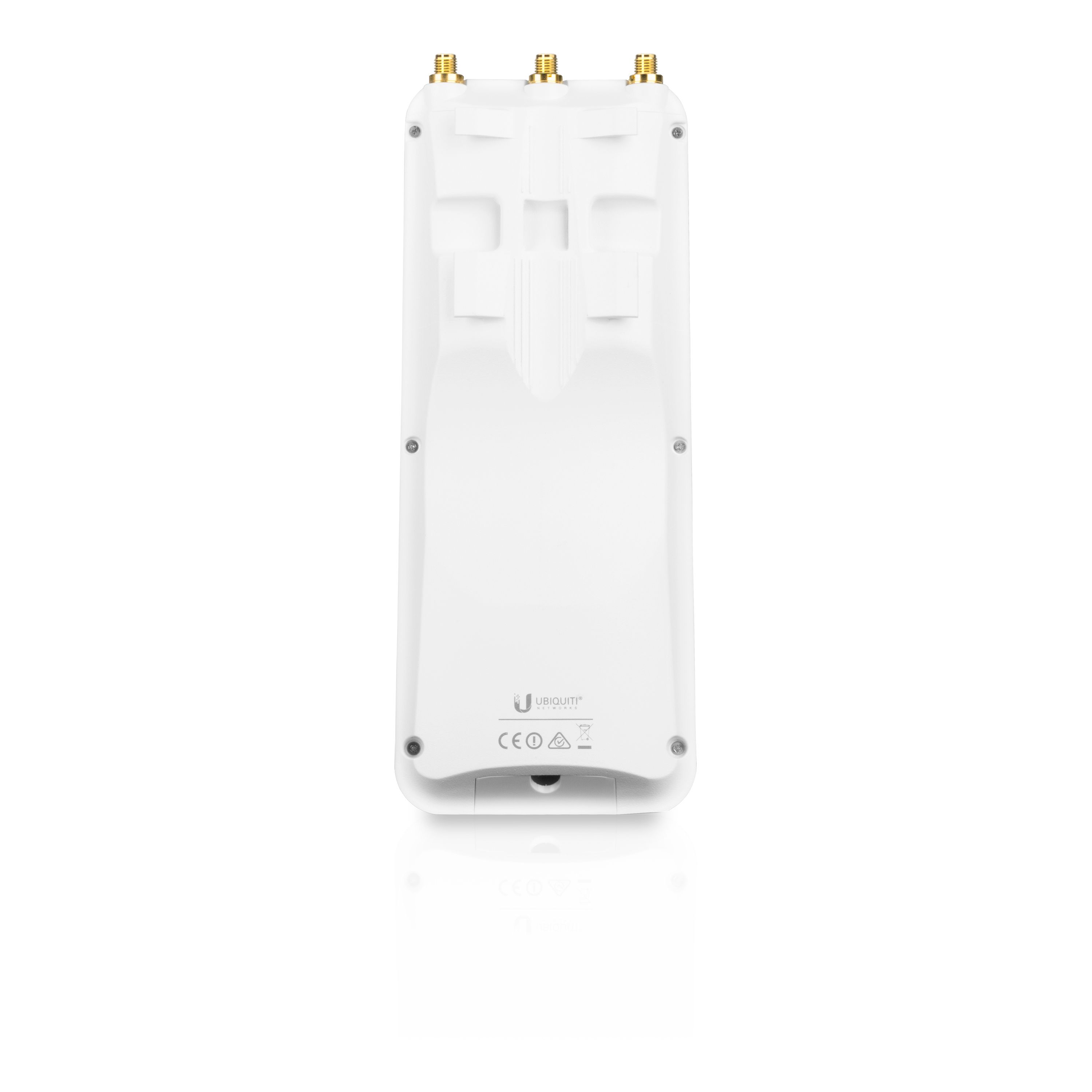

Rocket Prism Gen2 5GHz AirMAX ac Radio
- GPS synchronization
- New antenna design
- 5 GHz band
- Mobile App easy setup
- Outdoor component
The Ubiquiti Rocket Prism 5AC GEN2 is the ideal component for point-to-point connections with a focus on maximum performance.
In the orientation of the Rocket AC PRISM supports the integrated GPS synchronization.
The NanoStation 5AC is easy to set up via the easy-U-app via the tablet or smartphone.
The Rocket AC PRISM can be operated worldwide and allows a wide range of channel bandwidths to be set: 10, 20, 40, 50, 60 and 80 MHz.
By using the Rocket Dish AC, a high-performance point-to-point connection can be established.
All Ubiquiti AC products are compatible with AC components only.
AirOS 7 Software Features:
- airMAX ac Protocol Support
- Long-range point-to-point (PtP) link mode
- Automatic channel change
- Automatic Distance Selection (ACK Timing)
- WPA2 AES encryption
AirMAX ac:
- The following features are enabled by the new chipset in the airMAX ac devices:
- 3x as much power
- Higher range
- Improved latency and noise immunity
Outdoor Features:
The Ubiquiti Rocket AC PRISM is equipped with an outdoor housing to ensure optimal operation at temperatures from -40 ° C to + 80 ° C.
Available stock:
Article number:
RP-5AC-GEN2
Manufacturer number:
RP-5AC-GEN2
Manufacturer page:
UBIQUITI
EAN:
0817882020268
- GPS synchronization
- New antenna design
- 5 GHz band
- Mobile App easy setup
- Outdoor component
The Ubiquiti Rocket Prism 5AC GEN2 is the ideal component for point-to-point connections with a focus on maximum performance.
In the orientation of the Rocket AC PRISM supports the integrated GPS synchronization.
The NanoStation 5AC is easy to set up via the easy-U-app via the tablet or smartphone.
The Rocket AC PRISM can be operated worldwide and allows a wide range of channel bandwidths to be set: 10, 20, 40, 50, 60 and 80 MHz.
By using the Rocket Dish AC, a high-performance point-to-point connection can be established.
All Ubiquiti AC products are compatible with AC components only.
AirOS 7 Software Features:
- airMAX ac Protocol Support
- Long-range point-to-point (PtP) link mode
- Automatic channel change
- Automatic Distance Selection (ACK Timing)
- WPA2 AES encryption
AirMAX ac:
- The following features are enabled by the new chipset in the airMAX ac devices:
- 3x as much power
- Higher range
- Improved latency and noise immunity
Outdoor Features:
The Ubiquiti Rocket AC PRISM is equipped with an outdoor housing to ensure optimal operation at temperatures from -40 ° C to + 80 ° C.
Technical properties
1 GBit Ports:
1
CPU:
Atheros MIPS 74Kc
Case material:
Die-Cast Aluminum with White Powder Coating
Certificate:
CE, FCC, IC
Connectors:
2x RP-SMA, 1x GPS
Dimensions:
88x40x230mm
ESD/EMP Protection:
± 24 kV Contact / Air for Ethernet
Field of application:
Outdoor
Frequency:
5 GHz
Operating Conditions:
-40 - +80°C
PoE Standard:
IEEE 802.3 Passive PoE
PoE Support:
Passive-PoE
Power Consumption:
9.5W
Power Supply:
24V, 1A Gigabit PoE Adapter
Product Family:
Rocket
QoS:
Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Security:
WPA2 AES Only
Shock & Vibrations:
ETSI300-019-1.4
Size of RAM:
128 MB
Transfer Rate:
500 Mbps
WLAN Standard:
airMax ac
Wireless Clients:
85
