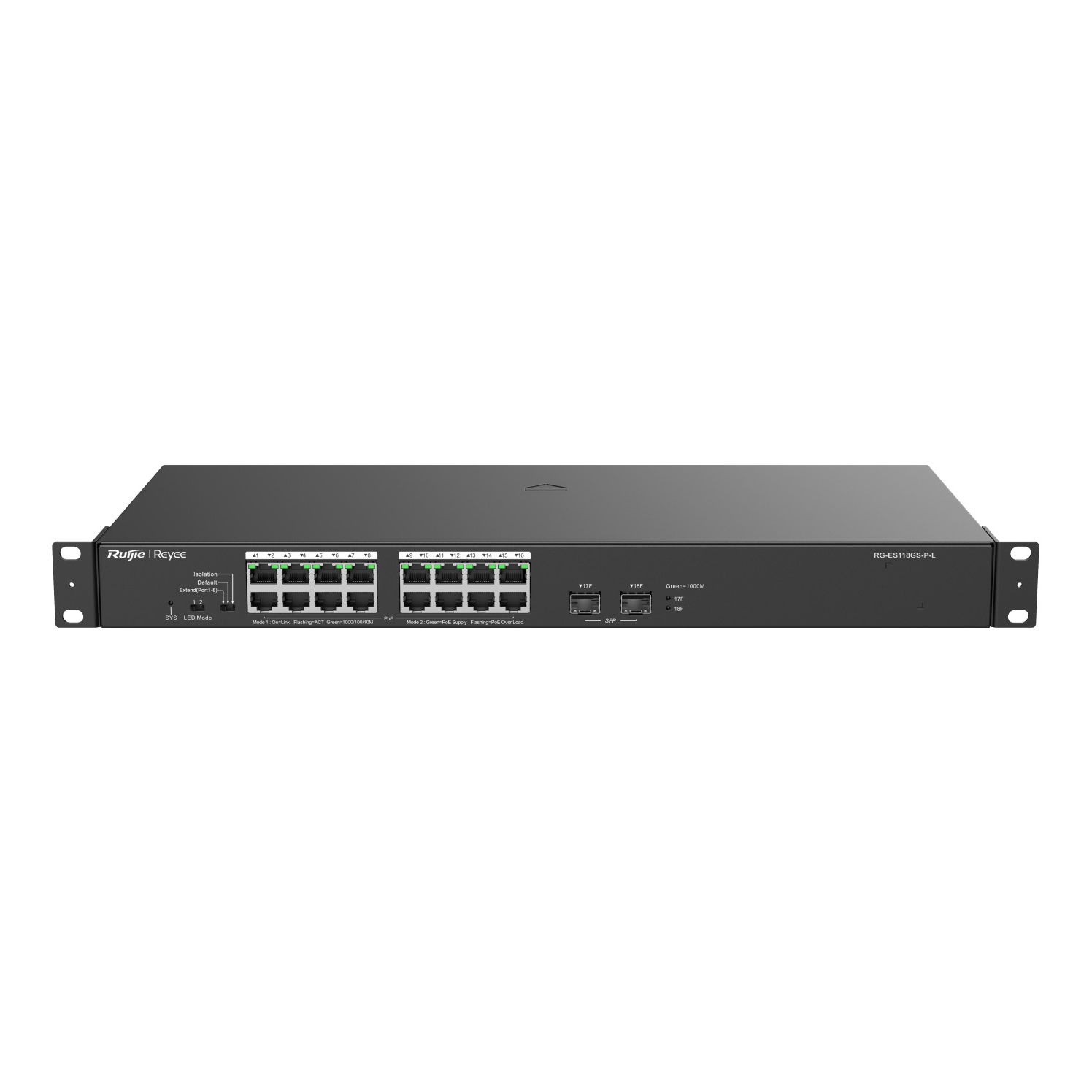

Reyee 16-Port 1Gbit, 2x SFP unmanaged PoE Switch, 247W
- Surveillance, Home Office, Retails, etc.
- Unmanaged switch, which is visible on Ruijie Cloud
- Intelligent and secure CCTV network
- Intelligent PoE Management
- High-quality design
- Applicable to various scenarios
Available stock:
- 16x 10/100/1000 Base-T Ports
- 2x 1000Base-X SFP Ports
- 36 Gbps Switch Capacity
- 26.8 Mpps Forwarding Rate
- 3 Years Warranty
- Surveillance, Home Office, Retails, etc.
- Unmanaged switch, which is visible on Ruijie Cloud
- Intelligent and secure CCTV network
- Intelligent PoE Management
- High-quality design
- Applicable to various scenarios
Technical properties
1 GBit Ports:
16
1 GBit Ports, PoE-Out:
16
19-inch Mounting Bracket:
included
19-inch Rackmount:
Yes
Dimensions:
440 x 214 x 44 mm
Fanless:
No
Height U:
1 U
MAC Address Table:
8000
MTBF:
> 200.000
Managed:
Unmanaged
Network Ports:
16-Port
Number of Ports:
16 - 23
Operating Conditions:
0°C - +45°C
Operating Humidity:
10 - 90%, non-condensing
Packet Forwarding Rate:
26.78 Mpps
PoE Power Budget:
247 W
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption max.:
≤ 247 W
Power Supply:
100 - 240V AC, 4.5 A
Product Family:
RG-ES100 Serie Gigabit Ethernet
SFP Ports:
2
Surge Immunity:
4 kV
Switch Capacity:
36 Gbps
Warranty:
3 Years
