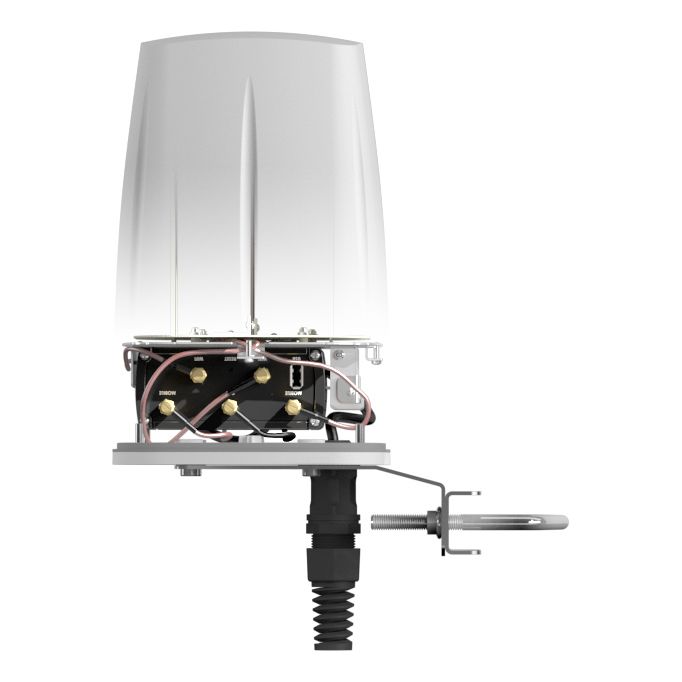

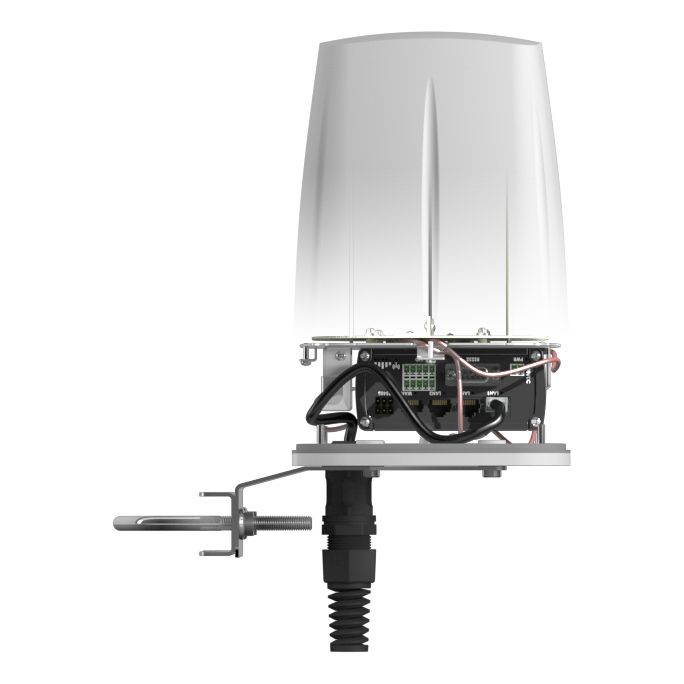

QuSpot for RUT955, IP67 Outdoor Enclosure w/ LTE Omni-, WiFi & GPS Antenna
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor Wi-Fi Omni-Antenna
- GPS Antenna
- Place to install Teltonika RUT955 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support

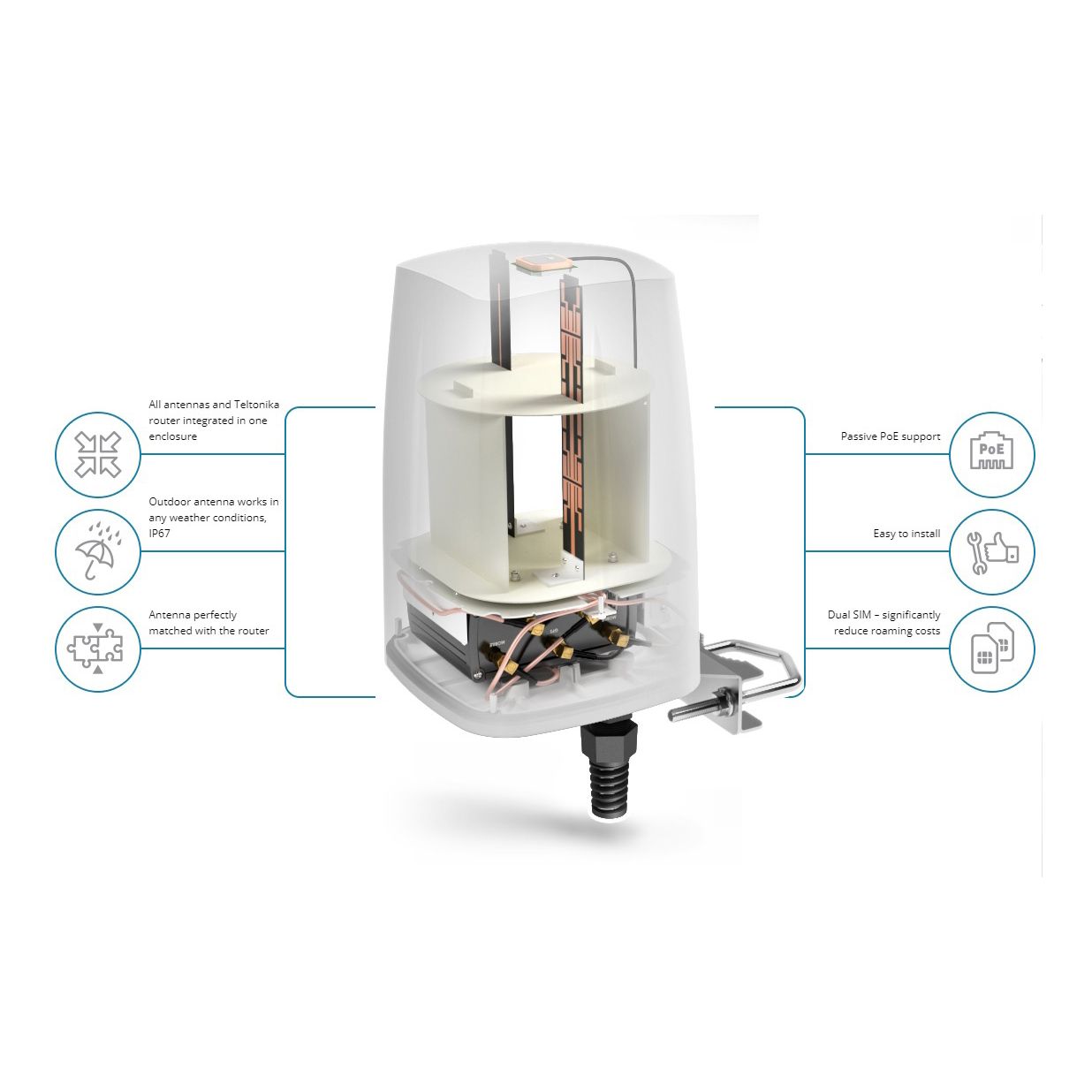

QuSpot omni LTE antenna for Teltonika RUT955 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi and GPS antenna. If you use RUT955 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Available stock:
Article number:
A955S
Manufacturer number:
QuSpot für RUT955, IP67 Outdoor Gehäuse mit LTE + WLAN + GPS
EAN:
5907772035030
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor Wi-Fi Omni-Antenna
- GPS Antenna
- Place to install Teltonika RUT955 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuSpot omni LTE antenna for Teltonika RUT955 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi and GPS antenna. If you use RUT955 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.70 - 6.00 GHz
Beamwidth:
360° / 25° ±5°
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
2 dBi / 4 dBi
LTE Beamwidth:
360° / 35° ±5°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.70, max. <2.00 / 1.60, max. <2.0
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max < 2.00
