QuSpot for RUT900/950, IP67 Outdoor Enclosure w/ LTE Omni- & WiFi Antenna
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor Wi-Fi Omni-Antenna
- Place to install Teltonika RUT900 or RUT950 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support

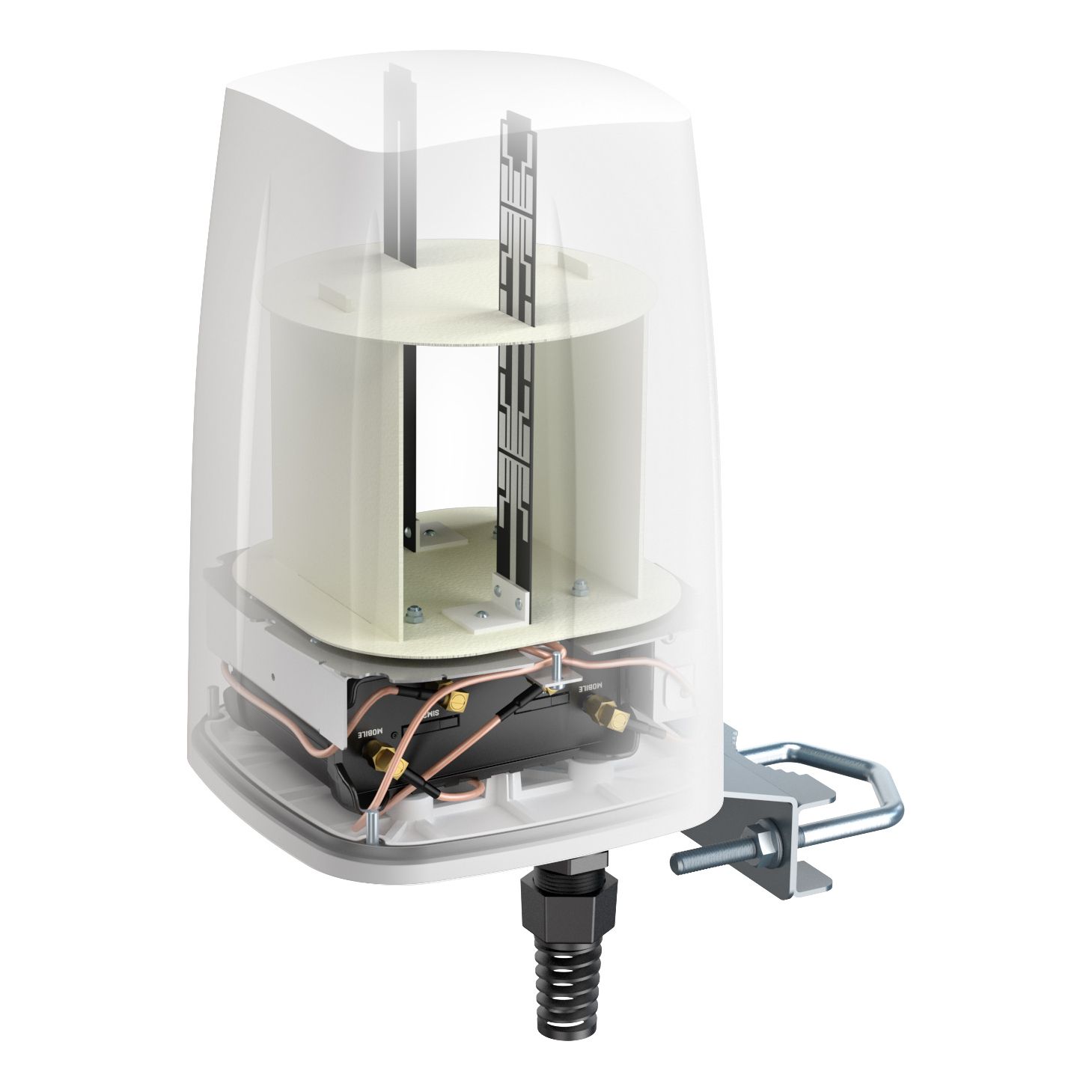

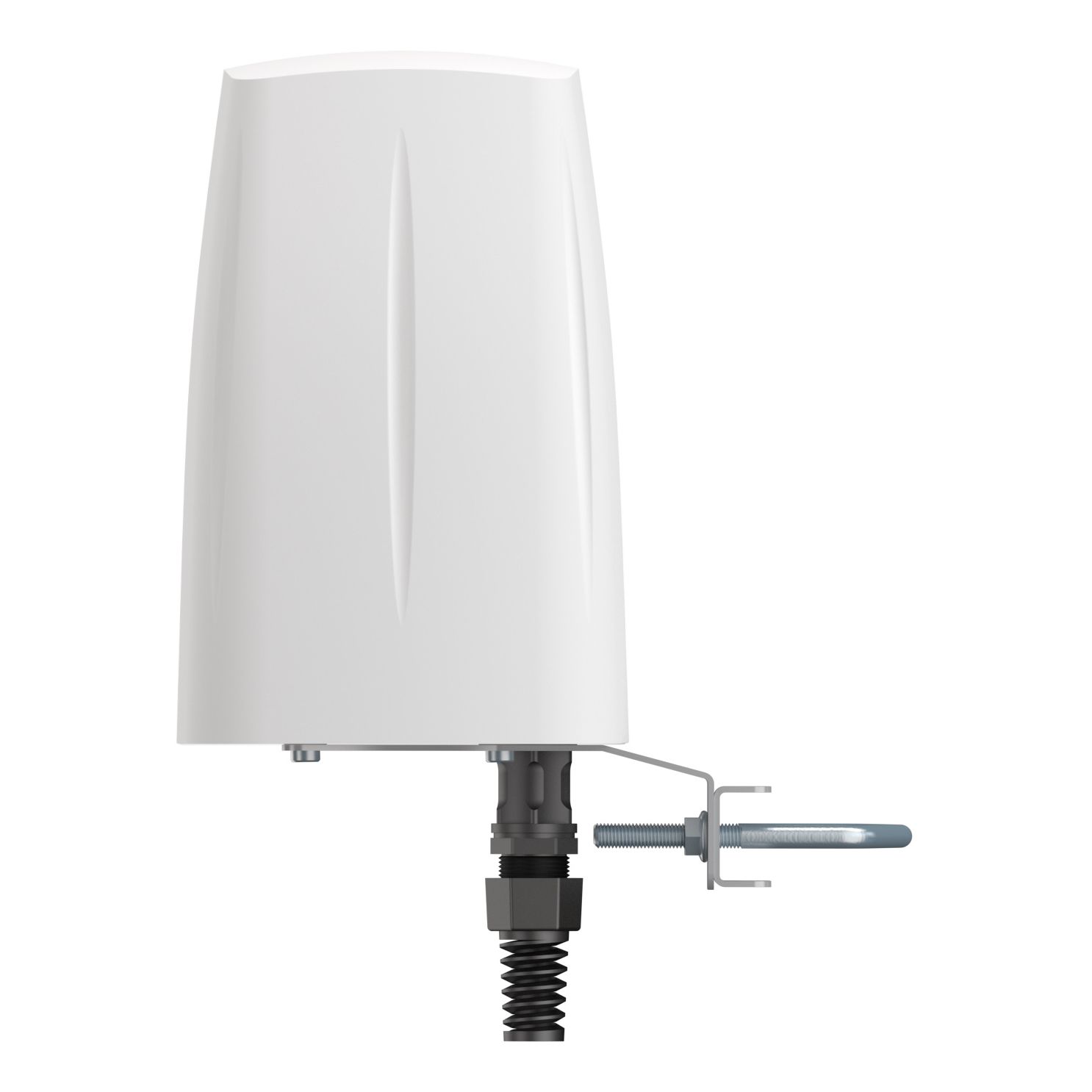

QuSpot omni LTE antenna for Teltonika RUT950 of 900 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT950 or 900 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Available stock:
Article number:
A950S
Manufacturer number:
QuSpot für RUT950/RUT900, IP67 Outdoor Gehäuse mit LTE + WLA
EAN:
5907772035023
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor Wi-Fi Omni-Antenna
- Place to install Teltonika RUT900 or RUT950 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuSpot omni LTE antenna for Teltonika RUT950 of 900 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT950 or 900 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.70 - 6.00 GHz
Beamwidth:
360° / 25° ±5°
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
2 dBi / 4 dBi
LTE Beamwidth:
360° / 35° ±5°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.70, max. <2.00 / 1.60, max. <2.0
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max < 2.00
