QuMax for RUTX10, IP67 Outdoor Enclosure w/ WiFi Dual-Band & Bluetooth Antenna
- Integrated Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Omni Antenna
- Place to install Teltonika RUTX10 (All-in-One)
- Up to 7 dBi Antenna Gain
- IP67
- Passive-PoE Support

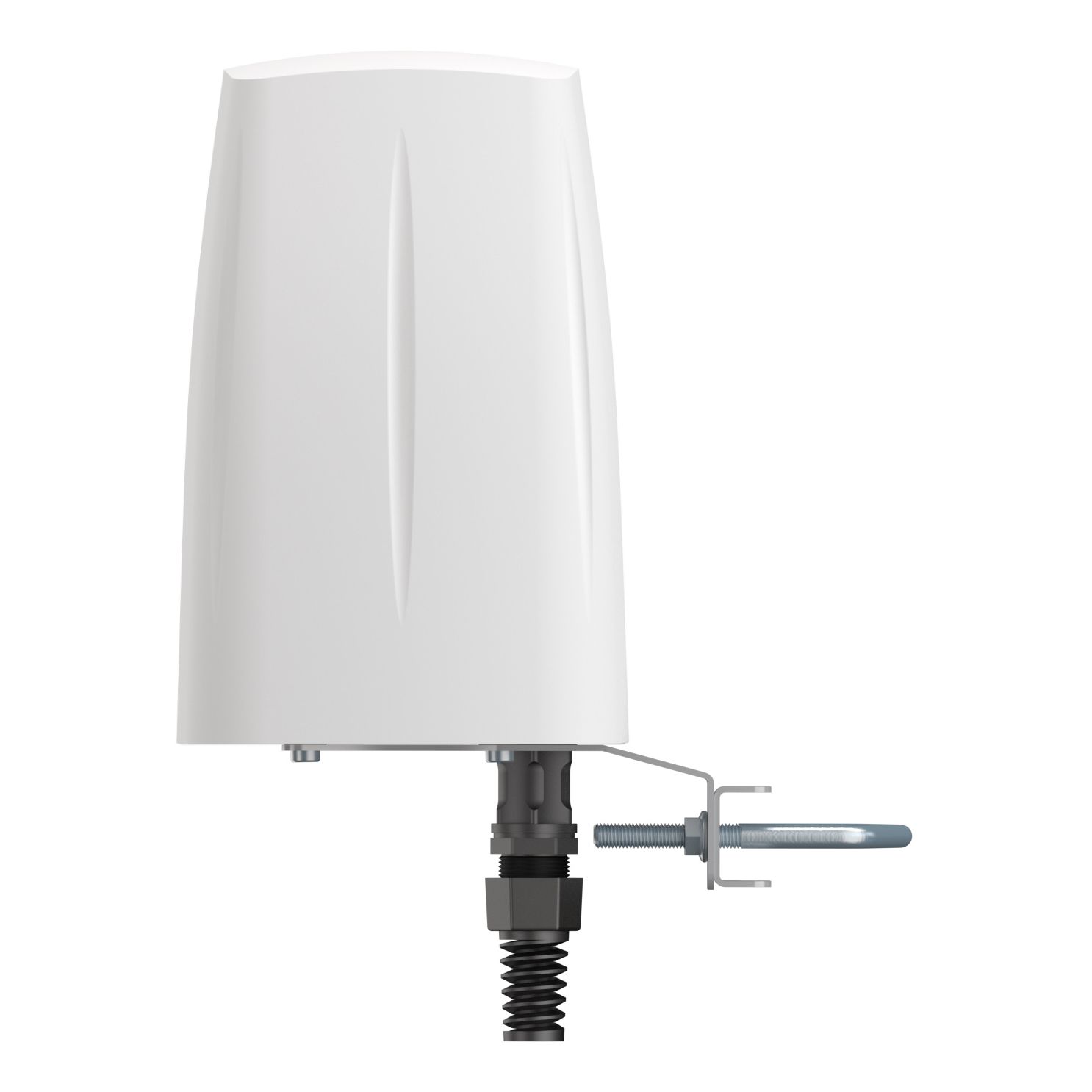

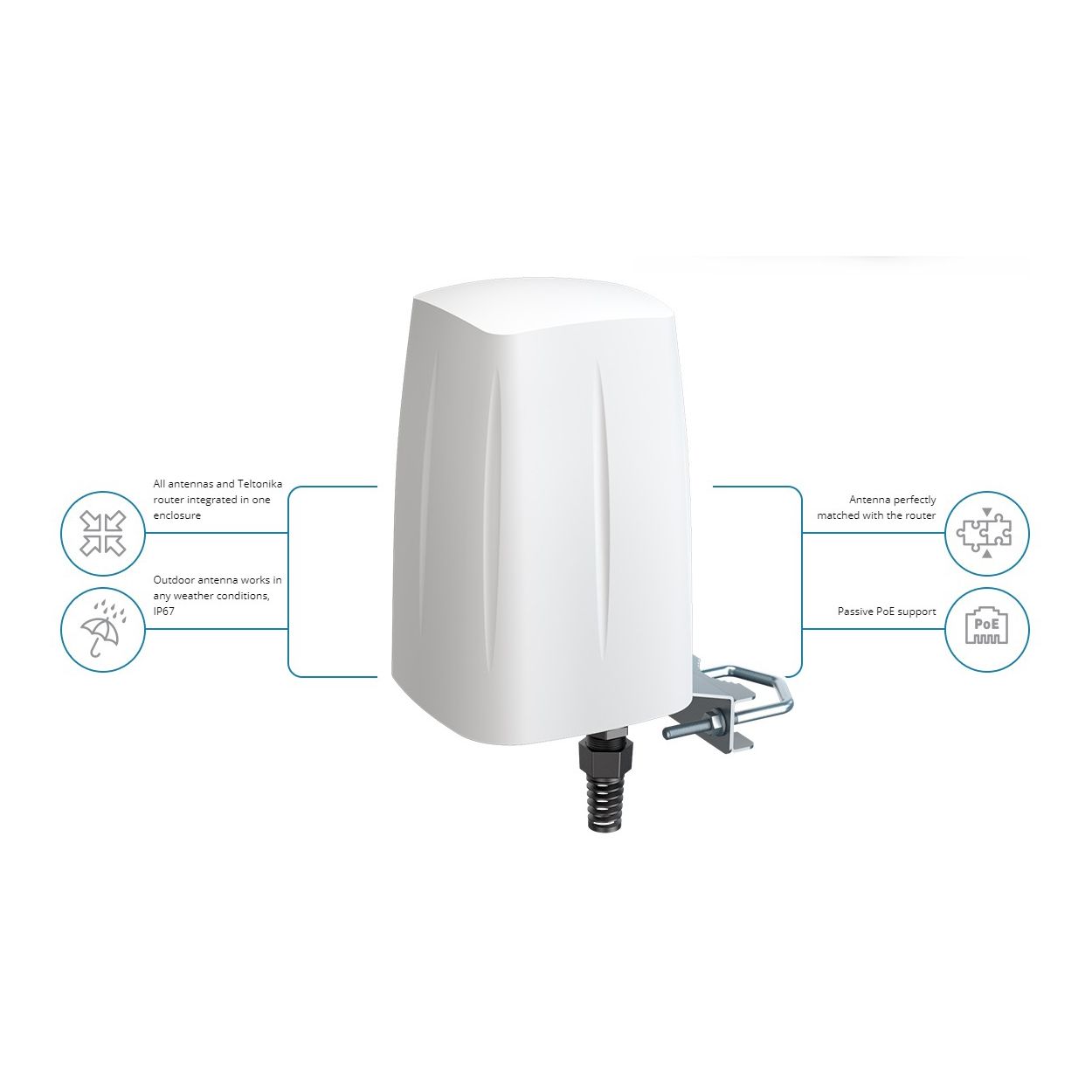

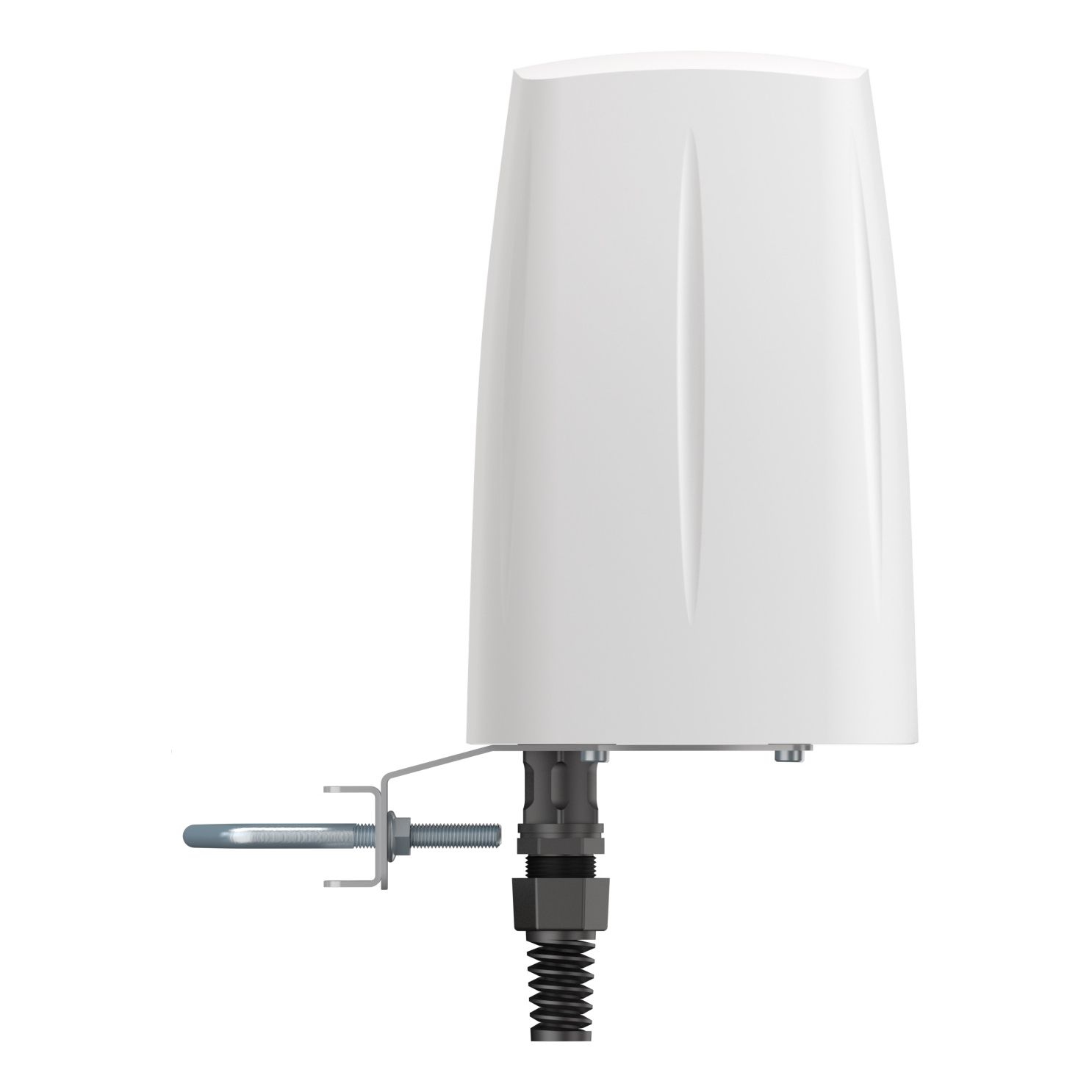

QuSpot Wi-Fi antenna for Teltonika RUTx10 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also Wi-Fi dual band 2.4 & 5GHz omni antenna and Bluetooth omni antenna. If you use RUTx10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Available stock:
Article number:
AX10S
Manufacturer number:
QuSpot für RUTx10, IP67 Outdoor Gehäuse mit WLAN + Bluetooth
EAN:
5907772035054
- Integrated Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Omni Antenna
- Place to install Teltonika RUTX10 (All-in-One)
- Up to 7 dBi Antenna Gain
- IP67
- Passive-PoE Support
QuSpot Wi-Fi antenna for Teltonika RUTx10 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also Wi-Fi dual band 2.4 & 5GHz omni antenna and Bluetooth omni antenna. If you use RUTx10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.40 - 6.00 GHz
Beamwidth:
360°/ 25° ±5°
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max. <2.00
