QuMax for RUTX10, IP67 Outdoor Enclosure w/ WiFi Dual-Band & Bluetooth Antenna
- Integrated Outdoor WiFi Dual-Band 2.4 & 5 GHz Sector-Antenna
- Bluetooth Sector Antenna
- Place to install Teltonika RUTX10 (All-in-One)
- Up to 7 dBi Antenna Gain
- IP67
- Passive-PoE Support

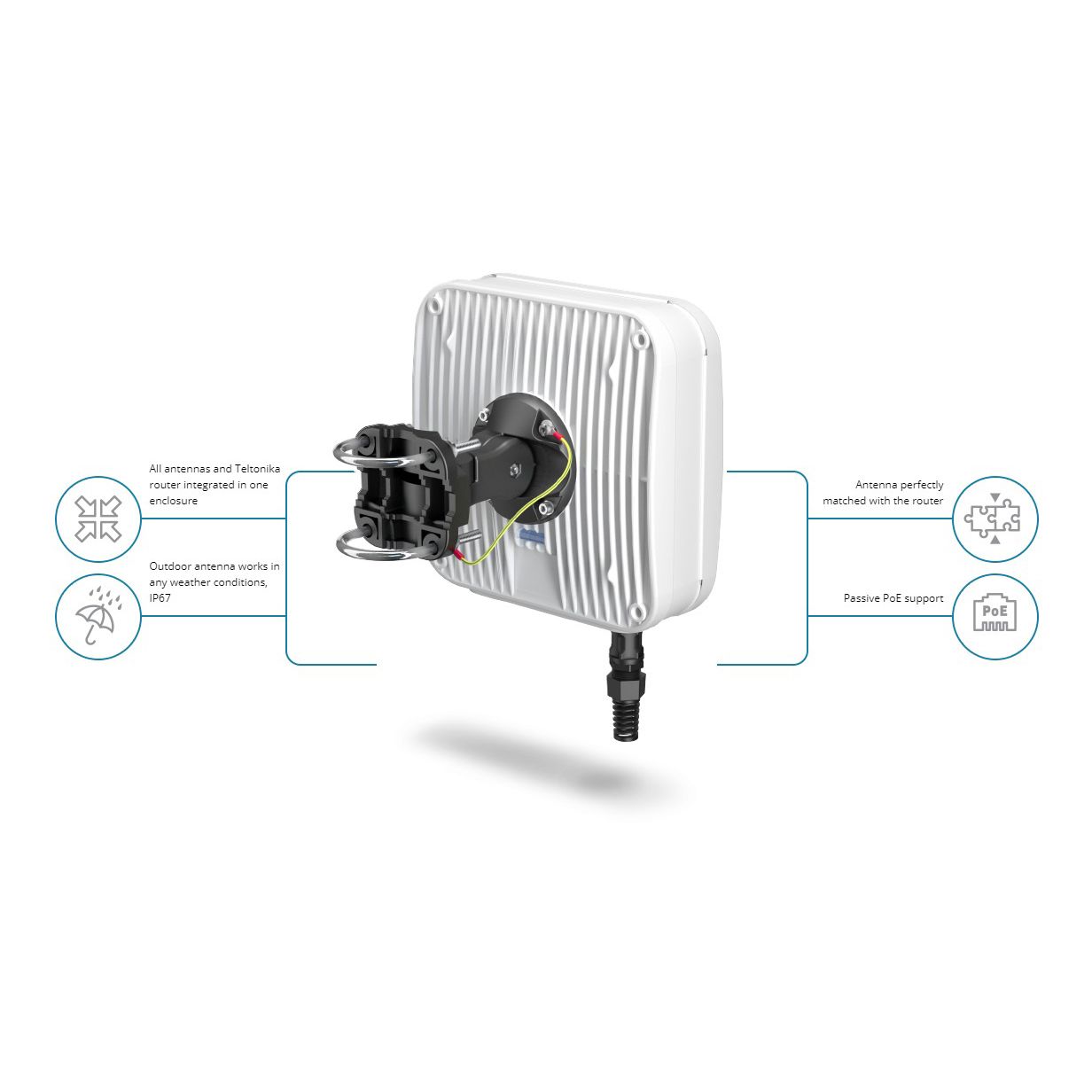

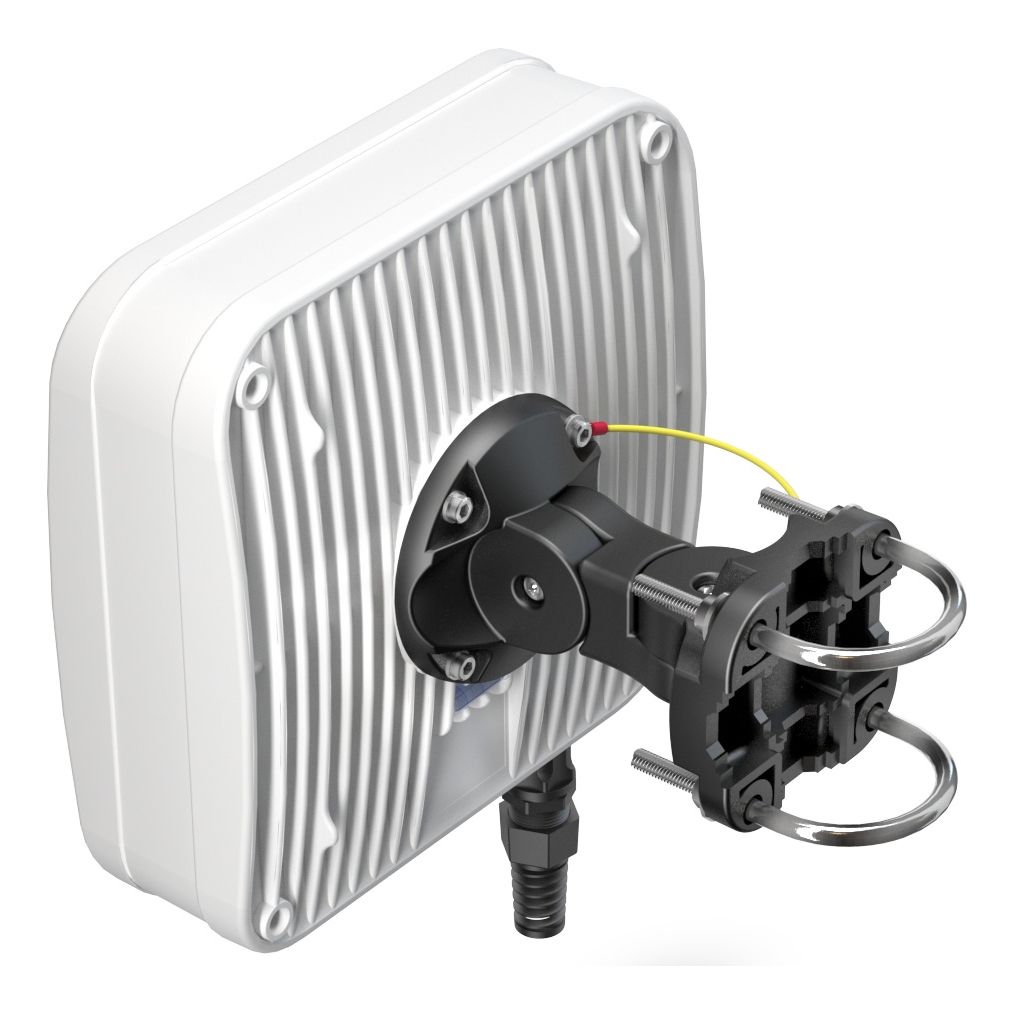

QuMAX offers the most powerful Wi-Fi dual band 2.4 & 5 GHz sector antenna of all QuWireless antennas. It is dedicated to hotspots and fixed networks base stations with big coverage. It is designed to have Teltonika RUTx10 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also Bluetooth sector antenna.
Available stock:
Article number:
AX10M
Manufacturer number:
QuMax für RUTx10, IP67 Outdoor Gehäuse mit WLAN + Bluetooth
EAN:
5907772035122
- Integrated Outdoor WiFi Dual-Band 2.4 & 5 GHz Sector-Antenna
- Bluetooth Sector Antenna
- Place to install Teltonika RUTX10 (All-in-One)
- Up to 7 dBi Antenna Gain
- IP67
- Passive-PoE Support
QuMAX offers the most powerful Wi-Fi dual band 2.4 & 5 GHz sector antenna of all QuWireless antennas. It is dedicated to hotspots and fixed networks base stations with big coverage. It is designed to have Teltonika RUTx10 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also Bluetooth sector antenna.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.7 - 6.00 GHz
Beamwidth:
360° / 25° ±5°
Dimensions:
272 x 276 x 96 mm
Impedance:
50 Ohms
Material:
ABS, Aluminium, PTFE, Fiberglass
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max < 2.00
