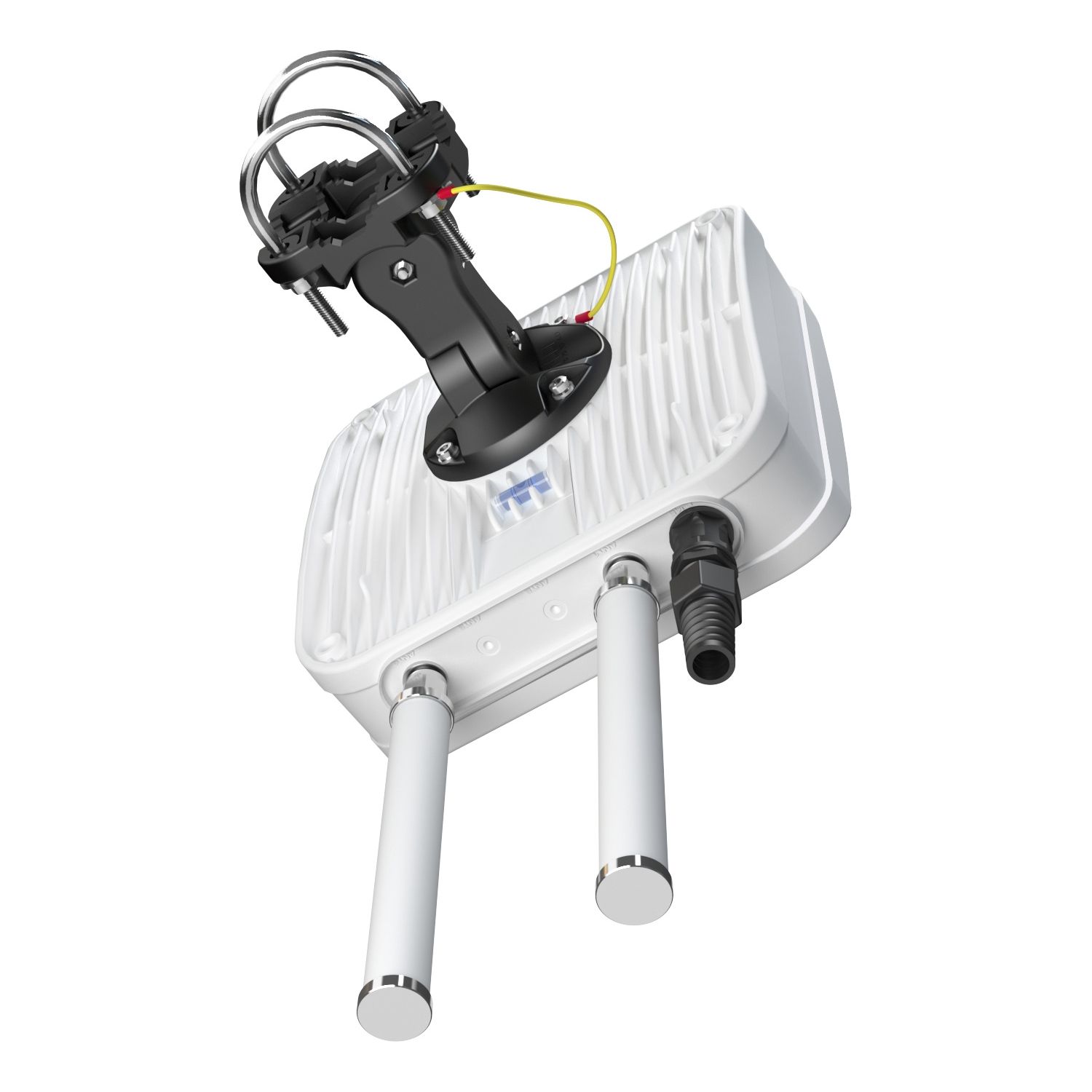

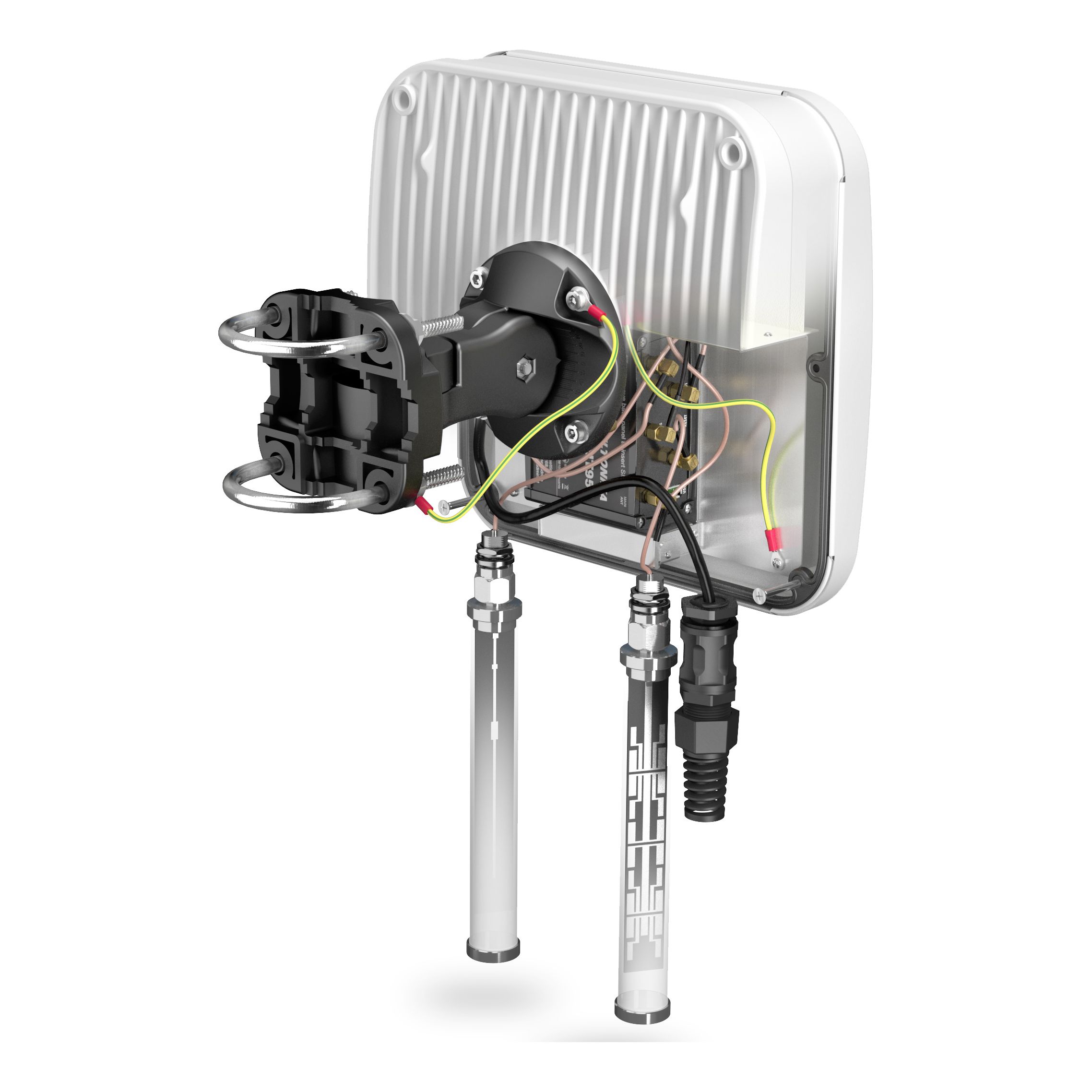

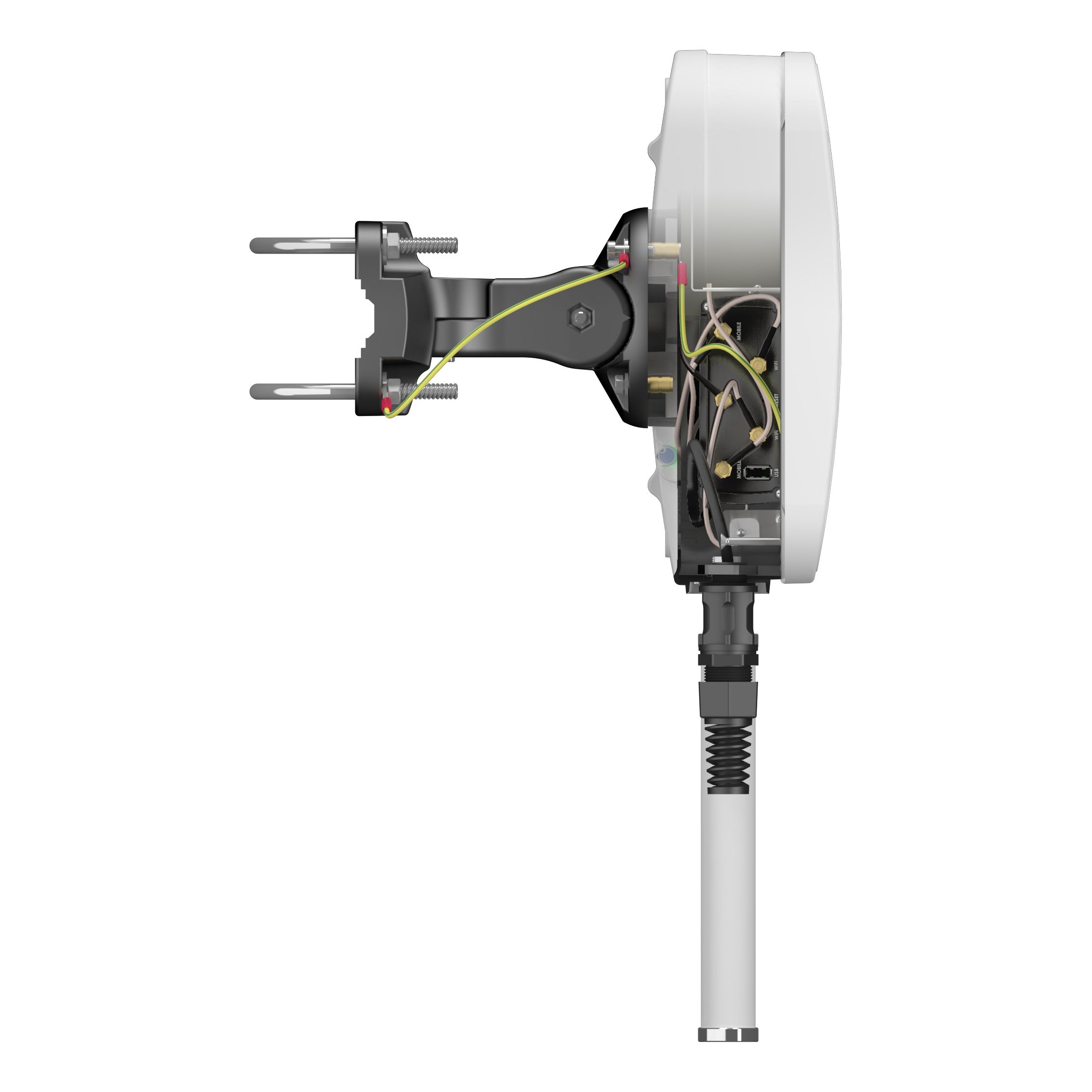

QuMax for RUT955, IP67 Outdoor Enclosure w/ LTE directional-, WiFi & GPS Antenna
- Integrated Outdoor Multi-Band High-Power LTE directional Antenna
- Outdoor Wi-Fi Omni-Antenna
- GPS Antenna
- Place to install Teltonika RUT955 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support

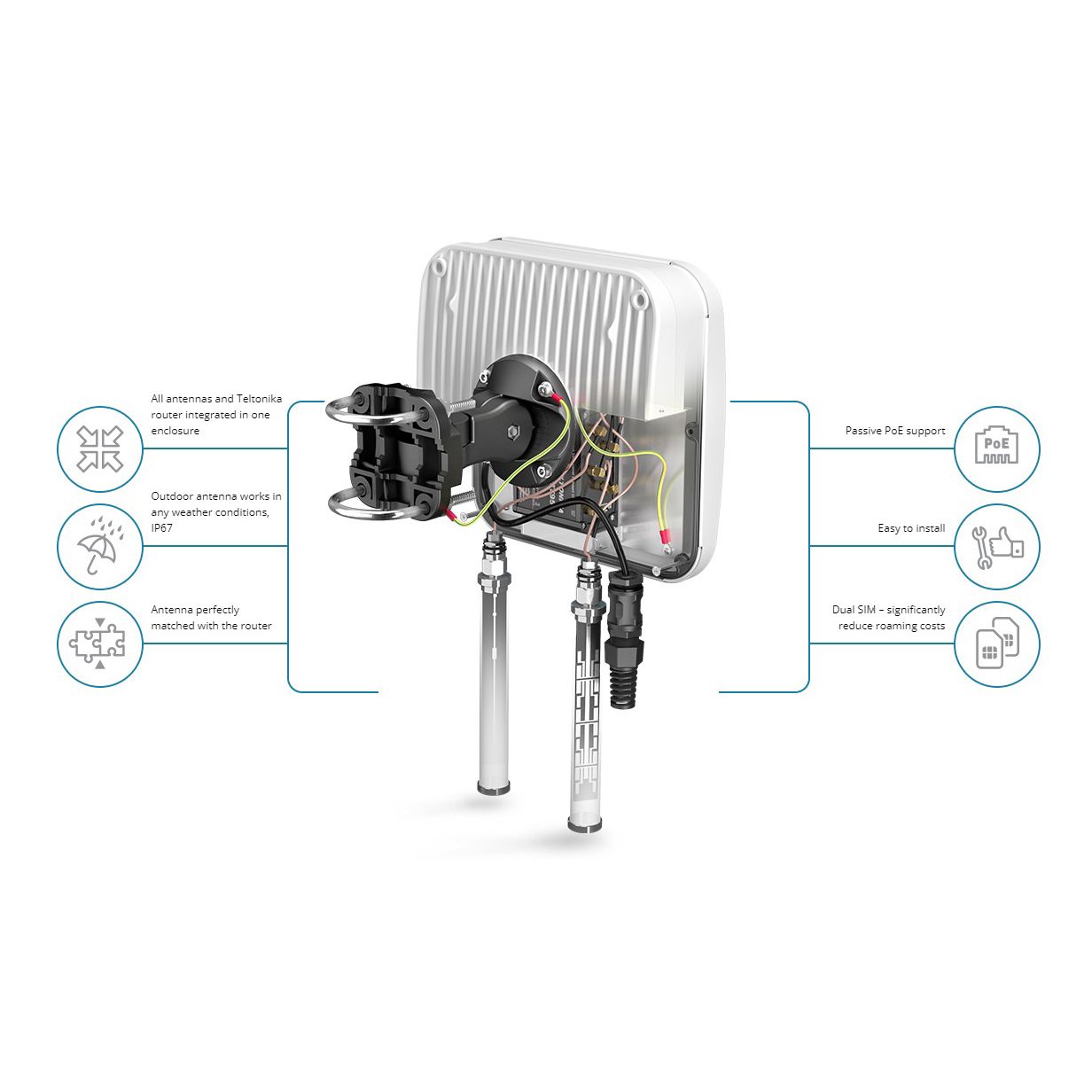

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT955 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
Available stock:
Article number:
A955M
Manufacturer number:
QuMax für RUT955, IP67 Outdoor Gehäuse mit LTE + WLAN + GPS
EAN:
5907772035108
- Integrated Outdoor Multi-Band High-Power LTE directional Antenna
- Outdoor Wi-Fi Omni-Antenna
- GPS Antenna
- Place to install Teltonika RUT955 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT955 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.70 - 6.00 GHz
Beamwidth:
360° / 25° ±5°
Dimensions:
272 x 276 x 96 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
4 dBi / 5 dBi / 6 dBi
LTE Beamwidth:
90° / 90° ±30°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.50, max. <2.00 / 1.30, max. <1.60
Material:
ABS, Aluminium, PTFE, Fiberglass
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max < 2.00
