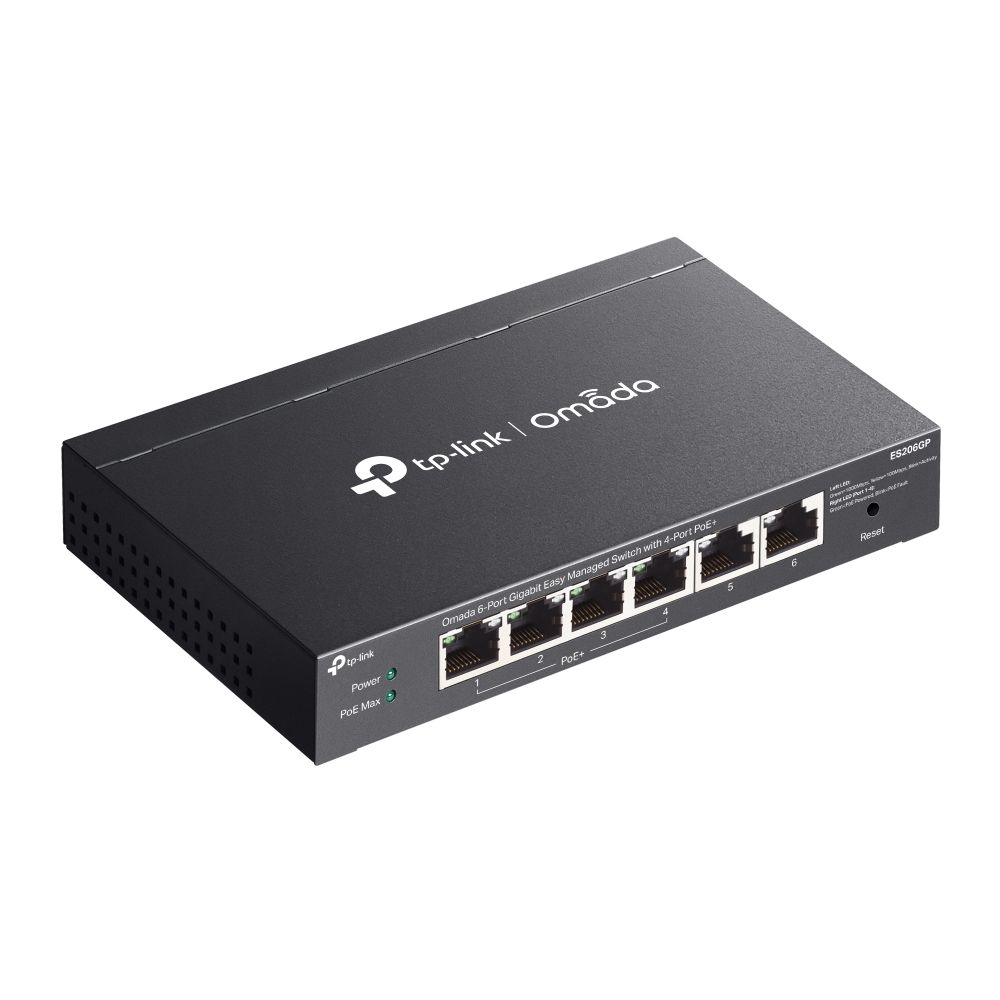

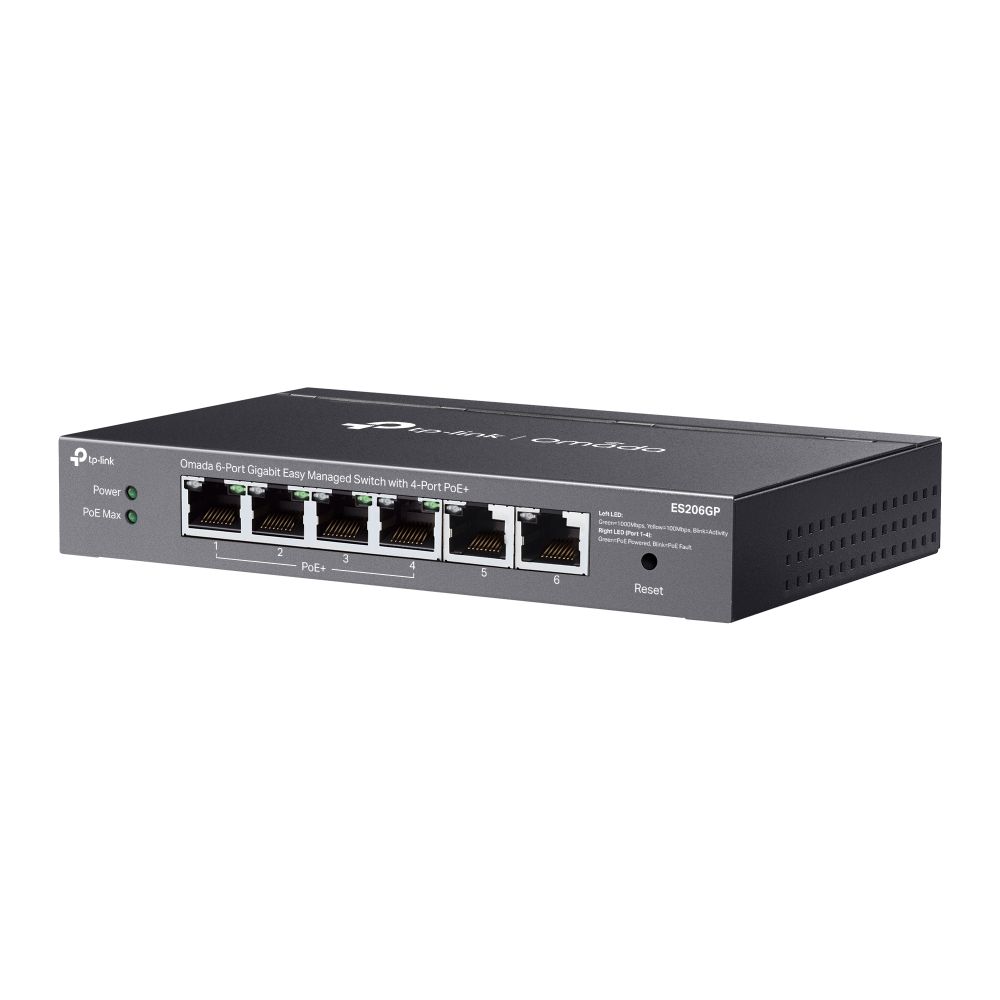

Omada 6-Port-Gigabit-Easy-Managed-Switch w/ 4-Port-PoE+
The TP-Link Omada ES206GP is a compact 6-port Gigabit Easy Managed Switch equipped with four IEEE 802.3af/at-compliant PoE+ ports. It provides a total PoE power budget of up to 65 W, with a maximum of 30 W available per PoE port. The switch also supports Fast PoE, Perpetual PoE, and PoE Auto Recovery in standalone operation. Performance specifications include a 12 Gbps switching capacity, an 8.93 Mpps packet forwarding rate, and an 8K MAC address table.
In addition to plug-and-play connectivity, the ES206GP provides a broad selection of Layer 2 and management functions. These include IEEE 802.1Q VLAN, port-based VLAN, IGMP Snooping v1/v2/v3, loop prevention, static link aggregation, port mirroring, LLDP, and port-based, IEEE 802.1p, and DSCP QoS. Management is available through a web-based GUI or centrally through an Omada Cloud-Based Controller, Omada Hardware Controller, or Omada Software Controller.
Its fanless metal enclosure ensures silent operation and supports both desktop and wall-mounted installation. With compact dimensions of 158 × 101 × 25 mm and ±6 kV surge protection, the ES206GP provides a space-efficient and versatile switching solution for small professional PoE networks.
- 6× Gigabit RJ45 ports, including 4× PoE+
- 65 W total PoE budget, up to 30 W per port
- IEEE 802.3af/at PoE with Fast and Perpetual PoE
- PoE transmission distances of up to 250 m
- PoE Auto Recovery for connected network devices
- Integrated VLAN, QoS and IGMP Snooping functions
- Centralized management via Omada controllers and cloud
- Fanless design for silent operation
- Durable metal enclosure for desktop or wall mounting
- 12 Gbps switching capacity and 8K MAC table
The TP-Link Omada ES206GP is designed for compact professional networks requiring both Gigabit connectivity and PoE power delivery. Four PoE+ ports can directly power compatible devices such as IP cameras and wireless access points, while the two additional Gigabit Ethernet ports can connect PCs, printers, routers, uplinks, or other non-PoE network equipment. TP-Link specifically positions the switch for surveillance networks, Wi-Fi deployments, and general wired network connectivity.
For surveillance installations and environments requiring extended cable runs, the ES206GP supports PoE transmission distances of up to 250 m. Ports operating in this extended mode are limited to 10 Mbps. Features including port isolation, QoS, and PoE Auto Recovery help maintain reliable operation of connected devices, making the switch suitable for system integrators, small businesses, installers, office networks, and professional IP surveillance deployments.
The TP-Link Omada ES206GP is a compact 6-port Gigabit Easy Managed Switch equipped with four IEEE 802.3af/at-compliant PoE+ ports. It provides a total PoE power budget of up to 65 W, with a maximum of 30 W available per PoE port. The switch also supports Fast PoE, Perpetual PoE, and PoE Auto Recovery in standalone operation. Performance specifications include a 12 Gbps switching capacity, an 8.93 Mpps packet forwarding rate, and an 8K MAC address table.
In addition to plug-and-play connectivity, the ES206GP provides a broad selection of Layer 2 and management functions. These include IEEE 802.1Q VLAN, port-based VLAN, IGMP Snooping v1/v2/v3, loop prevention, static link aggregation, port mirroring, LLDP, and port-based, IEEE 802.1p, and DSCP QoS. Management is available through a web-based GUI or centrally through an Omada Cloud-Based Controller, Omada Hardware Controller, or Omada Software Controller.
Its fanless metal enclosure ensures silent operation and supports both desktop and wall-mounted installation. With compact dimensions of 158 × 101 × 25 mm and ±6 kV surge protection, the ES206GP provides a space-efficient and versatile switching solution for small professional PoE networks.
