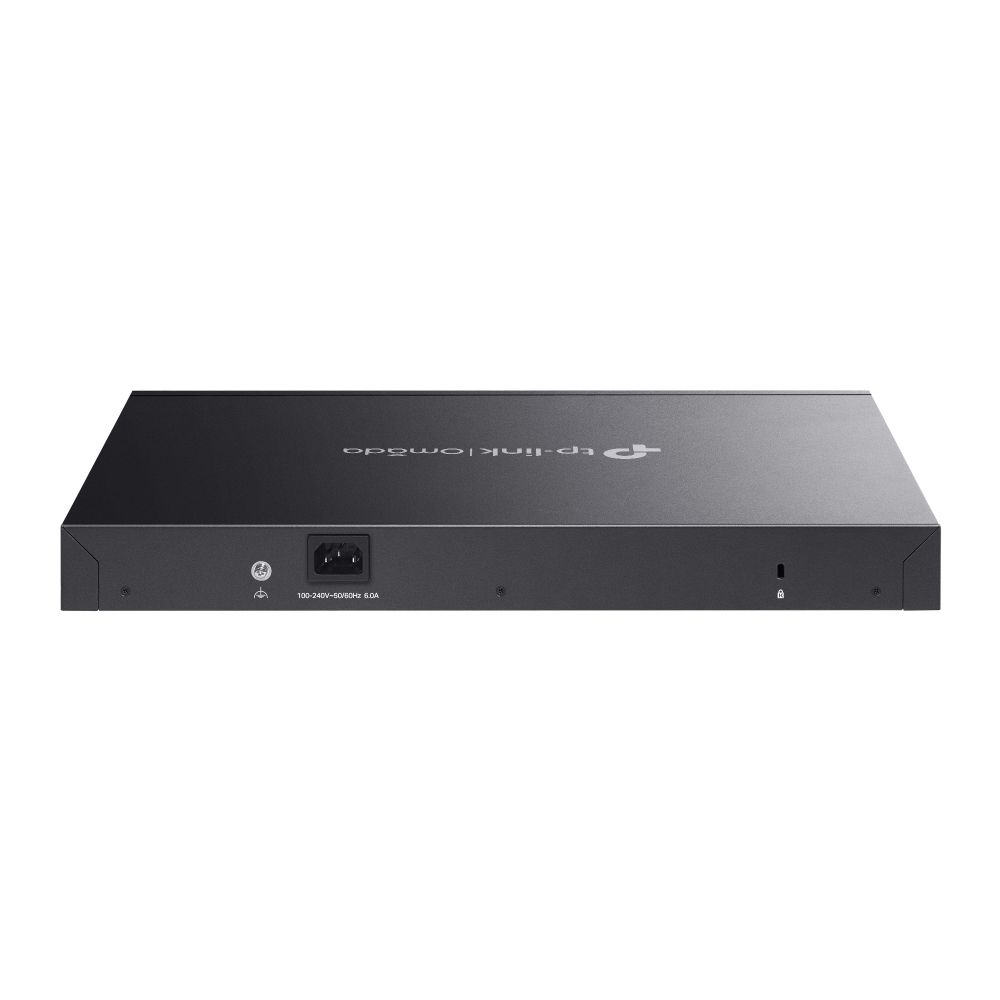

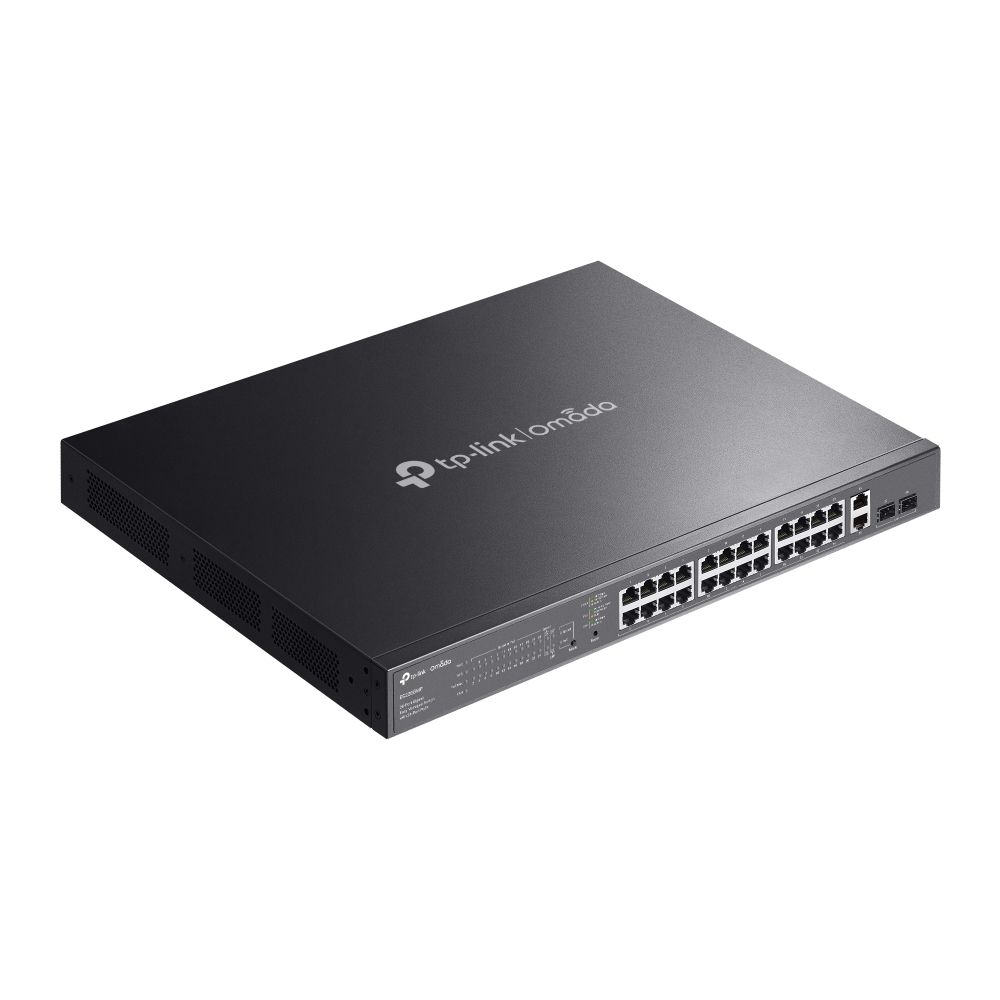

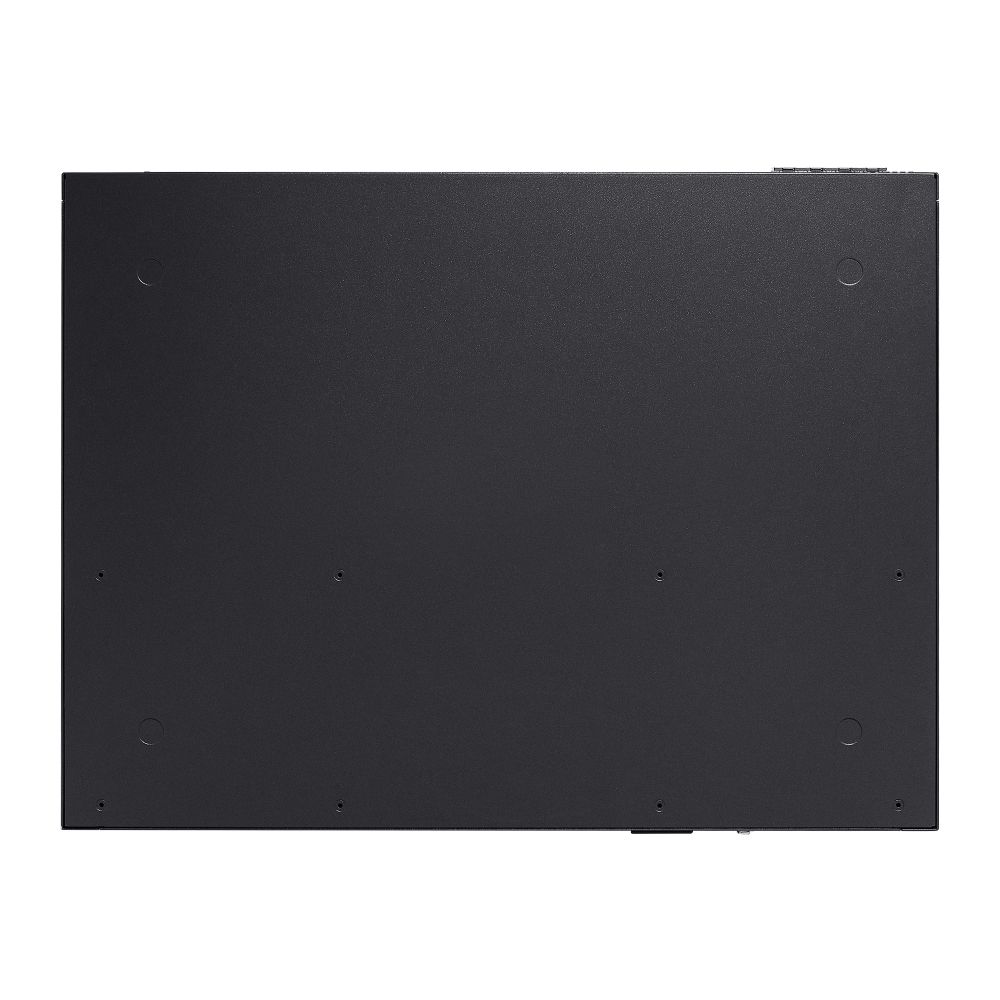

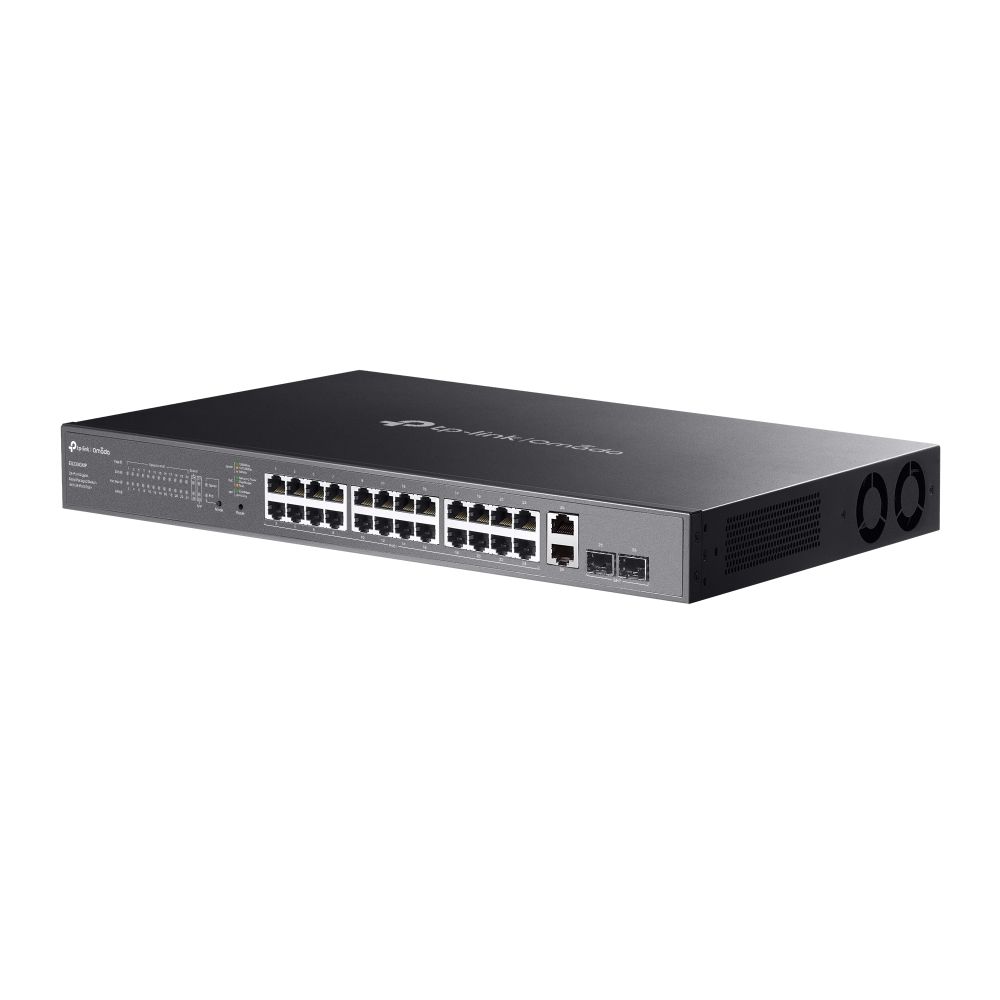

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
The TP-Link Omada ES228GMP is a 28-port Gigabit easy managed switch with 26 10/100/1000 Mbps RJ45 ports, including 24 IEEE 802.3af/at PoE+ ports, plus 2 Gigabit SFP slots. The total PoE power budget is 384 W, with up to 30 W available per PoE port. This allows numerous access points, IP cameras, VoIP phones and other PoE endpoints to be powered centrally through the network cabling. For surveillance deployments, the switch supports PoE transmission distances of up to 250 m; depending on the operating mode, port speed is reduced for this range.
With 56 Gbps switching capacity, the ES228GMP provides a capable foundation for Gigabit networks with many PoE endpoints. Practical functions include VLAN, IGMP snooping, QoS, port isolation, PoE Auto Recovery and automatic loop prevention. These features help segment traffic, handle multicast efficiently, prioritize key applications and reduce common installation issues in access and camera networks.
The metal enclosure is designed for professional use in technical rooms, distribution cabinets and smaller network infrastructures. Through Omada SDN, the switch can be centrally managed via the web interface or Omada app. This makes the ES228GMP a compact solution combining high PoE power reserve, flexible Gigabit uplinks and straightforward centralized management for SMB, surveillance and access networks.
- 24× Gigabit RJ45 ports with PoE+
- 2× additional Gigabit RJ45 ports
- 2× Gigabit SFP slots
- IEEE 802.3af/at PoE+ support
- 384 W total PoE power budget
- Up to 30 W per PoE port
- PoE transmission up to 250 m
- 56 Gbps switching capacity
- VLAN, QoS and IGMP snooping
- Centralized management via Omada SDN
The TP-Link Omada ES228GMP is designed for small and medium-sized businesses, offices, shops, education, hospitality, building technology and professional IP surveillance networks with high PoE power requirements. Its 24 Gigabit PoE+ ports can supply data and power to IP cameras, wireless access points, VoIP phones and other PoE-capable endpoints over a single network cable. Two additional Gigabit RJ45 ports and two Gigabit SFP slots provide flexible uplink connectivity to routers, core switches, servers or fibre links.
Compared with smaller PoE models, the ES228GMP offers a 384 W total PoE budget, providing substantial power headroom for installations with many active endpoints. Features such as PoE transmission up to 250 m, PoE Auto Recovery, port isolation, VLAN, QoS, IGMP snooping and automatic loop prevention support stable access and surveillance networks. Centralized management via the web or Omada app simplifies deployment, monitoring and maintenance for system integrators, IT service providers and operators of small to medium-sized sites.
The TP-Link Omada ES228GMP is a 28-port Gigabit easy managed switch with 26 10/100/1000 Mbps RJ45 ports, including 24 IEEE 802.3af/at PoE+ ports, plus 2 Gigabit SFP slots. The total PoE power budget is 384 W, with up to 30 W available per PoE port. This allows numerous access points, IP cameras, VoIP phones and other PoE endpoints to be powered centrally through the network cabling. For surveillance deployments, the switch supports PoE transmission distances of up to 250 m; depending on the operating mode, port speed is reduced for this range.
With 56 Gbps switching capacity, the ES228GMP provides a capable foundation for Gigabit networks with many PoE endpoints. Practical functions include VLAN, IGMP snooping, QoS, port isolation, PoE Auto Recovery and automatic loop prevention. These features help segment traffic, handle multicast efficiently, prioritize key applications and reduce common installation issues in access and camera networks.
The metal enclosure is designed for professional use in technical rooms, distribution cabinets and smaller network infrastructures. Through Omada SDN, the switch can be centrally managed via the web interface or Omada app. This makes the ES228GMP a compact solution combining high PoE power reserve, flexible Gigabit uplinks and straightforward centralized management for SMB, surveillance and access networks.
