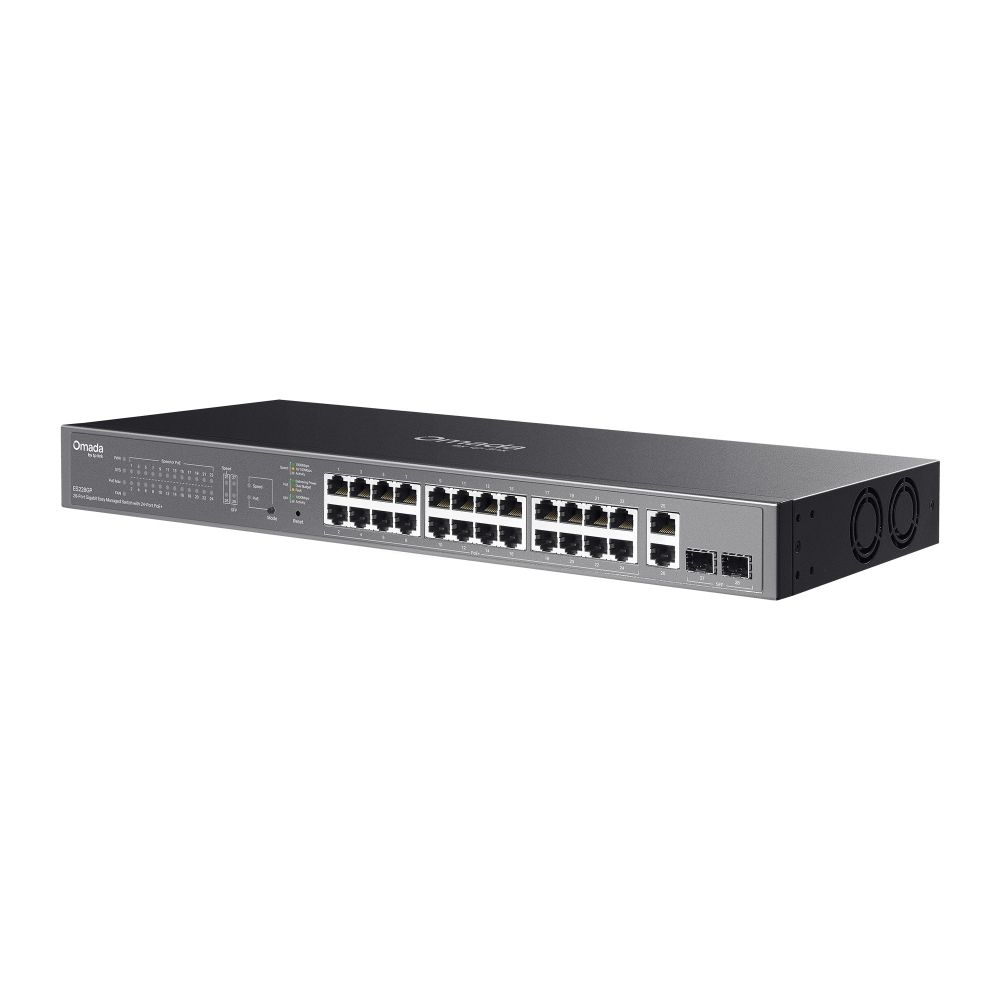

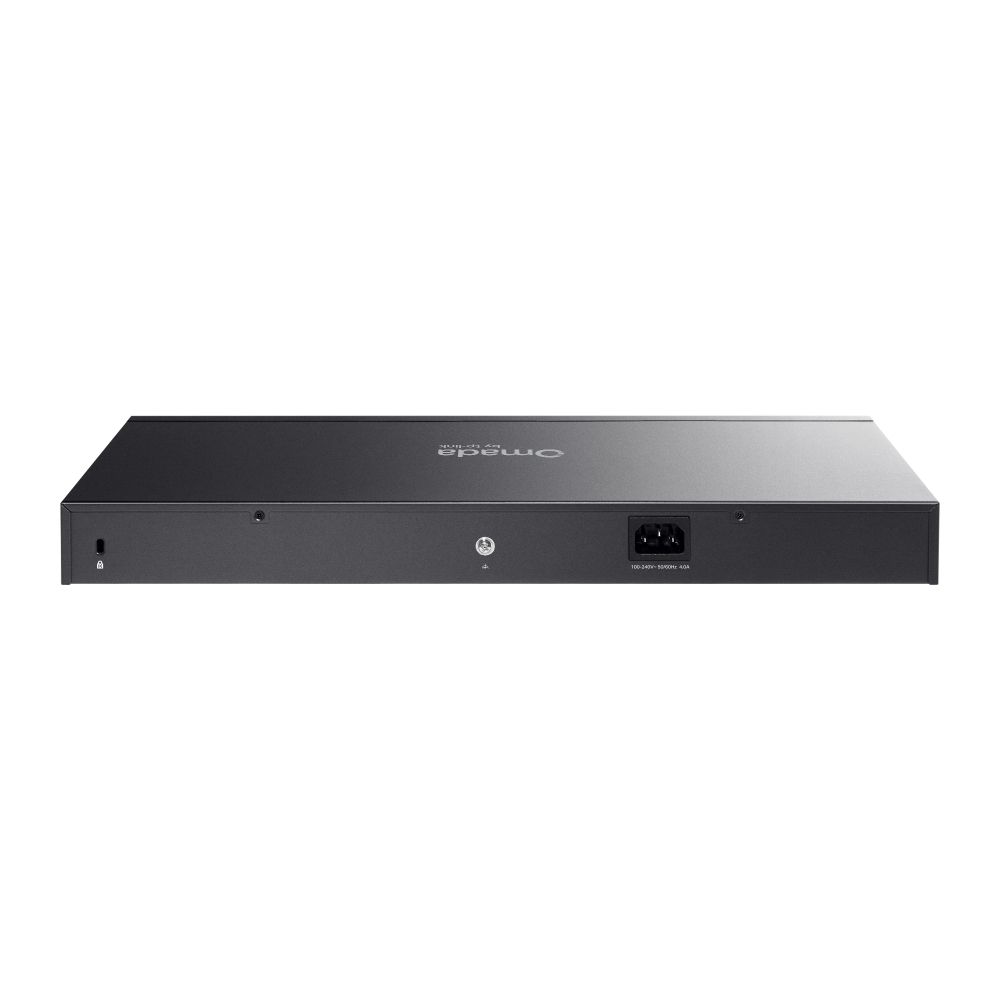

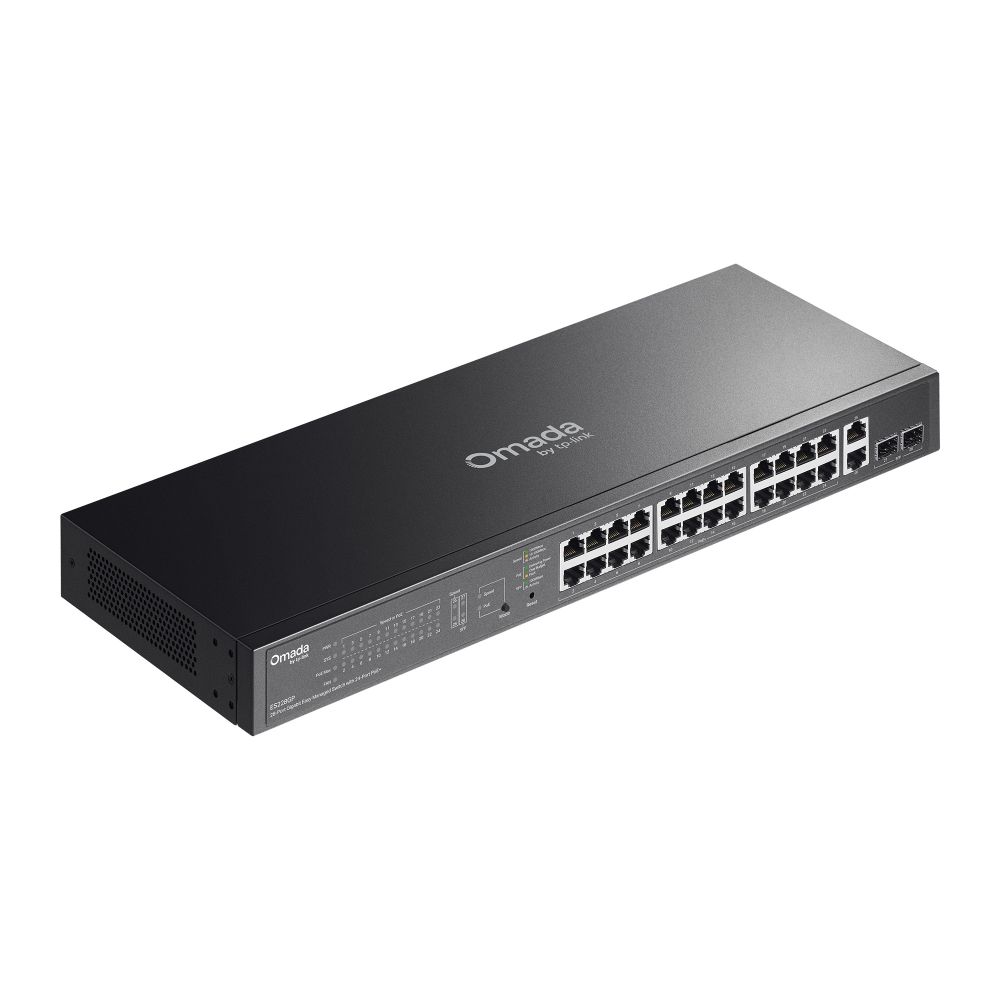

Omada 28-Port-Gigabit-Easy-Managed-Switch w/ 24-Port-PoE+
The TP-Link Omada ES228GP is a 28-port Gigabit Easy Managed Switch designed for professional networking and PoE deployments. It provides 26 Gigabit RJ45 ports, including 24 ports supporting IEEE 802.3af PoE and IEEE 802.3at PoE+, together with two Gigabit SFP slots. A total PoE power budget of up to 250 W is available, with up to 30 W supplied per PoE port. Fast PoE, Perpetual PoE, and PoE Auto Recovery further enhance power delivery and device availability.
With a 56 Gbps switching capacity, 41.67 Mpps packet forwarding rate, 8K MAC address table, and support for Jumbo Frames up to 15 KB, the ES228GP provides a capable platform for larger Gigabit networks. Layer 2 functionality includes IEEE 802.1Q VLAN, port-based VLAN, IGMP Snooping v1/v2/v3, Static Link Aggregation, Port Mirroring, LLDP, Loop Prevention, and port-based, IEEE 802.1p, and DSCP QoS.
Management is available through the web-based GUI or centrally through an Omada Cloud-Based Controller, Hardware Controller, or Software Controller. Automatic device discovery, batch configuration, centralized firmware upgrades, and Zero-Touch Provisioning support efficient administration of larger deployments. The durable metal enclosure is designed for rack mounting and incorporates two cooling fans. Combined with ±6 kV surge protection, the ES228GP provides a versatile PoE switching platform for professional network infrastructures.
- 26× Gigabit RJ45 ports, including 24× IEEE 802.3af/at PoE+
- 2× Gigabit SFP slots for flexible fiber uplinks
- 250 W total PoE budget, up to 30 W per port
- Fast PoE, Perpetual PoE and PoE Auto Recovery
- PoE transmission over distances of up to 250 meters
- Integrated VLAN, QoS, IGMP Snooping and Loop Prevention
- Centralized management through Omada controllers and cloud
- 56 Gbps switching capacity and 41.67 Mpps forwarding rate
- Durable metal enclosure designed for professional rack installation
- ±6 kV surge protection for reliable network operation
The TP-Link Omada ES228GP is designed for professional network infrastructures requiring connectivity and power delivery for a larger number of PoE devices. Its 24 PoE+ ports can provide both data and power to compatible IP cameras, wireless access points, and other IEEE 802.3af/at devices. Two additional Gigabit RJ45 ports and two Gigabit SFP slots provide flexible options for uplinks and additional network connections, making the switch particularly suitable for surveillance systems, Wi-Fi infrastructures, business networks, and building networks.
For installations involving extended cable runs, the ES228GP supports PoE transmission distances of up to 250 meters in Extend Mode. The data rate of the corresponding ports is reduced to 10 Mbps when this mode is enabled. Port Isolation, QoS, PoE Auto Recovery, and Remote Camera Reboot help maintain reliable surveillance networks. Centralized Omada management also makes the switch well suited to system integrators, IT departments, and professional network installers managing multiple devices or sites.
The TP-Link Omada ES228GP is a 28-port Gigabit Easy Managed Switch designed for professional networking and PoE deployments. It provides 26 Gigabit RJ45 ports, including 24 ports supporting IEEE 802.3af PoE and IEEE 802.3at PoE+, together with two Gigabit SFP slots. A total PoE power budget of up to 250 W is available, with up to 30 W supplied per PoE port. Fast PoE, Perpetual PoE, and PoE Auto Recovery further enhance power delivery and device availability.
With a 56 Gbps switching capacity, 41.67 Mpps packet forwarding rate, 8K MAC address table, and support for Jumbo Frames up to 15 KB, the ES228GP provides a capable platform for larger Gigabit networks. Layer 2 functionality includes IEEE 802.1Q VLAN, port-based VLAN, IGMP Snooping v1/v2/v3, Static Link Aggregation, Port Mirroring, LLDP, Loop Prevention, and port-based, IEEE 802.1p, and DSCP QoS.
Management is available through the web-based GUI or centrally through an Omada Cloud-Based Controller, Hardware Controller, or Software Controller. Automatic device discovery, batch configuration, centralized firmware upgrades, and Zero-Touch Provisioning support efficient administration of larger deployments. The durable metal enclosure is designed for rack mounting and incorporates two cooling fans. Combined with ±6 kV surge protection, the ES228GP provides a versatile PoE switching platform for professional network infrastructures.
