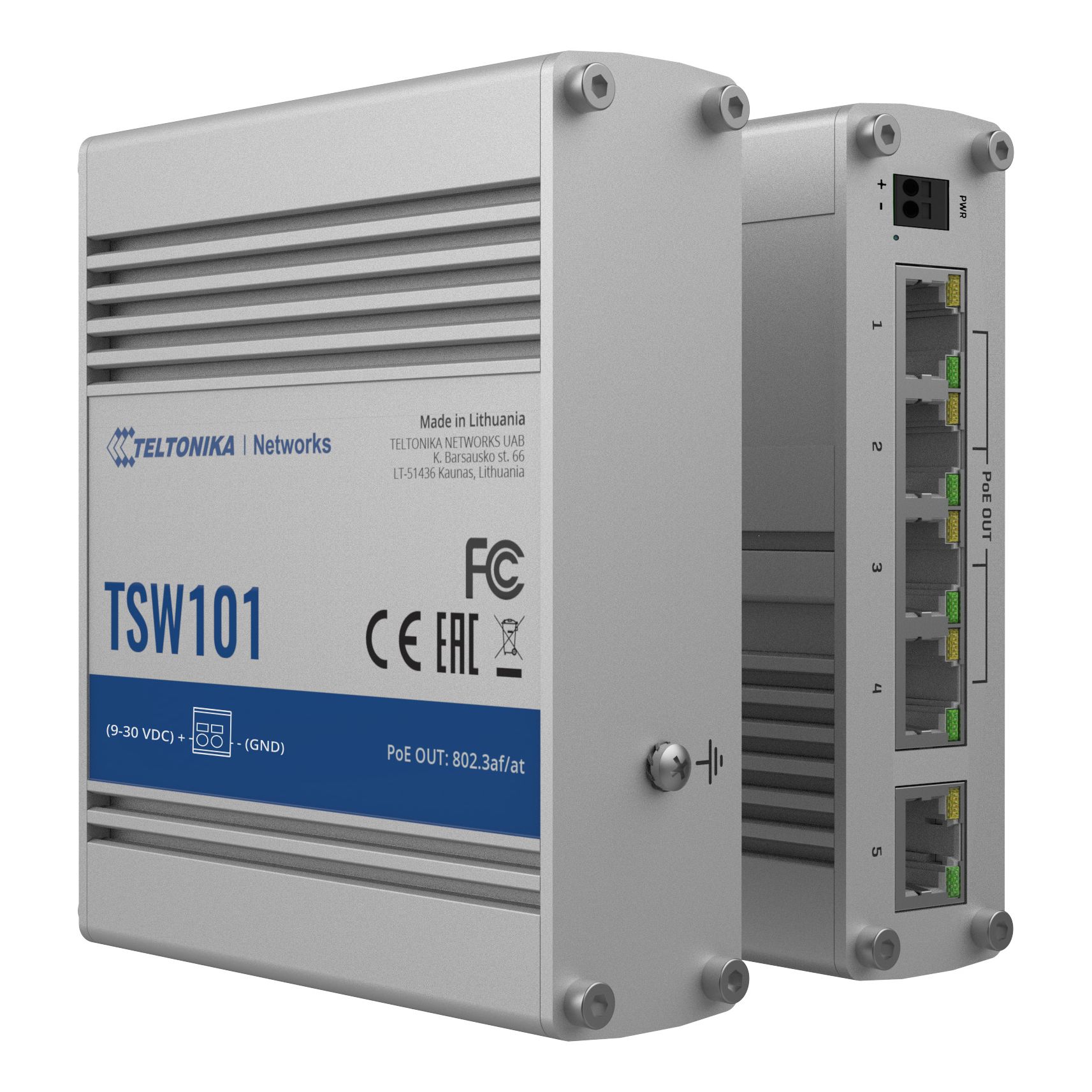

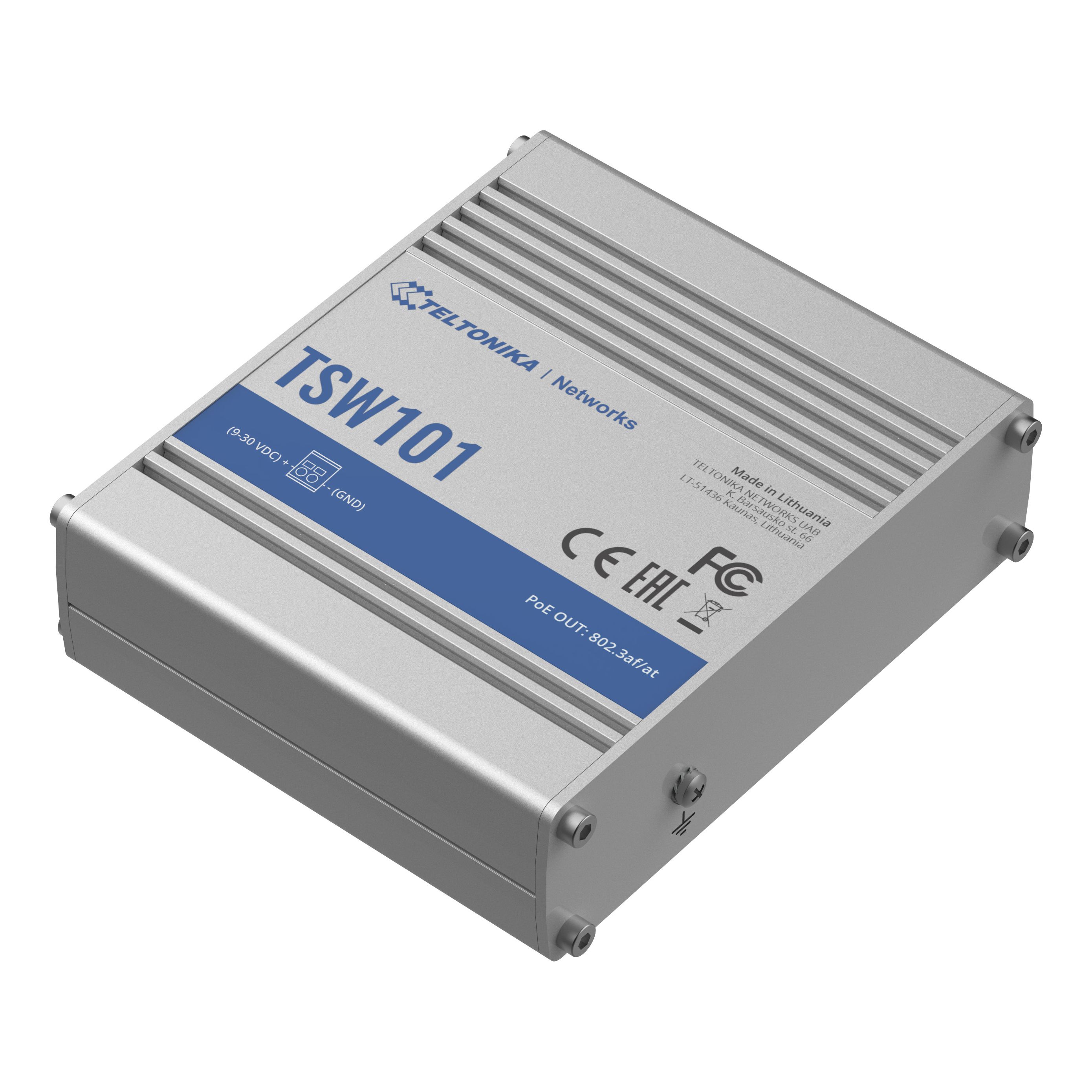

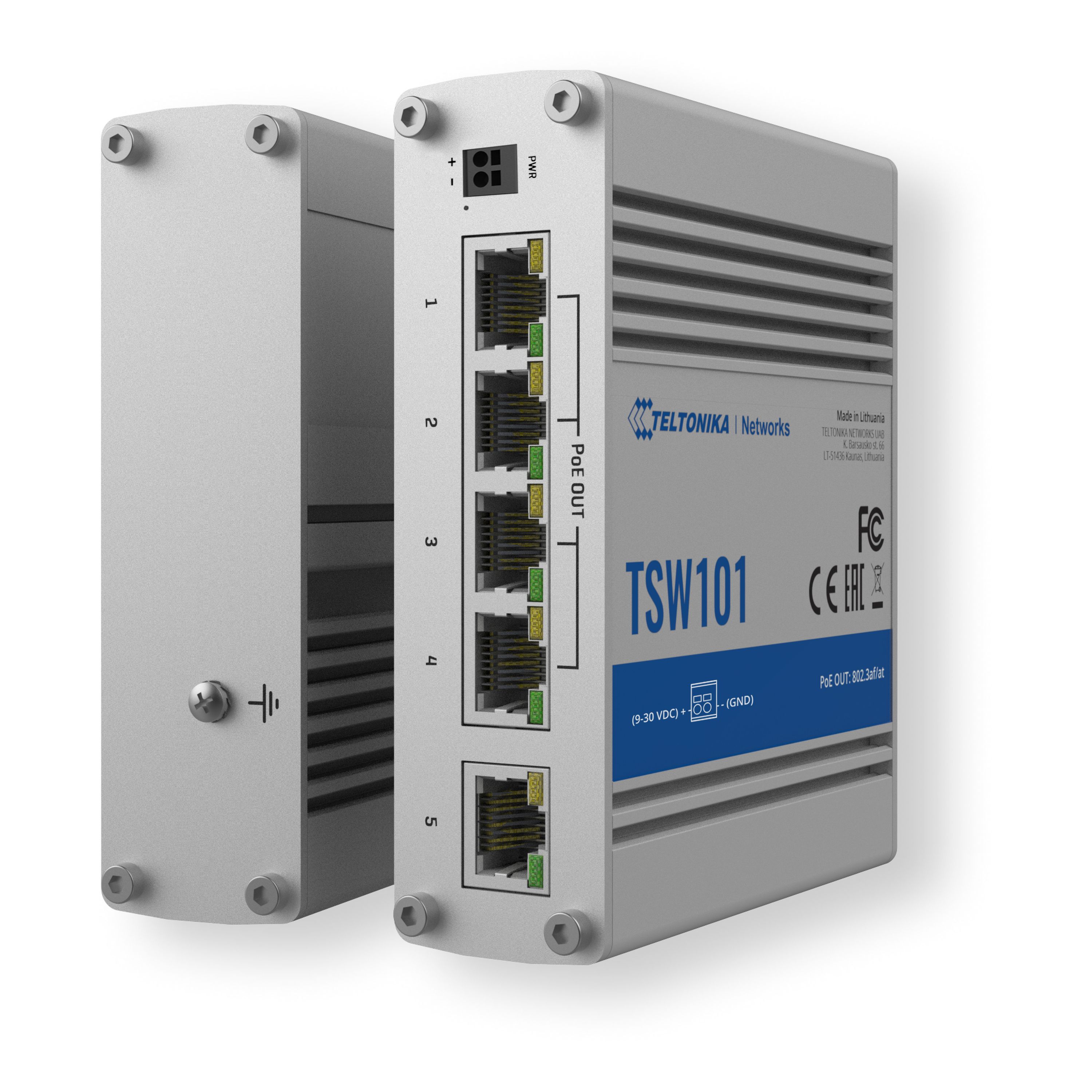

IP30 Industrial 5-Port 1Gbit PoE+ unmanaged Switch, -40°C - +75°C
- TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.
- Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards.
- A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
- Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts.
- 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
- Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.
Available stock:
Article number:
TSW101
Manufacturer number:
TSW101000000
Manufacturer page:
TELTONIKA
EAN:
4779051840113
- 5-port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at/af PoE Injector (Port 1 to Port 4)
- Bandwidth (Non-blocking): 10 Gbps
- Total PoE Power Budget: 60 W
- Full aluminum housing
- DIN rail or wall mounting
- -40 °C to +75 °C
- TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.
- Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards.
- A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.
- Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts.
- 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.
- Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.
Technical properties
1 GBit Ports:
1
1 GBit Ports, PoE:
4
Case material:
Aluminum Alloy
Design:
DIN Rail
Dimensions:
115 x 32 x 95 mm
Jumbo Frame:
9216 bytes
MAC Address Table:
2 K
Main Speed:
1 Gbit Copper
Managed:
Unmanaged
Mounting:
DIN-Rail, wall-mount
Network Ports:
5-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Packet Buffer:
128 KB
PoE Power Budget:
60 W
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
PoE in:
No
PoE out:
Yes
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
0.64W / 2.31W / 60W (PoE)
Power Jack:
2-Pin industrial DC socket
Power Supply:
9 - 30V DC
SFP Ports:
-
Safety Class:
IP30
Total Non-Blocking Throughput:
10 Gbps
max. Power consumption per Port, PoE:
30 W
