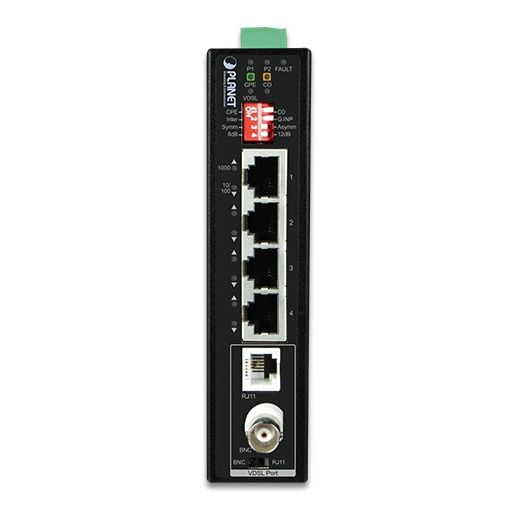

IP30 Industrial 1-Port BNC/RJ11 to 4-Port Gigabit Ethernet Extender
- ITU-T G.993.5 G.Vectoring and G.INP
- Upstream/Downstream bandwidth up to 200/100Mbps
- CO/CPE mode selectable via DIP switch
- Selectable target band plan and SNR margin
- One BNC/RJ11 connector for VDSL connection
- Uses existing RG59/RG6 coaxial cable
- Used in pairs to extend Point-to-Point connection up to 1.2km
- Supports IEEE 802.1Q VLAN tag transparency
Industrial Case and Installation:
- Slim-type IP30 metal case
- DIN rail and wall-mount design

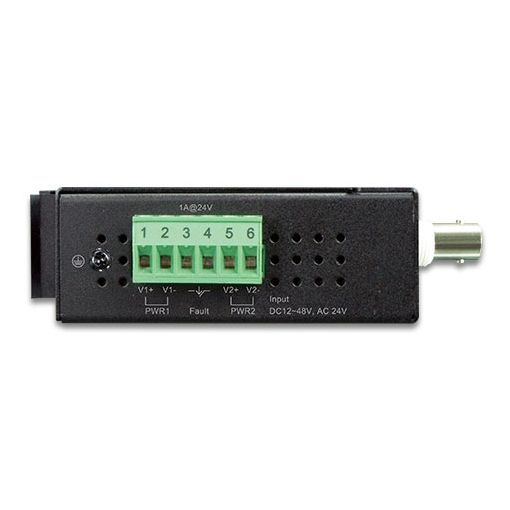

- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Minimum installation time (Simply by Plug and Play)
- Supports extensive LED indicators for network diagnosis
Available stock:
Article number:
IVC-234GT
Manufacturer number:
IVC-234GT
Manufacturer page:
PLANET
EAN:
4711605283717
- ITU-T G.993.5 G.Vectoring and G.INP
- Upstream/Downstream bandwidth up to 200/100Mbps
- CO/CPE mode selectable via DIP switch
- Selectable target band plan and SNR margin
- One BNC/RJ11 connector for VDSL connection
- Uses existing RG59/RG6 coaxial cable
- Used in pairs to extend Point-to-Point connection up to 1.2km
- Supports IEEE 802.1Q VLAN tag transparency
Industrial Case and Installation:
- Slim-type IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Minimum installation time (Simply by Plug and Play)
- Supports extensive LED indicators for network diagnosis
Technical properties
1 GBit Ports:
4
Dimensions:
32 x 135 x 87.8 mm
ESD/EMP Protection:
6 KV DC
Flow Control:
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Industrial:
Yes
Interfaces:
Gigabit Ethernet
Jumbo Frame:
9K bytes
MAC Address Table:
2K
Main Speed:
1 Gbit Copper
Mounting:
DIN Rail, Wall Mount
Operating Conditions:
-40°C - +75°C
Operating Humidity:
5 - 95%, non-condensing
Power Consumption:
5.7 W
Power Supply:
12 - 48V DC, 24V AC
Safety Class:
IP30
Switch Architecture:
Store-and-Forward
