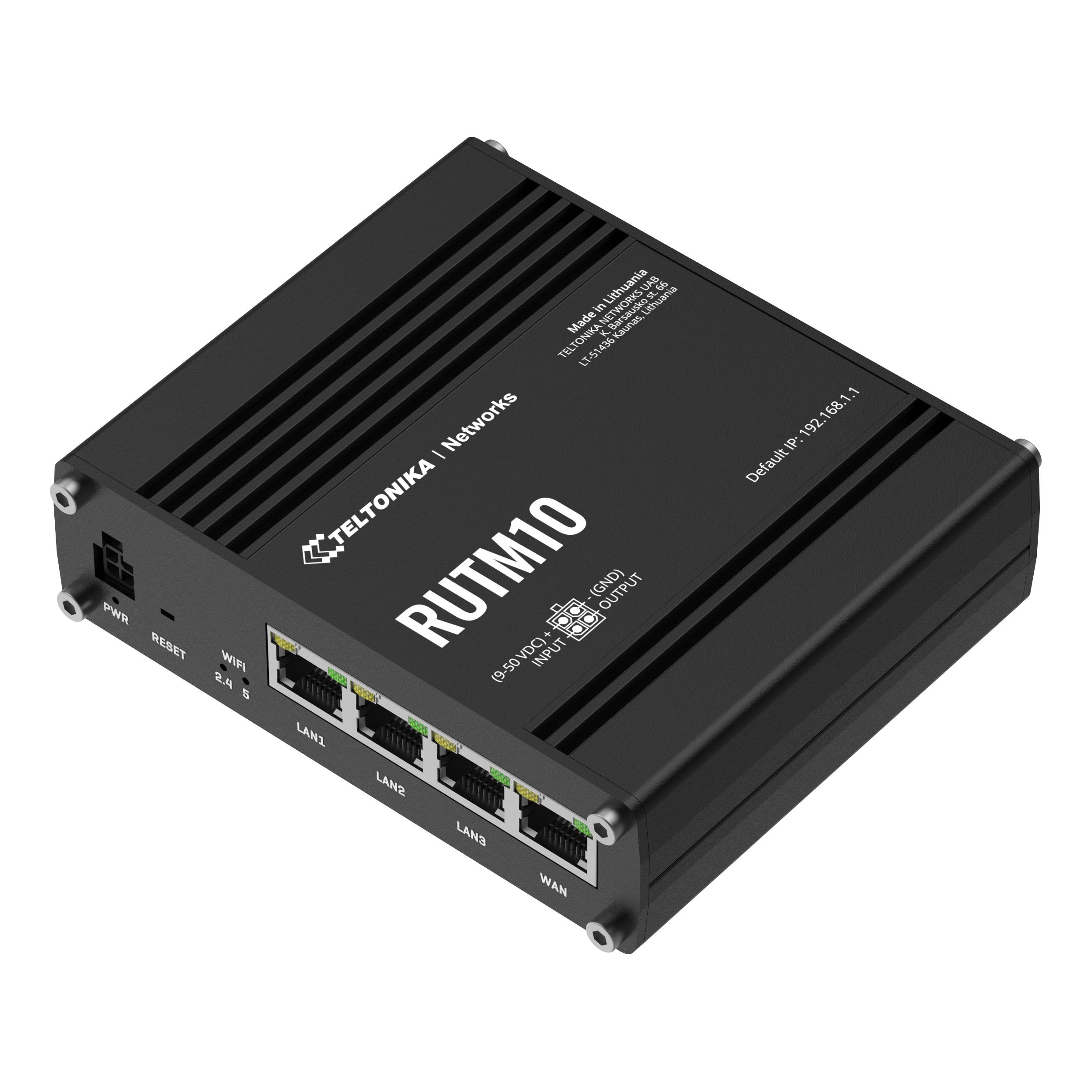

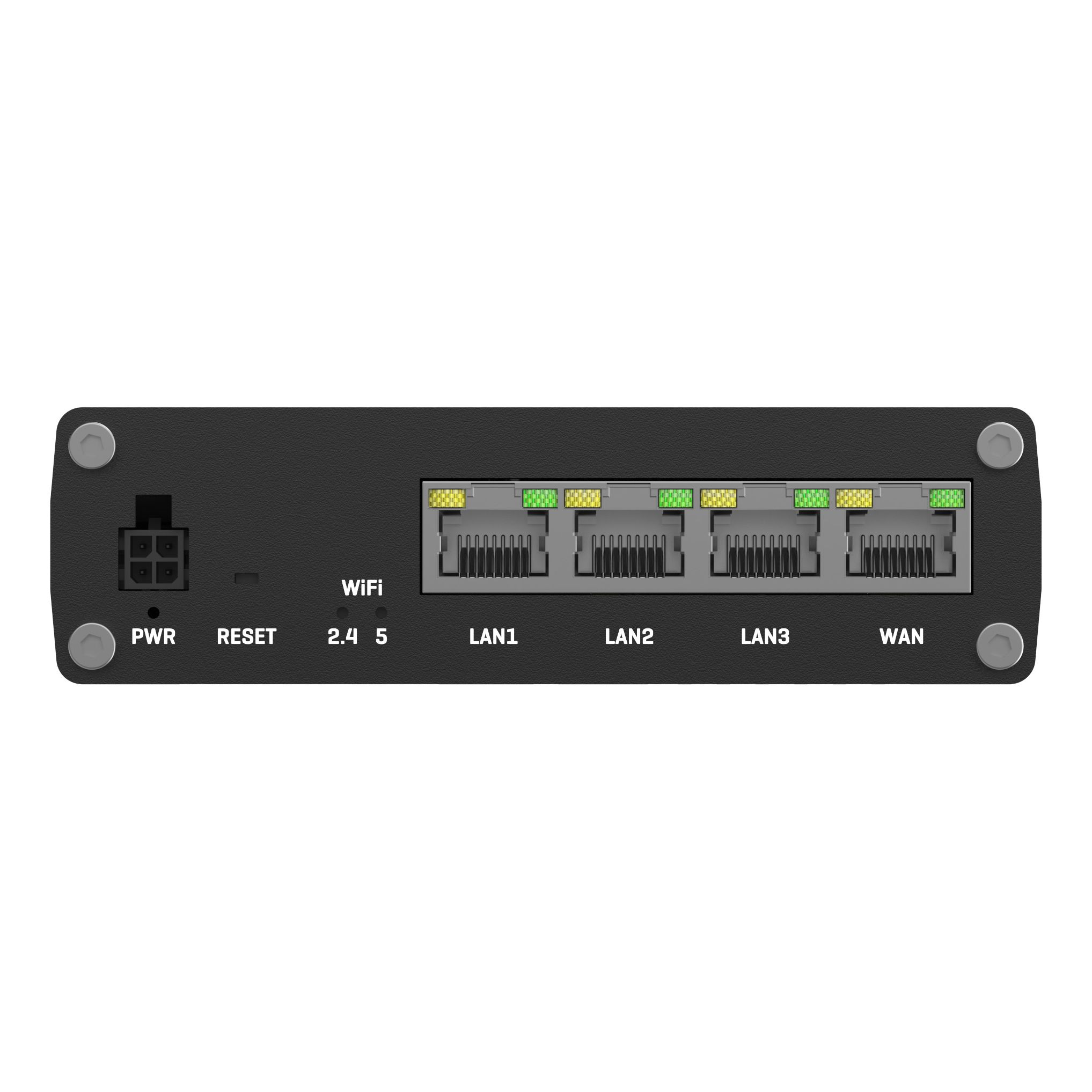

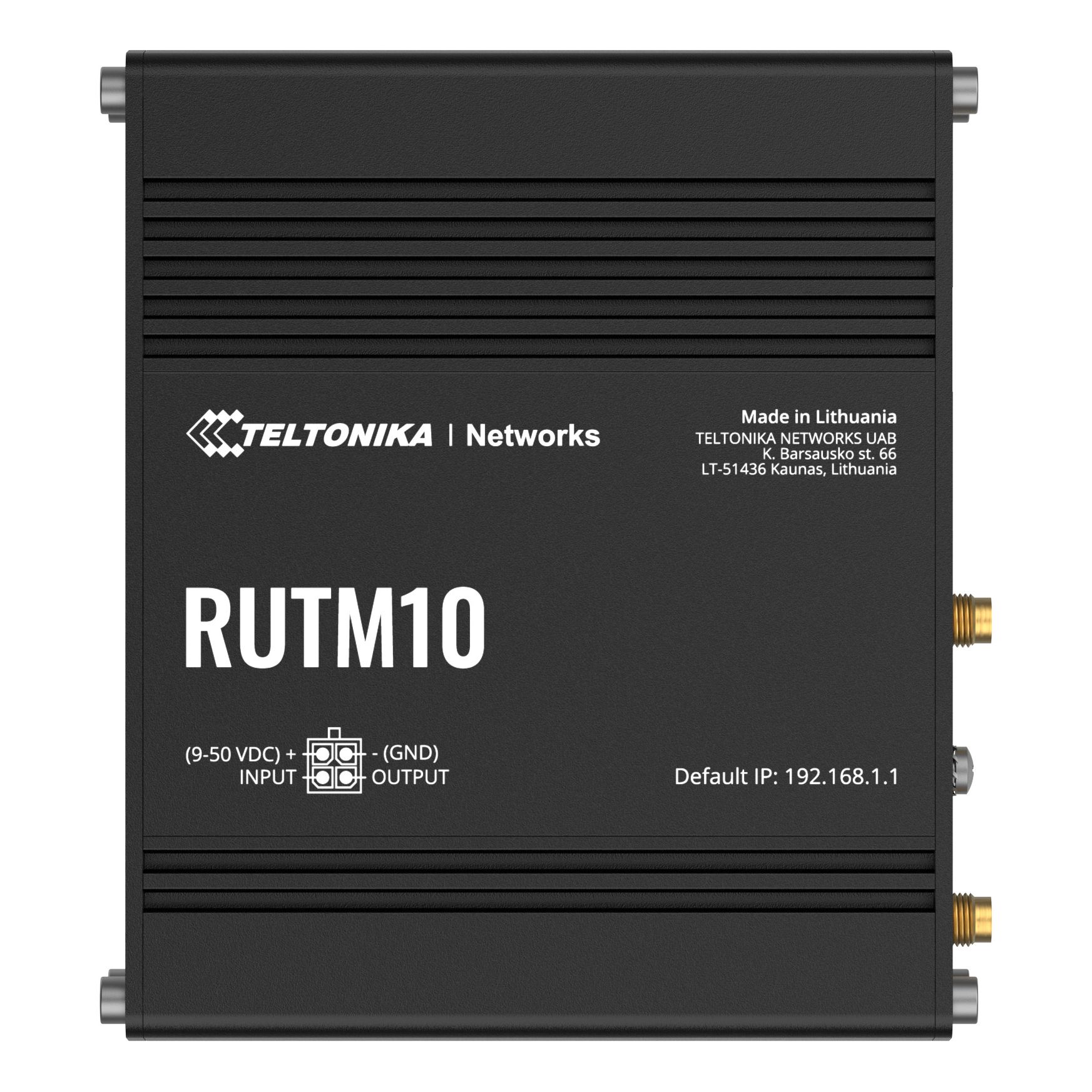

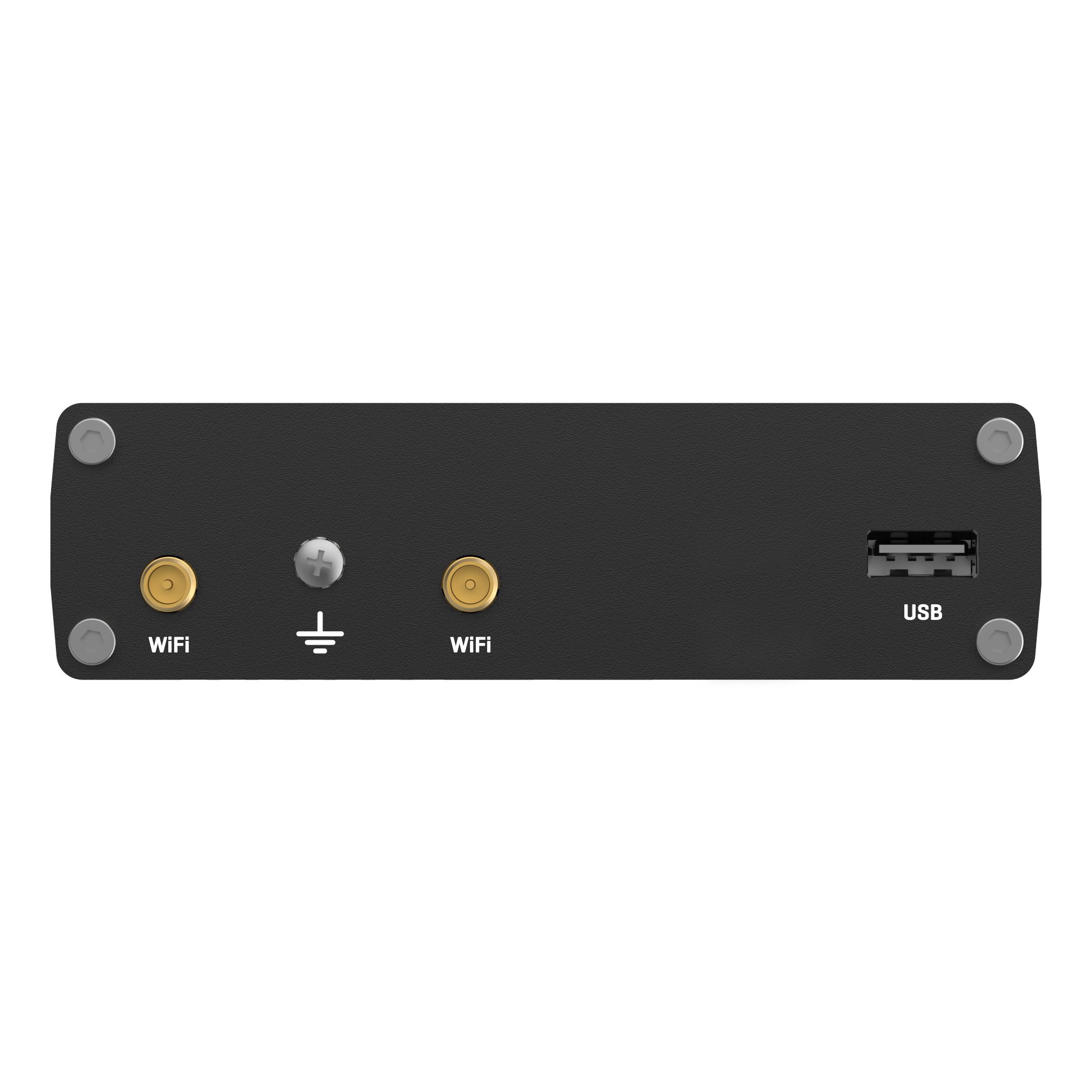

Industrial Wired WiFi Router for professional Applications, Digital I/Os

The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Stk
Available stock:
Article number: RUTM10
Manufacturer number: RUTM10000000
Manufacturer page: TELTONIKA
EAN: 4779051840489
  • 4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported
  • WiFi 5 Dual-band Wi-Fi with mesh and fast-roaming functionalities
  • Digital I/Os
  • Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale
  • M2M Protocols - Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS

The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

Technical properties
1 GBit Ports:
4
Antenna Connector:
2x RP-SMA
CPU:
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
Case material:
Aluminum Alloy
Certificate:
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 / RCM: AS/NZS 62368.1:2022 / CB: IEC 62368 ...
Design:
DIN Rail
Dimensions:
115 x 32.2 x 95.2 mm
Flash Memory:
16 MB serial NOR flash, 256MB serial NAND flash
Frequency:
2.4 GHz & 5 GHz
GPS:
No
Input digital:
1
LTE Category:
-
Mobile Standard:
-
Mounting:
DIN-Rail
Network Ports:
4-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Operating System:
RutOS
Output digital:
1
PoE Standard:
IEEE 802.3 Passive PoE
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
<3.51W / <8.65W
Power Jack:
4-Pin Terminal Block
Power Supply:
9 - 50V DC, PoE
SFP Ports:
-
SIM Slots:
2x mini SIM
Safety Class:
IP30
Security:
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Aut ...
Security Standards:
IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
Size of RAM:
256 MB DDR3
USB Slot Type:
USB Typ A
USB Standard:
USB 2.0
WAN Connection Type:
Ethernet / SFP
WLAN:
Yes
WLAN Standard:
IEEE 802.11 b/g/n/ac
Wireless Clients:
up to 150
