Industrial RS-232 LTE Gateway Board, Digital I/O, USB, RMS Support
- Mobile: LTE (Cat1)/3G/2G
- SIM slot: Mini SIM (2FF)
- Antenna connector: 1 x SMA for LTE
- RS232: DB9 socket, 5 pin configuration with flow control, baud rate 300 - 115200
- Input/Output: 2 x Digital/Analog Inputs/Outputs (configurable)
- CPU: ARM Cortex-A7 1.2 GHz CPU
- RAM: 128 MBytes (50 MBytes available for userspace)
- Flash: 512 MBytes (70 MBytes available for userspace)
- Input voltage range: 9 - 30 VDC
- Power connector: 4 pin industrial DC power socket
- Configuration interface: Virtual NIC via Micro-USB connector
- LED Indicators: Power, signal, network and data status LEDs
- Operating temperature: -40° C to 75° C
- Dimensions: 60 mm x 70 mm x 18 mm
- Weight 157.5 g
- Software:
- Operating system Linux OS with Yocto SDK (offering high software customisation)
- Network NAT, Firewall (port forward, traffic rules, custom rules), DDNS ( >25 service providers supported)
- RS232 related services Modbus, Serial over IP, NTRIP
- Remote management RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
- Status watchdogs Ping reboot, periodic reboot
- Additional features Internet connectivity over USB virtual network interface

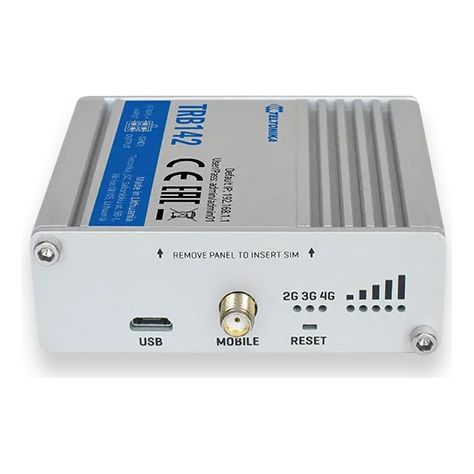

Industrial LTE Cat 1 Gateway Board TRB142 is equipped with an RS232 Interface, Digital Inputs/Outputs and a microUSB port. TRB142 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over the RS232 Interface. TRB142 is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Available stock:
Article number:
TRB142
Manufacturer number:
TRB142003000
Manufacturer page:
TELTONIKA
EAN:
4779027312385
- Mobile: LTE (Cat1)/3G/2G
- SIM slot: Mini SIM (2FF)
- Antenna connector: 1 x SMA for LTE
- RS232: DB9 socket, 5 pin configuration with flow control, baud rate 300 - 115200
- Input/Output: 2 x Digital/Analog Inputs/Outputs (configurable)
- CPU: ARM Cortex-A7 1.2 GHz CPU
- RAM: 128 MBytes (50 MBytes available for userspace)
- Flash: 512 MBytes (70 MBytes available for userspace)
- Input voltage range: 9 - 30 VDC
- Power connector: 4 pin industrial DC power socket
- Configuration interface: Virtual NIC via Micro-USB connector
- LED Indicators: Power, signal, network and data status LEDs
- Operating temperature: -40° C to 75° C
- Dimensions: 60 mm x 70 mm x 18 mm
- Weight 157.5 g
- Software:
- Operating system Linux OS with Yocto SDK (offering high software customisation)
- Network NAT, Firewall (port forward, traffic rules, custom rules), DDNS ( >25 service providers supported)
- RS232 related services Modbus, Serial over IP, NTRIP
- Remote management RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
- Status watchdogs Ping reboot, periodic reboot
- Additional features Internet connectivity over USB virtual network interface
Industrial LTE Cat 1 Gateway Board TRB142 is equipped with an RS232 Interface, Digital Inputs/Outputs and a microUSB port. TRB142 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over the RS232 Interface. TRB142 is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Technical properties
Antenna Connector:
SMA
CPU:
ARM Cortex-A7 1,2 GHz
Digital Input / Output:
2x digitale/analoge Ein-/Ausgänge (konfigurierbar)
Dimensions:
60 x 70 x 18 mm
Interfaces:
RS-232 / LTE
LEDs:
Power, signal, network and data status LEDs
LTE Category:
Cat 1
Management Port:
virtual NIC via MicroUSB
Mobile Standard:
2G/3G/4G
Operating Conditions:
-40°C - +75°C
Operating System:
Linux OS w/ Yocto SDK
Power Consumption max.:
<5.0 W
Power Jack:
4-Pin industrial DC socket
Power Supply:
9 - 30V DC
SIM Slots:
1x mini SIM
Safety Class:
IP30
Serial Interface Type:
RS-232
Size of RAM:
128 MB
Storage Type internal:
512 Mb FLASH
WLAN:
No
