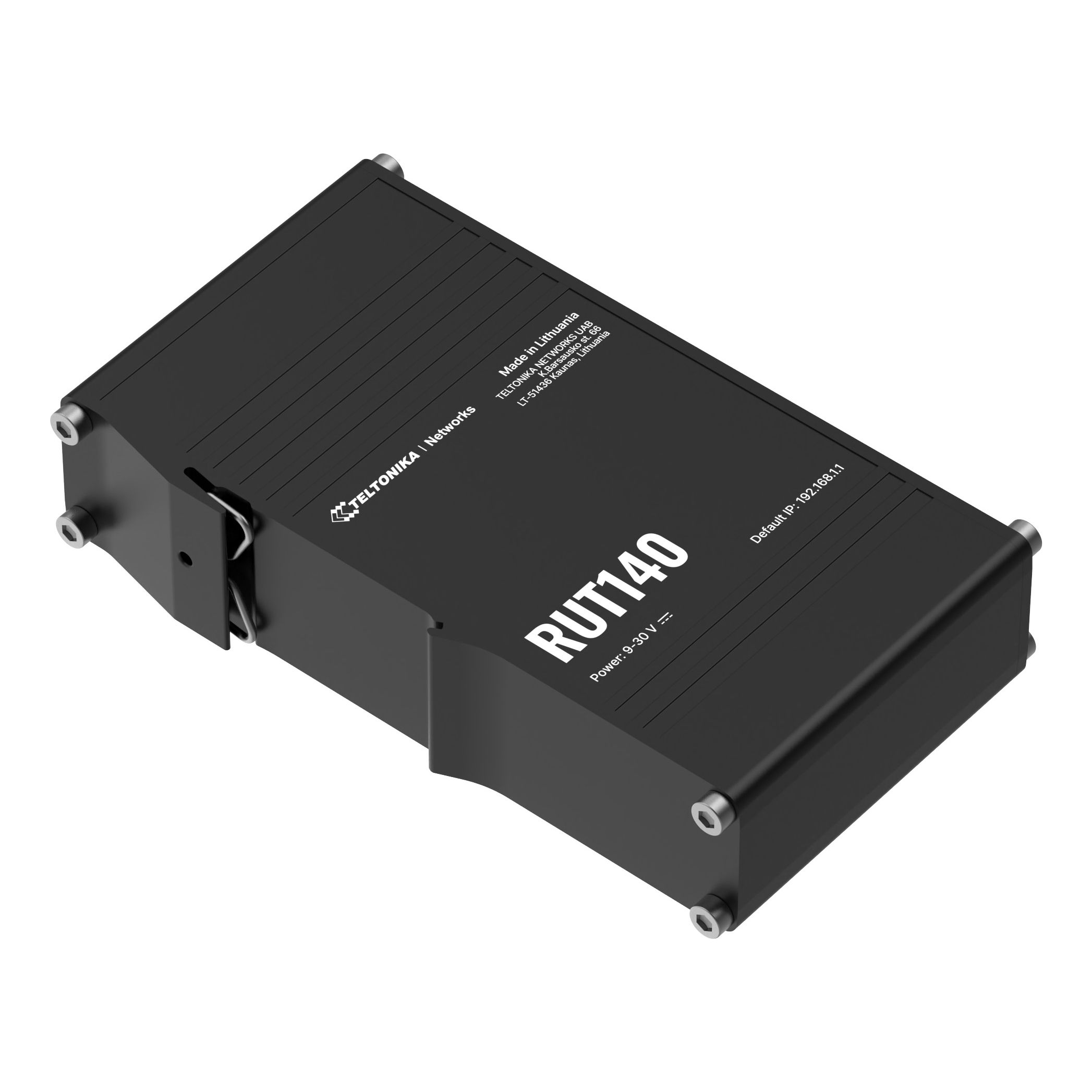

Industrial Router for professional Applications, compact housing
The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
Available stock:
Article number:
RUT140
Manufacturer number:
RUT140000000
Manufacturer page:
TELTONIKA
EAN:
4779051840700
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4

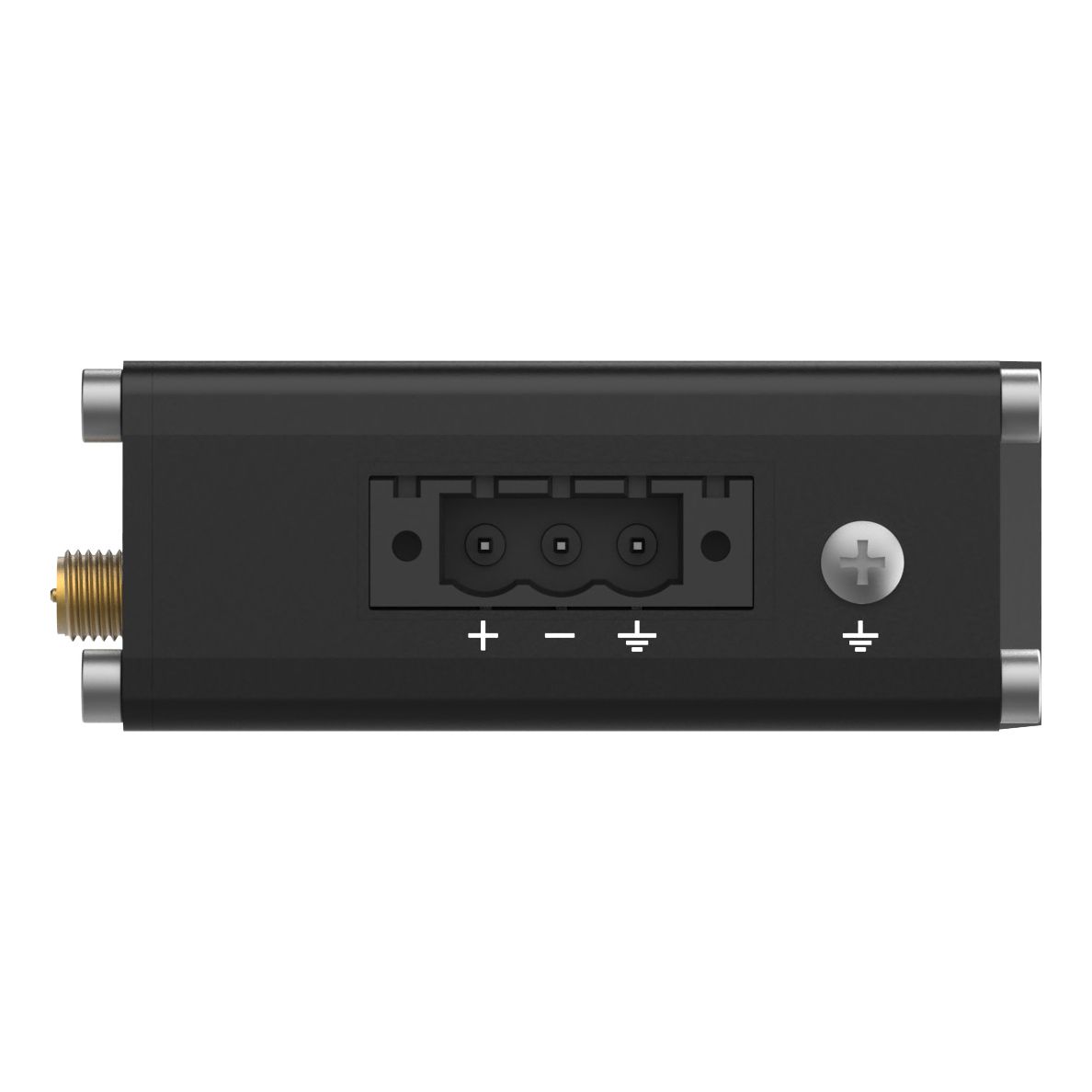

- 1 x 3-pin power connector tailored for industrial use
- Simple installation with an integrated DIN rail bracket
- RMS / Remote management, access & VPN services
The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
Technical properties
100 MBit Ports:
2
Antenna Connector:
RP-SMA
CPU:
Mediatek, 580 MHz, MIPS 24KEc
Case material:
Aluminum Alloy
Certificate:
CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE
Design:
DIN Rail
Dimensions:
113.10 x 25 x 68.6 mm
Flash Memory:
16 MB serial NOR flash
Frequency:
2.4 GHz
GPS:
No
LTE Category:
-
Mobile Standard:
-
Mounting:
DIN-Rail
Network Ports:
2-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Operating System:
RutOS
PoE in:
Passive PoE
Port Speed, RJ45:
10 Mbit/100 Mbit
Power Consumption max.:
<1W / <2W
Power Jack:
3-Pin Terminal Block
Power Supply:
9 - 30V DC, Passive-PoE
SFP Ports:
-
SIM Slots:
-
Safety Class:
IP30
Security:
WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Aut ...
Serial Interface Type:
-
Size of RAM:
128 MB DDR2
WAN Connection Type:
Ethernet / SFP
WLAN:
Yes
WLAN Standard:
IEEE 802.11 b/g/n
Wireless Clients:
up to 50
