Industrial LTE/4G Router for professional Applications, Digital I/Os, USB 2.0

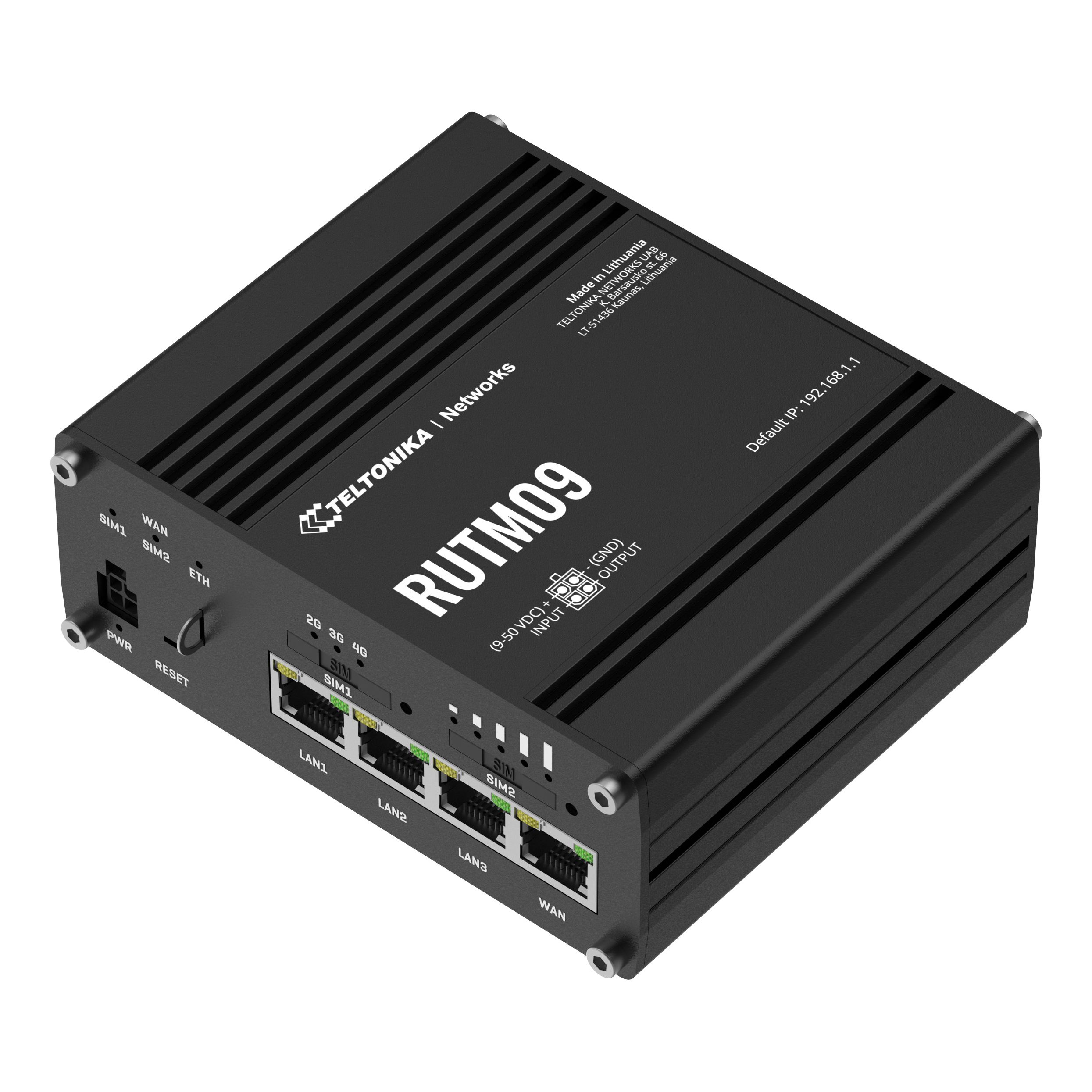

The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.
LOCATION TRACKING:
- GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA: NMEA 0183
- Server software: Supported server software TAVL, RMS
- Geofencing: Configurable multiple geofence zones
USB:
- Data rate: USB 2.0
- Applications: Samba share, USB-to-serial
- External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT / OUTPUT:
- Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
- Output: 1 x Digital Output, Open collector output, max output 50 V, 300 mA
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
- Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
- Digital I/Os
- 4 x Gigabit RJ45 ports,
- USB
- up to 128 tag/port-based VLANs
- Performance-Driven - Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
- GNSS - Location services and time synchronisation for precise data reading
The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.
LOCATION TRACKING:
- GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA: NMEA 0183
- Server software: Supported server software TAVL, RMS
- Geofencing: Configurable multiple geofence zones
USB:
- Data rate: USB 2.0
- Applications: Samba share, USB-to-serial
- External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT / OUTPUT:
- Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
- Output: 1 x Digital Output, Open collector output, max output 50 V, 300 mA
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
