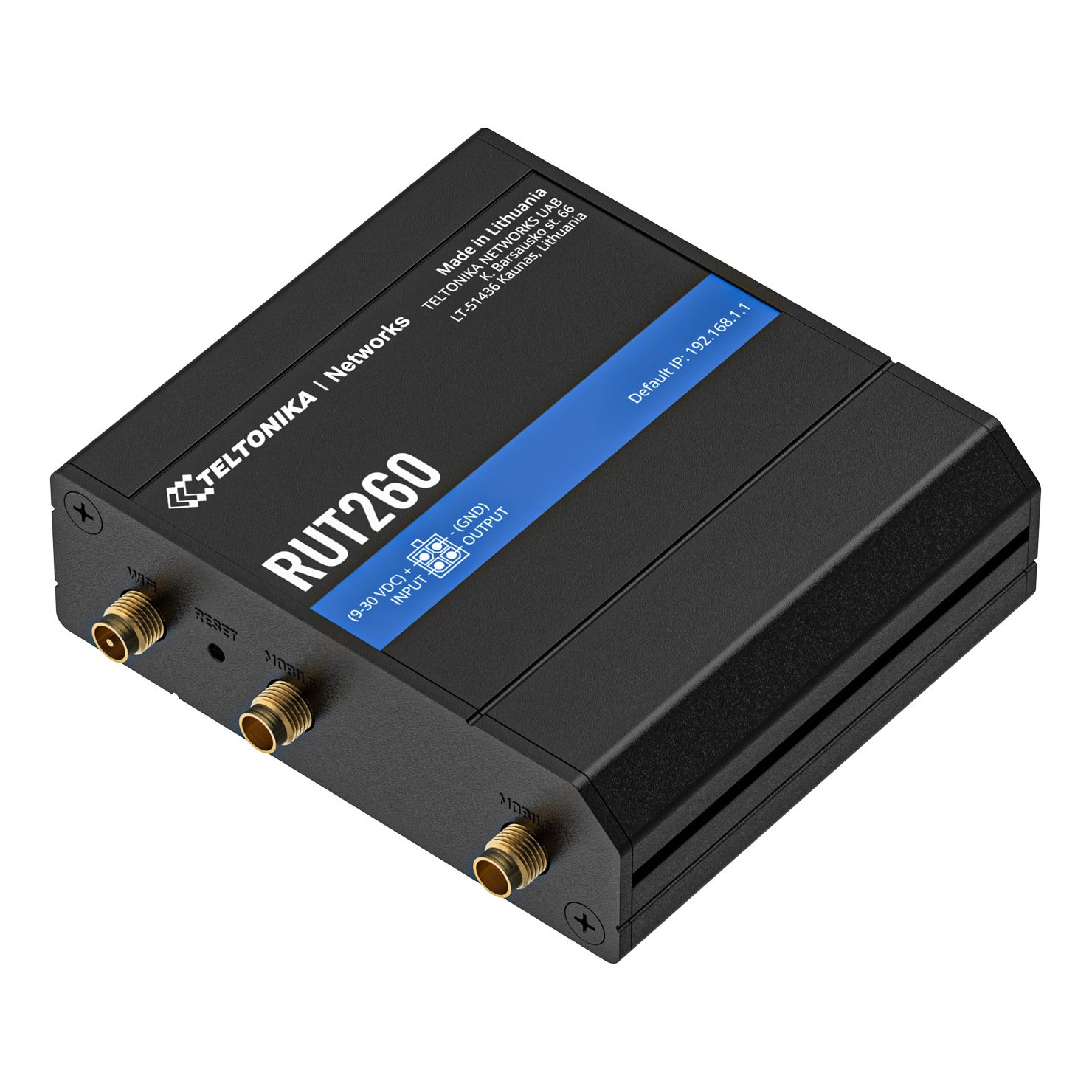

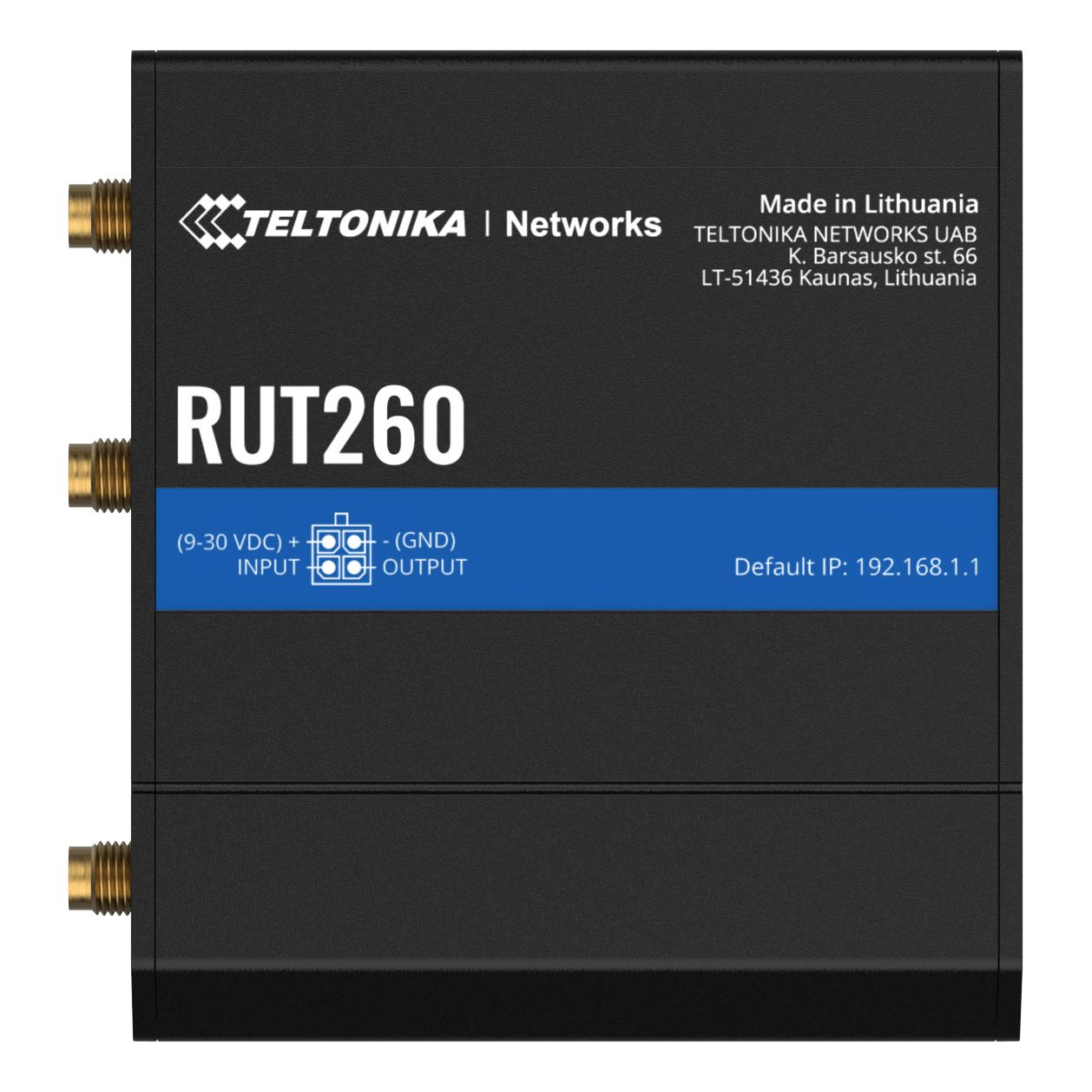

Industrial Compact LTE CAT 6 Mobile Router
RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
Available stock:
Article number:
RUT260
Manufacturer number:
RUT260000000
Manufacturer page:
TELTONIKA
EAN:
4779051841332
- LTE CAT6 Cellular speeds of up to 300Mbps with carrier aggregation
- WAN Failover - Automatically switches to an available backup connection

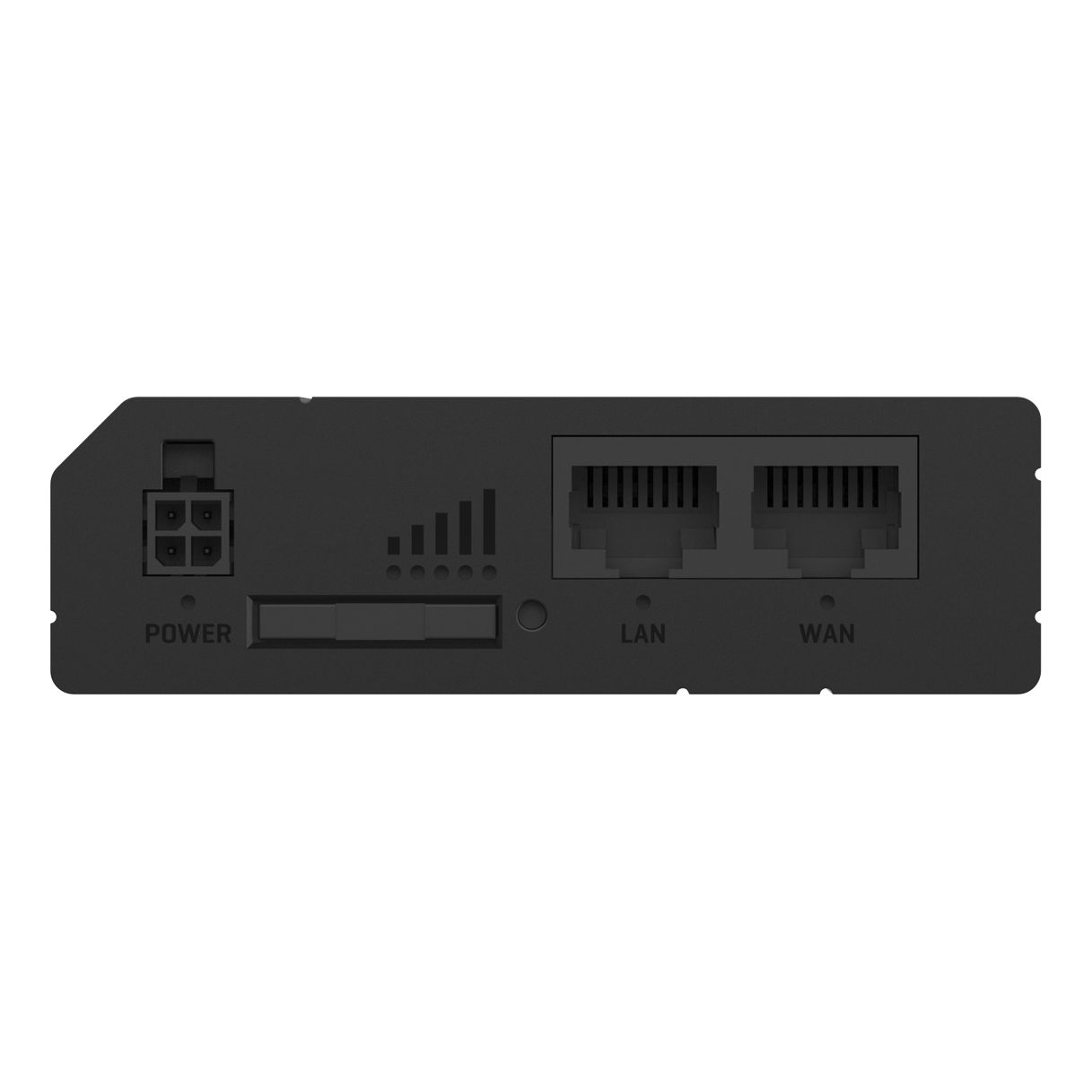

- 2 x 10/100 Mbps Ethernet ports, Digital I/Os
- Compact - Small in size and easy to install
RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
Technical properties
100 MBit Ports:
2

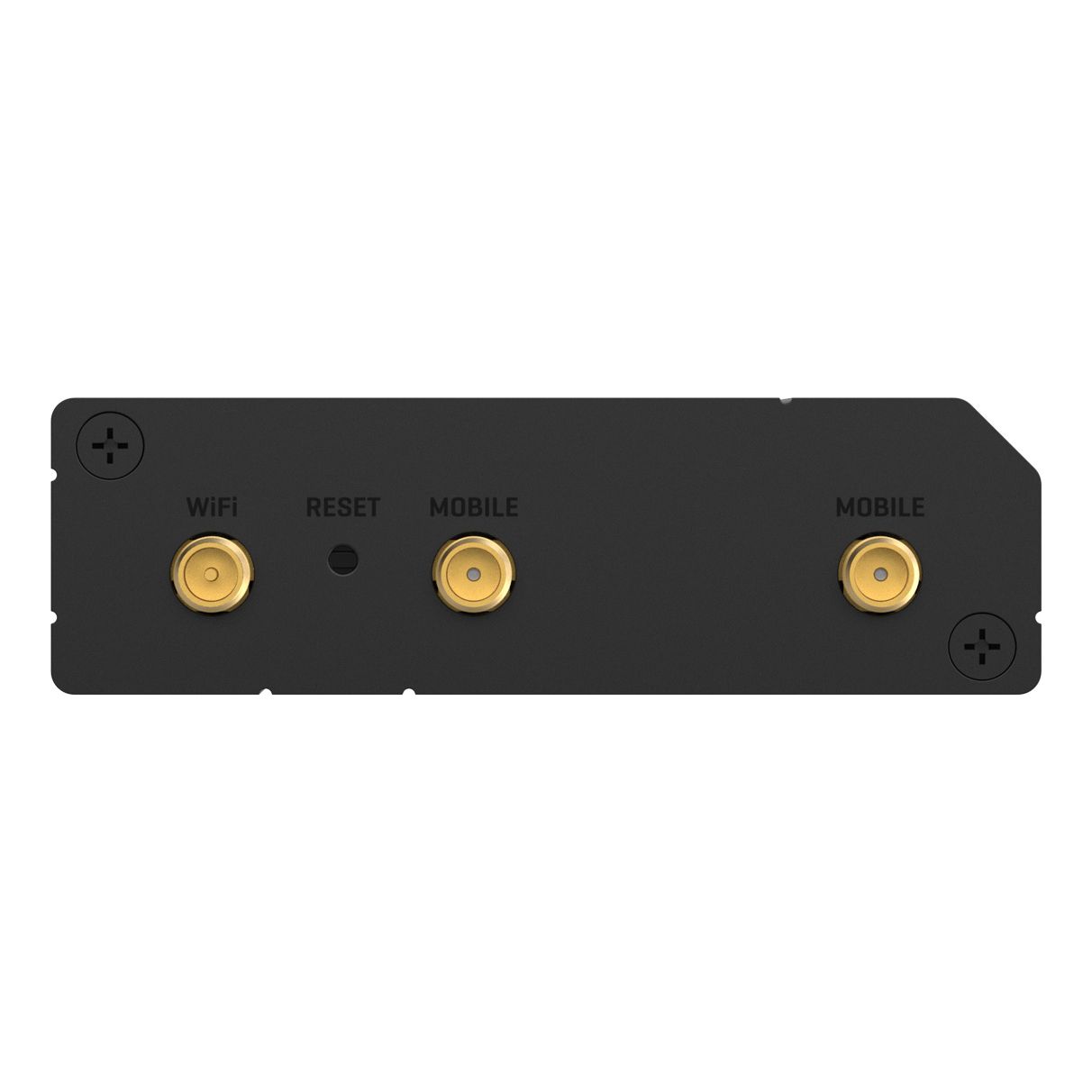

Antenna Connector:
2x SMA, 1x RP-SMA
CPU:
Mediatek, 580 MHz, MIPS 24KEc
Certificate:
CE/RED, UKCA, UCRF, RCM, EAC, WEEE
Design:
DIN Rail
Dimensions:
83 x 25 x 74 mm
Flash Memory:
16 MB SPI
Frequency:
2.4 GHz
GPS:
No
Input digital:
1
LTE Category:
CAT 6
LTE Support:
Yes
Mobile Standard:
3G/4G
Mounting:
DIN rail
Network Ports:
2-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Operating System:
RutOS
Output digital:
1
PoE Standard:
IEEE 802.3 Passive PoE
PoE Support:
Passive-PoE
Port Speed, RJ45:
10 Mbit/100 Mbit
Power Consumption max.:
<2W / 6.5W
Power Jack:
4-Pin industrial DC socket
Power Supply:
9 - 30V DC, PoE
SFP Ports:
-
SIM Slots:
1x mini SIM
Safety Class:
IP30
Security:
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, clie ...
Size of RAM:
128 MB DDR2
VPN Support:
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
WAN Connection Type:
LTE / 4G
WLAN:
Yes
WLAN Standard:
IEEE 802.11 b/g/n
