DAP145 - WiFi Access Point, 802.11b/g/n Wi-Fi 4, RS-485, RMS Integration

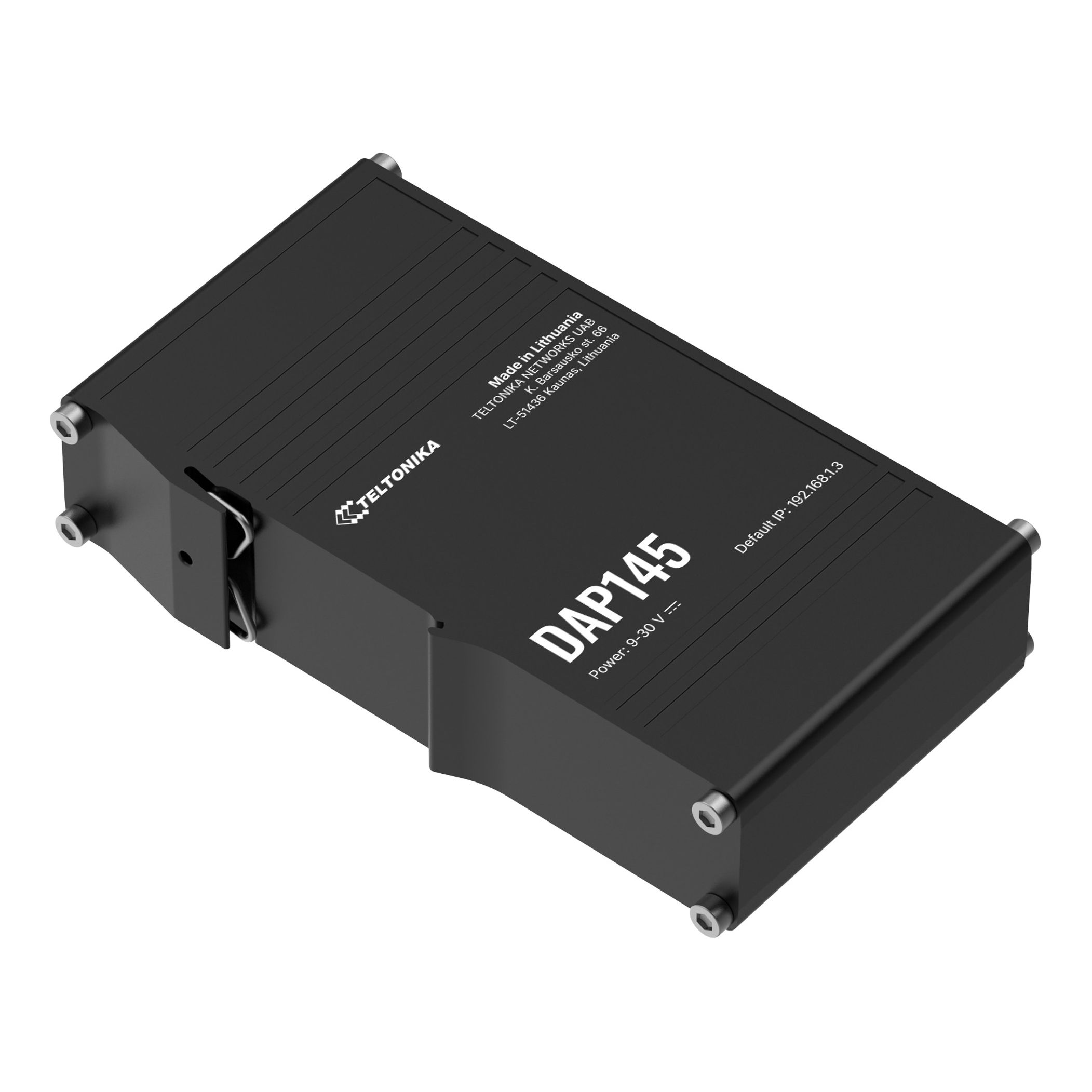

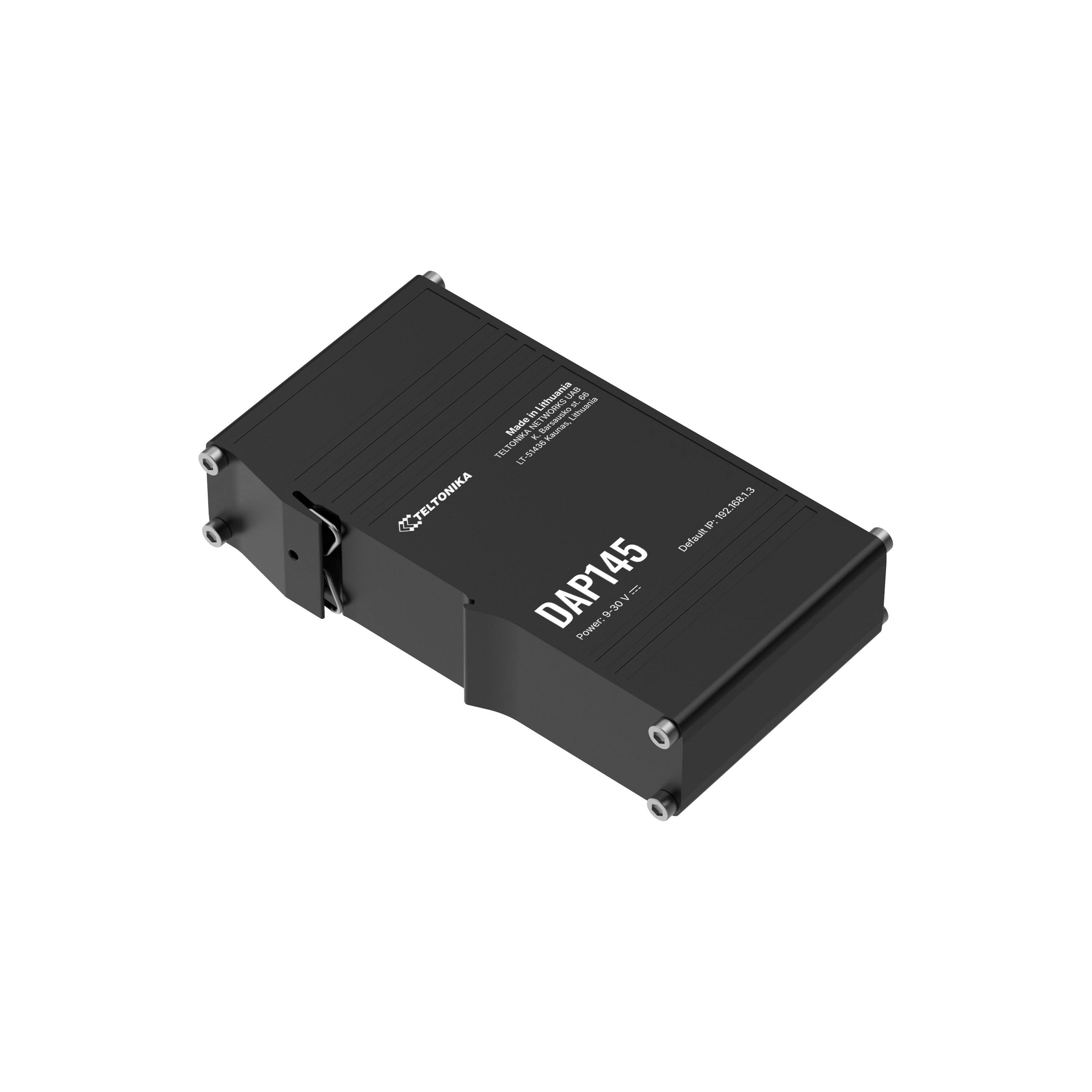

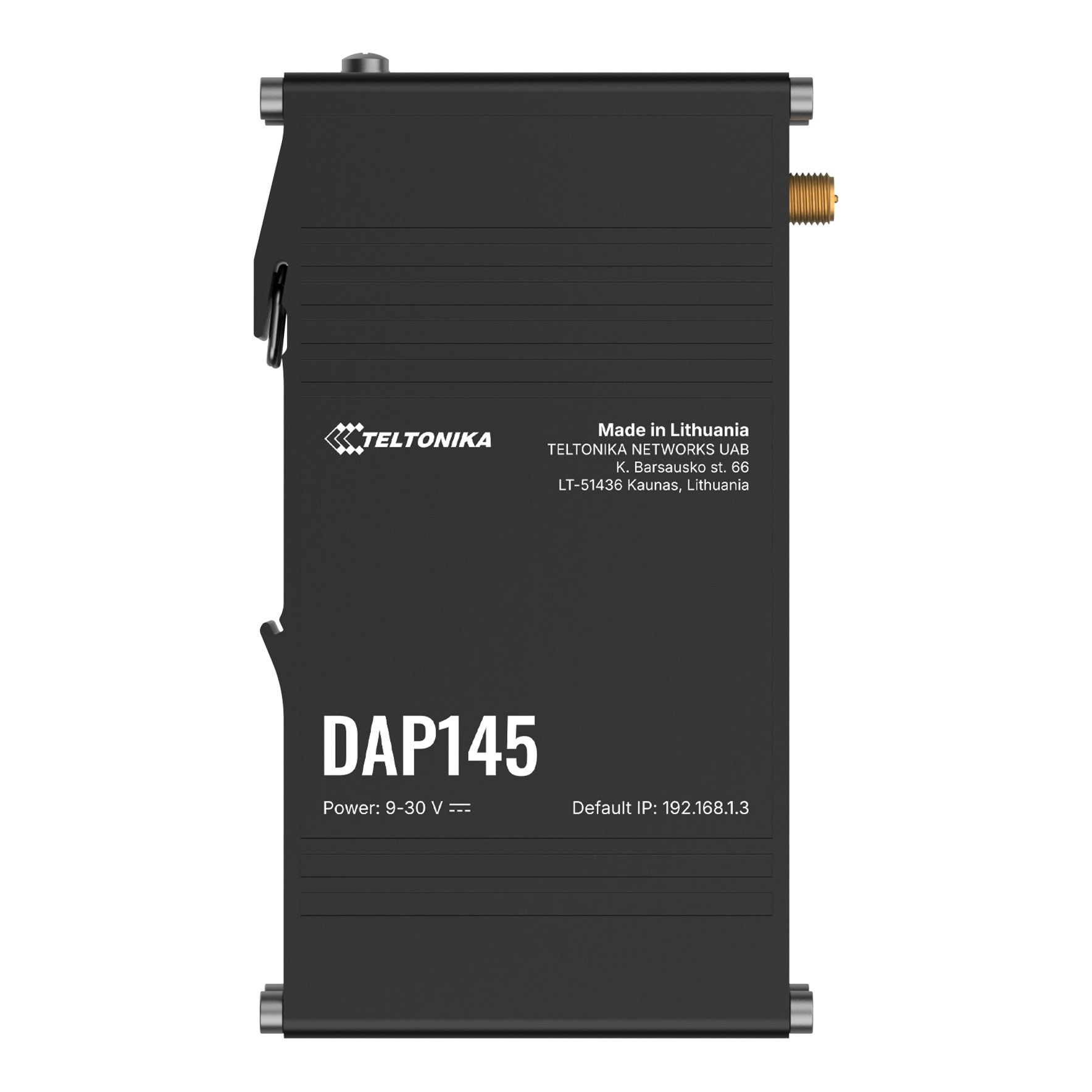

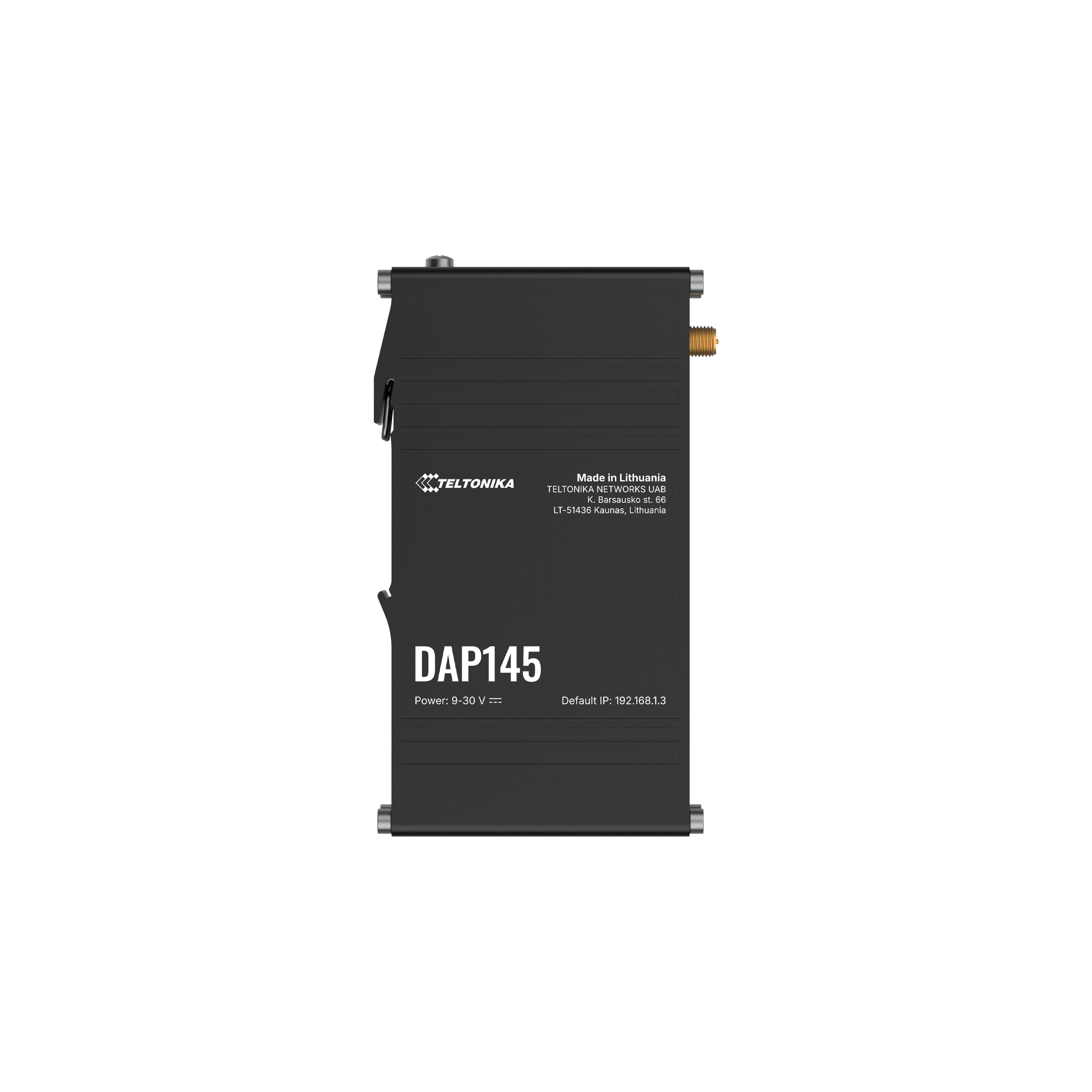

The Teltonika DAP145 is a compact industrial wireless access point combining Wi-Fi 4 connectivity with a native RS485 interface. It enables wired serial equipment to communicate with Ethernet, Wi-Fi and cloud infrastructures without requiring separate external interface converters. In addition to access point and station operation, the device supports IEEE 802.11s wireless mesh, IEEE 802.11r fast roaming and further features for optimising industrial wireless networks.
The RS485 interface supports two-wire and four-wire connections together with Serial-over-IP and Modbus gateway functionality. Native support for BACnet, OPC UA, Modbus, DNP3 and DLMS/COSEM simplifies integration with automation, building management and energy systems. The Data to Server function can forward collected information to central servers and cloud platforms via HTTP(S), MQTT or Azure MQTT.

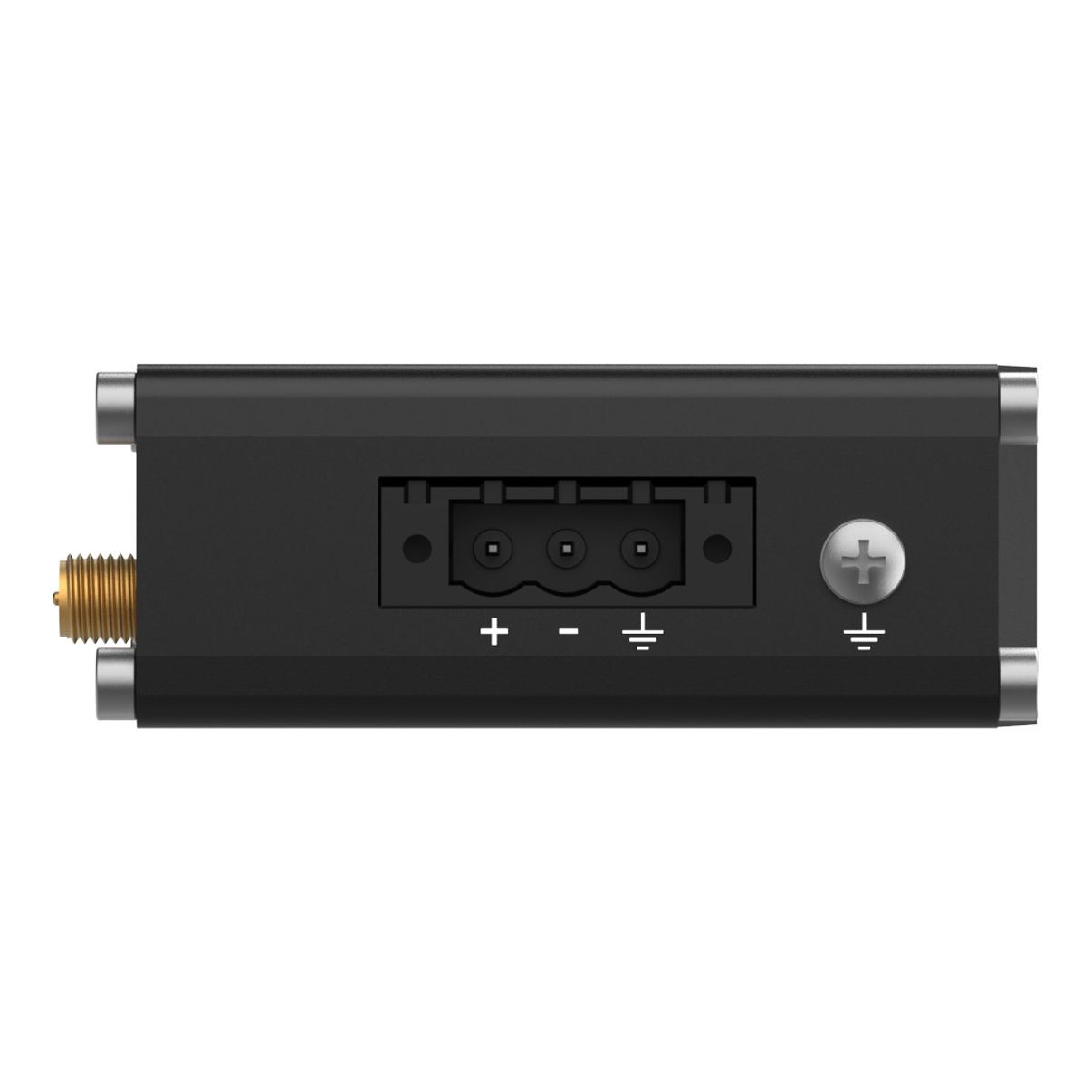

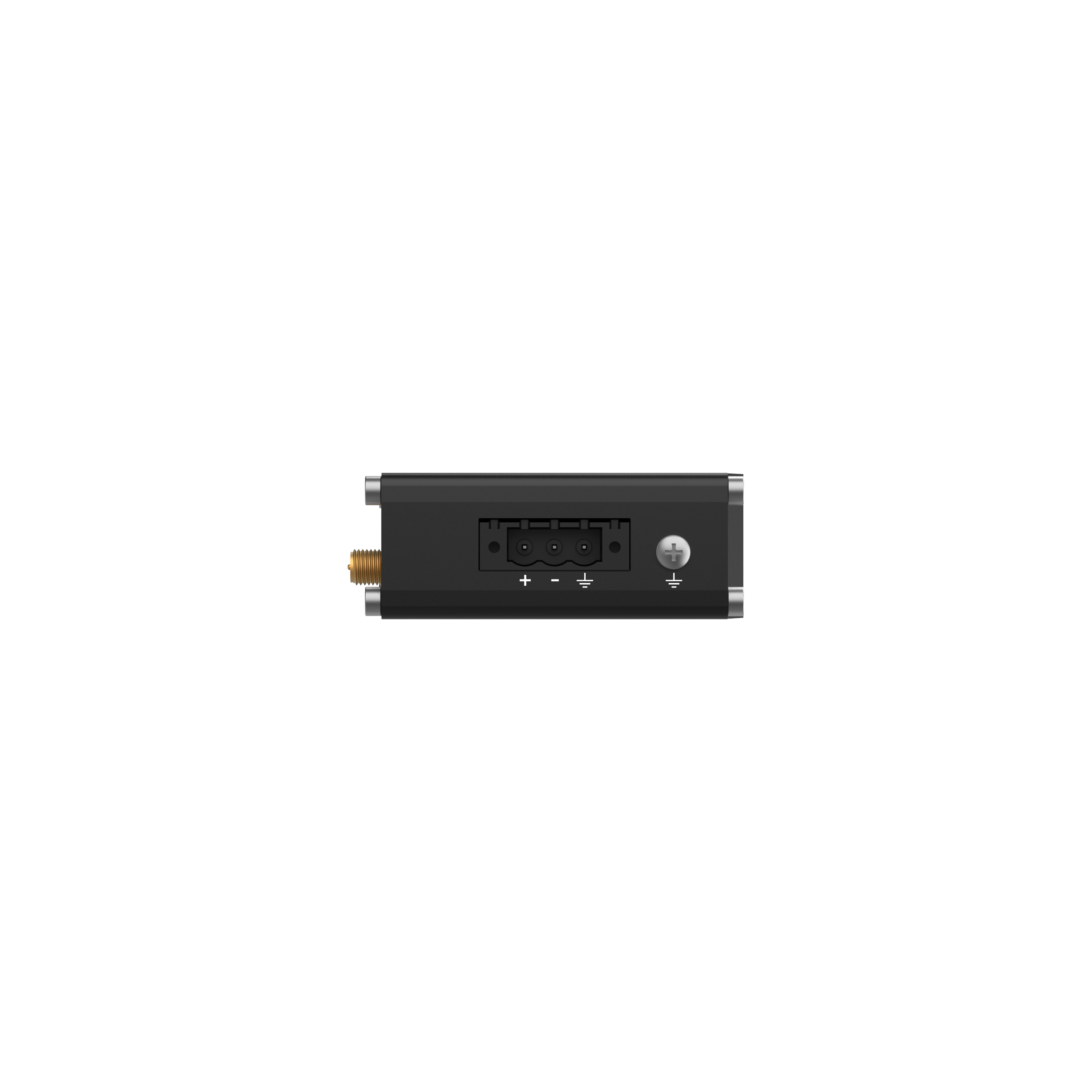

Two 10/100 Mbps RJ45 ports provide wired network connectivity. Power can be supplied through the three-pin terminal connector or via passive PoE on the LAN1 port using 9–30 VDC. The passive PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt. Its anodised aluminium enclosure, integrated DIN rail bracket, IP30 rating and −40 °C to +75 °C operating range support reliable deployment in demanding technical environments.
- Industrial Wi-Fi 4 access point with native RS485
- Access point, station, mesh and fast roaming modes
- Supports up to 50 simultaneous Wi-Fi connections

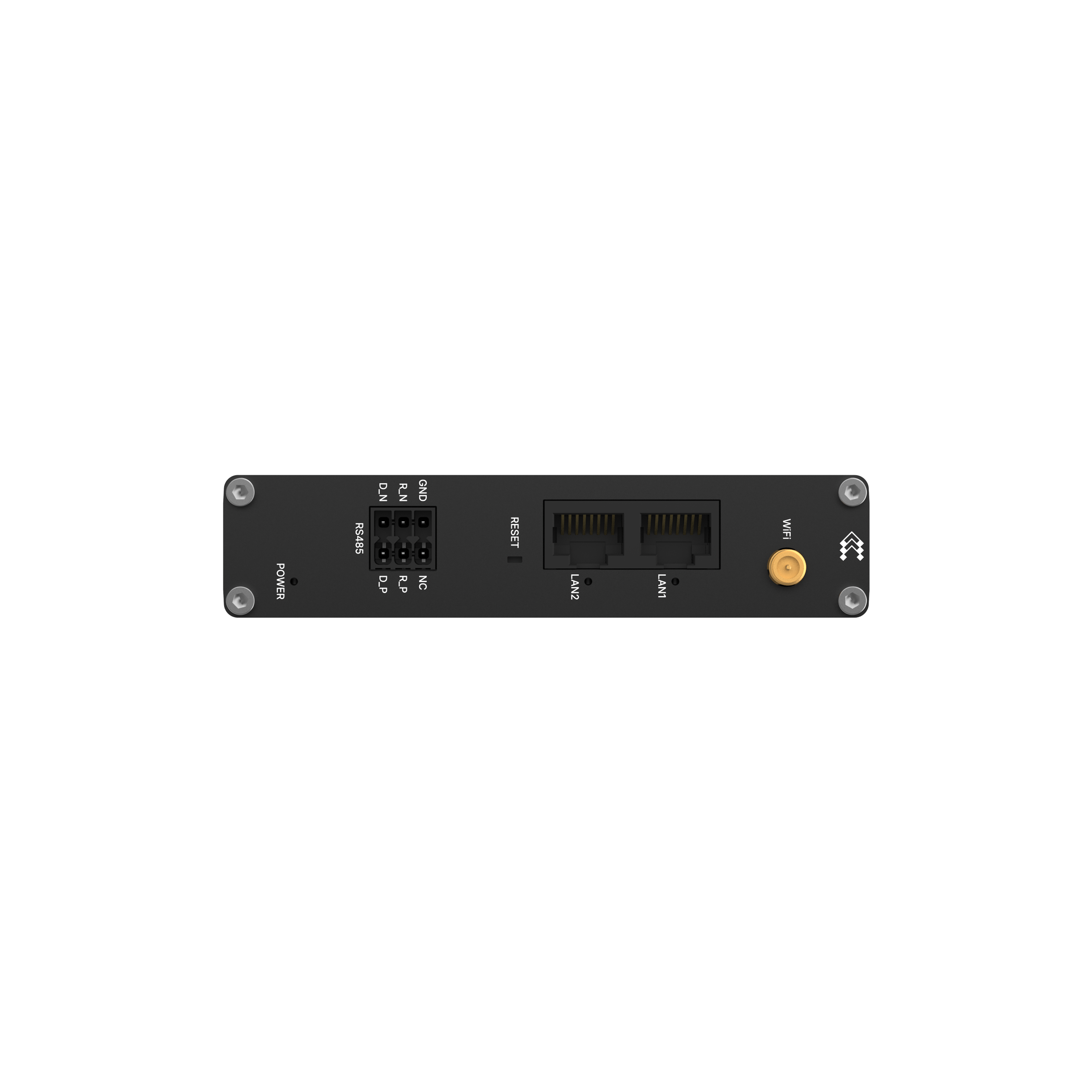

- 2x10/100 Mbps RJ45 ports for local networking
- Serial-over-IP and Modbus gateway for serial devices
- BACnet, OPC UA, Modbus, DNP3 and DLMS/COSEM
- Passive PoE input via LAN1 with 9–30 VDC
- RutOS and RMS for centralised remote management

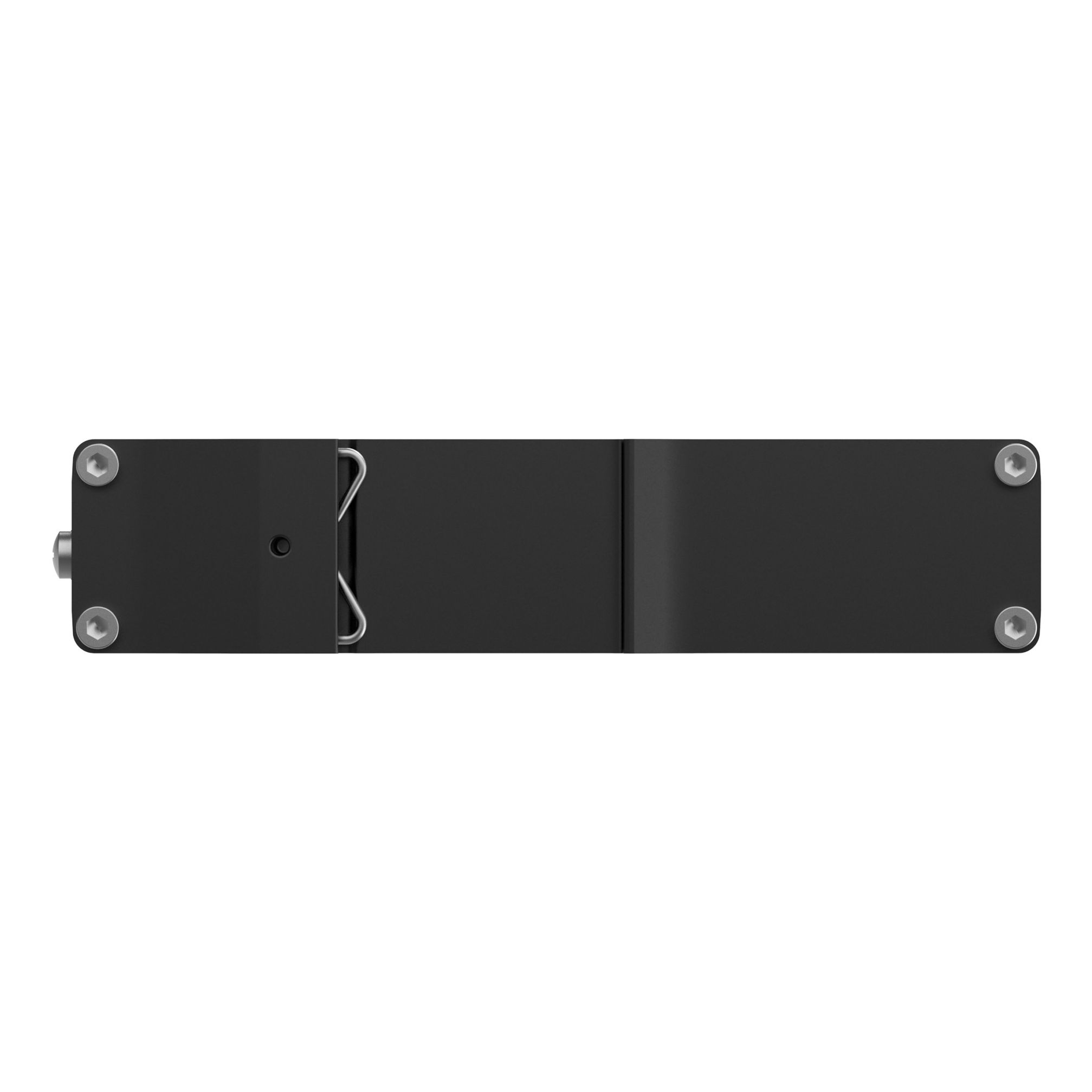

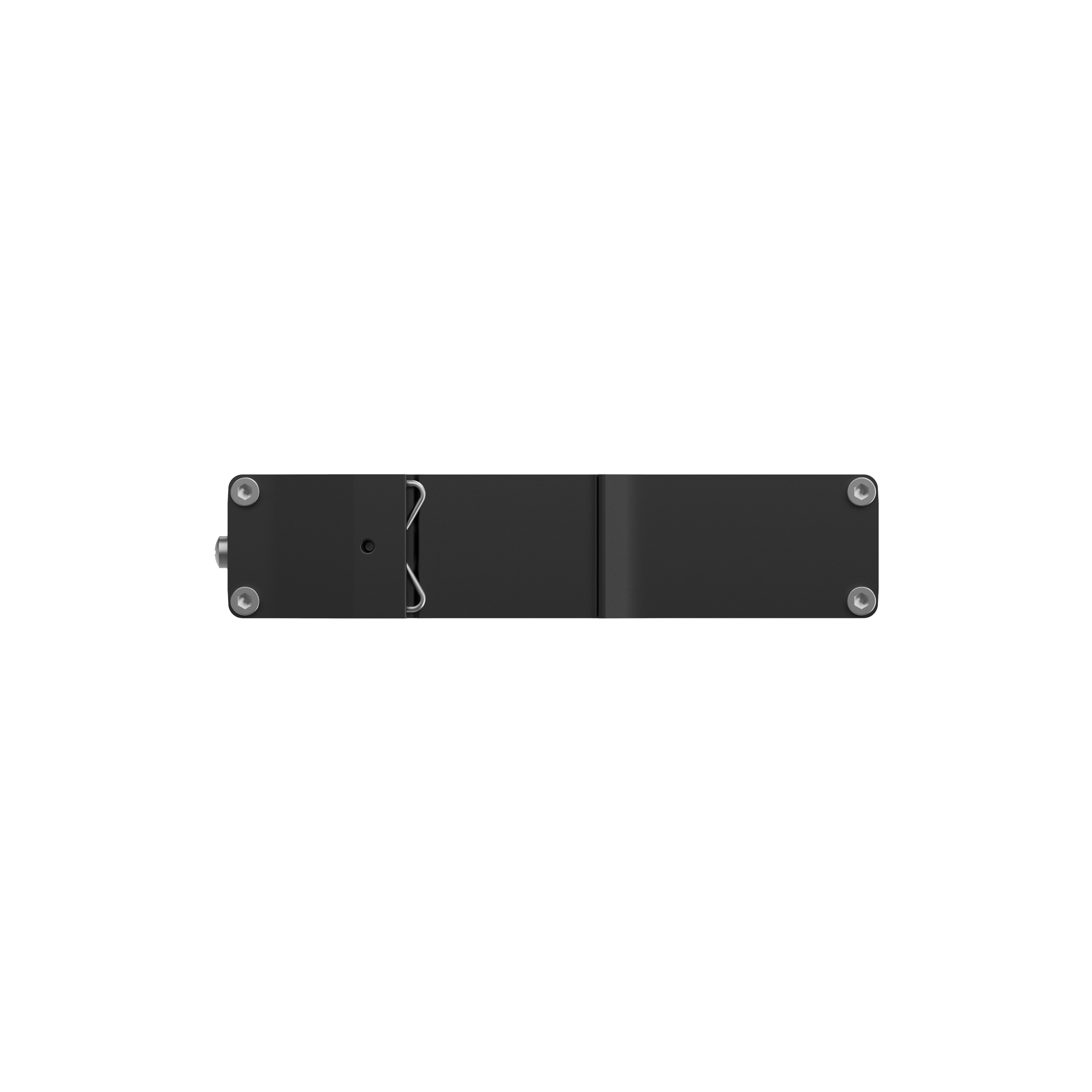

- Aluminium enclosure with integrated DIN rail mounting
- IP30 rating and −40 °C to +75 °C operation
The Teltonika DAP145 is designed to integrate serial RS485 devices into modern IP networks through wireless connectivity. Typical applications include industrial automation, energy and utility infrastructure, building management systems, machine building, smart metering and distributed monitoring installations. Controllers, meters, sensors and legacy equipment can be connected through RS485 and integrated with higher-level systems using Serial-over-IP or supported industrial protocols.
Operating as an access point, station or mesh node, the DAP145 can extend Wi-Fi coverage, provide wireless backhaul or support the mobility of industrial assets. System integrators, machine builders and technical infrastructure operators benefit from its DIN rail installation, industrial power input and centralised administration through Teltonika RMS.
The Teltonika DAP145 is a compact industrial wireless access point combining Wi-Fi 4 connectivity with a native RS485 interface. It enables wired serial equipment to communicate with Ethernet, Wi-Fi and cloud infrastructures without requiring separate external interface converters. In addition to access point and station operation, the device supports IEEE 802.11s wireless mesh, IEEE 802.11r fast roaming and further features for optimising industrial wireless networks.
The RS485 interface supports two-wire and four-wire connections together with Serial-over-IP and Modbus gateway functionality. Native support for BACnet, OPC UA, Modbus, DNP3 and DLMS/COSEM simplifies integration with automation, building management and energy systems. The Data to Server function can forward collected information to central servers and cloud platforms via HTTP(S), MQTT or Azure MQTT.
Two 10/100 Mbps RJ45 ports provide wired network connectivity. Power can be supplied through the three-pin terminal connector or via passive PoE on the LAN1 port using 9–30 VDC. The passive PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt. Its anodised aluminium enclosure, integrated DIN rail bracket, IP30 rating and −40 °C to +75 °C operating range support reliable deployment in demanding technical environments.
