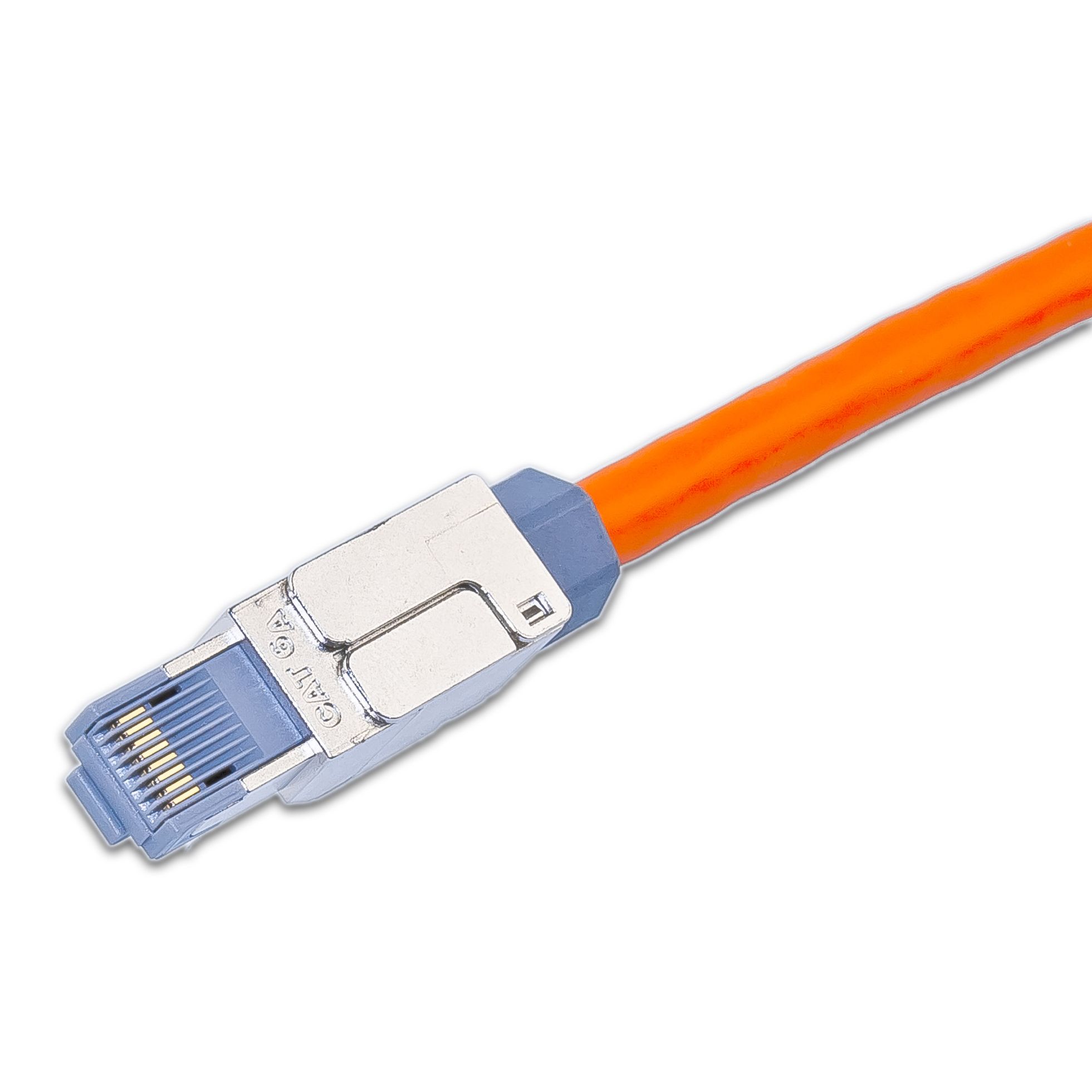

From now on, your work will be simplified: with the new field terminable RJ45 plug Cat.6A
The Cat. 6A RJ45 field terminable plug enables time-saving and reliable on-site assembly, for all networks from voice to 10 Gigabit Ethernet. In just 60 seconds it can be mounted on all common cable types - without special tools. Whether in an office or in data centers, industry or in home networks - the Cat. 6A field terminable plug provides unprecedented flexibility and saves time and money during installation, repair and maintenance.
Benefits:
Can be assembled in just 60 seconds without any special tools
Optimized for field applications, even under difficult conditions
Highest reliability
Reliable transmission - even in the case of external disturbances
Ideal for repair, special lengths and expansion of networks
Material of Contact-pin: gilded phosphor-bronze ally
Material of Housing: zinc-alloy fully shielded
Copper solid wire: 22-23 AWG
Cable outer diameter: 6,0-8,0 mm
Re-connectability: < 4 cycles
Temperature range: -40C – 70C
High Power over Ethernet plus (PoE+) IEEE 802.3at
From now on, your work will be simplified: with the new field terminable RJ45 plug Cat.6A
The Cat. 6A RJ45 field terminable plug enables time-saving and reliable on-site assembly, for all networks from voice to 10 Gigabit Ethernet. In just 60 seconds it can be mounted on all common cable types - without special tools. Whether in an office or in data centers, industry or in home networks - the Cat. 6A field terminable plug provides unprecedented flexibility and saves time and money during installation, repair and maintenance.
Benefits:
Can be assembled in just 60 seconds without any special tools
Optimized for field applications, even under difficult conditions
Highest reliability
Reliable transmission - even in the case of external disturbances
Ideal for repair, special lengths and expansion of networks
Technical properties
AWG-Range:
22 - 23
Application Field:
Field-Attache
Case Color:
Metalic
Category:
CAT.6A (IEC)
Certificate:
UL 1863 safety listed, ANSI/TIA-568-C.2, ISO/IEC 11801
