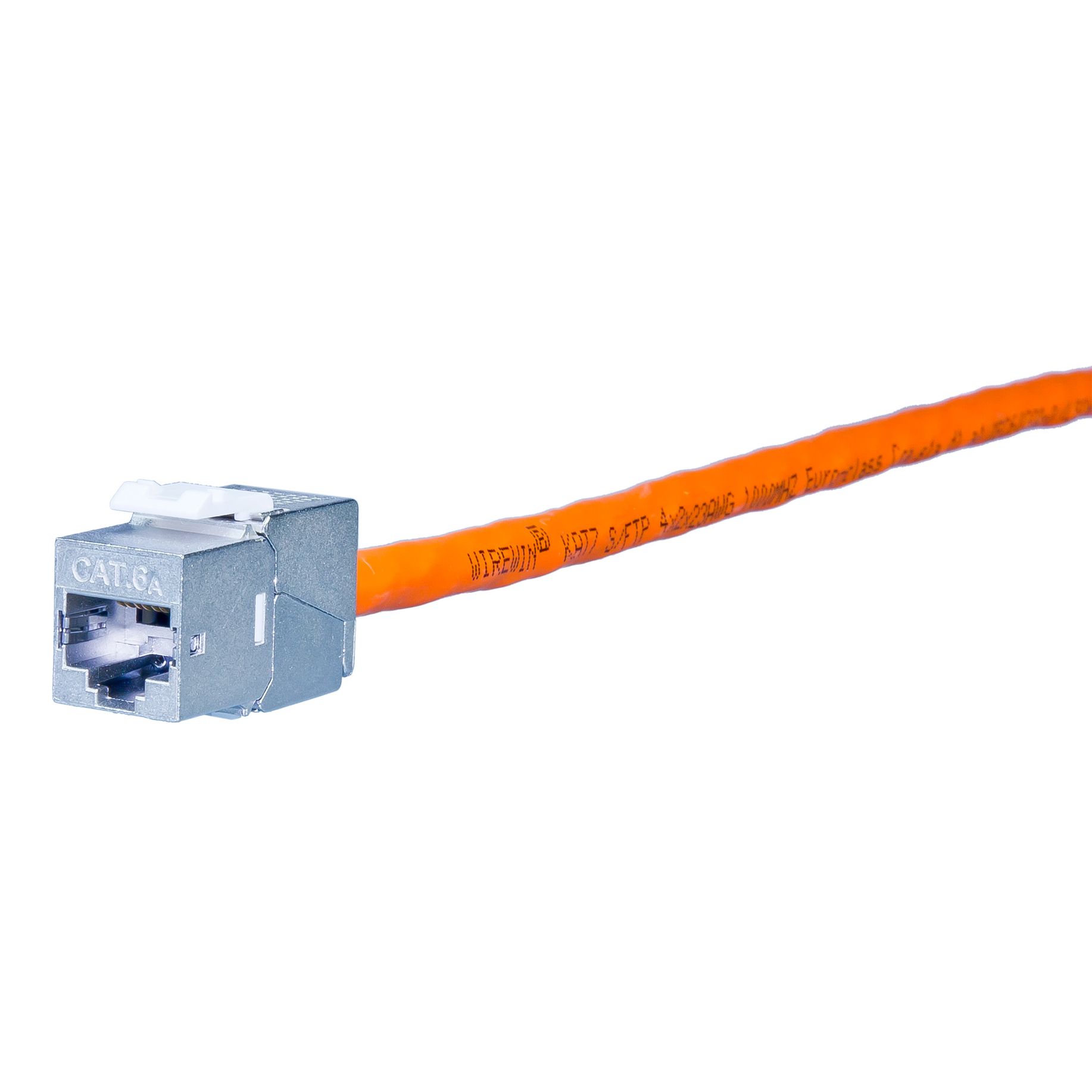

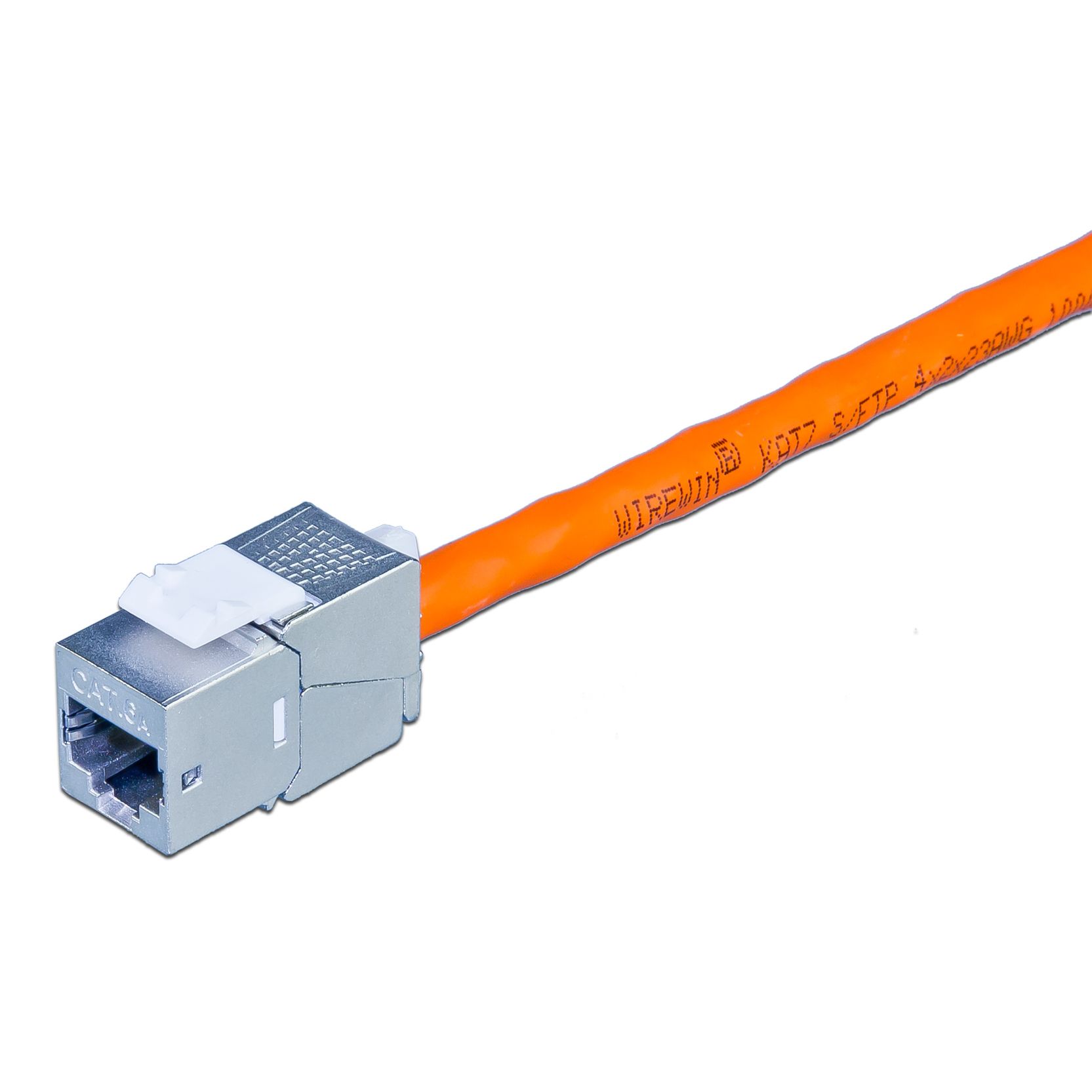

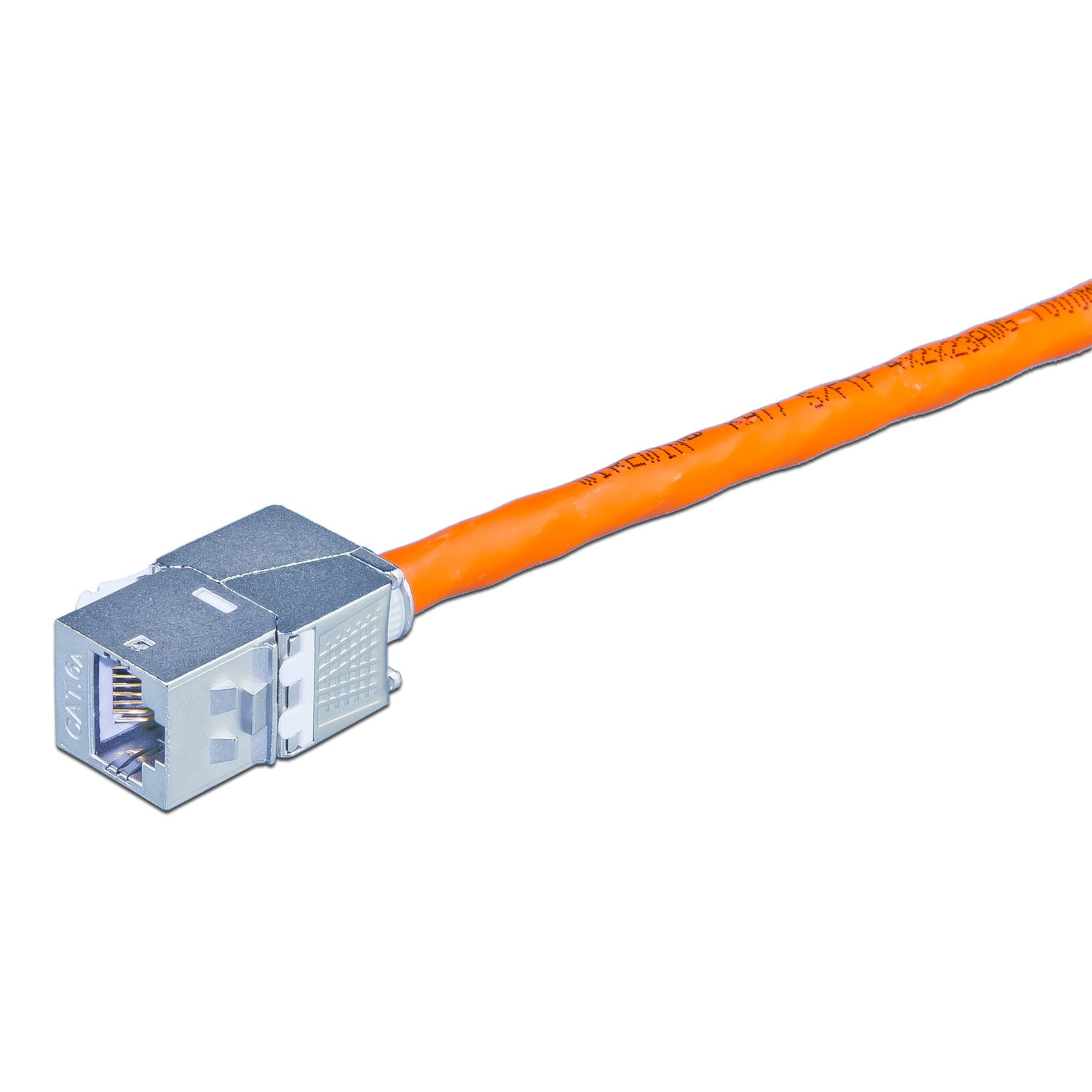

CAT6A 10 Gigabit Ethernet Keystone module

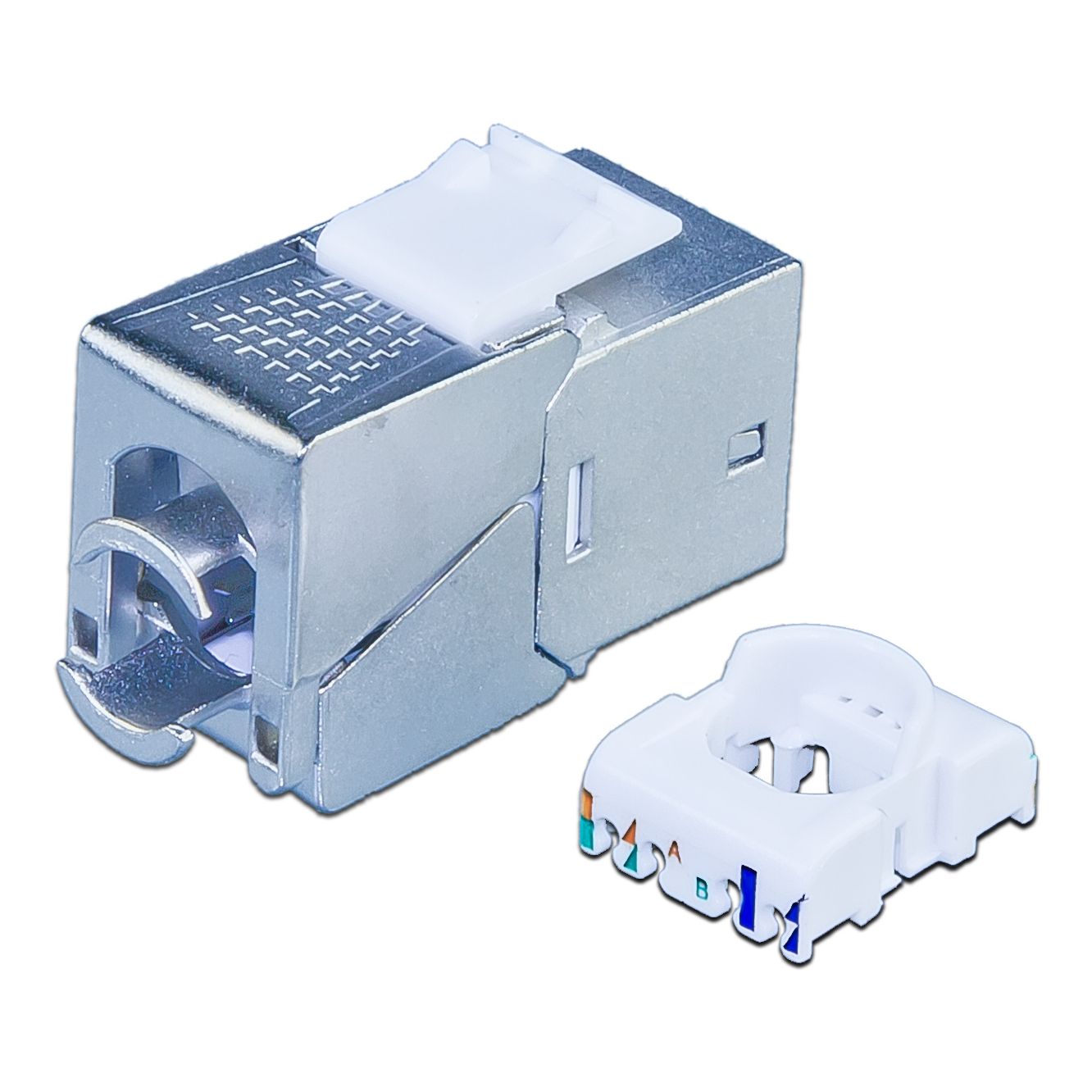

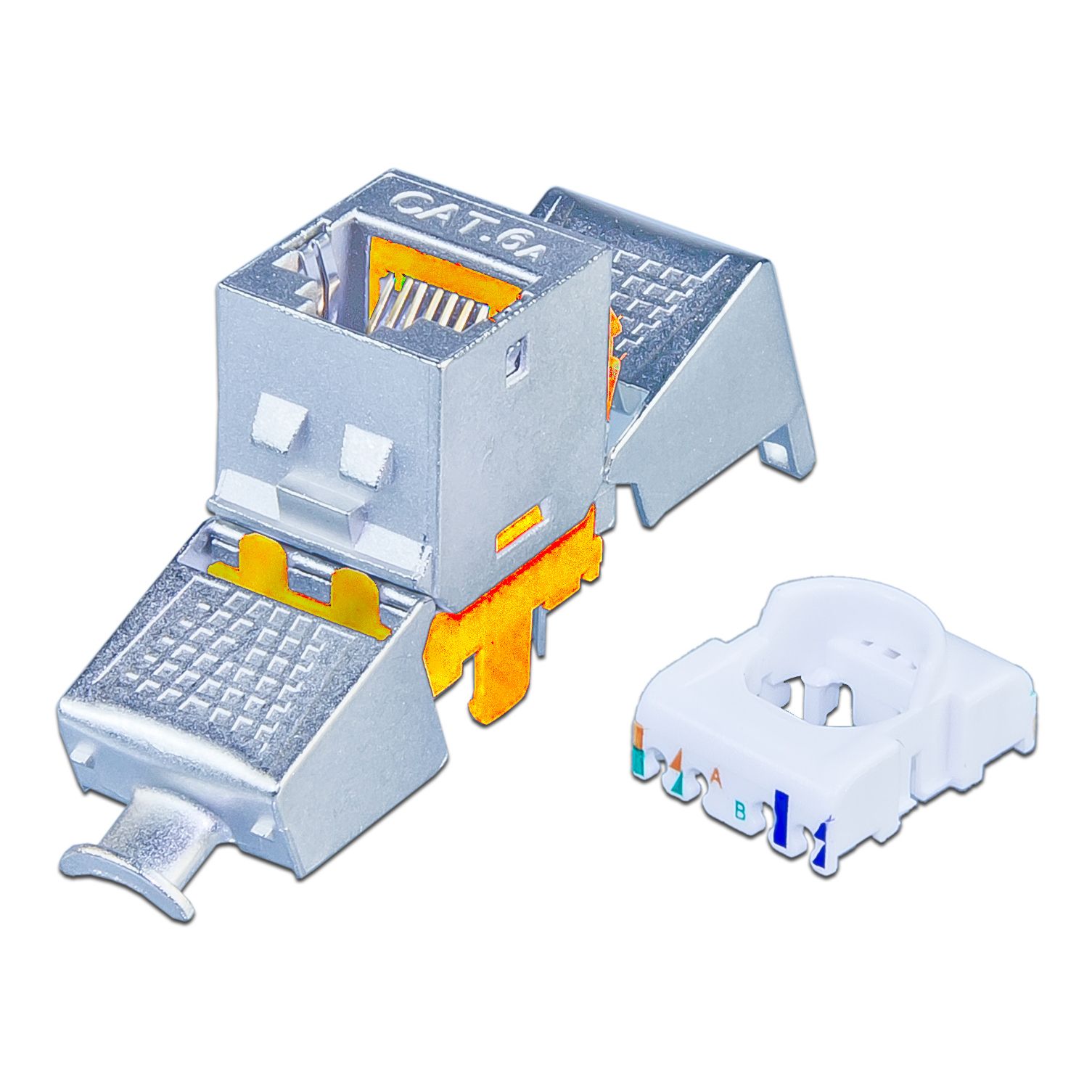

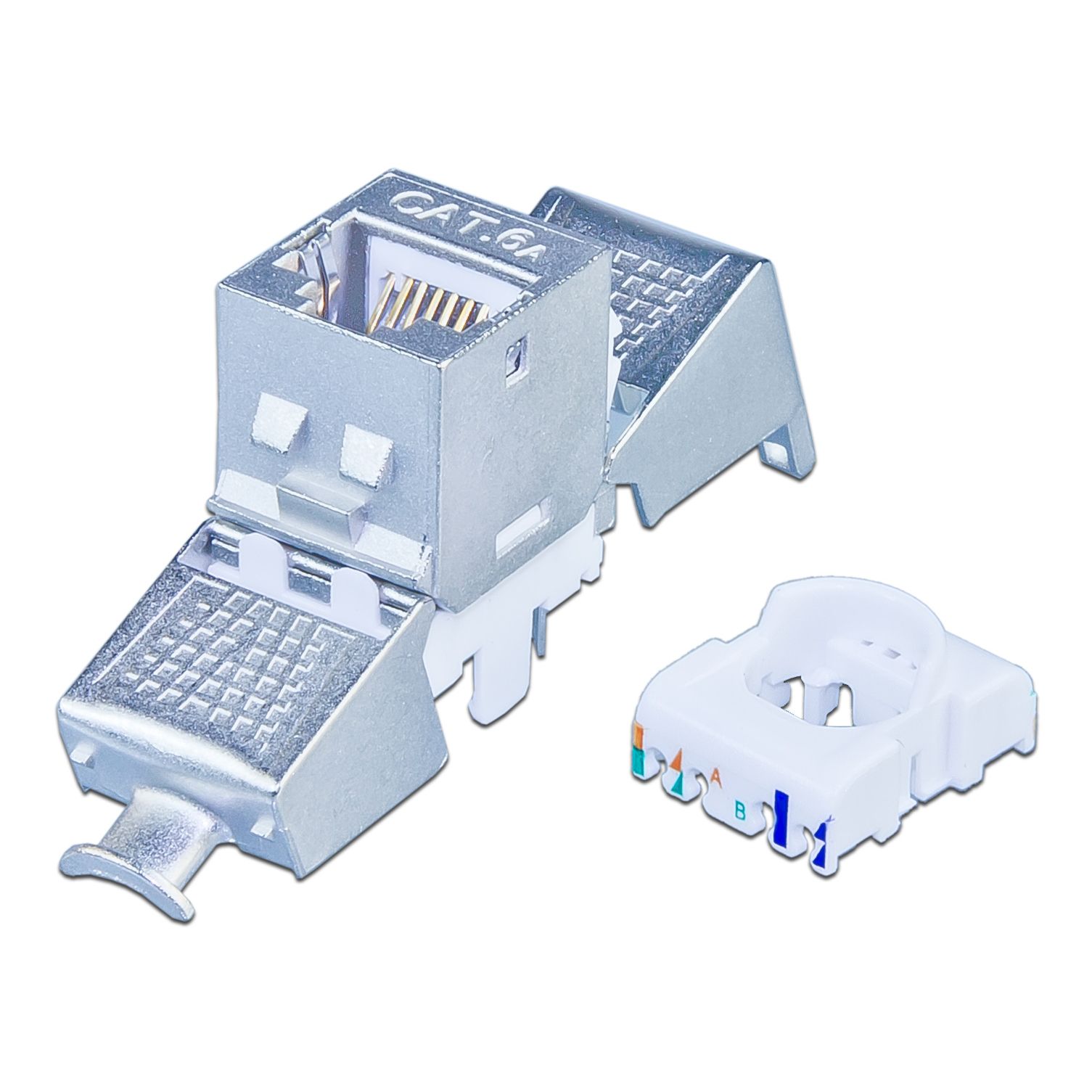

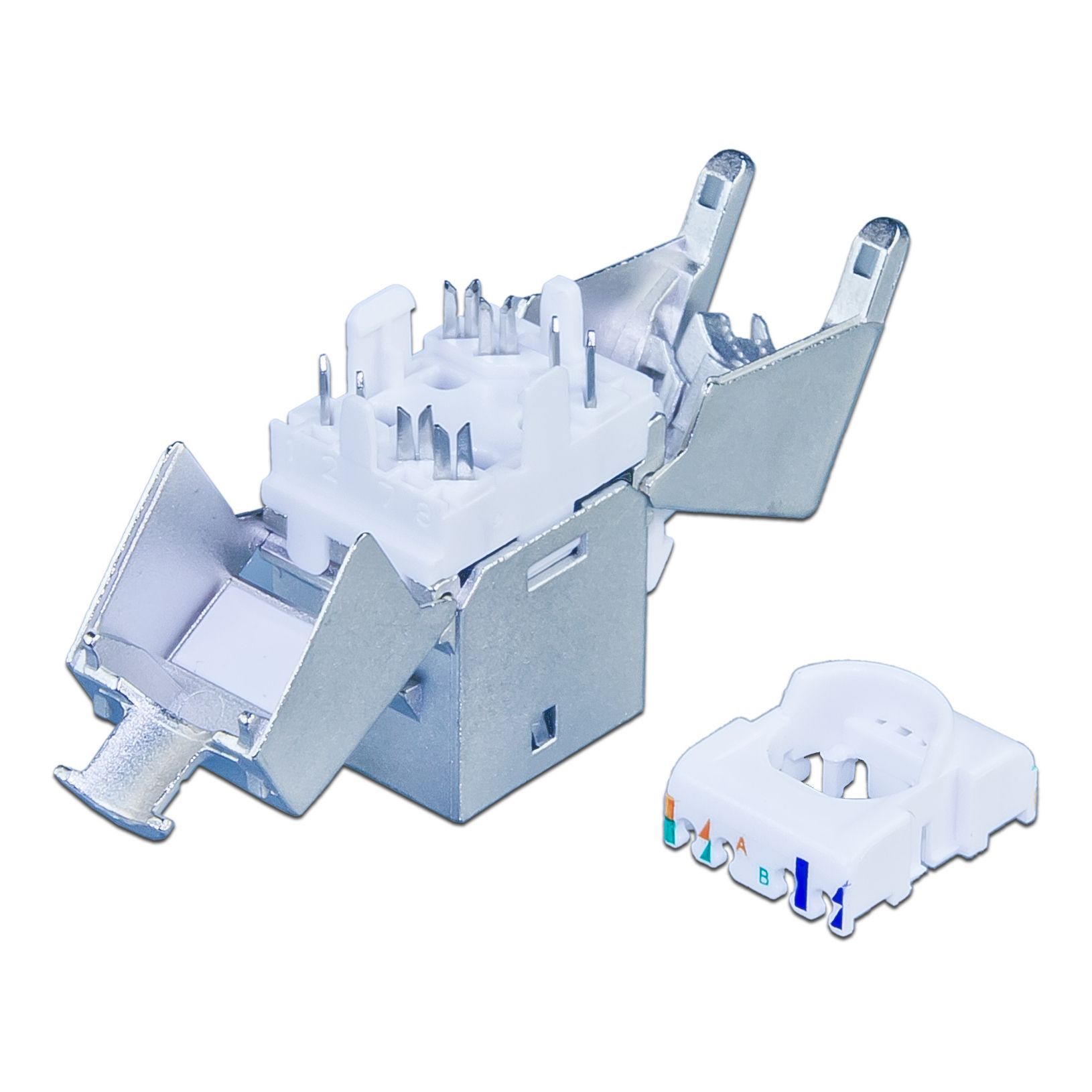

With this RJ45 keystone module, the user receives an RJ45 module of the highest quality. It can be assembled in about 1-2 minutes just using a side cutter. The freely accessible contact zone ensures perfect assembly quality and thus secure transmission performance. A 360° shielding is also guaranteed. The special contact geometry in connection with a 50 μm gold plating ensures 4PPoE according to IEEE 802.3bt under all circumstances. The housing material consists of nickel-plated die-cast zinc and therefore meets the highest environmental and mechanical requirements. In connection with the design-compatible outlets, it can be combined with different design programs from different current outlet manufacturer.
- Wiring: 4-pair AWG 23-22 according to T568A or T568B
- Cable diameter: continuously from 5 - 9.3 mm, cable feed straight
- Norms: Cat. 6A IEC 60603-51 and ISO/IEC 11801: 2002 + A1: 2008
- Channel and Permanent Link Class EA to ISO/IEC 11801: 2002 + A1: 2008, EN 50173-1
- PoE plus remote powering according to IEEE802.3 af/at IEC 60512-99-001
- Dimensions: 35.1 x 14.5 x 18.4 mm
- Compact socket design - switch program compatible
- Contacts: phosphor bronze with 50μm gold plating
With this RJ45 keystone module, the user receives an RJ45 module of the highest quality. It can be assembled in about 1-2 minutes just using a side cutter. The freely accessible contact zone ensures perfect assembly quality and thus secure transmission performance. A 360° shielding is also guaranteed. The special contact geometry in connection with a 50 μm gold plating ensures 4PPoE according to IEEE 802.3bt under all circumstances. The housing material consists of nickel-plated die-cast zinc and therefore meets the highest environmental and mechanical requirements. In connection with the design-compatible outlets, it can be combined with different design programs from different current outlet manufacturer.
