CALYX - 5G Redcap, 5G & 4G Versions for Raspberry Pi 4/5, GPIO & PCM Control

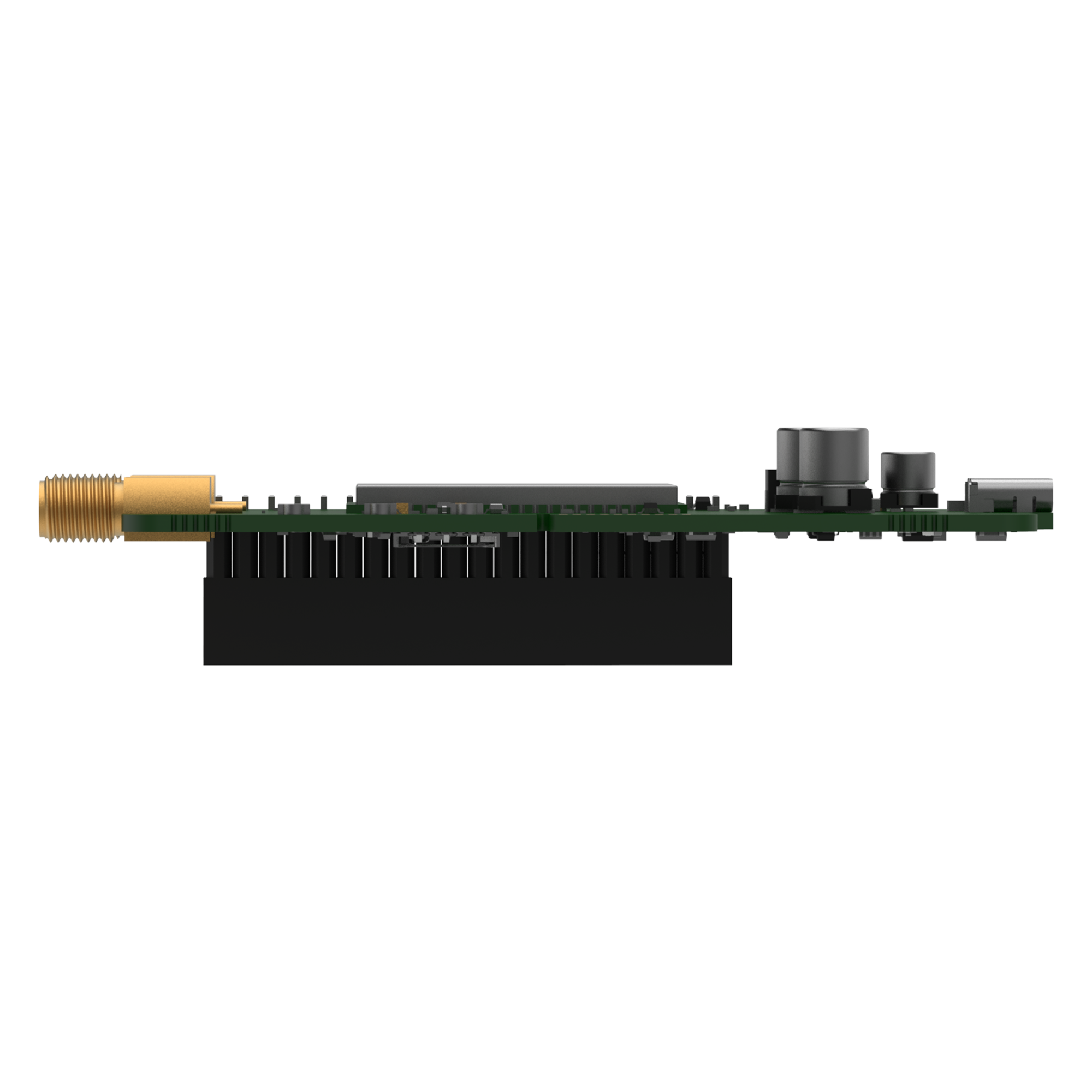

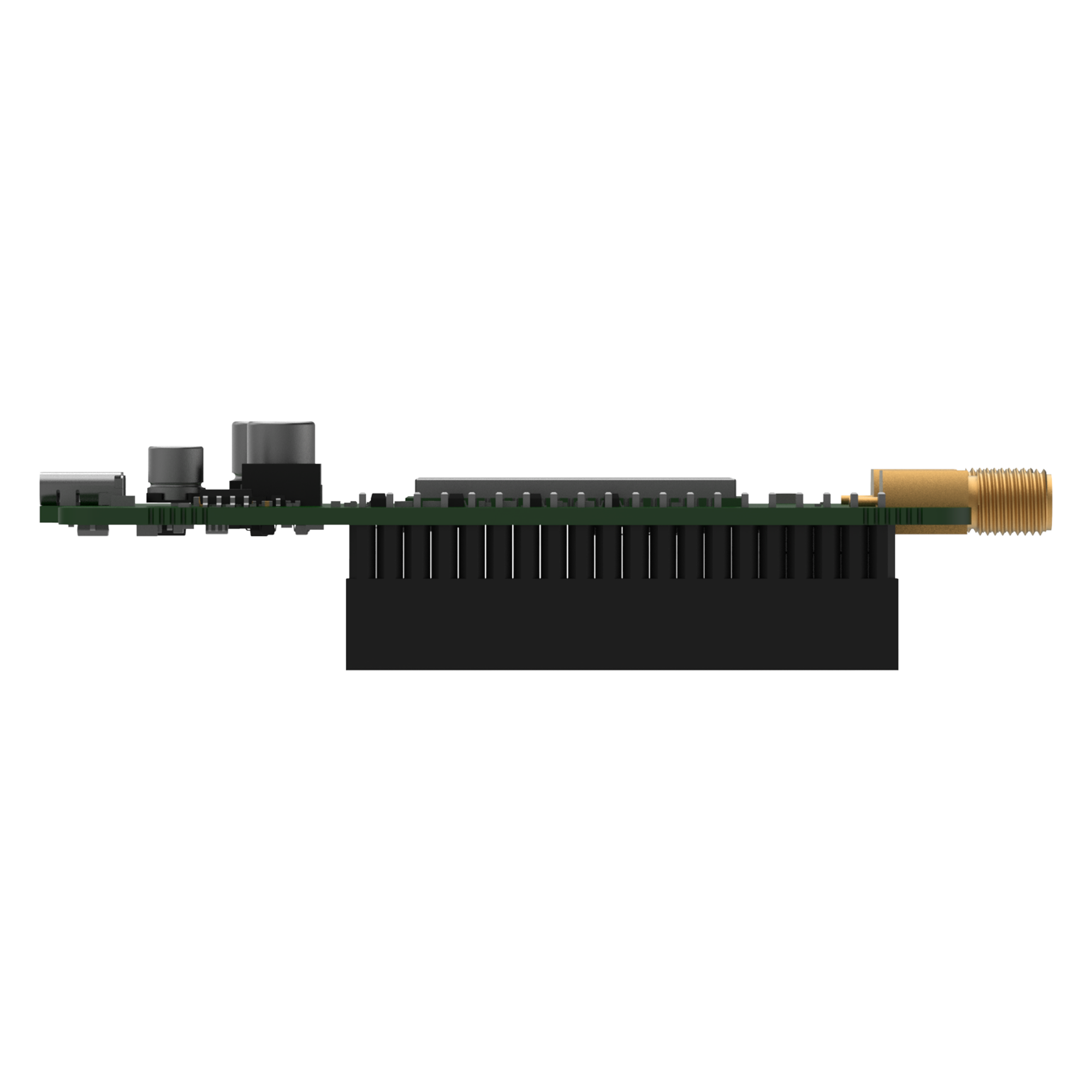

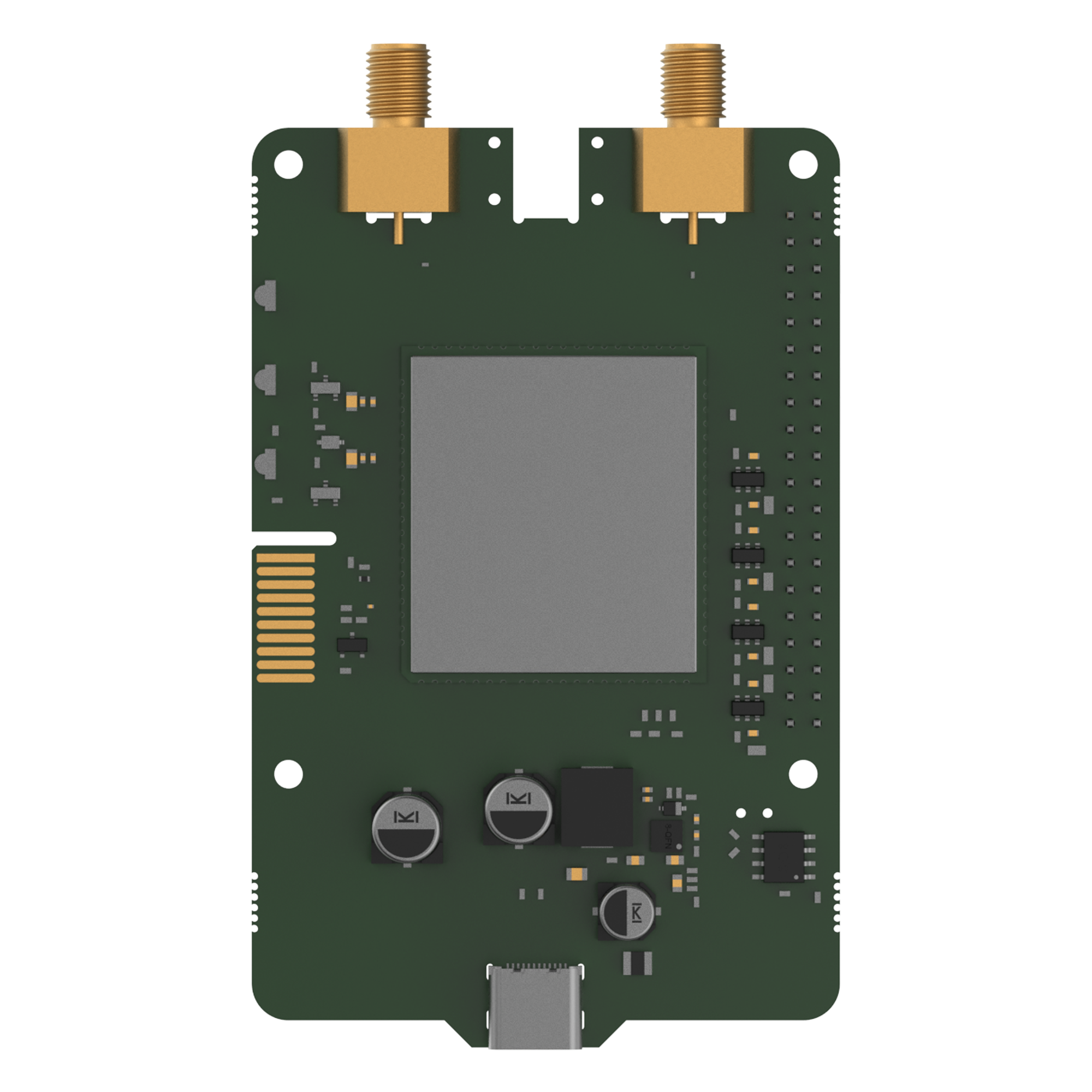

The Teltonika CALYX is an industrial-grade Embedded Cellular Raspberry Pi HAT+ designed for direct installation on a Raspberry Pi 4 or Raspberry Pi 5. Its integrated form factor reduces installation space and eliminates the need for loose USB cellular dongles or improvised external modem assemblies. Cellular data connectivity is provided through a USB Type-C interface, while the 40-pin GPIO header supports power delivery and direct hardware-level modem control.
CALYX is available in three versions. The CALYX 4G / EBD021 variant supports LTE Cat 4 with download speeds of up to 75 Mbps. CALYX 5G RedCap / EBD070 provides up to 223 Mbps over 5G Sub-6 GHz SA, while CALYX 5G / EBD050 supports download speeds of up to 3.4 Gbps for bandwidth-intensive embedded applications. Available cellular bands and achievable data rates depend on the selected variant, regional order code and mobile network.
The GPIO interface allows the host system to power on, wake or reset the modem, enabling automated recovery mechanisms in remotely deployed systems. An integrated digital PCM interface also supports clean, low-latency audio transfer between the modem and Raspberry Pi. The anodised aluminium enclosure, low 57 g weight and −40 °C to +75 °C operating temperature range make CALYX suitable for professional embedded and industrial deployments.
- Raspberry Pi HAT+ for Raspberry Pi 4 and 5
- Available with 4G Cat 4, 5G RedCap or 5G
GPIO modem control for power, wake and reset functions - Digital PCM audio interface via the 40-pin GPIO header
- Cellular data connectivity through a compact USB Type-C interface
- Nano-SIM slot with GPIO-controlled SIM/eSIM selection
- Anodised aluminium enclosure weighing only 57 g
- Extended operating temperature from −40 °C to +75 °C
- Two or four SMA cellular connectors, depending on variant
The Teltonika CALYX is designed to add reliable cellular connectivity to Raspberry Pi-based embedded systems. Typical applications include industrial edge computing and Edge AI, predictive maintenance, telemetry, distributed monitoring systems, digital signage, self-service kiosks and connected control equipment. It is particularly suitable for installations where wired Ethernet is unavailable or Wi-Fi coverage is unreliable. System integrators, developers and OEM manufacturers can select 4G Cat 4, 5G RedCap or full 5G according to the required bandwidth, latency and project cost.
The Teltonika CALYX is an industrial-grade Embedded Cellular Raspberry Pi HAT+ designed for direct installation on a Raspberry Pi 4 or Raspberry Pi 5. Its integrated form factor reduces installation space and eliminates the need for loose USB cellular dongles or improvised external modem assemblies. Cellular data connectivity is provided through a USB Type-C interface, while the 40-pin GPIO header supports power delivery and direct hardware-level modem control.
CALYX is available in three versions. The CALYX 4G / EBD021 variant supports LTE Cat 4 with download speeds of up to 75 Mbps. CALYX 5G RedCap / EBD070 provides up to 223 Mbps over 5G Sub-6 GHz SA, while CALYX 5G / EBD050 supports download speeds of up to 3.4 Gbps for bandwidth-intensive embedded applications. Available cellular bands and achievable data rates depend on the selected variant, regional order code and mobile network.
The GPIO interface allows the host system to power on, wake or reset the modem, enabling automated recovery mechanisms in remotely deployed systems. An integrated digital PCM interface also supports clean, low-latency audio transfer between the modem and Raspberry Pi. The anodised aluminium enclosure, low 57 g weight and −40 °C to +75 °C operating temperature range make CALYX suitable for professional embedded and industrial deployments.
