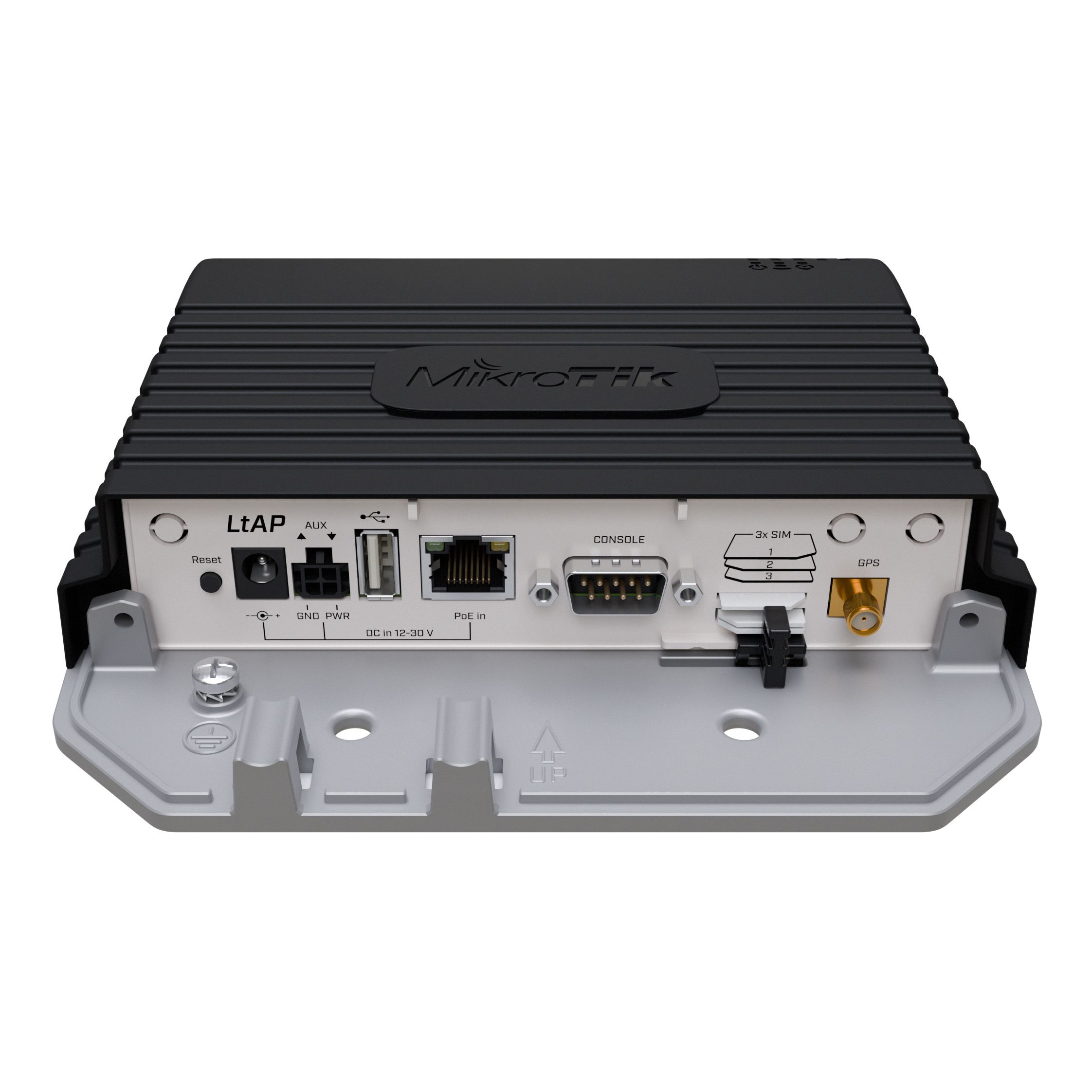

Access Point, weatherproof, LTE6 Antenna, 3x SIM Slots, GPS, w/ LTE7-Module

A compact, heavy-duty LTE access point with built-in GPS – now upgraded with a faster, smarter, more affordable LTE Category 7 modem.
Add extensive networking and tracking options to your vehicle without breaking the bank!

The iconic heavy-duty automotive router – now twice as fast!

The new LtAP LTE7 kit takes everything people love about LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and miniPCI-e expansion options… and adds our latest LTE Category 7 modem for a huge real-world improvement!
Higher speed, stability and throughput is not the only benefit of the new modem. It comes with expanded frequency support including Band 32 for better performance in congested areas and during roaming.
Same trusted LtAP form factor – no changes to installation or configuration. Just faster uploads, stronger rural performance, and a noticeably better price.

Perfect for logistics, transport & tracking

Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.
Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attentiongrabbing than traditional routers.

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Stk
Available stock:
Article number: LTAP LTE7 R11E KIT
Manufacturer number: LtAP-2HnD&R11e-LTE7
Manufacturer page: MIKROTIK
  • LtAP LTE7 Kit - LtAP-2HnD&R11e-LTE7
  • Outdoor Home Access Point
  • 1x 10/100/1000 Ethernet ports
  • 3x SIM slots
  • integrated LTE antenna
  • integrated GPS antenna
  • 2x mini PCIe slot (1x loaded by R11e-LTE7)
  • weatherproof
  • CPU frequency 880 MHz
  • Memory (RAM) 128 MB
  • RouterOS

A compact, heavy-duty LTE access point with built-in GPS – now upgraded with a faster, smarter, more affordable LTE Category 7 modem.
Add extensive networking and tracking options to your vehicle without breaking the bank!

The iconic heavy-duty automotive router – now twice as fast!

The new LtAP LTE7 kit takes everything people love about LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and miniPCI-e expansion options… and adds our latest LTE Category 7 modem for a huge real-world improvement!
Higher speed, stability and throughput is not the only benefit of the new modem. It comes with expanded frequency support including Band 32 for better performance in congested areas and during roaming.
Same trusted LtAP form factor – no changes to installation or configuration. Just faster uploads, stronger rural performance, and a noticeably better price.

Perfect for logistics, transport & tracking

Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.
Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attentiongrabbing than traditional routers.

Technical properties
1 GBit Ports:
1
3G Bands:
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
3G Category:
R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
Antenna Gain dBi:
2.5 dBi
CPU:
MT7621AT
CPU Architecture:
MMIPS
CPU nominal frequency:
880 MHz
Design:
Various
Dimensions:
170 x 162 x 40 mm
Frequency:
2.4 GHz
LTE Category:
7 (DL: 300 Mbps; UL: 100 Mbps)
LTE FDD Bands:
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 ...
LTE TDD Bands:
38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
Licence Level:
4
MIMO:
2x2 / 1x1
MiniPCI-e Slots:
2
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +70°C
Operating System:
RouterOS v7
PoE Standard:
IEEE 802.3 Passive PoE
PoE Support:
Passive-PoE
Power Consumption:
24.0 W
Power Jack:
3 (DC Jack, PoE, Automotive)
SIM Slots:
3x miniSIM
Size of RAM:
128 MB DDR3
Storage Type internal:
16 MB Flash
Supported Input Voltage:
12 - 30V DC, passive PoE
USB Slot Type:
1x USB A
USB Standard:
USB 2.0
Voltage Monitor:
Yes
WAN Connection Type:
Cellular Radio
WLAN:
Yes
WLAN Chipset:
AR9382
WLAN Standard:
IEEE 802.11 b/g/n
