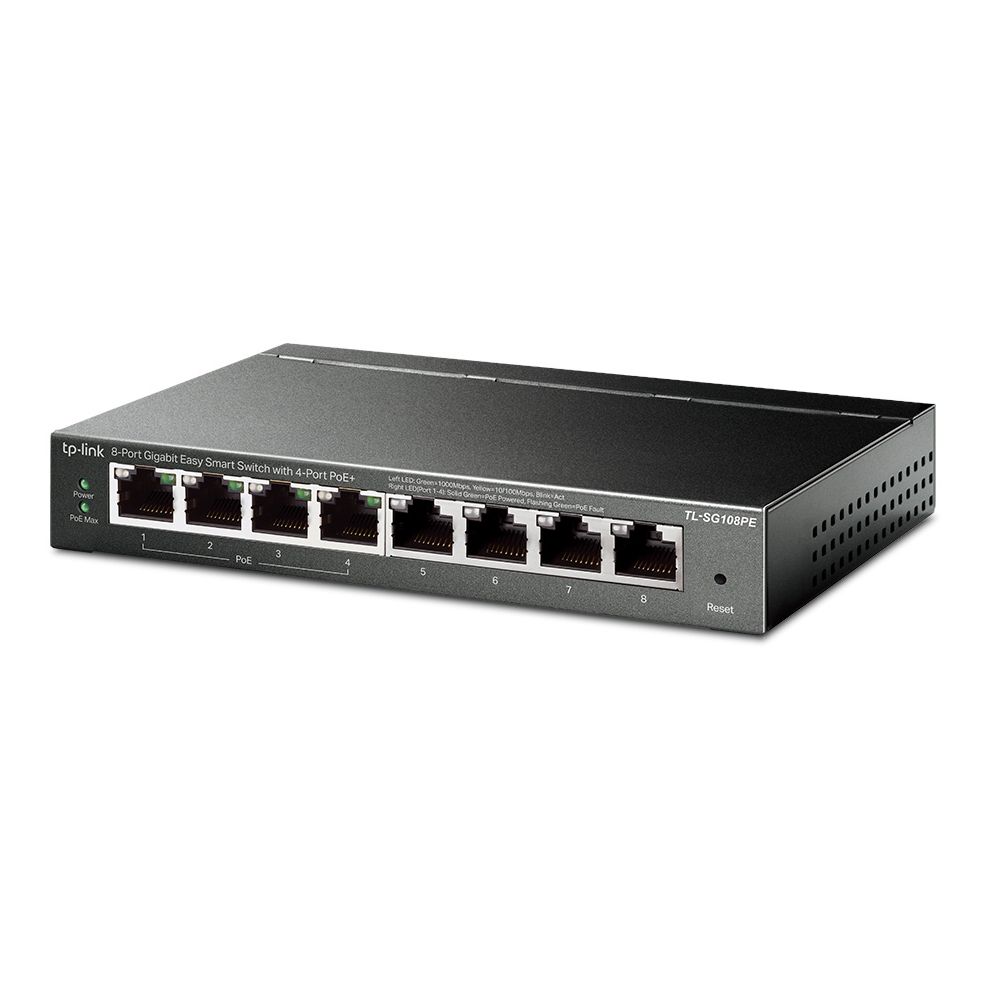

8-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Eight 10/100/1000Mbps RJ45 ports

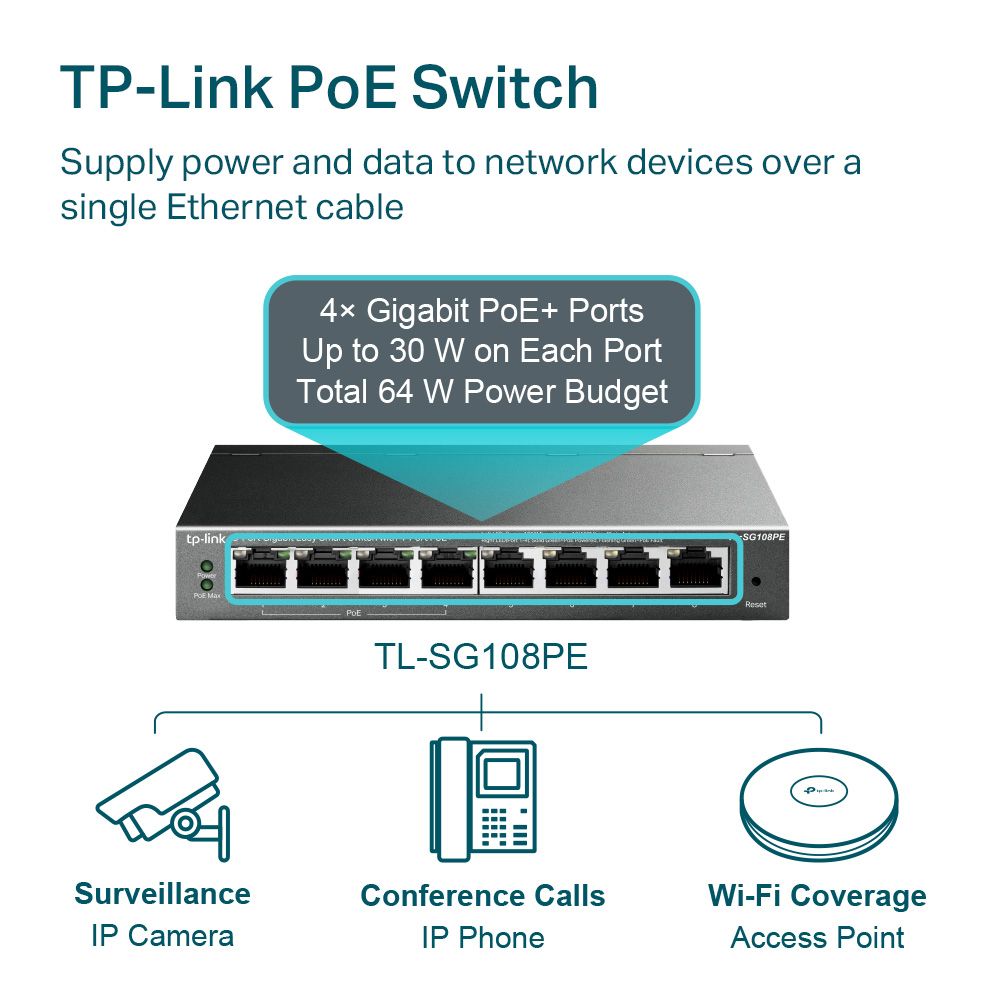

- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 64 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Available stock:
Article number:
TL-SG108PE
Manufacturer number:
TL-SG108PE(EU)
Manufacturer page:
TP-LINK
EAN:
6935364094744
- 4x Gigabit PoE+ Ports
- 4x Gigabit Non-PoE Ports
- 802.3af/at, 64 W PoE Power
- Desktop Steel Case
- Features:
- PoE Auto Recovery, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play
- Eight 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 64 W for all PoE ports*

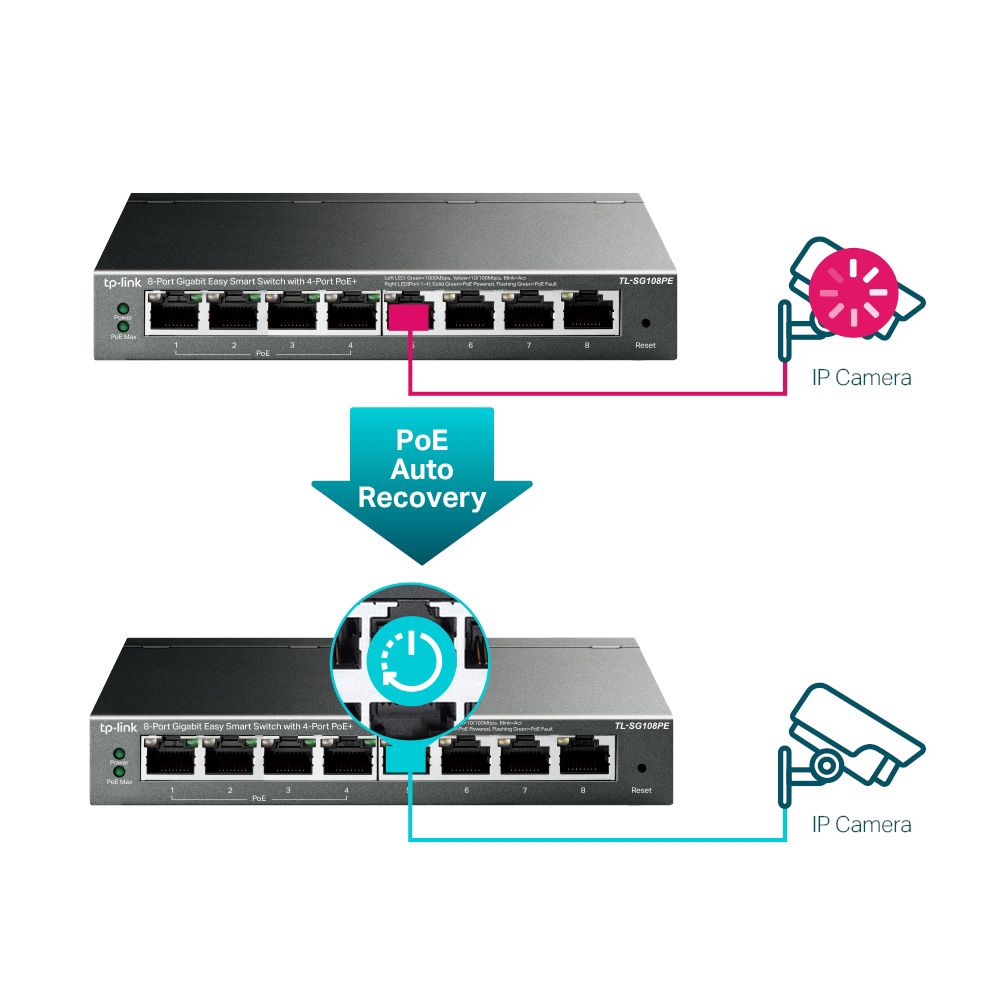

- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

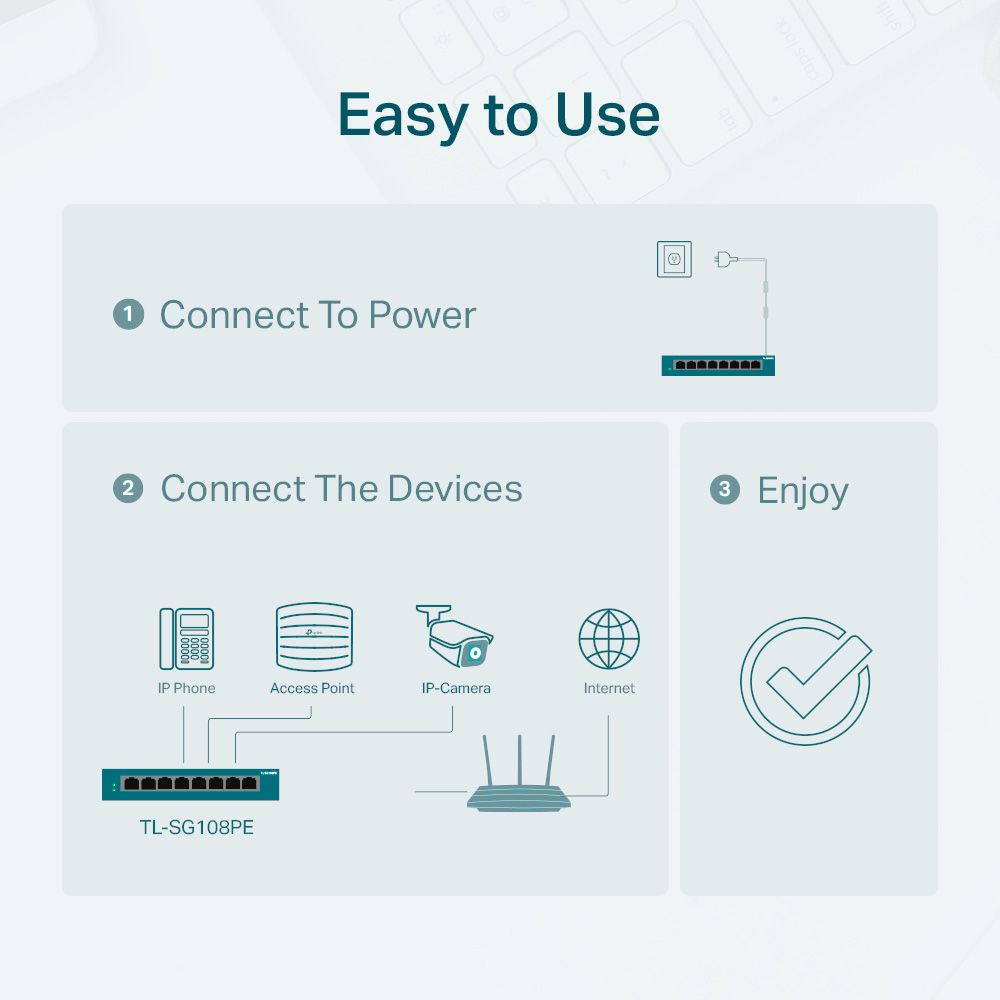

- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Technical properties
1 GBit Ports:
4
1 GBit Ports, PoE:
4
Dimensions:
158 x 101 x 25 mm
Fan:
fanless
Forwarding Rate:
11.9 Mpps
Jumbo Frame:
15 KB
Layer 2 Features:
IGMP Snooping / Link Aggregation / Port Mirroring / Cable Test / Loop Prevention
MAC Address Table:
4 K
Management:
Easy Smart Conguration Utility / Web-based Graphic User Interface (GUI)
Network Ports:
8-Port
Operating Conditions:
0°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
Packet Buffer:
1.5 Mbit
PoE Power Budget:
55 W
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption:
5.15 W / 65.18 W
Product Family:
POE+ Managed/Smart/ Easy Smart Switch
QoS:
Support Port-based/802.1p/DSCP priority / Support 4 priority queues / Rate Limit / Storm Control
Switch Capacity:
16 Gbps
VLAN:
Supports up to 32 VLANs (out of 4K VLAN IDs) / MTU/Port/802.1Q VLAN
max. Power consumption per Port, PoE:
15.4 W
