8-Port Gigabit Desktop Switch with 4-Port PoE
- 8x 10/100/1000 Mbps RJ45 ports.
- 4x PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.

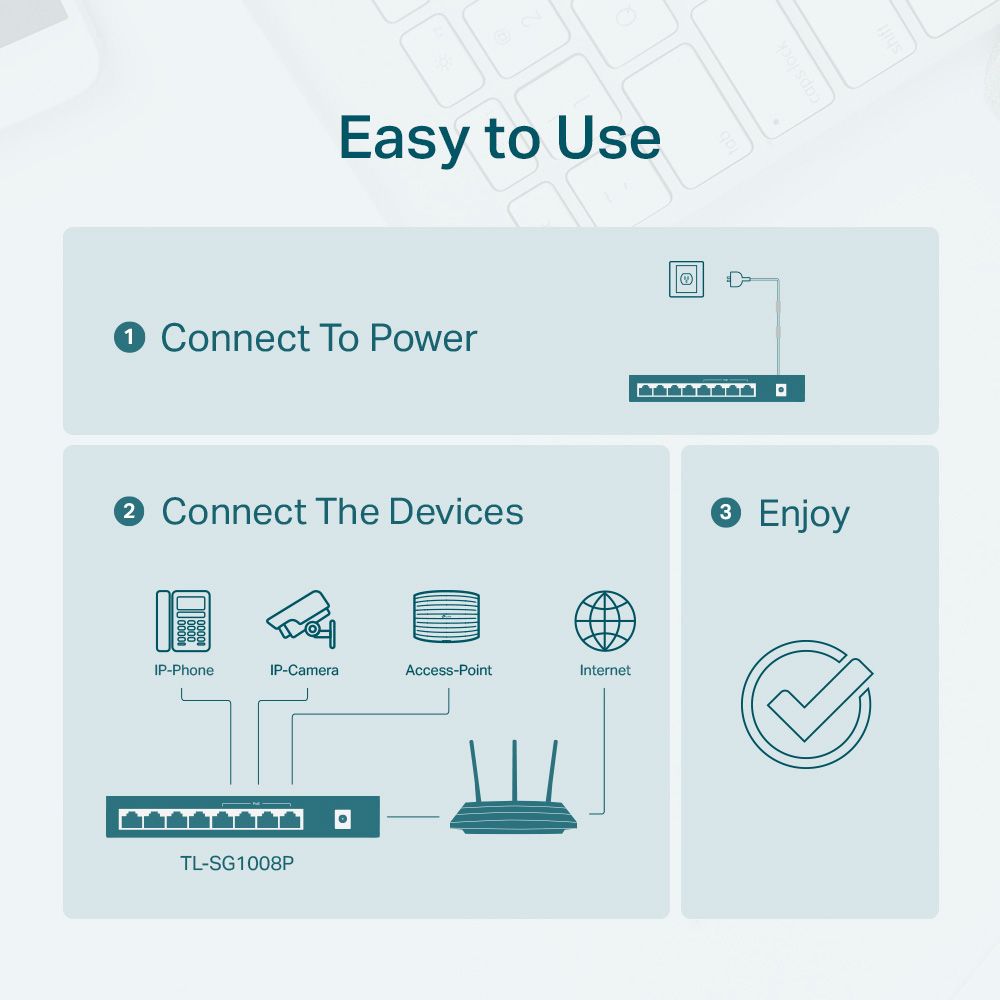

- Plug and Play, no configuration and installation required.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE power up to 30 W for each PoE port.

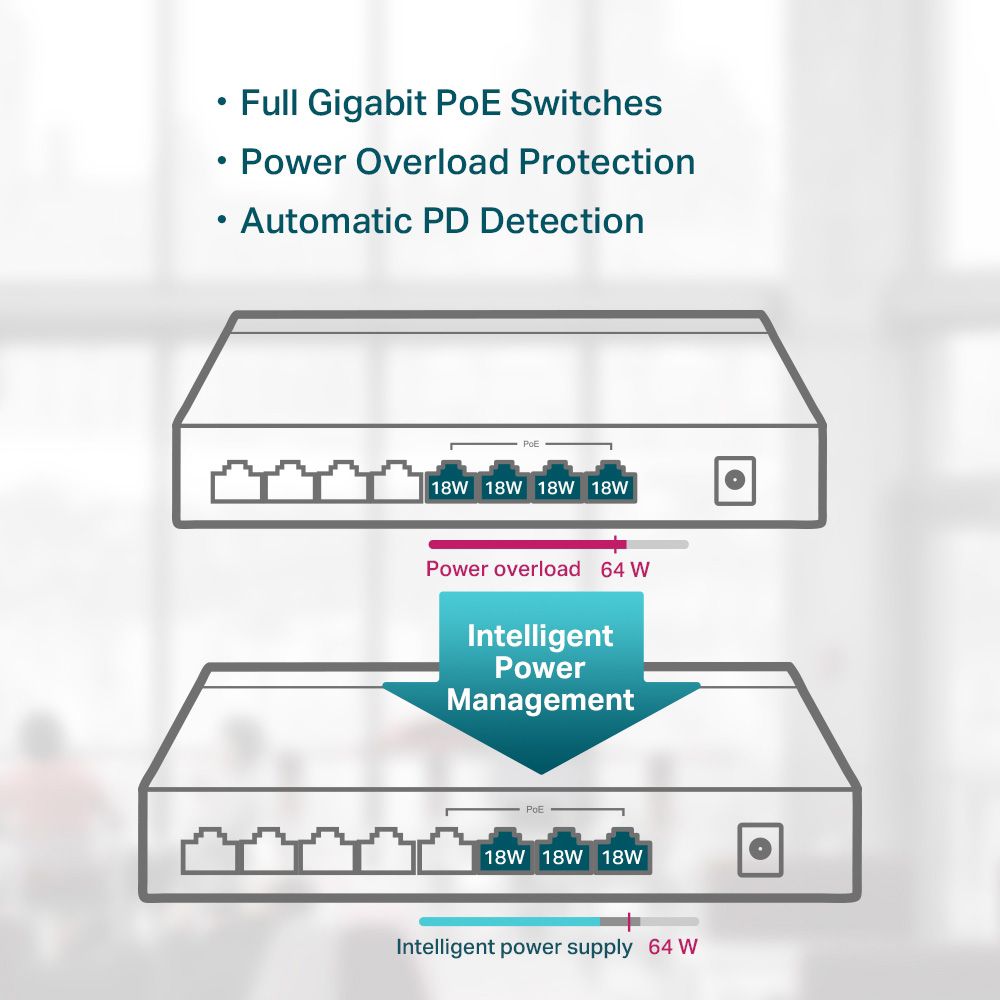

- Supports PoE power up to 64 W for all PoE ports*.
Available stock:
Article number:
TL-SG1008P
Manufacturer number:
TL-SG1008P(EU)
Manufacturer page:
TP-LINK
EAN:
6935364021160
- 4x Gigabit PoE Ports
- 4x Gigabit Non-PoE Ports
- 802.3af, 55 W PoE Power
- Desktop Steel Case
- Plug and Play
- 8x 10/100/1000 Mbps RJ45 ports.
- 4x PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Plug and Play, no configuration and installation required.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE power up to 30 W for each PoE port.
- Supports PoE power up to 64 W for all PoE ports*.
Technical properties
1 GBit Ports:
4
1 GBit Ports, PoE:
4
Certificate:
CE, FCC
Dimensions:
171 x 98 x 27 mm
Fan:
fanless
Flow Control:
Yes
MAC Address Table:
4 K
Network Ports:
8-Port
Operating Conditions:
0°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Power Budget:
55 W
PoE Standard:
IEEE 802.3 af
PoE Support:
Yes
Power Consumption:
5.49 W / 65.24 W
Product Family:
PoE Switch
Switch Architecture:
Store-and-Forward
Switch Capacity:
16 Gbps
