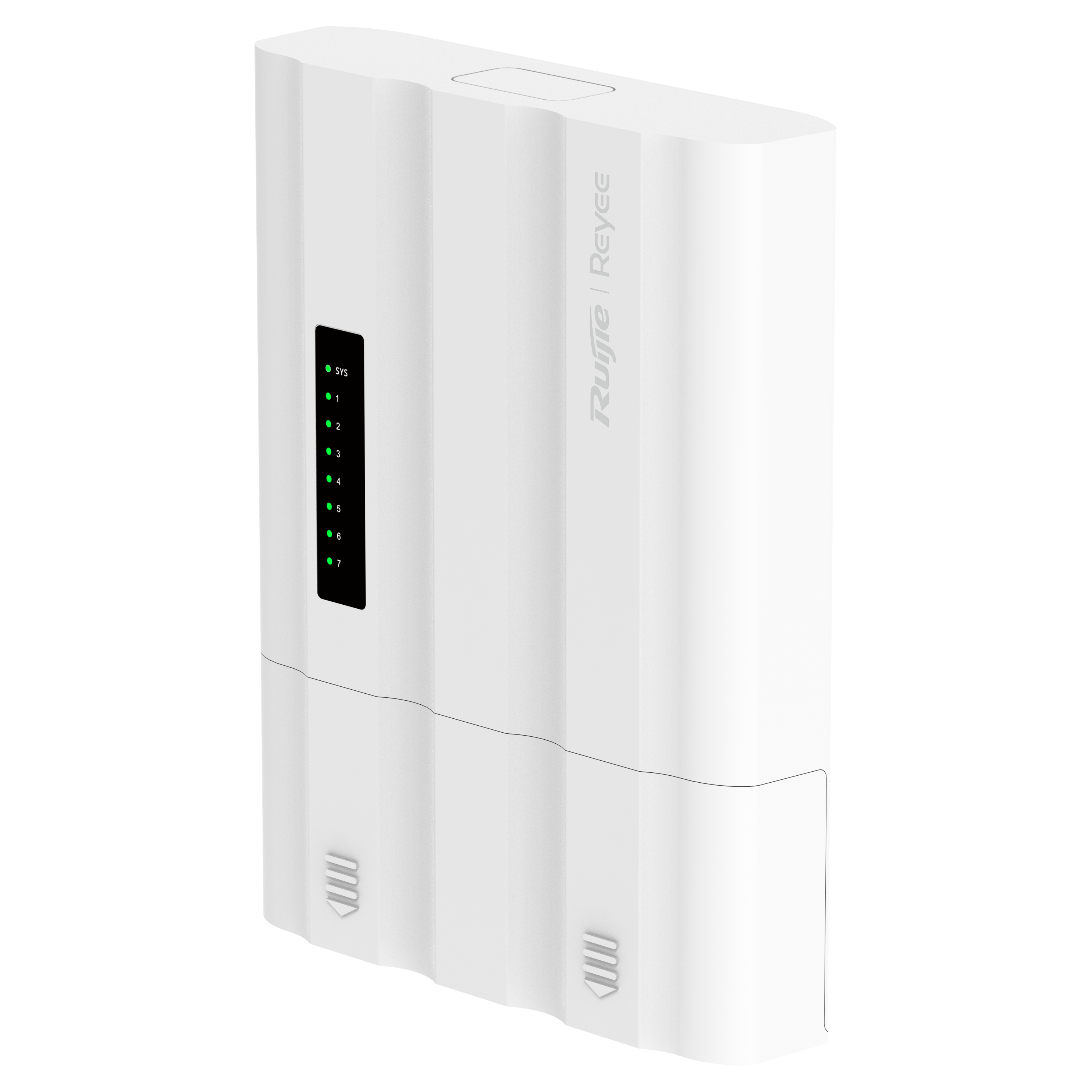

7-Port Gigabit Outdoor Switch with PoE/DC Input
The Ruijie Reyee RG-ES207GS-Pi-OD is a compact 7-port Gigabit outdoor switch with PoE/DC input for professional CCTV and outdoor networking applications. It provides five Gigabit RJ45 ports and two 1GE SFP ports. Four RJ45 ports supply PoE/PoE+ to connected end devices, while one dedicated PoE-in port allows the switch to be powered via IEEE 802.3af, 802.3at or 802.3bt. Alternatively, the device can be powered by 12 V DC.
The available PoE budget depends on the input power source: with 90 W PoE++ input, up to 60 W PoE budget is available; with 60 W PoE++, up to 40 W; with 30 W PoE+, up to 19 W; and with 15.4 W PoE, up to 6 W. For reliable outdoor deployment, the switch offers IP65 protection against dust and jet water, ±8 kV PoE surge protection, PoE watchdog, port isolation and an operating temperature range from -30 to +65 °C. With 14 Gbps switching capacity and a 10.41 Mpps forwarding rate, the RG-ES207GS-Pi-OD is a robust solution for weatherproof decentralised network distribution.
- 7-port Gigabit outdoor switch with PoE/DC input
- 5x 10/100/1000BASE-T RJ45 ports
- 2x 1GE SFP uplink ports
- 4x PoE/PoE+ output ports
- 1x PoE-in port with IEEE 802.3af/at/bt
- 12 V DC or PoE input supported
- PoE budget up to 60 W with PoE++ input
- IP65-rated against dust and jet water
- ±8 kV PoE surge protection
- Operating temperature from -30 to +65 °C
The Ruijie Reyee RG-ES207GS-Pi-OD is designed for decentralised outdoor networking and video surveillance installations where a weatherproof switch is required directly in the field. Typical applications include CCTV systems, parks, access roads, traffic areas, outdoor premises and distributed camera locations. With PoE or 12 V DC input, four PoE/PoE+ output ports and two SFP uplink ports, the switch is particularly suitable for IP cameras, outdoor distribution points and fiber uplink connections. ERPS support via the SFP ports also enables redundant ring topologies in professional infrastructure projects.
The Ruijie Reyee RG-ES207GS-Pi-OD is a compact 7-port Gigabit outdoor switch with PoE/DC input for professional CCTV and outdoor networking applications. It provides five Gigabit RJ45 ports and two 1GE SFP ports. Four RJ45 ports supply PoE/PoE+ to connected end devices, while one dedicated PoE-in port allows the switch to be powered via IEEE 802.3af, 802.3at or 802.3bt. Alternatively, the device can be powered by 12 V DC.
The available PoE budget depends on the input power source: with 90 W PoE++ input, up to 60 W PoE budget is available; with 60 W PoE++, up to 40 W; with 30 W PoE+, up to 19 W; and with 15.4 W PoE, up to 6 W. For reliable outdoor deployment, the switch offers IP65 protection against dust and jet water, ±8 kV PoE surge protection, PoE watchdog, port isolation and an operating temperature range from -30 to +65 °C. With 14 Gbps switching capacity and a 10.41 Mpps forwarding rate, the RG-ES207GS-Pi-OD is a robust solution for weatherproof decentralised network distribution.
