5-Port Gigabit Desktop Switch with 4-Port PoE
- 5x 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports

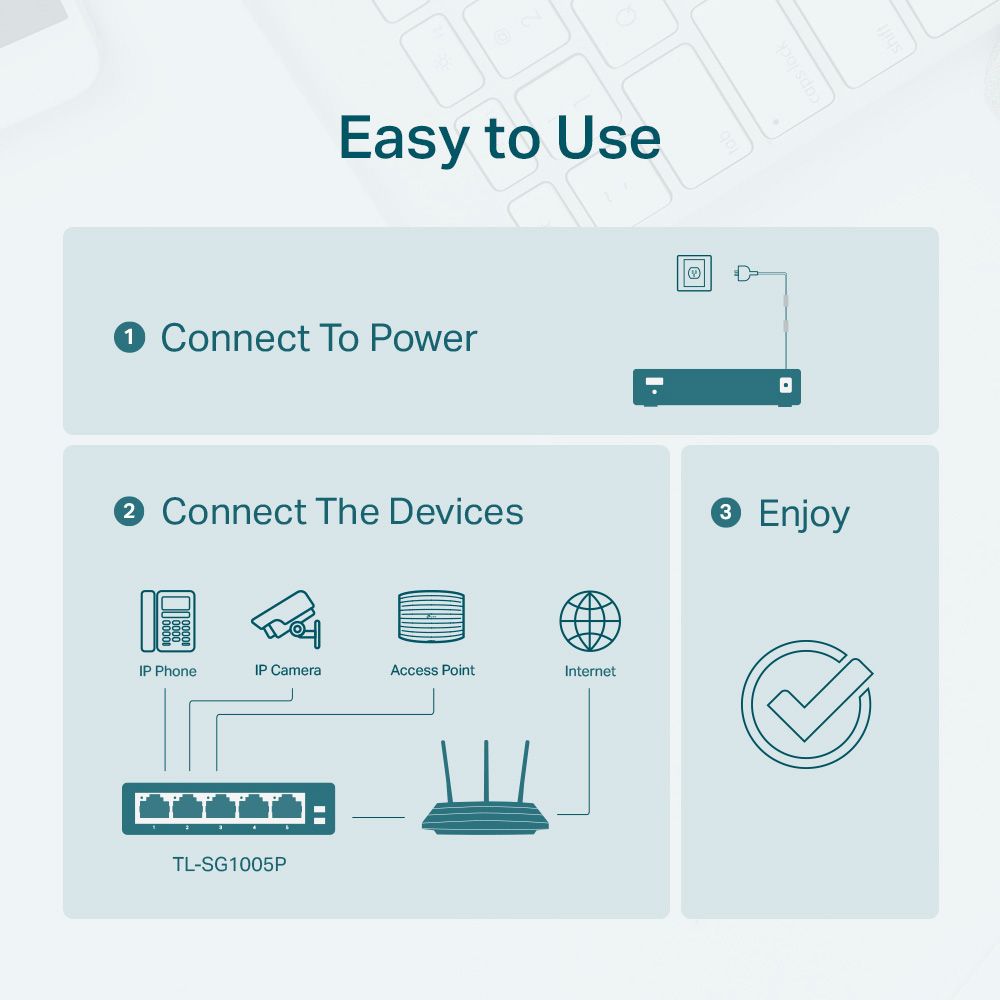

- Requires no configuration and installation
Available stock:
Article number:
TL-SG1005P
Manufacturer number:
TL-SG1005P(EU)
Manufacturer page:
TP-LINK
EAN:
6935364083212
- 4x Gigabit PoE Ports
- 1x Gigabit Non-PoE Port
- 802.3af, 65W PoE Power
- Desktop Steel Case
- Plug and Play
- 5x 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Requires no configuration and installation
Technical properties
1 GBit Ports:
1
1 GBit Ports, PoE:
4
Certificate:
FCC, CE, RoHS
Dimensions:
99.8 x 98 x 25 mm
Fan:
fanless
MAC Address Table:
2 K
Network Ports:
5-Port
Operating Conditions:
0°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Power Budget:
56 W
PoE Standard:
IEEE 802.3 af
PoE Support:
Yes
Power Consumption:
4.26 W / 63.31 W
Product Family:
PoE Switch
Switch Architecture:
Store-and-Forward
Switch Capacity:
10 Gbps
max. Power consumption per Port, PoE:
15.4 W
