5-Port Gigabit Desktop Switch with 4-Port PoE+
- 5x 10/100/1000 Mbps RJ45 ports

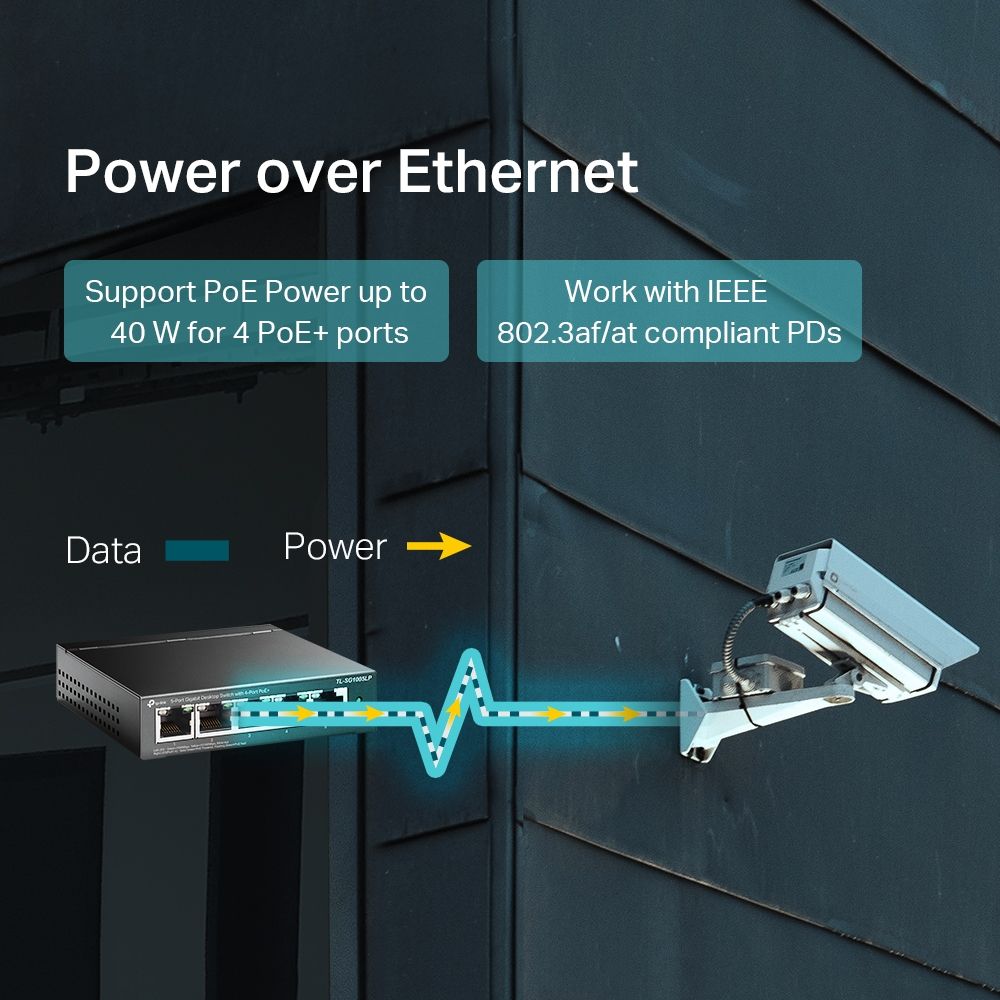

- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required
Available stock:
Article number:
TL-SG1005LP
Manufacturer number:
TL-SG1005LP(EU)
Manufacturer page:
TP-LINK
EAN:
6935364052720
- 4x Gigabit PoE+ Ports
- 1x Gigabit Non-PoE Port
- 802.3af/at, 40 W PoE Power
- Desktop Steel Case
- Plug and Play
- 5x 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required
Technical properties
1 GBit Ports:
1
1 GBit Ports, PoE:
4
Certificate:
FCC, CE, RoHS
Dimensions:
99.8 x 98 x 25 mm
Fan:
fanless
MAC Address Table:
2 K
Network Ports:
5-Port
Operating Conditions:
0°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Power Budget:
40 W
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption:
4.12 W / 47.5 W
Product Family:
PoE Switch
Switch Architecture:
Store-and-Forward
Switch Capacity:
10 Gbps
max. Power consumption per Port, PoE:
15.4 W
