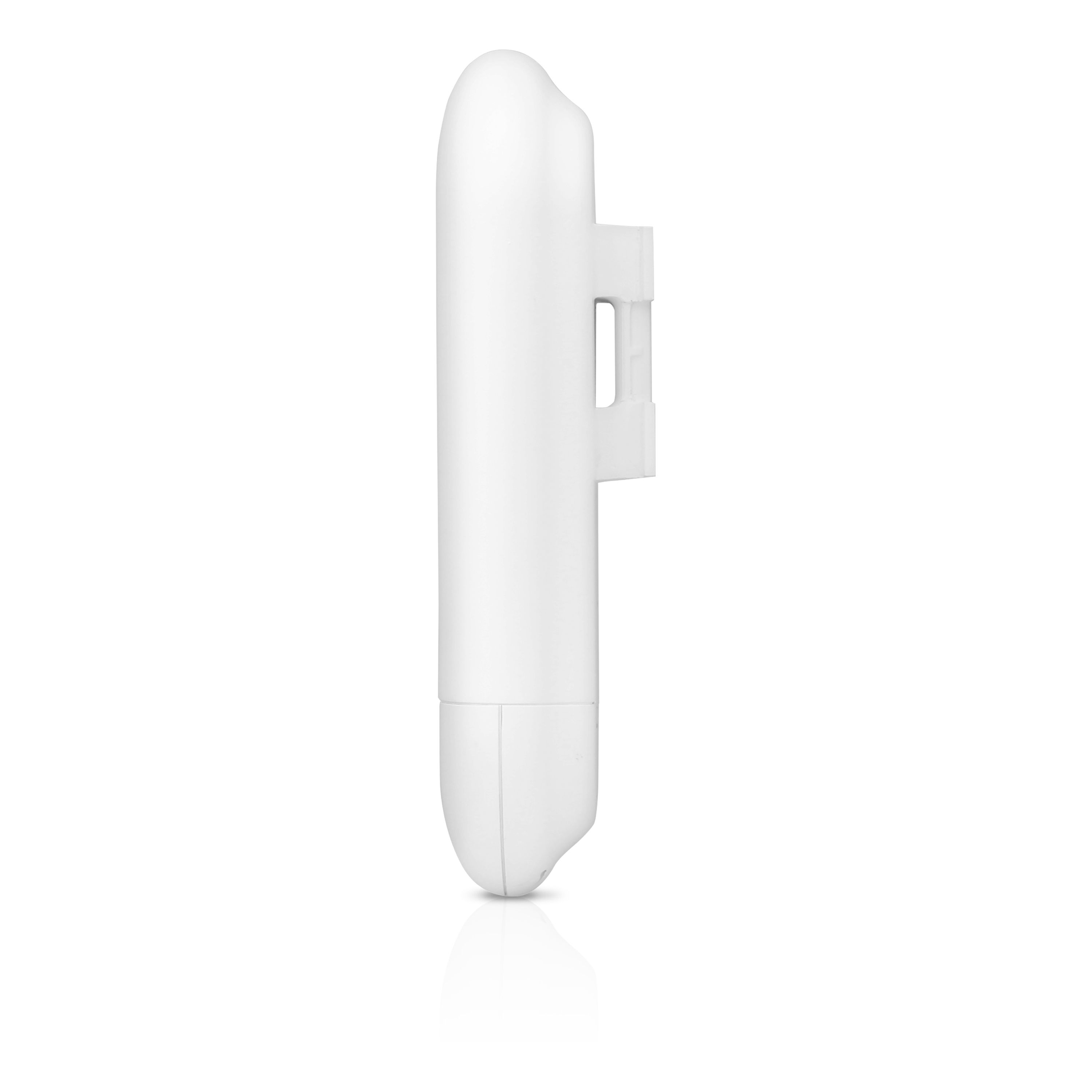

5 GHz airMAX® ac CPE, NanoStation AC Loco, 13dBi, passive PoE, NS-5ACL
- 5GHz AC, 13dBi
- 450+ Mbps
- up to 15+ km
- 24V passive PoE
- Outdoor
- Mobile App easy Setup
The Ubiquiti NanoStation 5AC is the ideal device for connecting networks, both indoors and outdoors, via Wi-Fi. The NanoStation 5AC combines high energy savings with a revolutionary transmission rate. It provides the ability to establish a point-to-point or a point-to-multi-point WLAN connection. The NanoStation 5AC is completely assembled, including a 16dBi antenna, in a UV-stable and weatherproof housing. With the easy-U-App, the NanoStation 5AC can be easily set up via tablet or smartphone.
Range:
The range of the NanoStation 5AC is estimated by Ubiquiti with up to 15+ km, whereby a visual connection of both components is absolutely necessary.
Power supply:
The NanoStation 5ACL can be operated with 24V passive PoE.
Applications:
- Connection of stand-alone buildings
- Networking of school buildings
- Perfect security in interaction with the Ubiquiti Aircam products
Available stock:
- 5GHz AC, 13dBi
- 450+ Mbps
- up to 15+ km
- 24V passive PoE
- Outdoor
- Mobile App easy Setup
The Ubiquiti NanoStation 5AC is the ideal device for connecting networks, both indoors and outdoors, via Wi-Fi. The NanoStation 5AC combines high energy savings with a revolutionary transmission rate. It provides the ability to establish a point-to-point or a point-to-multi-point WLAN connection. The NanoStation 5AC is completely assembled, including a 16dBi antenna, in a UV-stable and weatherproof housing. With the easy-U-App, the NanoStation 5AC can be easily set up via tablet or smartphone.
Range:
The range of the NanoStation 5AC is estimated by Ubiquiti with up to 15+ km, whereby a visual connection of both components is absolutely necessary.
Power supply:
The NanoStation 5ACL can be operated with 24V passive PoE.
Applications:
- Connection of stand-alone buildings
- Networking of school buildings
- Perfect security in interaction with the Ubiquiti Aircam products
Technical properties
1 GBit Ports:
1
Antenna Gain dBi:
13 dBi
CPU:
Atheros MIPS 74Kc, 560 MHz
Case material:
UV-Stabilized Polycarbonate
Certificate:
RoHS, CE, FCC, IC
Channel Bandwidth:
10/20/30/40/50/60/80 MHz
Cross-Pol. Isolation:
20 dB Minimum
Dimensions:
179 x 77.5 x 59.1 mm
ESD/EMP Protection:
±24kV Contact/Air
Elevation Beamwidth:
45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Field of application:
Outdoor
Frequency:
5 GHz
LEDs:
Power
Max. VSWR:
1.8:1
Mounting:
Pole Mount (Kit inlcuded)
Operating Conditions:
-40 - +70°C
Operating Humidity:
5 - 95%, non-condensing
Polarization:
Dual Linear
Power Consumption:
8.5W
Power Supply:
24V Passive-PoE
Power Supply:
24V, 0.5A Gigabit PoE Supply (NOT Included)
Shock & Vibrations:
ETSI300-019-1.4
Size of RAM:
64 MB DDR2
WLAN Standard:
airMax ac
Wireless Clients:
50+
