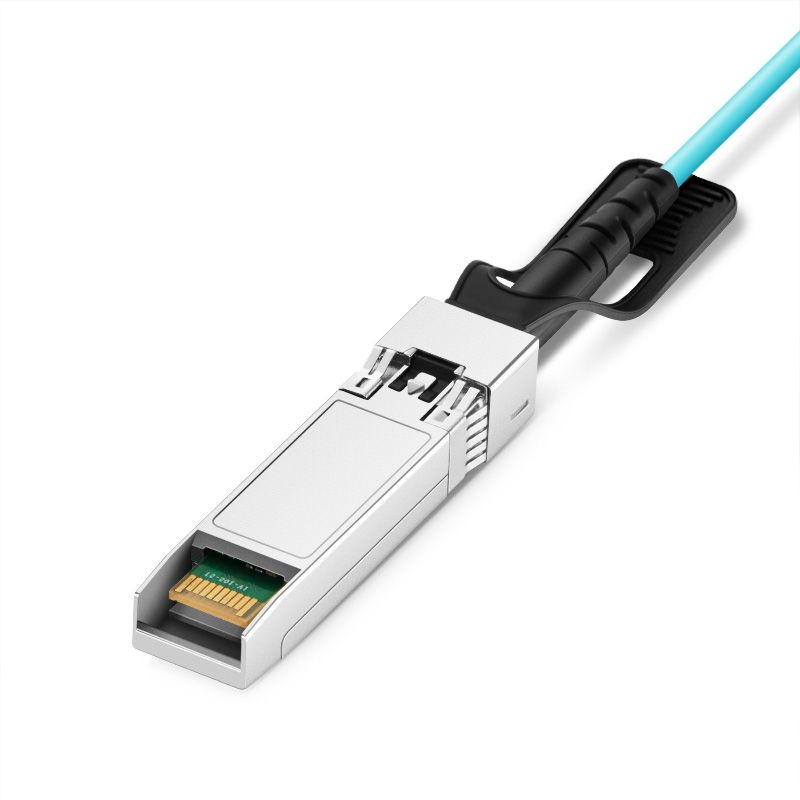

25GBit SFP28 Active Optical Cable (AOC), HP Aruba
The LWO-AOC-SFP28xx series constitutes a range of SFP28 active optical cables (AOCs) specifically engineered for 25 Gigabit Ethernet (25GbE) networking applications. These 25G SFP28 AOC cables serve as an optimal alternative to SFP28 direct-attach copper cables (DAC) and short-reach SFP28 transceivers, simultaneously delivering enhanced signal integrity and superior cost-performance ratios. Their design emphasizes high data transmission speeds, high port density, and minimal power requirements to address contemporary demands in data center infrastructure. Each AOC integrates SFP28 optical transceivers at each end coupled with OM3 multimode fiber cables available in lengths ranging from 1 to 100 meters. Additionally, they incorporate digital diagnostic capabilities accessible through a 2-wire serial interface as outlined in the SFF-8472 specification. All functional parameters maintain strict adherence to industry-standard protocols while optimizing operational efficiency across diverse deployment scenarios.
- Compliant with SFF-8472, SFF-8431, SFF-8432 and IEEE802.3by 25GBSASESR
- HP Aruba Coding
- Up to 25.78125Gb/s data rate
- Built-in digital diagnostic functions
- 850nm VCSEL transmitter and PIN receiver
- Single +3.3V power supply
- Maximum power dissipation 1W
- Operation case temperature: 0 to 70°C
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- RoHS compliant
- 25G Ethernet
- InfiniBand & Fiber channel
- Switches, Routers, and HBAs
- Enterprise & Data Center
- Networking & Storage
- High Performance Computing Clusters
The LWO-AOC-SFP28xx series constitutes a range of SFP28 active optical cables (AOCs) specifically engineered for 25 Gigabit Ethernet (25GbE) networking applications. These 25G SFP28 AOC cables serve as an optimal alternative to SFP28 direct-attach copper cables (DAC) and short-reach SFP28 transceivers, simultaneously delivering enhanced signal integrity and superior cost-performance ratios. Their design emphasizes high data transmission speeds, high port density, and minimal power requirements to address contemporary demands in data center infrastructure. Each AOC integrates SFP28 optical transceivers at each end coupled with OM3 multimode fiber cables available in lengths ranging from 1 to 100 meters. Additionally, they incorporate digital diagnostic capabilities accessible through a 2-wire serial interface as outlined in the SFF-8472 specification. All functional parameters maintain strict adherence to industry-standard protocols while optimizing operational efficiency across diverse deployment scenarios.
