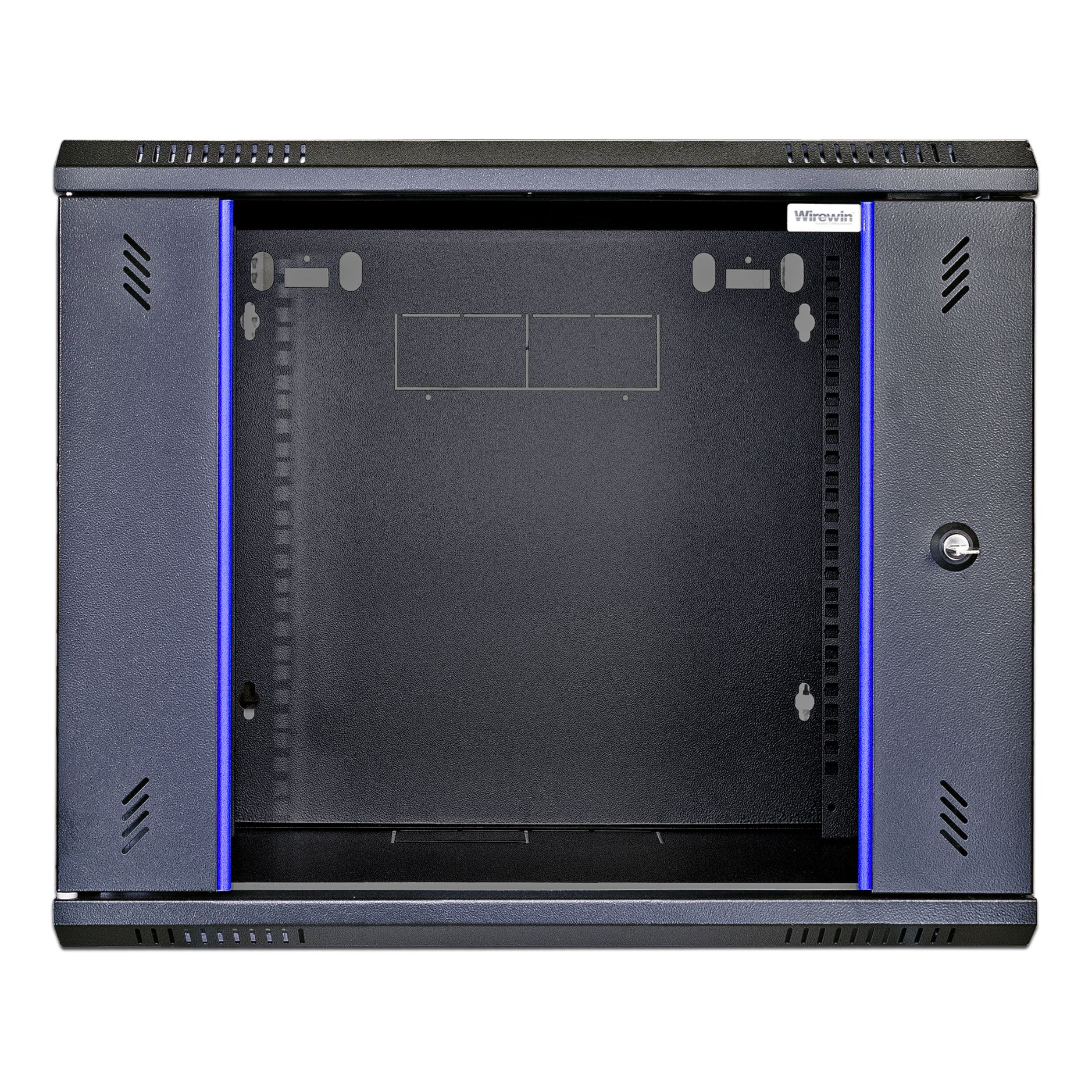

19" Wallmount Cabinet, one-piece, Pro 2nd Generation, Flat-Pack, 600x450mm,black
- Wirewin® 19 single section Wallmount Cabinet

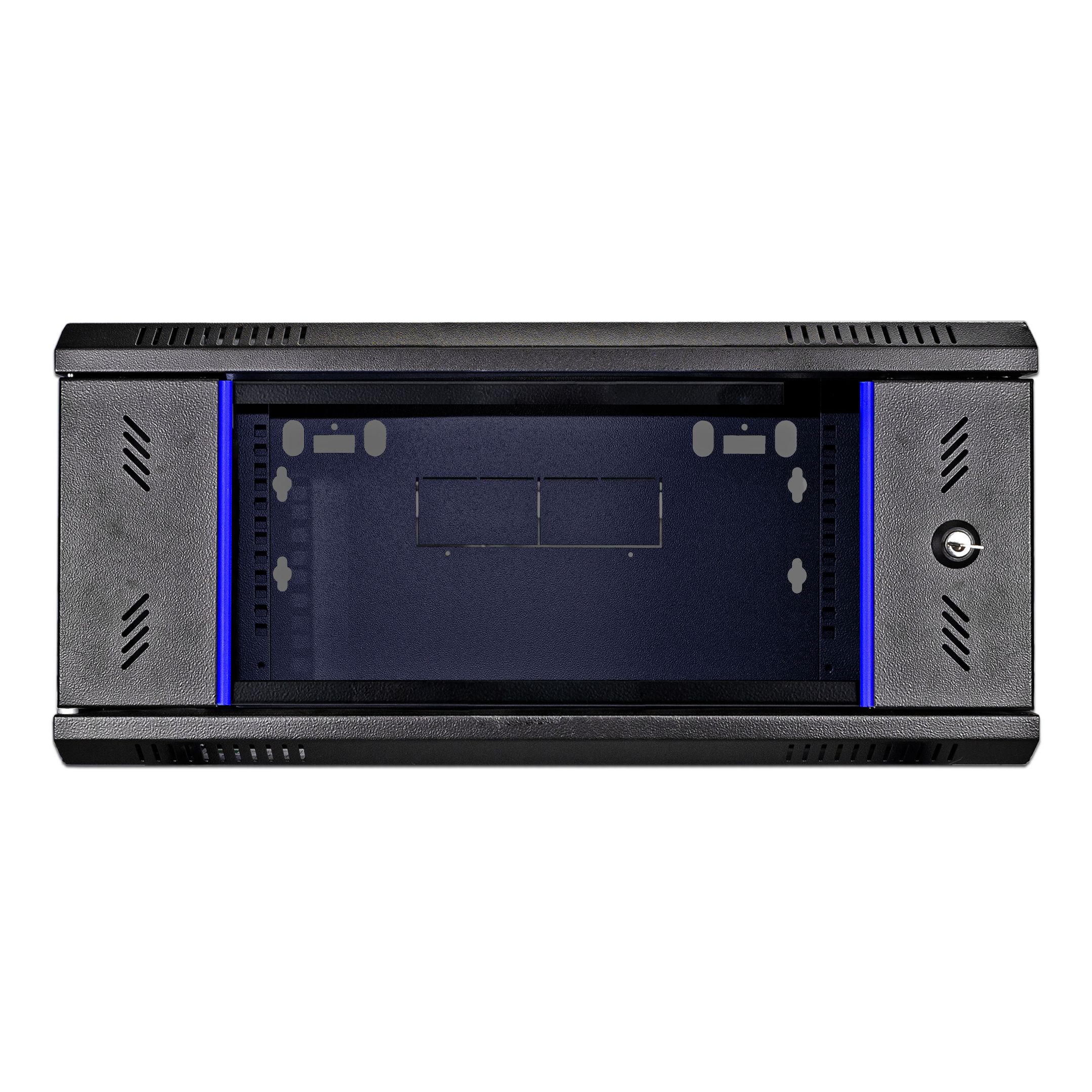

- Glasdoor, lockable

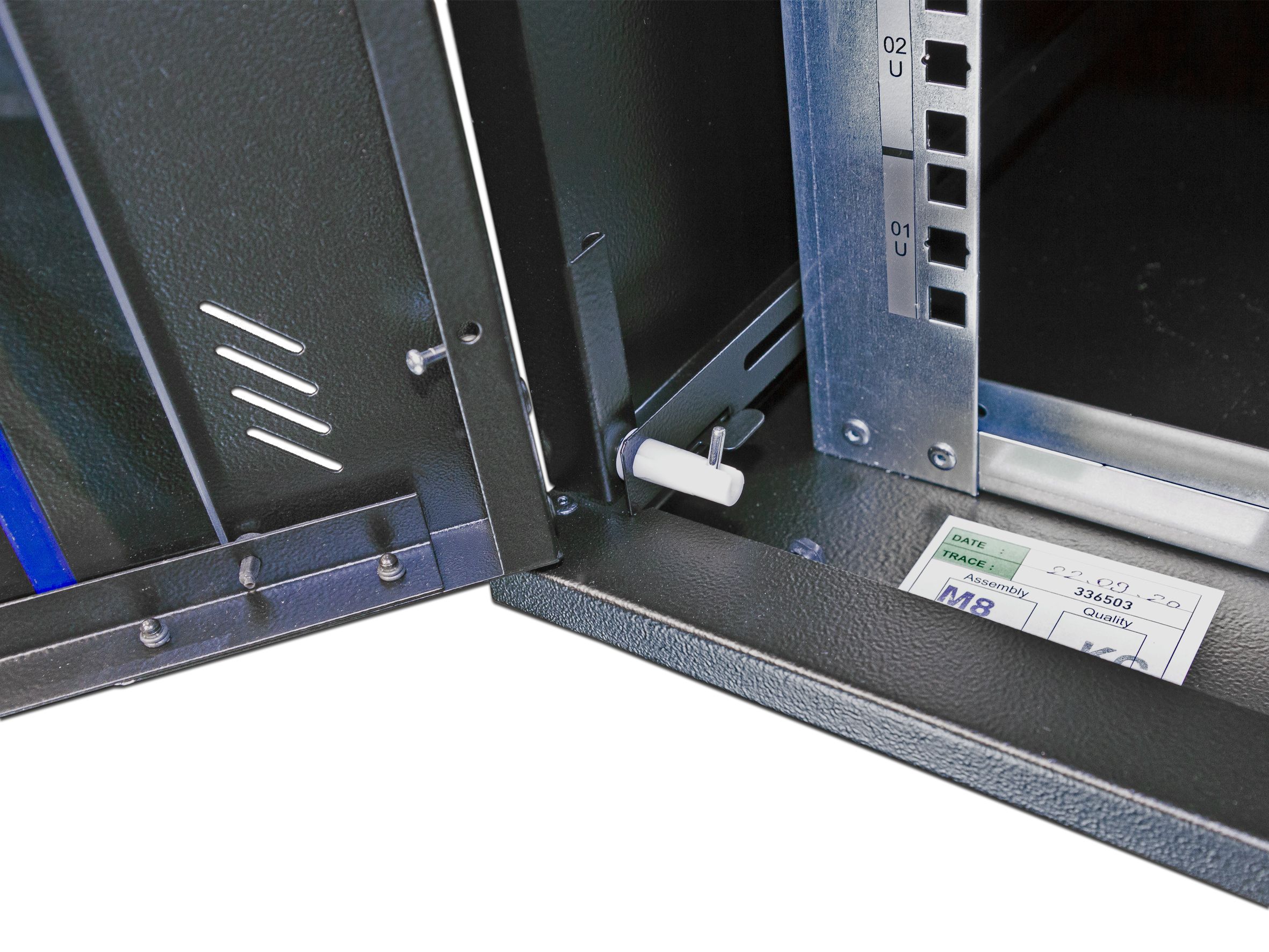

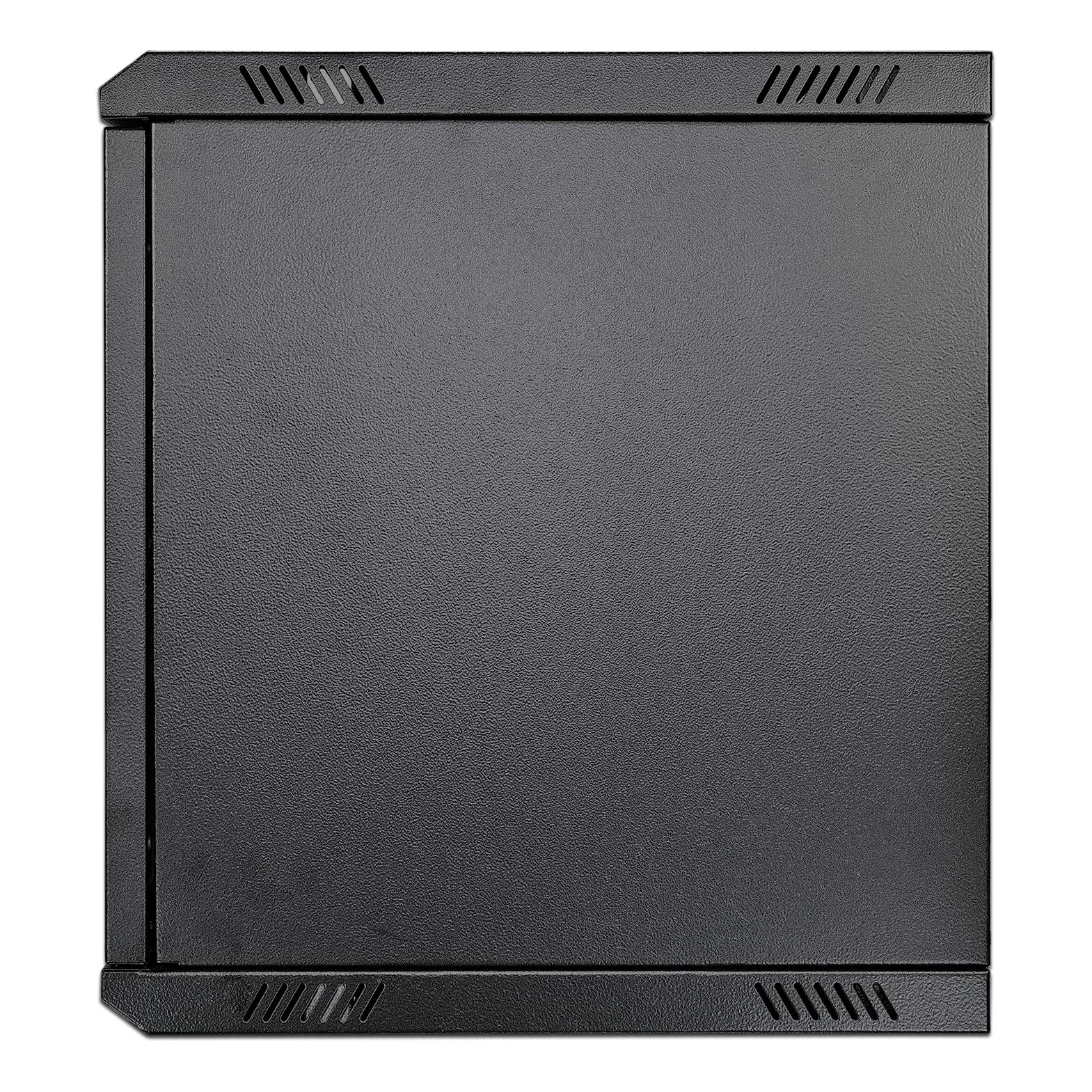

- detachable Side Panels with special hidden spring loaded pin system

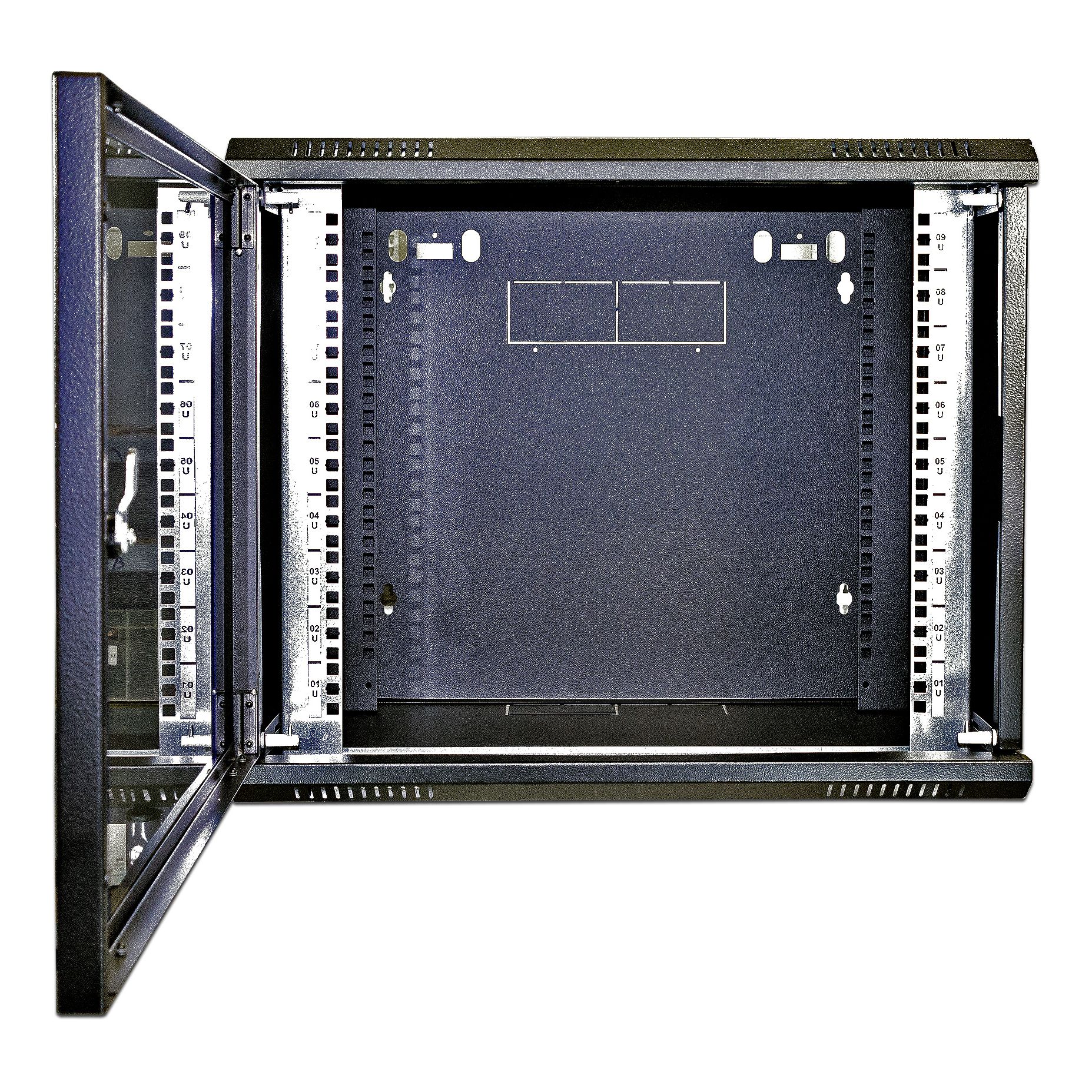

- 2 pairs 19 mounting Rails, Front Rails are adjustable, Rear Rails are fixed
- 600 mm width
- 450 mm depth, 600 mm available
- 4U / 6U / 9U / 12U / 15U / 18U / 21U heights
- tested with 100 kg load

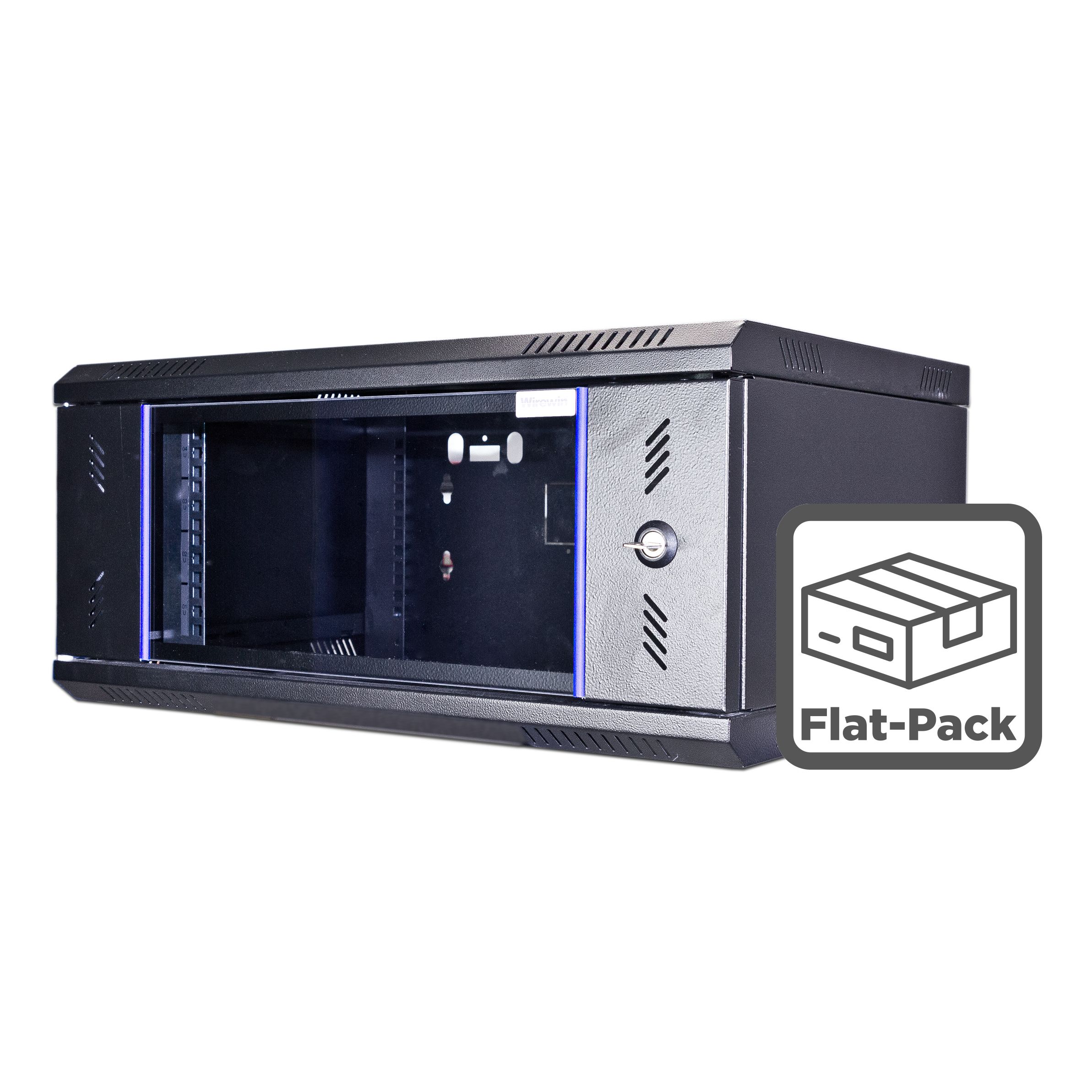

- Flat Pack Edition: saves storage room and logistic costs
Material:
- Main Body (Structure): DIN EN 10130-DC-01-6112 CRS, 0,8 mm
- Front Door: EN 12150-1 Tempered Secure Glas, 4,0 mm
- 19" Equipment Mounting Rails: DIN EN 10130-DC-01-6112 CRS, 1,2 mm

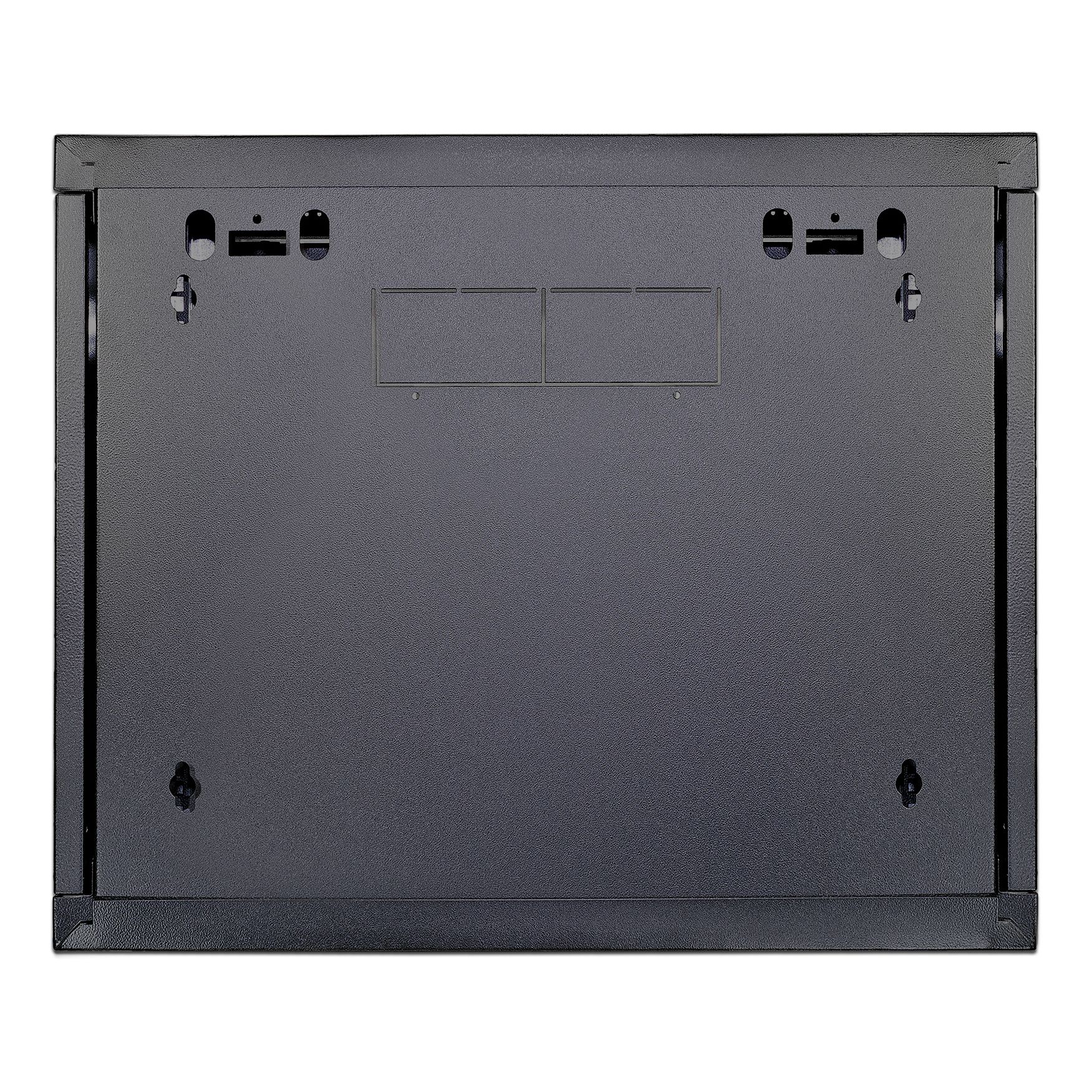

- Rear Body Frame: DIN EN 10130-DC-01-6112 CRS, 1,0 mm
- Side Panels: DIN EN 10130-DC-01-6112 CRS, 0,8 mm
Colour:
- RAL7035, Light Grey or RAL9005 Black
max. Load:
- 100 kg load tested
Packaging:
- FLAT-PACK
single, carton packaging, unassembled
Article number:
WCAB PS2 600X450X4U B FP
Manufacturer number:
WCAB PS2 600X450X4U B FP
Manufacturer page:
WIREWIN
EAN:
9120072487668
More variants:
19" Wallmount Cabinet, one-piece, Pro 2nd Generation, Flat-Pack, 600x450mm,black
- Wirewin® 19 single section Wallmount Cabinet
- Glasdoor, lockable
- detachable Side Panels with special hidden spring loaded pin system
- 2 pairs 19 mounting Rails, Front Rails are adjustable, Rear Rails are fixed
- 600 mm width
- 450 mm depth, 600 mm available
- 4U / 6U / 9U / 12U / 15U / 18U / 21U heights
- tested with 100 kg load
- Flat Pack Edition: saves storage room and logistic costs
Material:
- Main Body (Structure): DIN EN 10130-DC-01-6112 CRS, 0,8 mm
- Front Door: EN 12150-1 Tempered Secure Glas, 4,0 mm
- 19" Equipment Mounting Rails: DIN EN 10130-DC-01-6112 CRS, 1,2 mm
- Rear Body Frame: DIN EN 10130-DC-01-6112 CRS, 1,0 mm
- Side Panels: DIN EN 10130-DC-01-6112 CRS, 0,8 mm
Colour:
- RAL7035, Light Grey or RAL9005 Black
max. Load:
- 100 kg load tested
Packaging:
- FLAT-PACK
single, carton packaging, unassembled
Technical properties
Colour:
Schwarz
Depth:
450 mm
Door (model):
Glassdoor, front
Height U:
4 U
Material:
0.8 - 1.2mm Steel
Outer Heigth:
278 mm
Product Family:
Pro Series 2, unassembled
Product Line:
WCAB PS2
Width:
600 mm
max. Static Load:
100 kg
