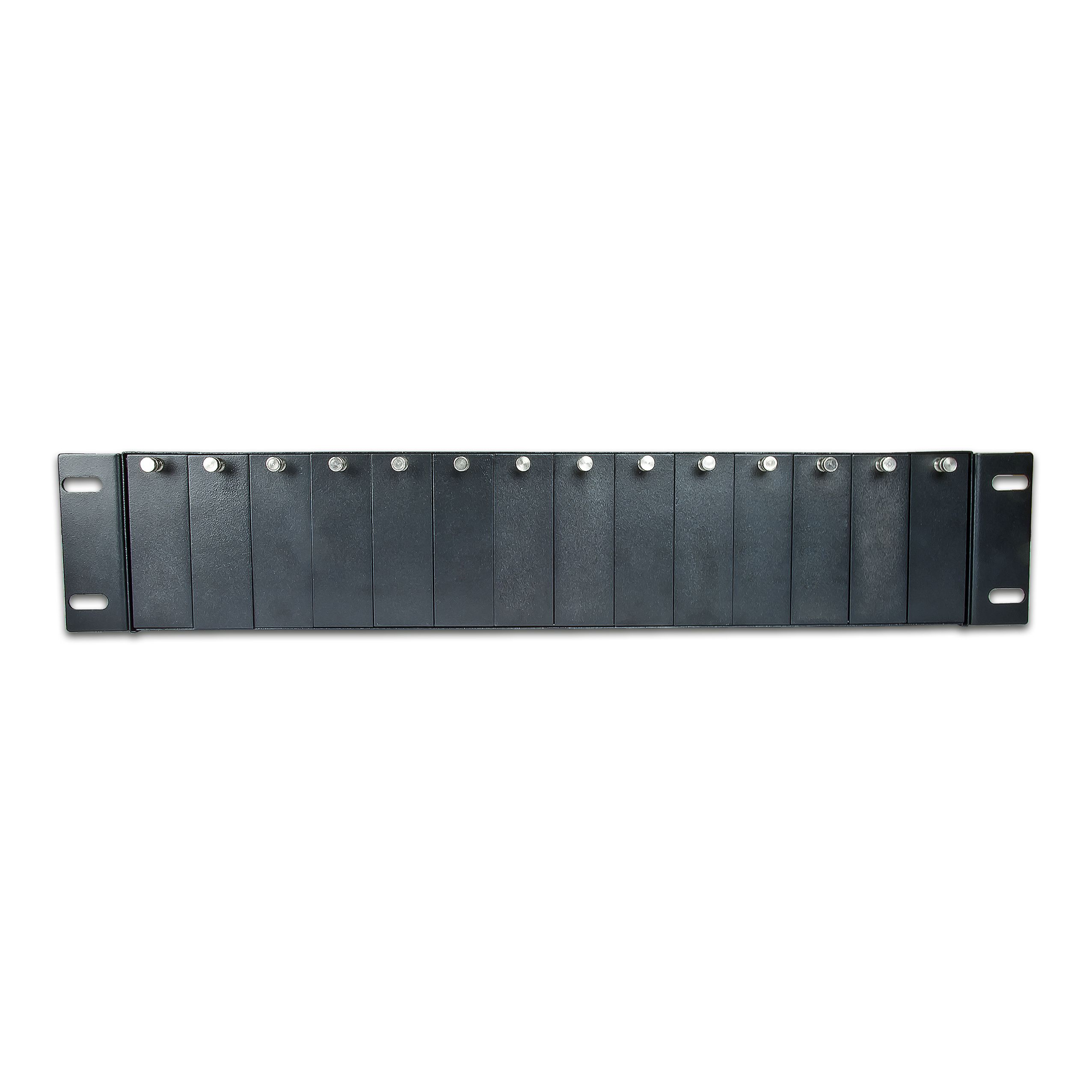

14 Slot 19" Mediaconverter Chassis for Lightwin converter
Lightwin chassis offer the professional alternative to several standalone converters in a 19" cabinet. Thanks to the redundant power supply and 2 fans per chassis, this product offers a fail-safe solution.
Available stock:
Article number:
LWC CHASSIS 14
Manufacturer number:
LWC CHASSIS 14
Manufacturer page:
LIGHTWIN
EAN:
9120046985183
- High quality 19“ Rack-Mountable Chassis installation

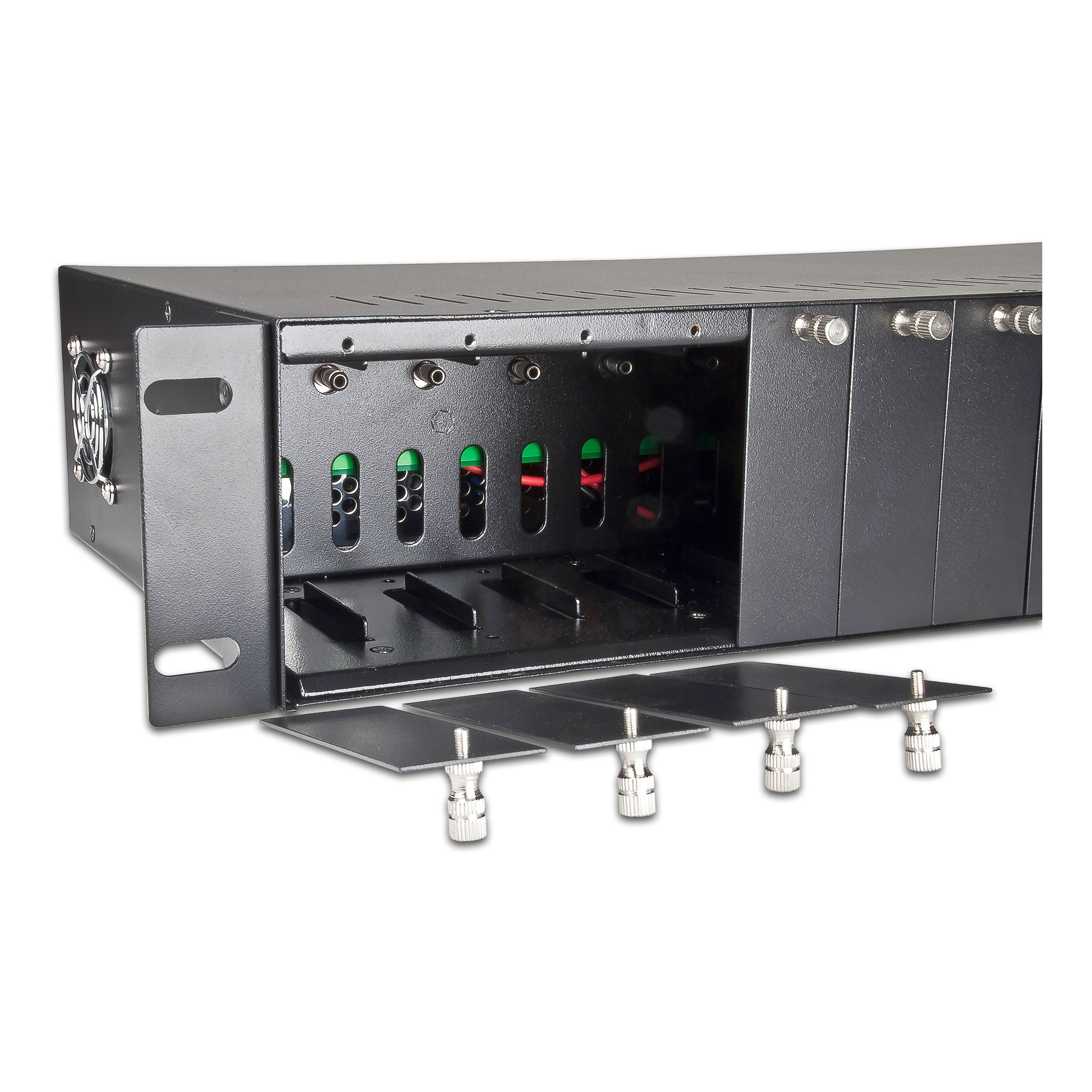

- Supports up to 14 modular media converters

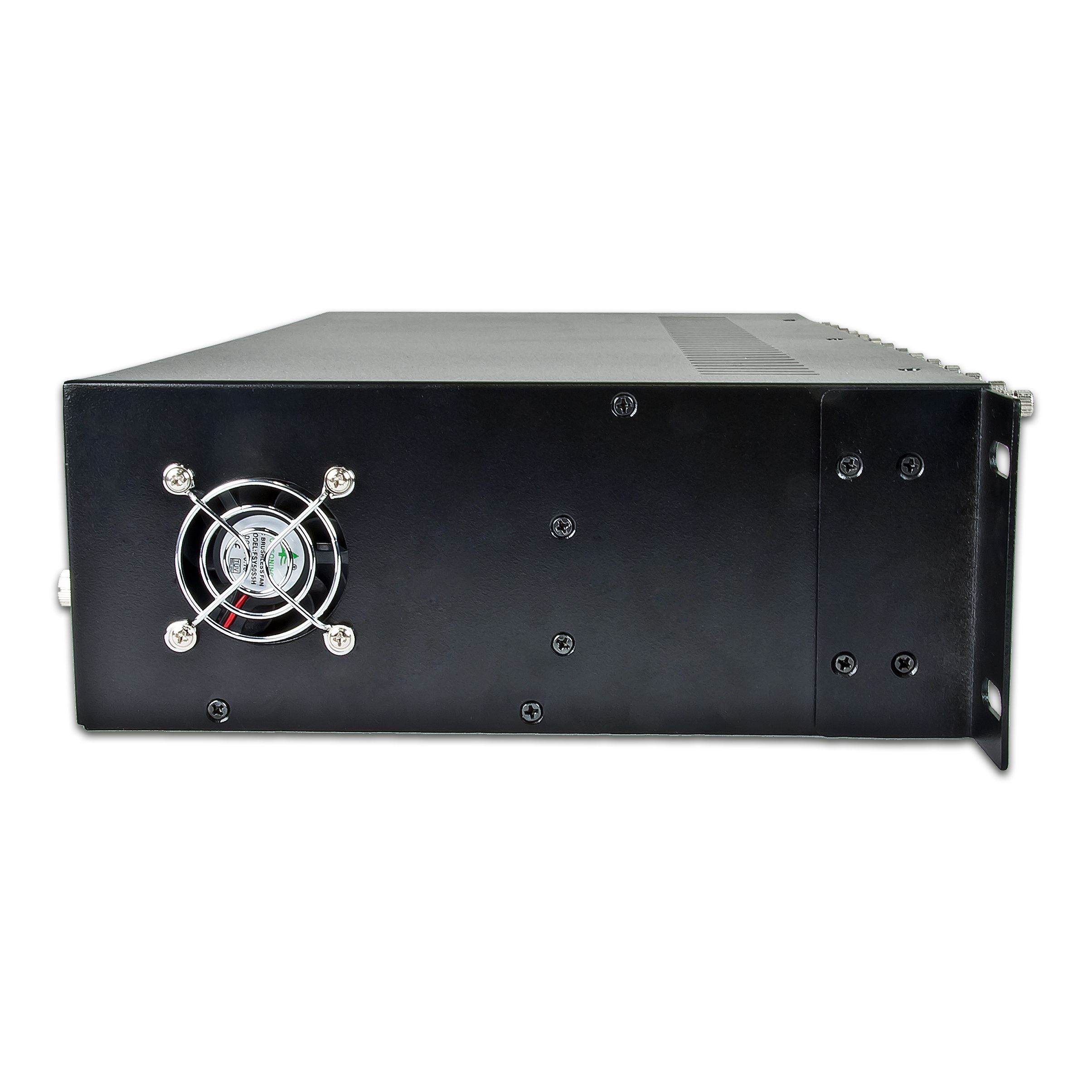

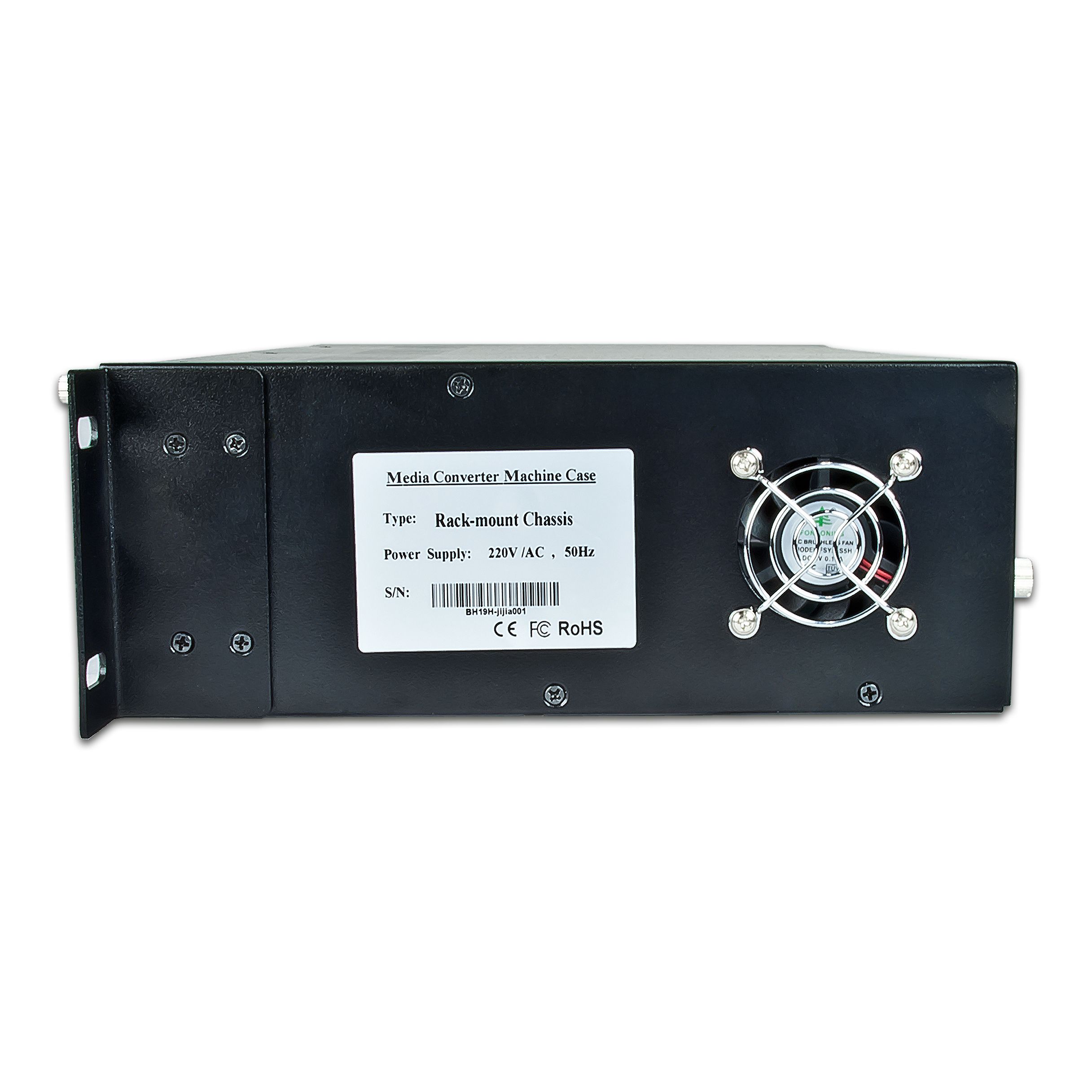

- Two fans brings the air-fl ow for system cooling, and LED indicators for system and fan status
- Bay power isolation, ensure each bay is electrically isolated from each other
- Support multiple converters - 10/100/1000Mbps, copper, Fiber, single/multi-mode (all Lightwin® LWC Media Converter)
- Reduce the effort of converter maintenance and management, diagnose the status at one time
- Cost-effective, easy install
Lightwin chassis offer the professional alternative to several standalone converters in a 19" cabinet. Thanks to the redundant power supply and 2 fans per chassis, this product offers a fail-safe solution.
Technical properties
Certificate:
FCC Class A, CE
Chassis:
Chassis
Dimensions:
438 x 200 x 103mm
Height U:
2.4 U
LEDs:
3, Power, Fan A, Fan B (On: operating; Off: device or fan fail)
Operating Conditions:
0°C - +50°C
Operating Humidity:
0 - 90%, non-condensing

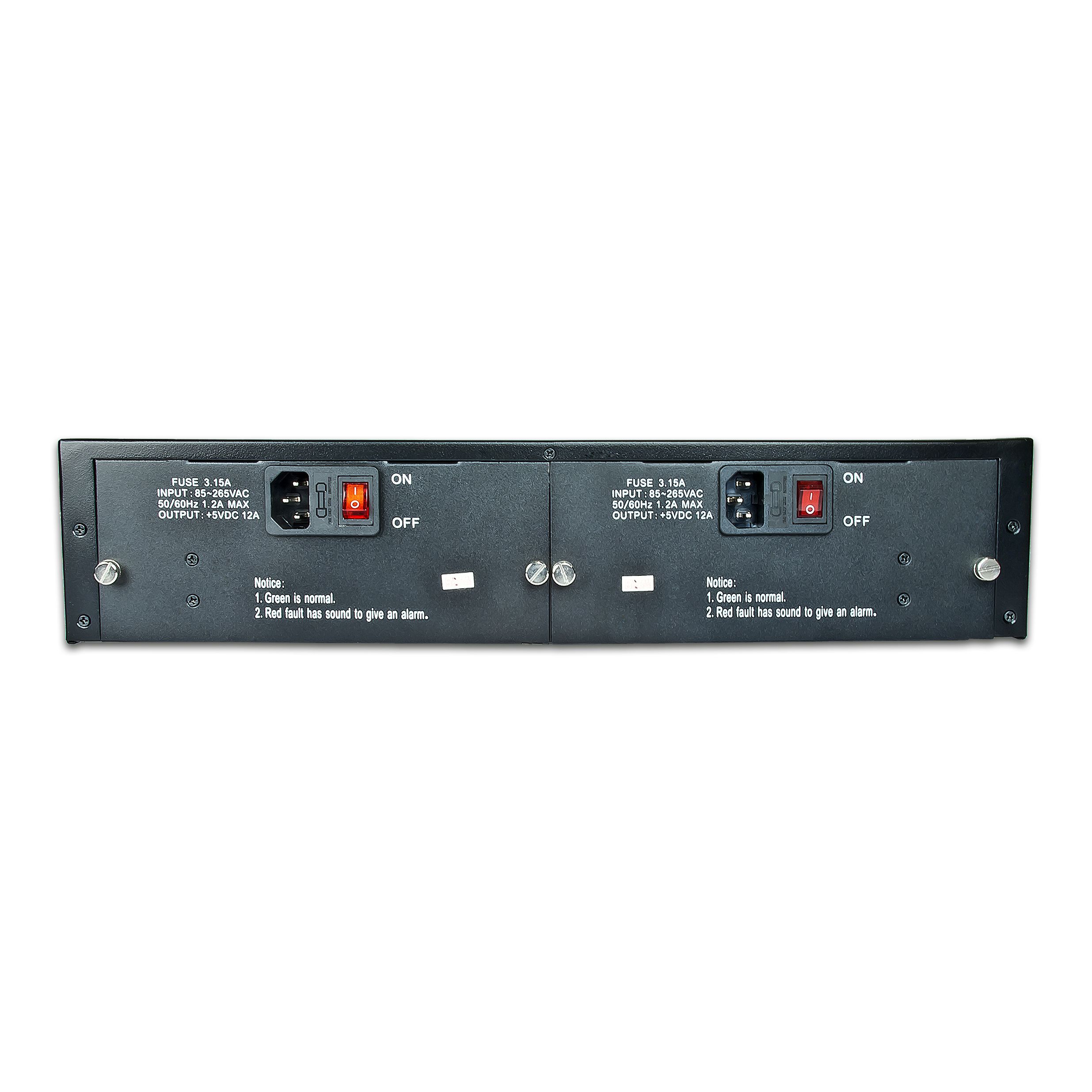

Power Supply:
100 - 240V AC, 50/60Hz
