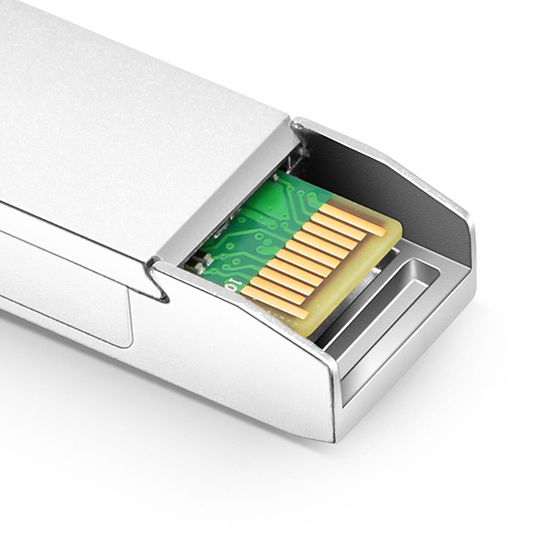

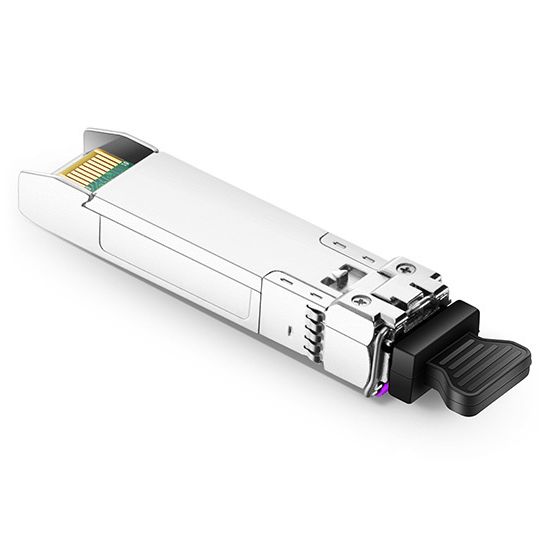

10 Gbit SFP+ CWDM, 1330nm, 20km, LC-Duplex, Singlemode
Lightwin‘s LWO-SFPP-Cxxxx-20x SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 20km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
LWO-SFPP-Cxxxx-20x transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.
- Up to 11.3Gb/s data links
- CWDM DFB transmitter and PIN receiver
- Up to 20km on 9/125μm SMF
- Hot-pluggable SFP+ footprint

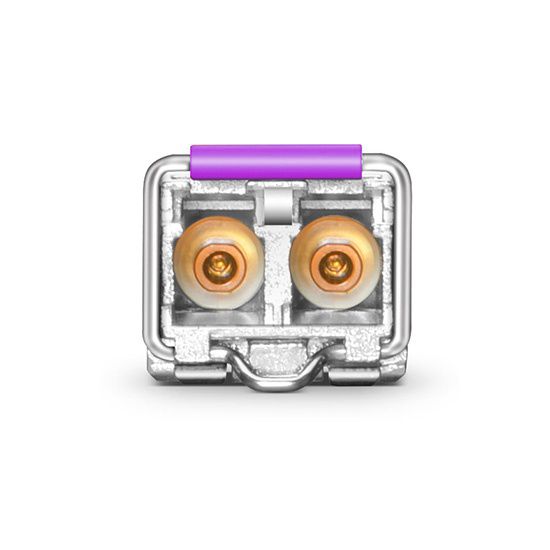

- Duplex LC/UPC type pluggable optical interface
- RoHS-10 compliant and leadfree
- Support Digital Monitoring interface
- Single +3.3V power supply
- Compliant with SFF+MSA and SFF-8472
- Metal enclosure, for lower EMI
- Meet ESD requirements, resist 8KV direct contact voltage
- Case operating temperature
- Commercial: 0 ~ +70°C
- Industrial: -40 ~ +85°C
- 10GBASE-LR/LW & 10G Ethernet
- SDH STM64
- Other Optical Links
Lightwin‘s LWO-SFPP-Cxxxx-20x SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 20km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
LWO-SFPP-Cxxxx-20x transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.
