VIGI 4MP Full-Color Dome Network Camera
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

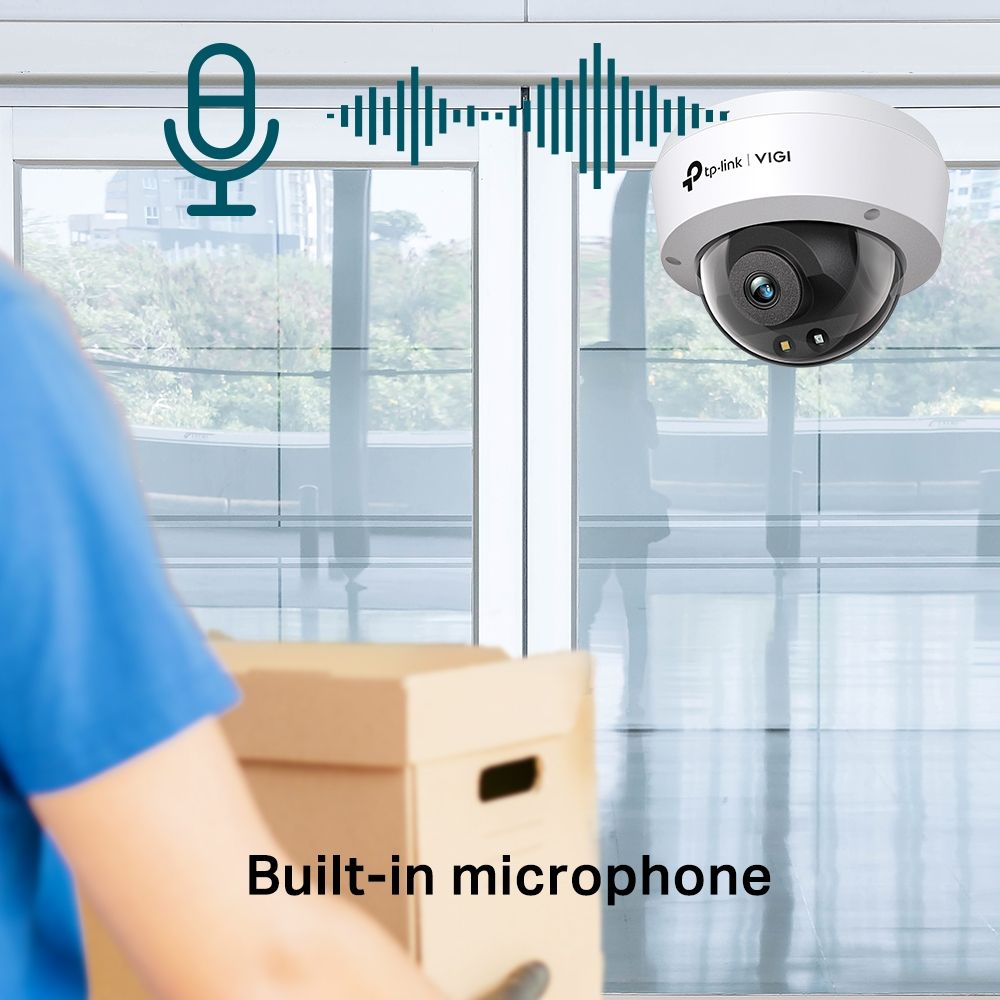

- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.

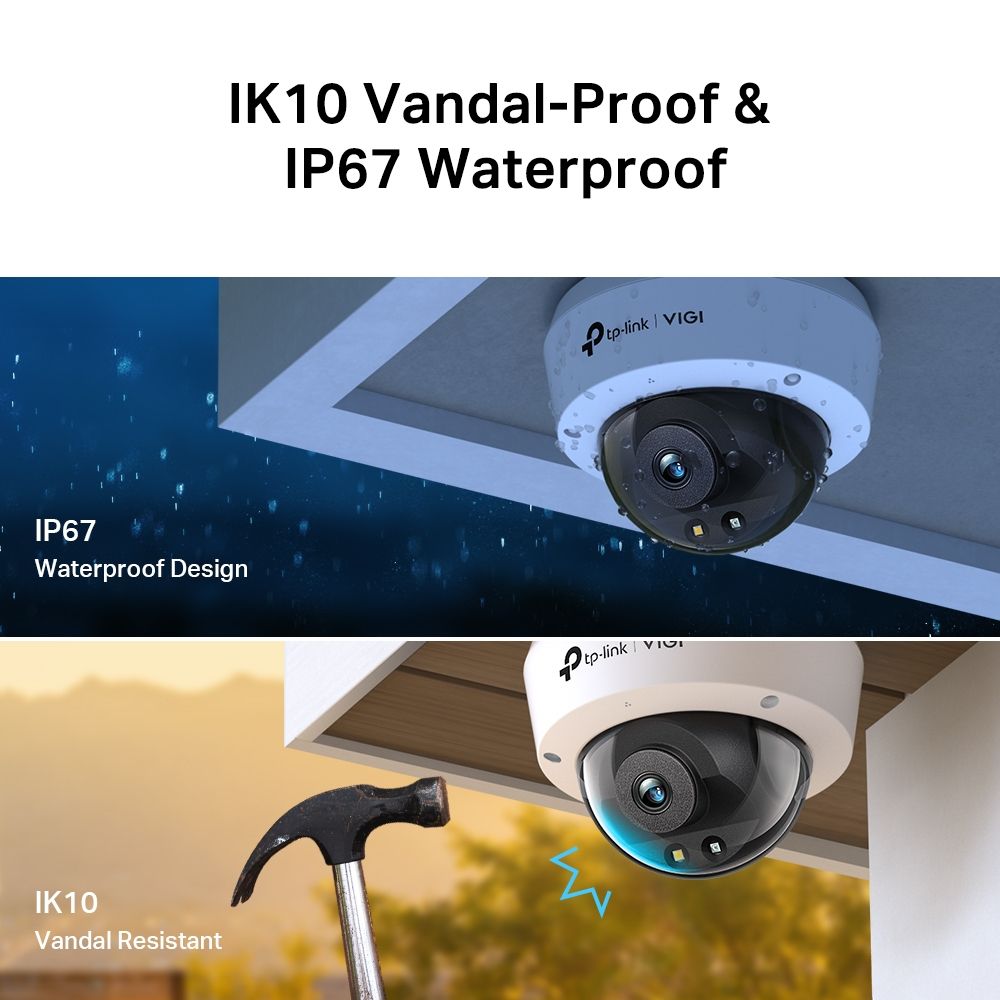

- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

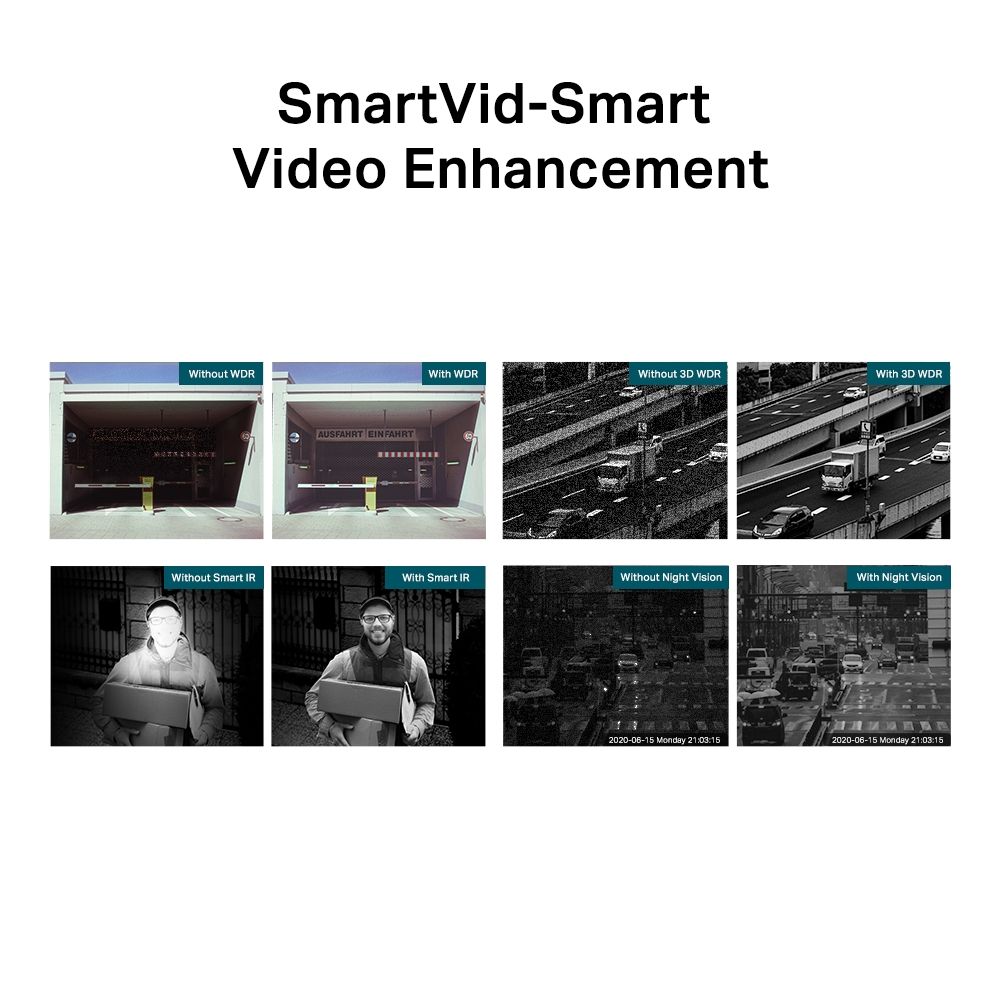

- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
Available stock:
Article number:
VIGI C240(2.8MM)
Manufacturer number:
VIGI C240(2.8mm)(UN)
Manufacturer page:
TP-LINK
EAN:
4895252501070
- H.265+/H.265/H.264+/H.264
- 1/3" Progressive Scan CMOS
- Color/0.005 Lux@F1.6, 0 Lux with IR/White Light
- 25fps/30fps (2560x1440,2304x1296, 2048x1280, 1920x1080)
- PoE/12V DC
- 2.8 mm / 4.0 mm Fixed Lens
- Built-In Microphone
- micro-SD Slot
- IK10, IP67
- Features:
- Full-Color and IR Night Vision (Up to 30 m)
- Smart Detection (Human &Vehicle Classification) (Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Object Removal Detection, Area Entrance Detection, Area Exiting Detection, Vehicle Detection , Human detection)
- SmartVid (Smart IR, DWDR, 3D DNR, BLC)
- ONVIF
- Remote Monitoring
- VIGI App, Web, VIGI Security Manager
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
Technical properties
100 MBit Ports:
1
Alarm Input:
-
Alarm Output:
-
Angel of View diagonally:
113°
Angel of View horizontally:
95.7°
Angel of View vertically:
51.7°
Aperture:
f/1.6
Audio:
Yes
Audio Codec:
G.711 alaw
Audio Input:
-
Audio Output:
-
Backlight Compensation:
Yes
Camera Type:
Dome
Certificate:
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Connection Type:
RJ45
DORI:
D: 64 m, O: 27 m, R: 13 m, I: 6 m
Day/Night Switch:
IR Cut Filter
Dimensions:
115 x 86 x 115 mm
Field of application:
Outdoor
Focal Length:
2.8 mm
IP / Analog:
IP
Illumination:
IR, white Light
Illumination Distance:
up to 30 m
Image Sensor:
1/3" CMOS
Lens Mount:
M12
Lens Type:
fix
Manufacturer Number:
VIGI C240(2.8MM)
Material:
Plastic
Memory Slot / Card type:
MicroSD
Microphone:
built-in
Min. Illumination:
0.0005 Lux
Min. Illumination ext.:
Color: 0.005 Lux; 0 Lux with IR/White Light
Noise Reduction:
3D DNR
ONVIF:
Yes
Operating Conditions:
-30°C - +60°C
Operating Humidity:
<95%, non-condensing
PoE Standard:
IEEE 802.3 af/at
Power Consumption:
5.4 W
Power Supply:
12V DC, PoE
Resolution:
4 MP
Resolution max. Pixels:
2560 x 1440
Safety Class:
IP67
Shutter Speed:
1/3s - 1/10000s
Streaming:
Triple Stream
Vandalism Protection:
IK10
Video Frame Rate max.:
30 fps
Video compression:
H.265+/H.265/H.264+/H.264
WDR:
DWDR
