V0 HD Fiber Blowing Machine, 0,8 - 6,5 mm Cable, 3 - 16 mm Duct
- Electrically operated. Battery connected. Optional power supply.
- Allows installation in a larger duct with a smaller compressor.
- Electronic stopping/slipping protection within 250 ms.
- Gentle operation, reduced cable pull with the aid of continuously variable pushing force.
- Forward and reverse function
- Display for current speed, distance, pushing force pressure and duct air temp.
- Max. speed: 250 m/min.
- Stepless pushing force on cable up to: 200 N.
- Adjustable clamping force.
- Works with JetLogger.
- 110/240 V Power supply. No need to charge or change batteries
- Table/Tripod bracket. For safe installation on working table.
- Jetlogger. Electronic documentation system.
- Metal drive wheel for < 2.5 mm cabel.
- Softstart: Enables an even smoother start protecting the fiber.
- Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery need to be exchanged.
- Service info: Memory of total milage/distance since machine taken into operation.
- Duct air temp: Display showing the air temperature injected into the duct.

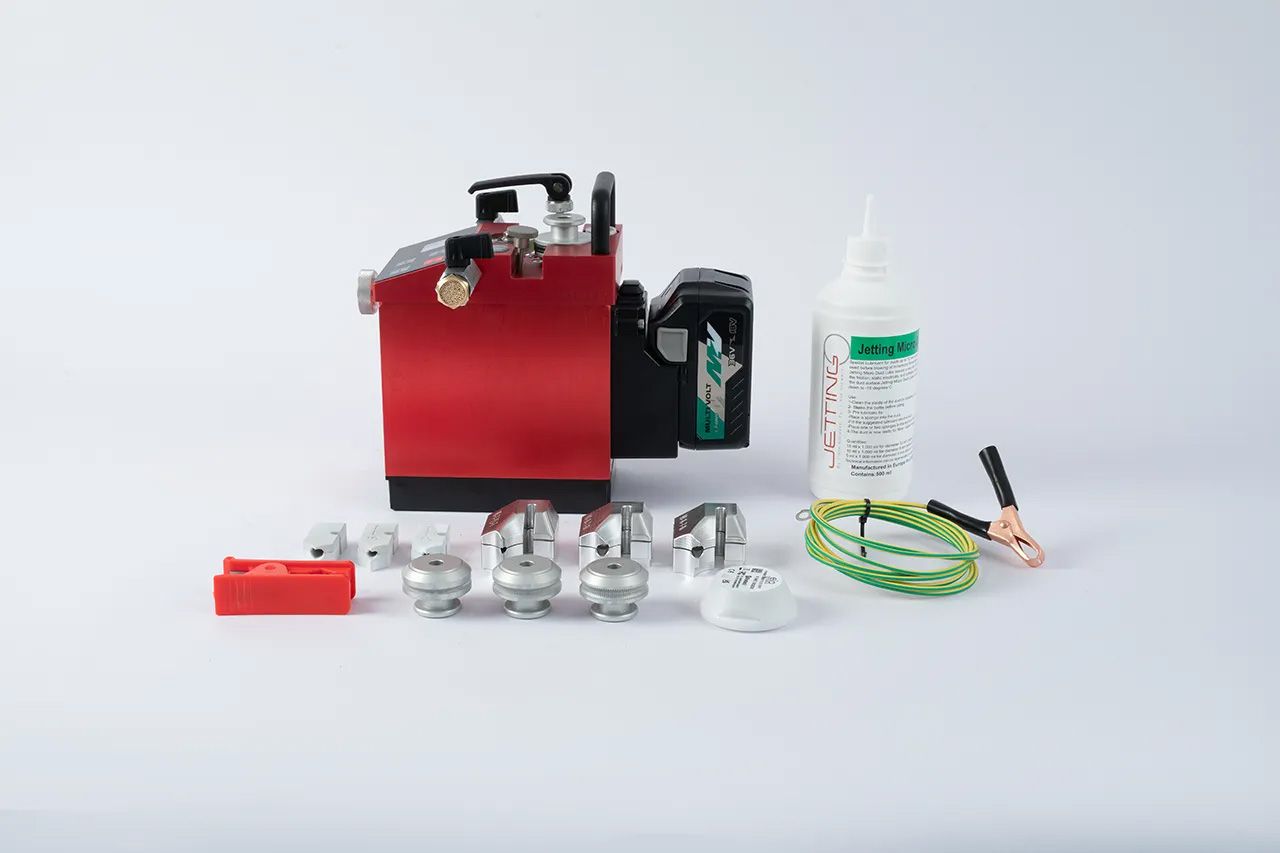

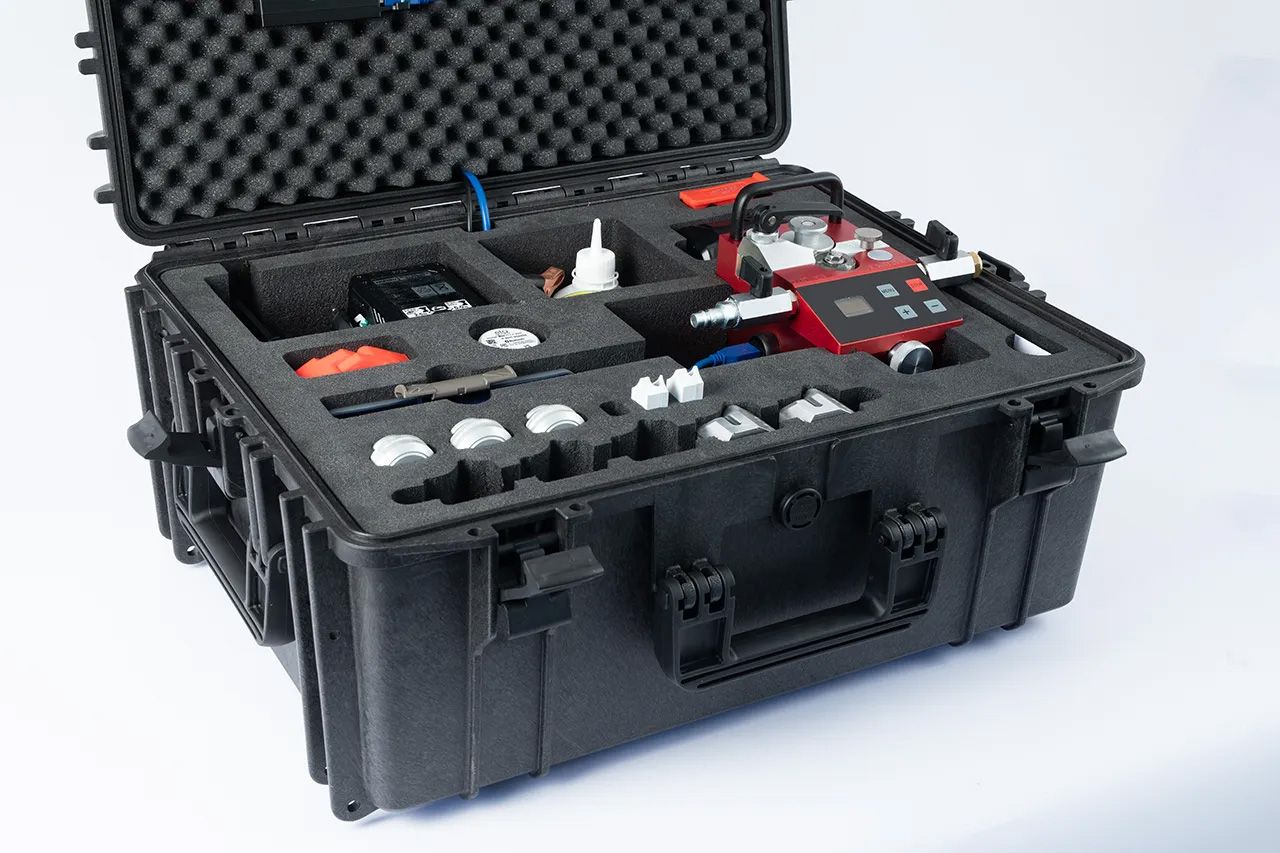

Standard Configuration:

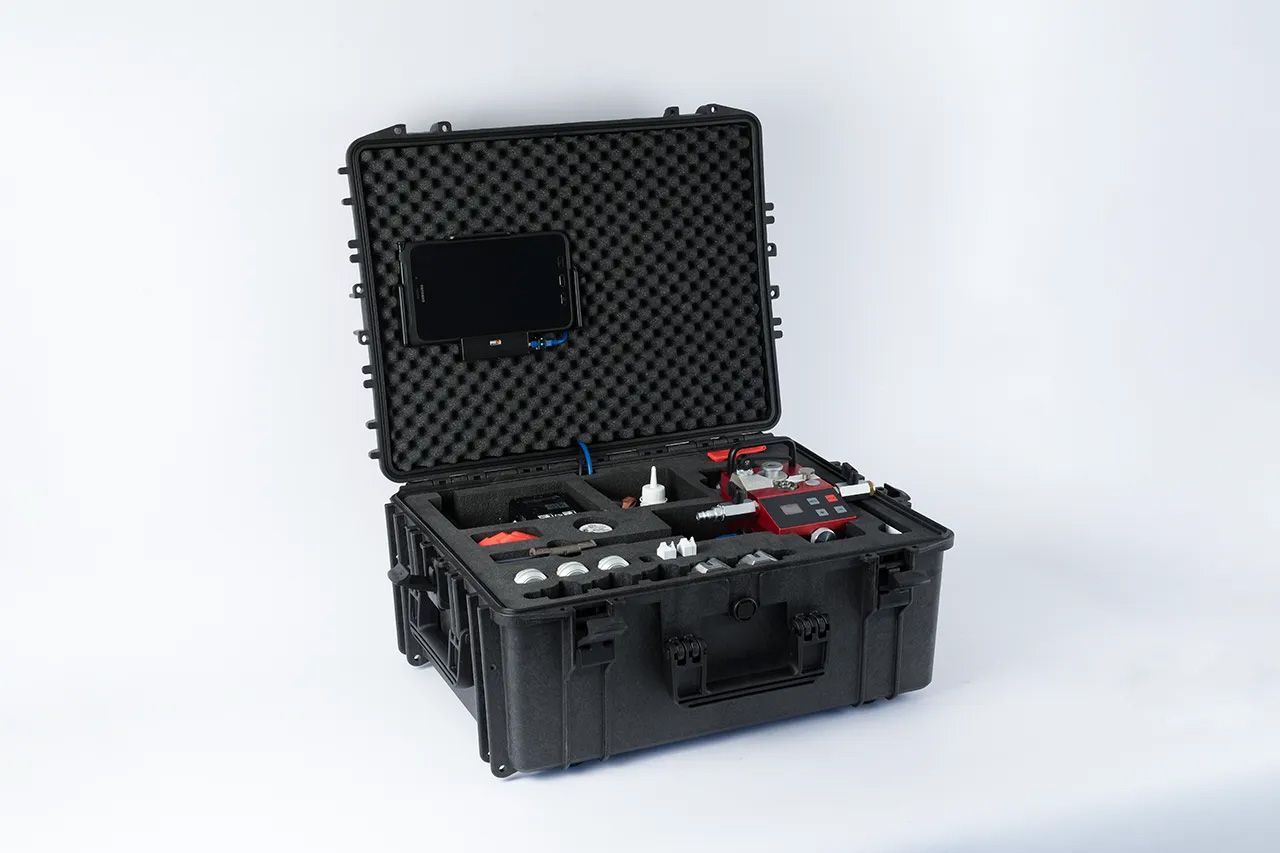

- Transport Case
- 3 drive wheels
- 1 pcs with rubber 0,8-3 mm
- 1 pcs for 3,0-4,5 mm
- 1 pcs for 4,5-6,5mm
- Battery charger 230 V
- 2 Batteries
- 1 Bottle Micro Duct Lube
- Service kit

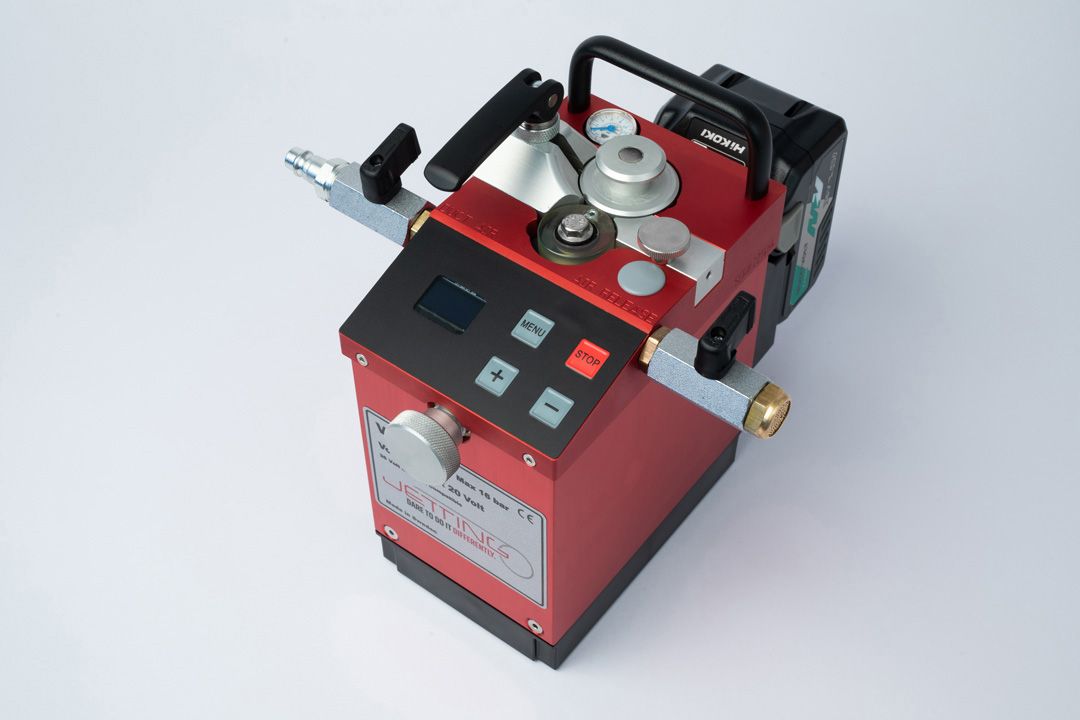

- Extremely compact electrically operated Fiber Blowing Machine
- Battery: 18 V, 5Ah std Hitachi connector
- Max pressure: 16 Bar
- Pushing force: Up to 200 N
- Cable diameter: 0,8 – 6,5 mm
- Duct diameter: 3 – 16 mm
- Weight: approx 2 kg

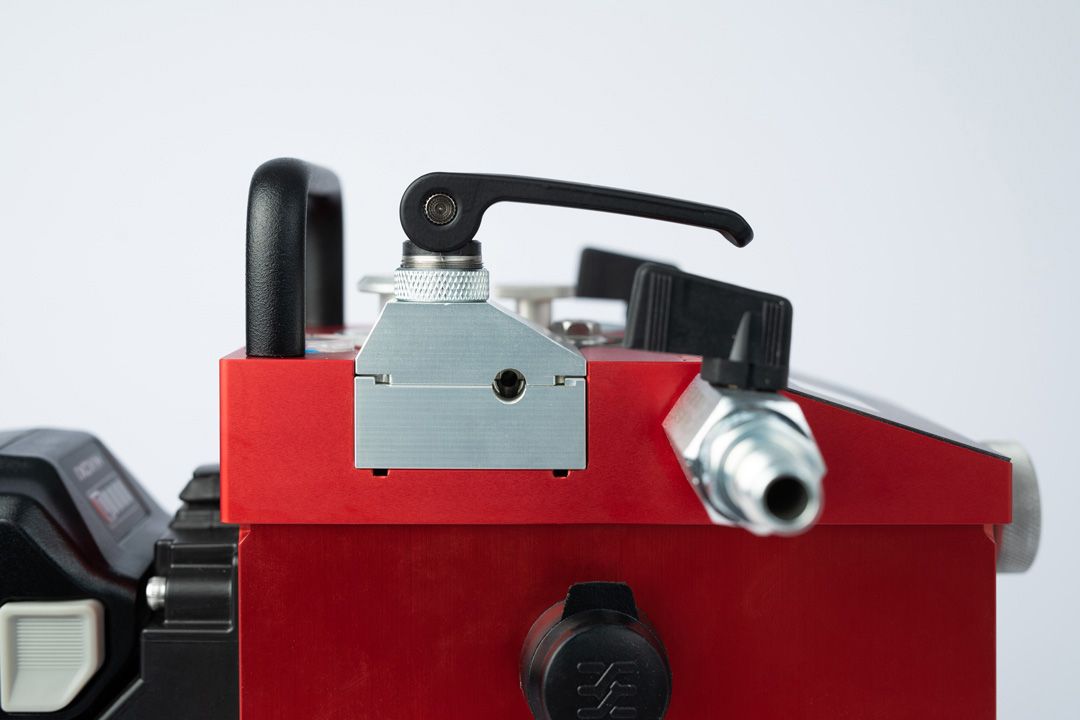

- Air connection: Std 3/8” Cejn
- WxHxD: 120x220x170 mm
Typical usage
Extremely compact electrically operated fiber blowing machine optimized for FTTX installation of blown fiber (EPFU) and micro/nano cables, from 0,8 to 6,5 mm into duct from 3 to 16 mm. A full digital control system with softstart, electronic fiber security, memory functions combined with a 200 N powerful motor makes the machine very flexible and effective to use. Can be operated directly from its case.
- Electrically operated. Battery connected. Optional power supply.
- Allows installation in a larger duct with a smaller compressor.
- Electronic stopping/slipping protection within 250 ms.
- Gentle operation, reduced cable pull with the aid of continuously variable pushing force.
- Forward and reverse function

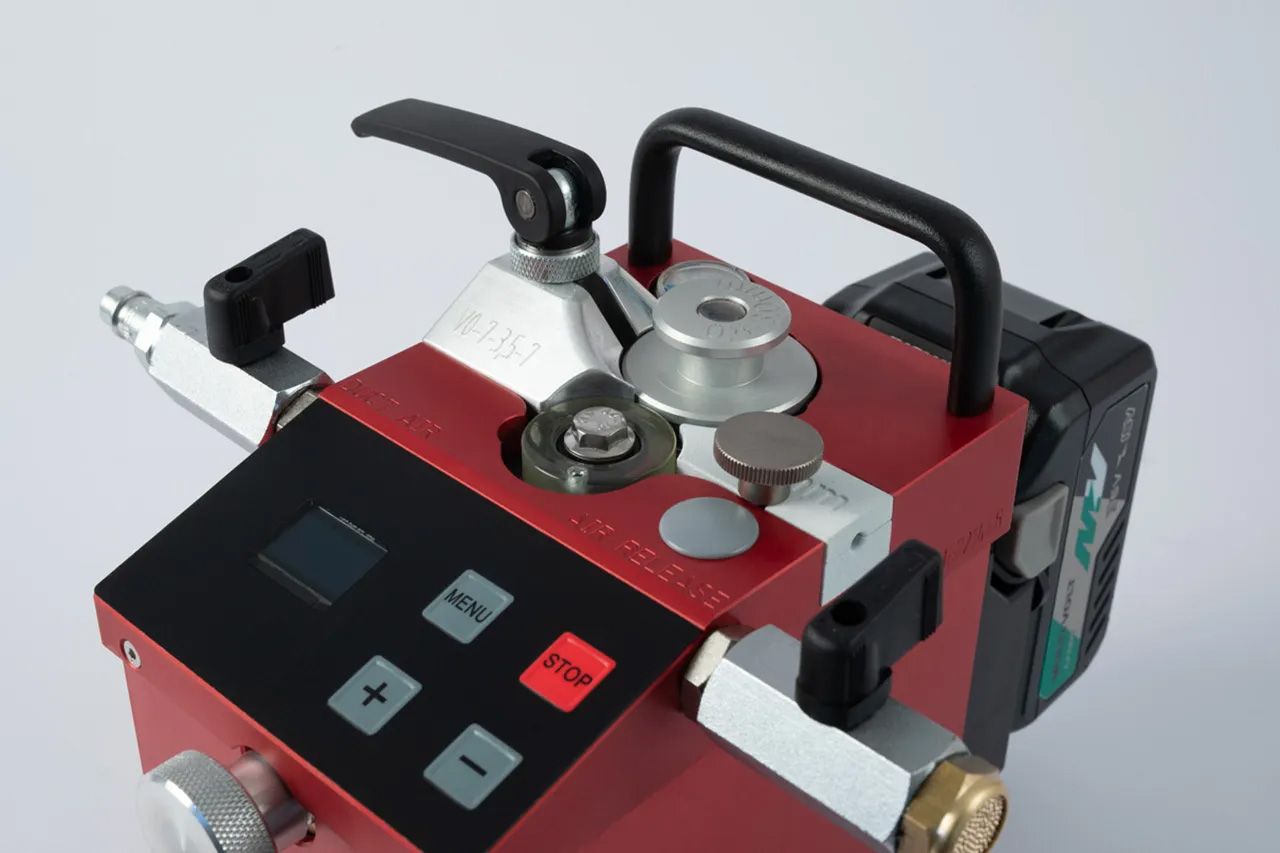

- Display for current speed, distance, pushing force pressure and duct air temp.
- Max. speed: 250 m/min.
- Stepless pushing force on cable up to: 200 N.
- Adjustable clamping force.
- Works with JetLogger.
- 110/240 V Power supply. No need to charge or change batteries
- Table/Tripod bracket. For safe installation on working table.
- Jetlogger. Electronic documentation system.
- Metal drive wheel for < 2.5 mm cabel.
- Softstart: Enables an even smoother start protecting the fiber.
- Memory: The last inserted data like pushing force will stay in the memory even if the device will be switched off or the battery need to be exchanged.
- Service info: Memory of total milage/distance since machine taken into operation.
- Duct air temp: Display showing the air temperature injected into the duct.
Standard Configuration:
- Transport Case
- 3 drive wheels
- 1 pcs with rubber 0,8-3 mm
- 1 pcs for 3,0-4,5 mm
- 1 pcs for 4,5-6,5mm
- Battery charger 230 V
- 2 Batteries
- 1 Bottle Micro Duct Lube
- Service kit
