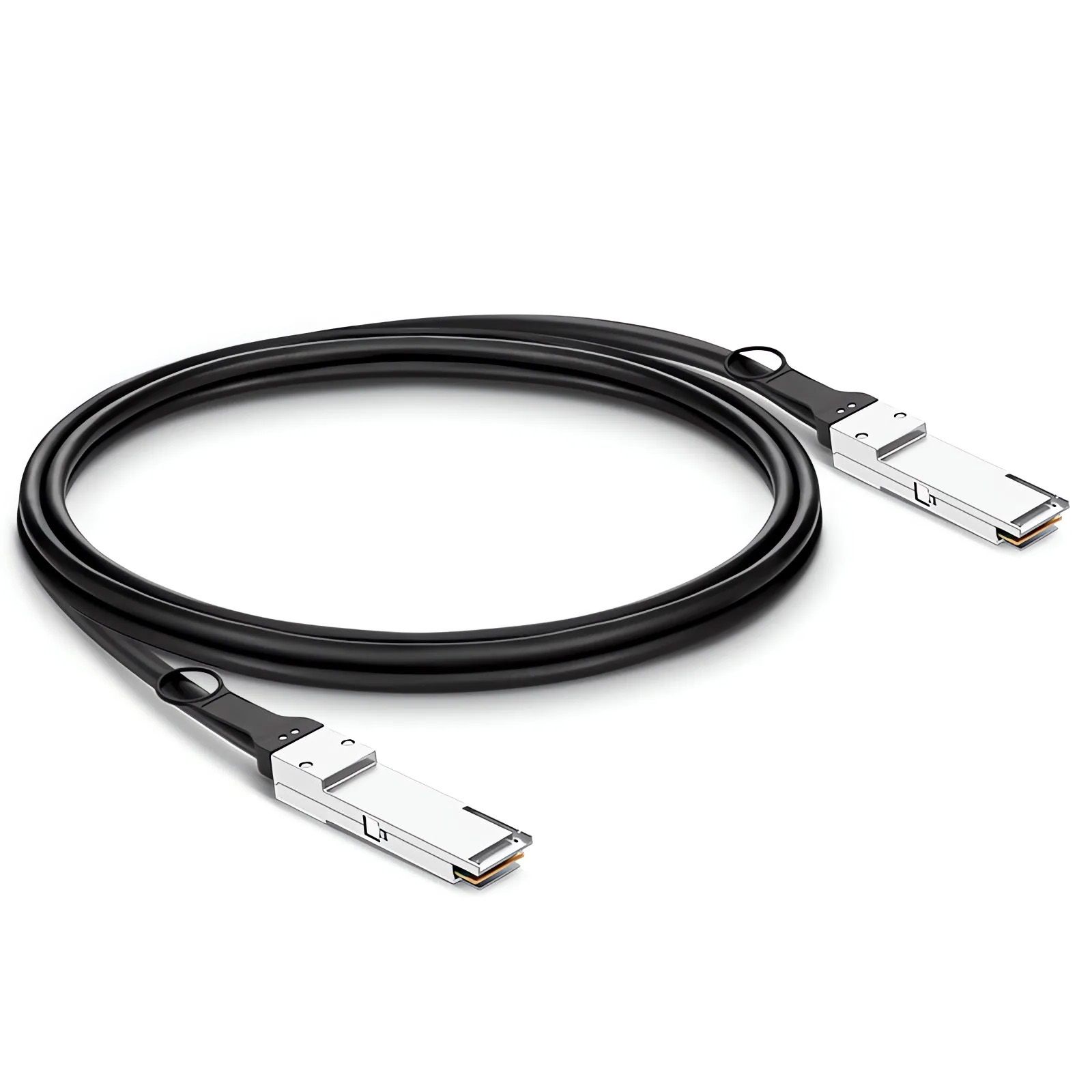

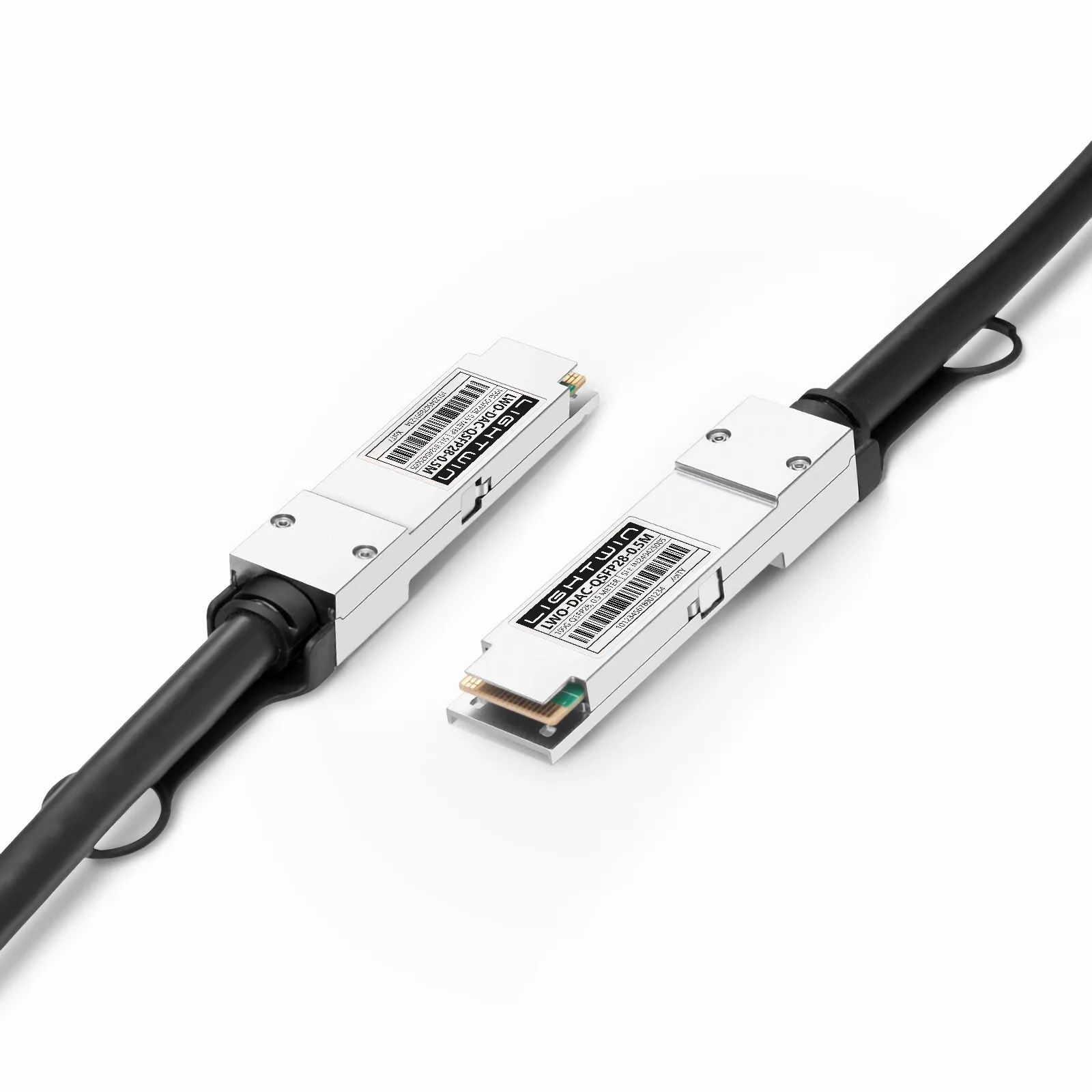

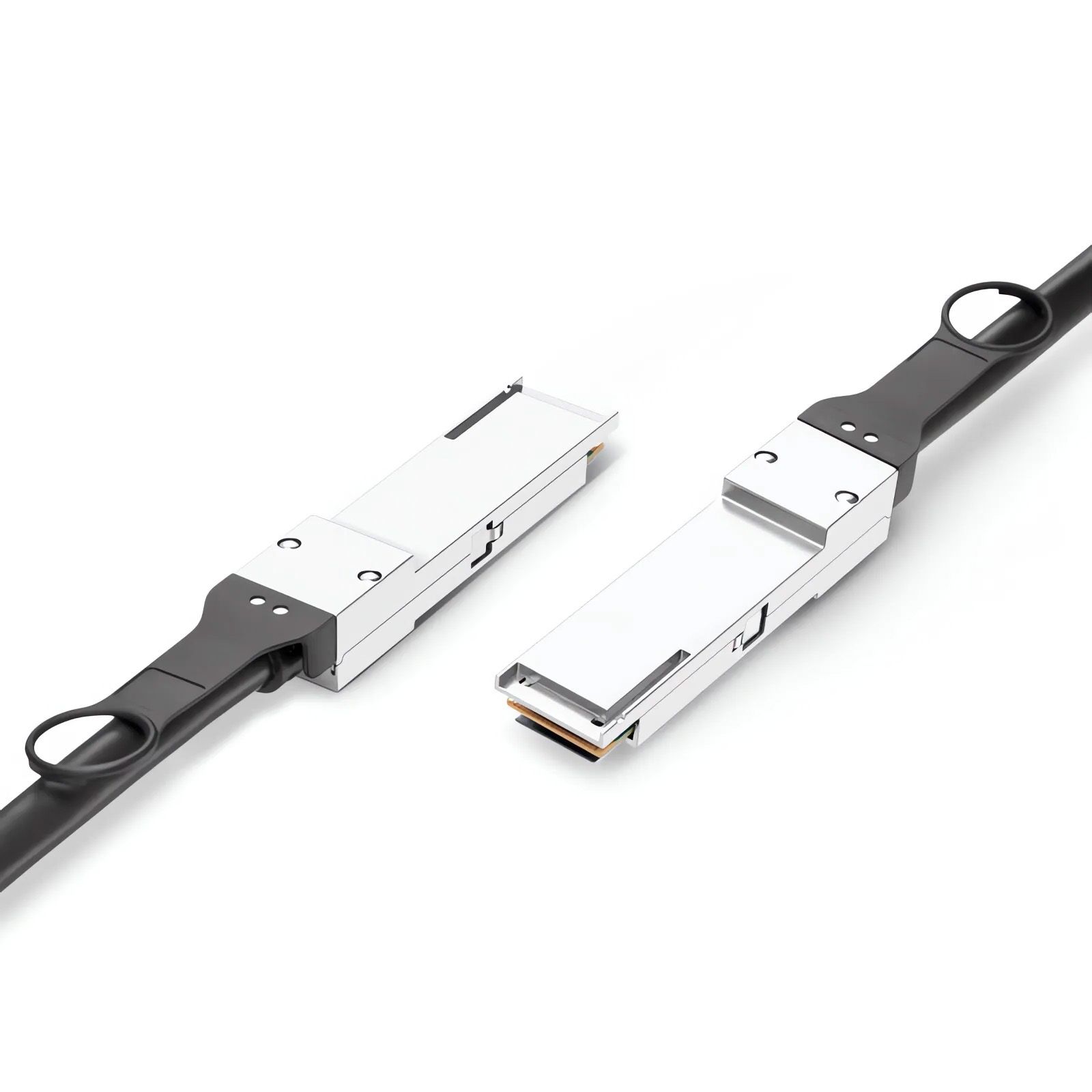

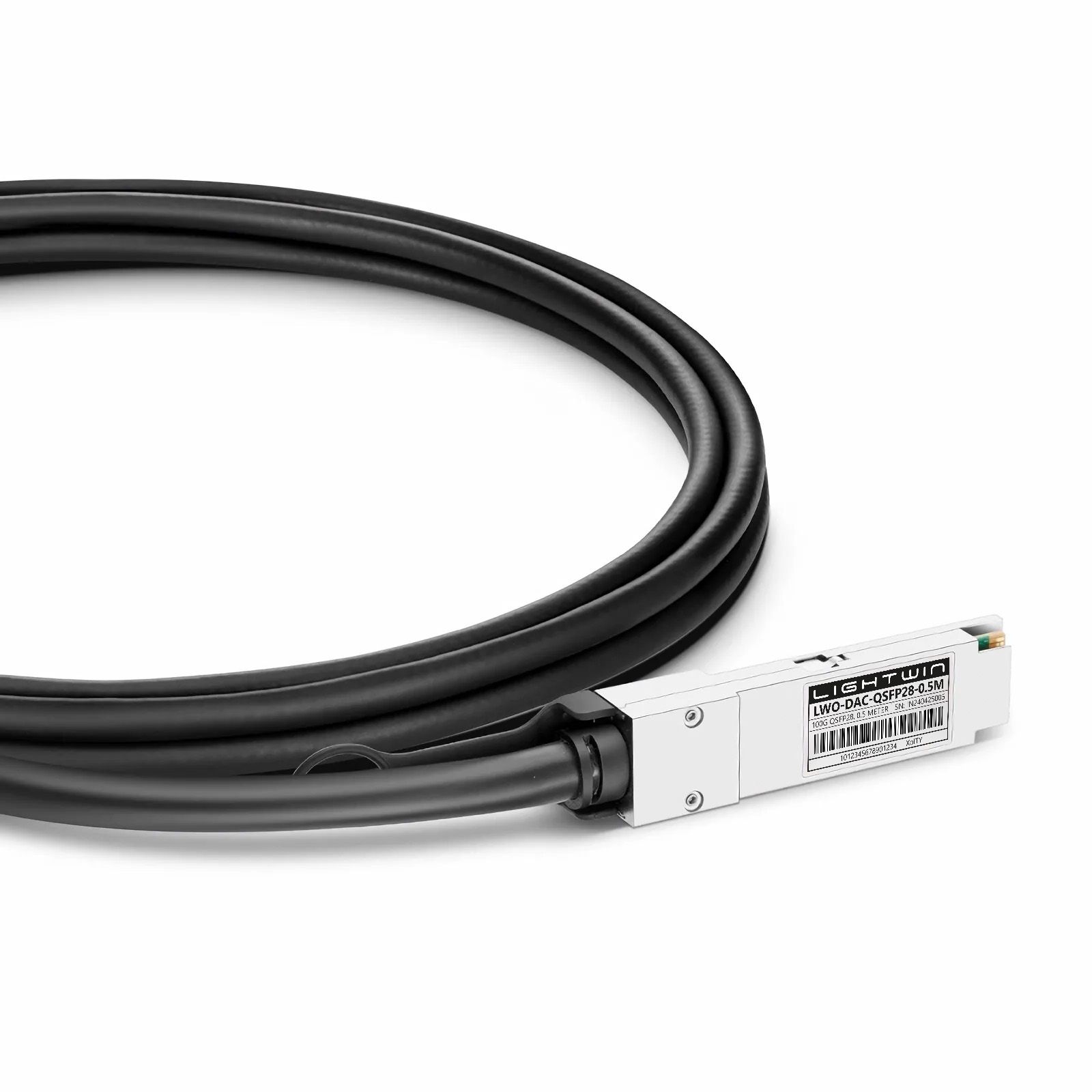

100GBit QSFP28 to QSFP28 Direct Attach Cable (DAC)
The objective is to provide QSFP28 cable assemblies. This specification applies to the 4X size configurations. All materials and compounds used, meet the material restrictions of RoHS, (European Directive 2002/95/EC on the Restrictions of Hazardous Substances) as proposed by the RoHS Technical Adaptation Committee.
This specification is applicable to 100G QSFP28 external connector system which provides a high-speed cable to board interconnect.
Lighwin‘s Quad Small Form-factor to Quad Small Form-factor Pluggable solution achieving 100G transmission (hereafter referred to as QSFP28 to QSFP28) is designed for high-density applications. The hot-pluggable transceiver integrates 4 transmitting and 4 receiving channels.
Lighwin‘s QSFP28 to QSFP28 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions which support 100G standards with different data rate applications.
- Compatible with IEEE 802.3bj and InfiniBand EDR
- In accordance with the paging function in the protocol SFF- 8636
- Supports aggregate data rates of 100Gbps
- Optimized construction to minimize insertion loss and cross talk
- Pull-to-release slide latch design
- 26AWG through 30AWG cable
- Straight and break out assembly configurations available
- Customized cable braid termination limits EMI radiation
- Customizable EEPROM mapping for cable signature
- RoHS-6 compliant
- Switches, servers and routers
- Data Center networks
- Storage area networks
- High performance computing
- Telecommunication and wireless infrastructure
The objective is to provide QSFP28 cable assemblies. This specification applies to the 4X size configurations. All materials and compounds used, meet the material restrictions of RoHS, (European Directive 2002/95/EC on the Restrictions of Hazardous Substances) as proposed by the RoHS Technical Adaptation Committee.
This specification is applicable to 100G QSFP28 external connector system which provides a high-speed cable to board interconnect.
Lighwin‘s Quad Small Form-factor to Quad Small Form-factor Pluggable solution achieving 100G transmission (hereafter referred to as QSFP28 to QSFP28) is designed for high-density applications. The hot-pluggable transceiver integrates 4 transmitting and 4 receiving channels.
Lighwin‘s QSFP28 to QSFP28 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions which support 100G standards with different data rate applications.
