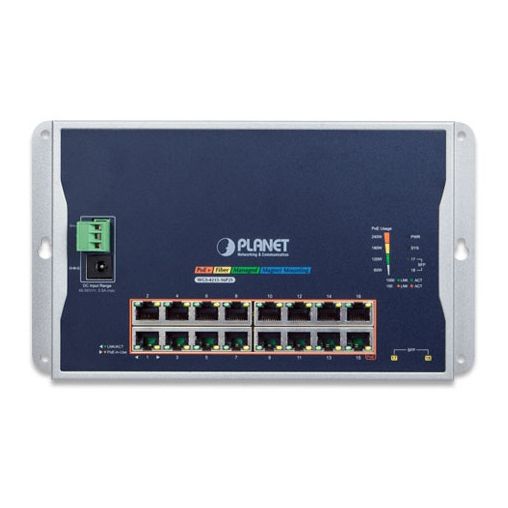

IP40 Industrial 16-Port Gbit 802.3at PoE + 2-Port SFP Wall-Mount Managed Switch
Security:
- Storm Control support
- Broadcast/Unknown unicast/Unknown multicast
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
- Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- IPv4/IPv6 Web switch management
- Telnet Command Line Interface
- SNMP v1, v2c, v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link-up and Link-down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
Lagerbestand:
Artikelnummer:
WGS-4215-16P2S
Herstellernummer:
WGS-4215-16P2S
Herstellerseite:
PLANET
EAN:
4711605283908
16x 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function

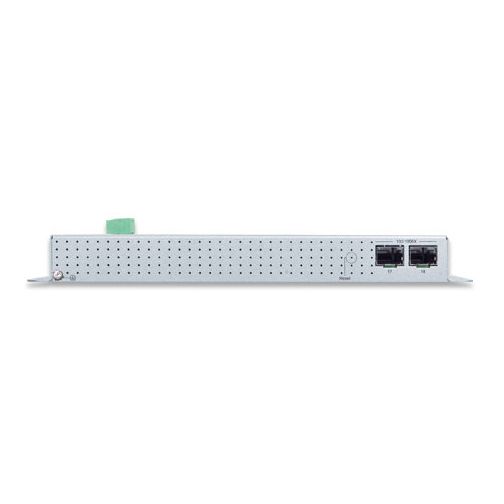

2x 100/1000BASE-X mini-GBIC/SFP slots
Power over Ethernet:
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 16 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters in standard mode and 250m in extend mode
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
- PoE schedule
Industrial Case and Installation:

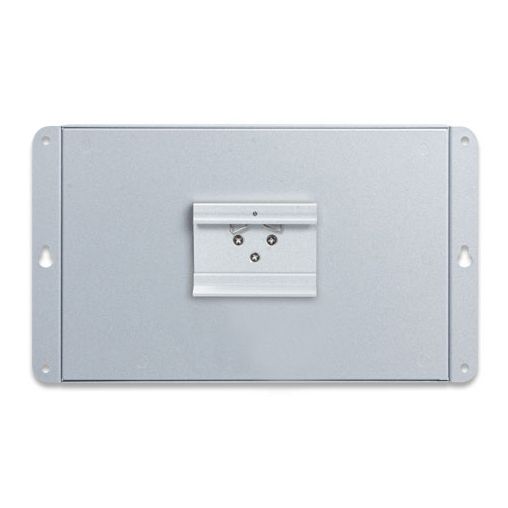

- Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
- IP40 metal case protection
- Supports -10 to 60 degrees C operating temperature
- Supports ESD 6KV DC Ethernet protection
- Dual power input design
- 48V~56V DC wide power input with polarity reverse protect function
- 3-pin terminal block or DC jack connector
Switching:
- Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Layer 2 Features:
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service:
- Ingress/Egress Rate Limit per port bandwidth control
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast:
- Supports IPv4 IGMP snooping v2, v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security:
- Storm Control support
- Broadcast/Unknown unicast/Unknown multicast
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
- Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- IPv4/IPv6 Web switch management
- Telnet Command Line Interface
- SNMP v1, v2c, v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link-up and Link-down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
Technische Daten
PoE Standard:
IEEE 802.3 af/at
Portanzahl:
16 - 23
PoE Support:
Ja
Managed:
Unmanaged
Bauform:
Hutschiene
Abmessungen:
245 x 140 x 24.4 mm
Schutzklasse:
IP40
1 GBit Ports, PoE:
16
Basic Management Schnittstelle:
Web browser, Telnet, SNMP v1, v2c
Befestigung:
Wandmontage, Magnet-Wandmontage, Hutschiene
Betriebstemperatur:
-10°C - +60°C
ESD/EMP Schutz:
Kontakt: 6 kV DC, Luft 8 kV DC
Flow Control:
IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
IGMP Snooping:
IPv4 IGMP (v2/v3) snooping, IGMP querier, Up to 256 multicast groups
Layer2 Port Mirroring:
TX/RX/both, Many-to-1 monitor
Leistungsaufnahme:
253 W
Link Aggregation:
IEEE 802.3ad LACP and static trunk, Supports 1 groups with 2 SFP ports per trunk
Luftfeuchtigkeit:
5 - 95%, nicht kondensierend
MAC Adressen Table:
8 K
MLD Snooping:
IPv6 MLD (v1/v2) Snooping, Up to 256 multicast groups
Max. Anzahl PDs Class 2:
16
Max. Anzahl PDs Class 3:
16
Max. Anzahl PDs Class 4:
9
Netzwerk Ports:
16-Port
PoE Gesamtleistung:
240 W
PoE Netzteil:
End-span
QoS:
8 mapping IDs to 8 level priority queues: Port number / 802.1p priority / DSCP/IP precedence of ...
SFP Ports:
2
SNMP MIBs:
RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RF ...
Secure Management Schnittstelle:
SSH, SSL, SNMP v3
Shared Data Buffer:
4.1 Mbits
Sicherheit Layer2:
IEEE 802.1X port-based authentication, Built-in RADIUS client to cooperate with RADIUS server, R ...
Spanning Tree Protokoll:
IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE ...
Stabilitäts Test:
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
Strom Anschluss:
2
Strom Anschluss Typ:
3-pin Terminal Block, DC Stromanschlus
Switch Architektur:
Store-and-Forward
Switch Datendurchsatz @ 64 Bytes:
26.78 Mpps
Switch Fabric:
36 Gbps / non-blocking
VLAN:
802.1Q tagged-based VLAN, Up to 256 VLAN groups, out of 4094 VLAN IDs, 802.1ad Q-in-Q tunneling ...
Zertifikate / Zulassungen:
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste:
IPv4/IPv6 IP-based ACL/MAC-based ACL, IPv4/IPv6 IP-based ACE/MAC-based ACE
