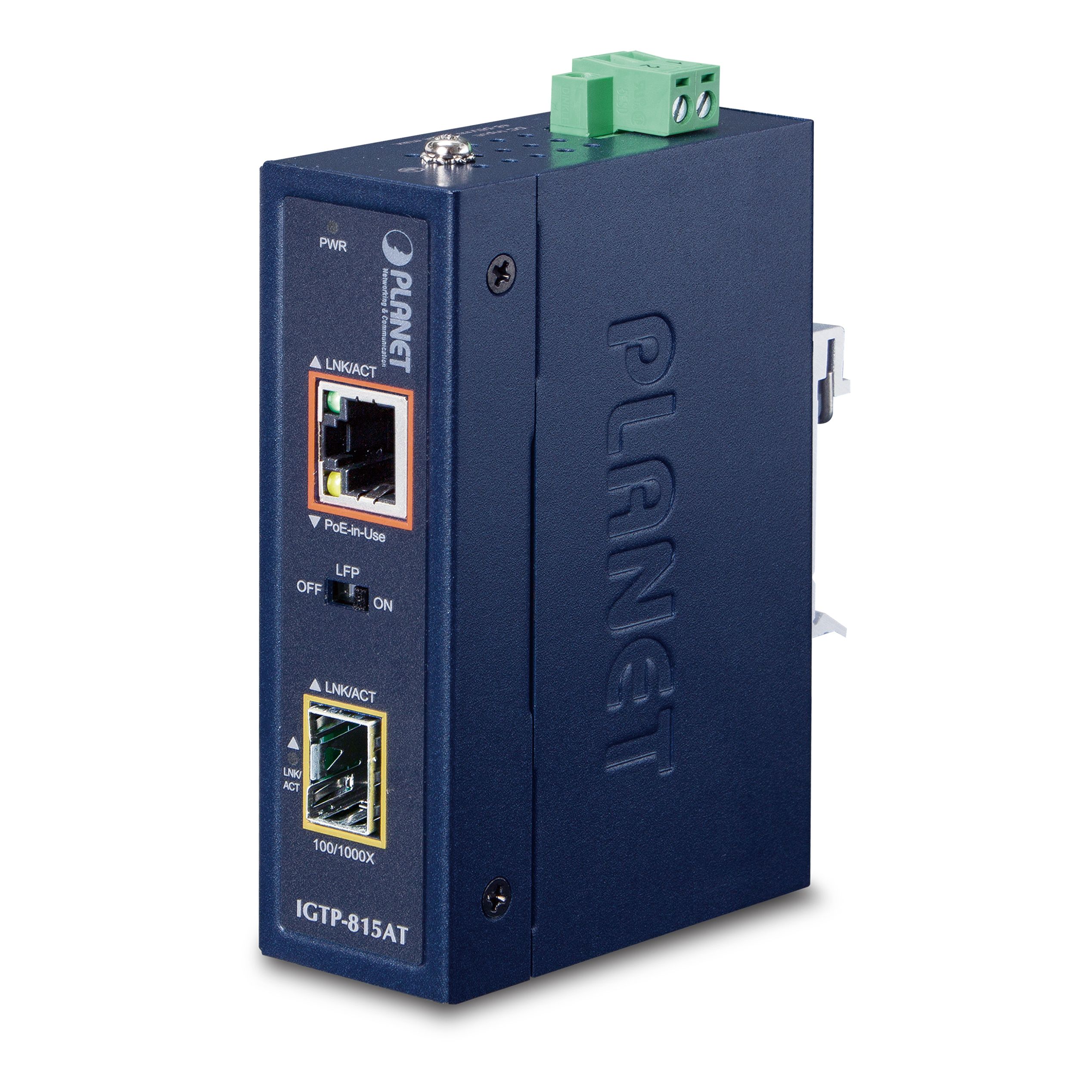

Industrial Compact 100/1000Base-X to 10/100/1000BASE-T Media Converter
- 1-port 10/100/1000BASE-T RJ45
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Layer 2 Features:
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Hardware:
- DIP switch: LFP (Link Fault Passthrough) mode selection
Industrial Case and Installation:
- IP30 metal case
- DIN-rail and wall-mount designs
- 48V~56V DC power with reverse polarity protection
- Connective removable terminal block
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Lagerbestand:
- 1-port 10/100/1000BASE-T RJ45
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Layer 2 Features:
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Hardware:
- DIP switch: LFP (Link Fault Passthrough) mode selection
Industrial Case and Installation:
- IP30 metal case
- DIN-rail and wall-mount designs
- 48V~56V DC power with reverse polarity protection
- Connective removable terminal block
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Technische Daten
Hauptgeschwindigkeit:
1 Gbit Kupfer
Industrial:
Ja
Schnittstellen:
Gigabit Ethernet / SFP
Abmessungen:
30 x 70 x 104 mm
Schutzklasse:
IP30
1 GBit Ports:
1
Befestigung:
Hutschiene, Wandmontage
Betriebstemperatur:
-40°C - +75°C
DIP Switch Funktion:
Link Fault Passthrough Enable/Disable
ESD/EMP Schutz:
6KV DC
Flow Control:
Back pressure for half duplex mode, IEEE 802.3x pause frame for full duplex mode
Gehäuse Material:
Metall
Luftfeuchtigkeit:
5 - 90%, nicht kondensierend
Maximum Frame Size:
9K
SFP 100/1000Mbps Ports:
1
Stabilitäts Test:
IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
Standards & Protokolle:
FCC Part 15 Class A, CE
Stromversorgung:
9 - 48V DC, 24V AC
